In stock
Server Chassis
CHS-SRV-T7-410T

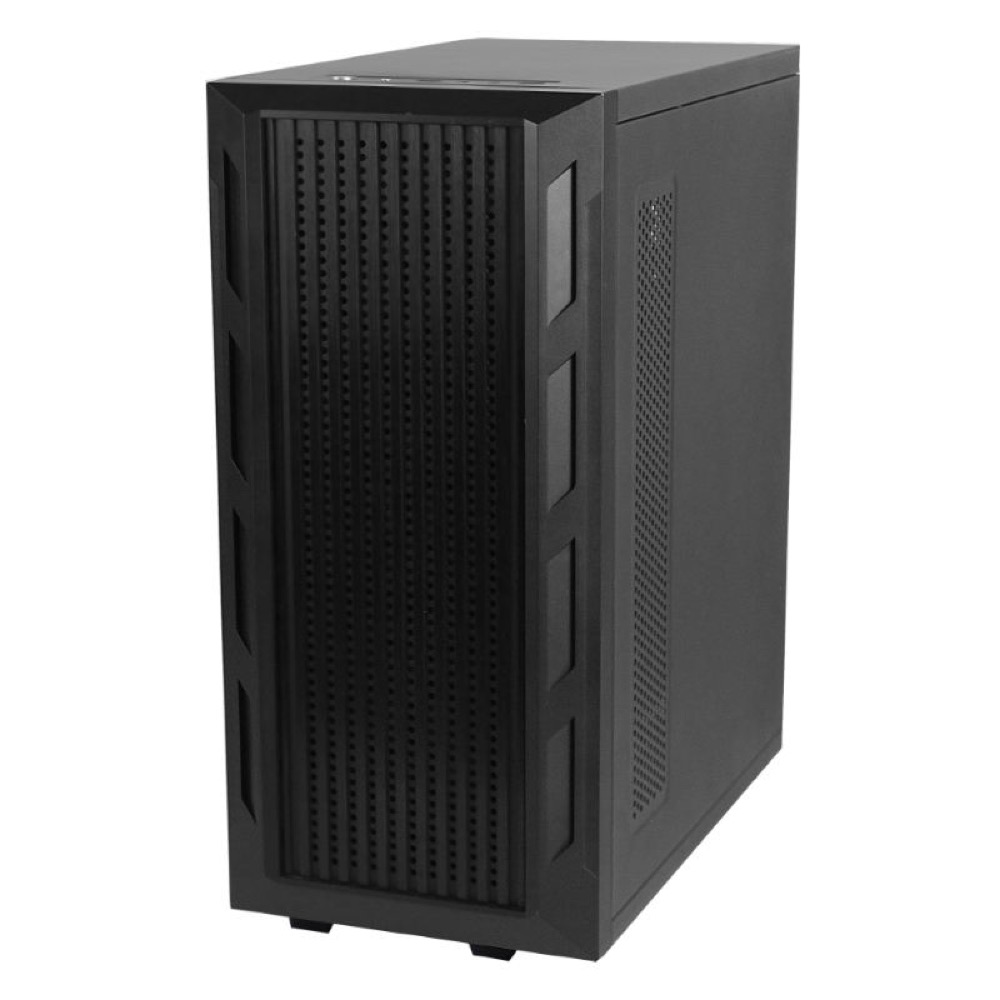

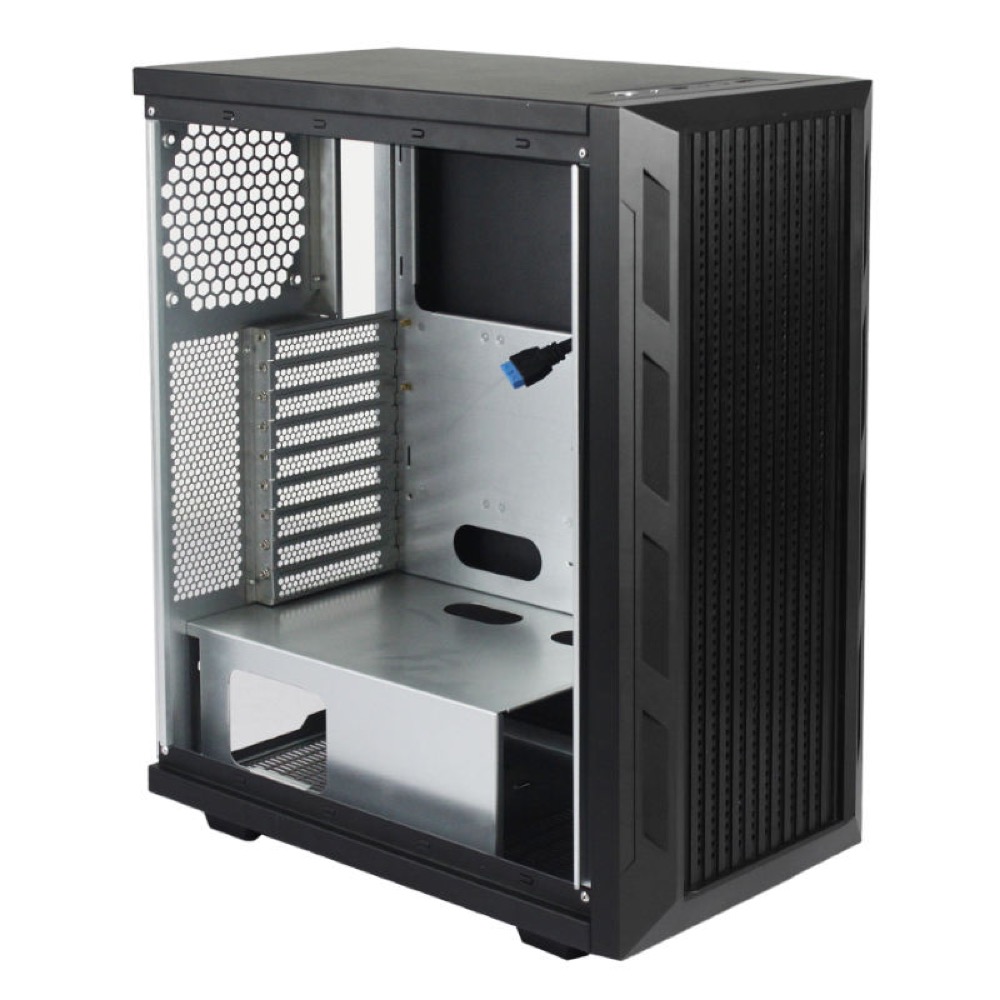

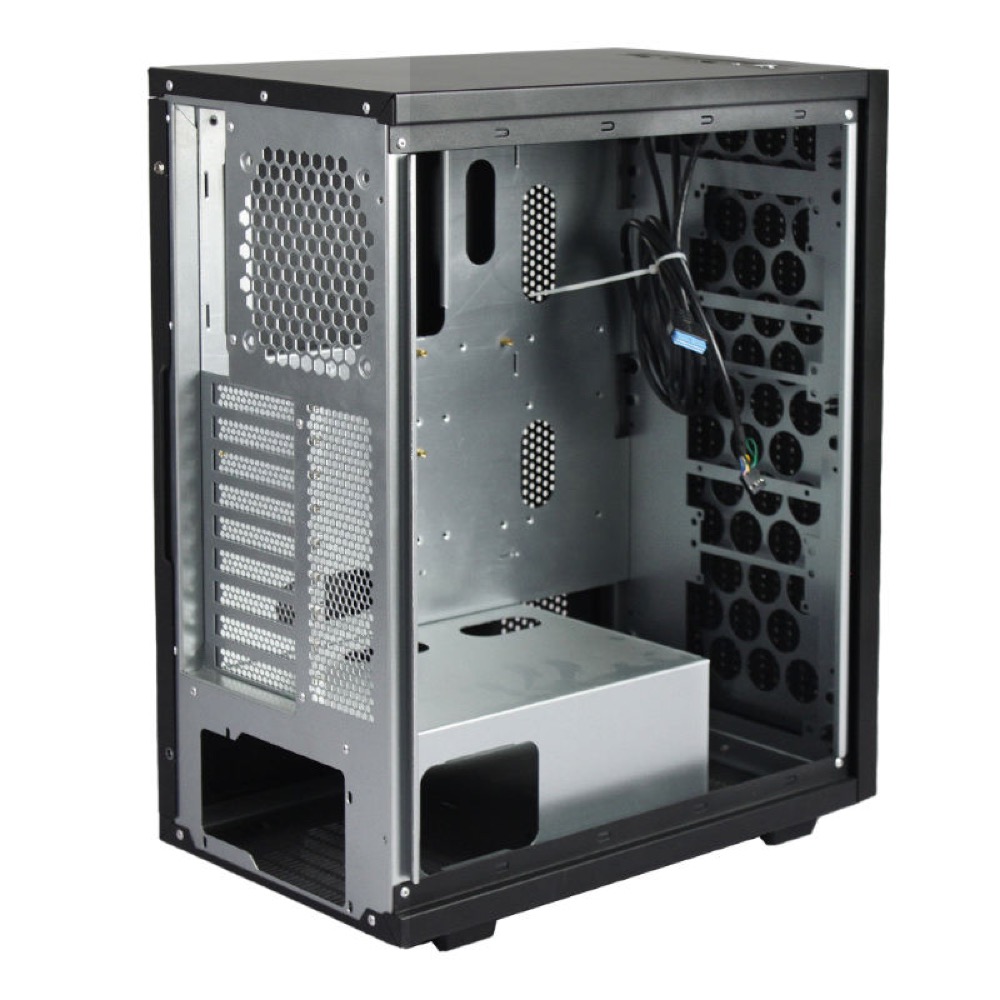

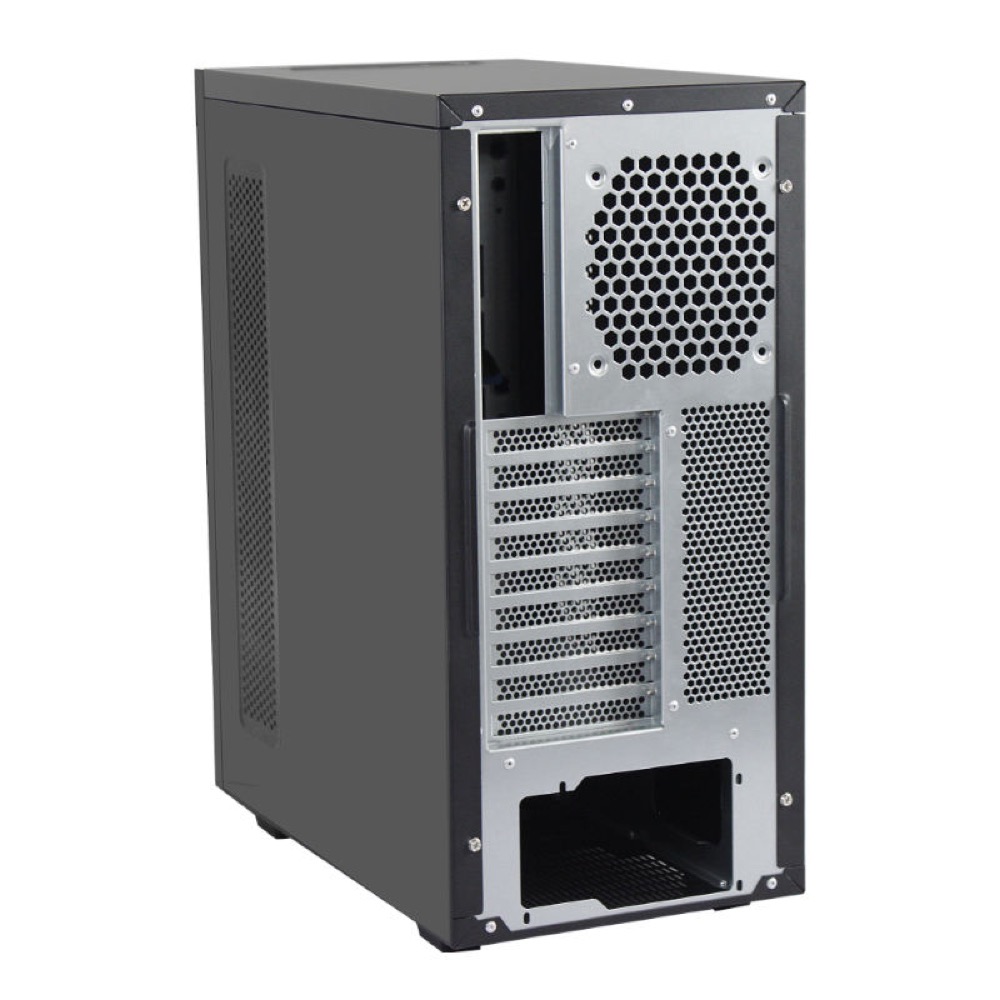

T7-410T ATX Mid-Tower Desktop Chassis
Product formEmpty chassis
FamilyDesktop / Tower Chassis
Dimension229(W) × 494(D) × 410(H) mm
MountingDesktop
MotherboardATX
Drive Bays3 bays
T7-410T ATX mid-tower desktop chassis for desktop and industrial computer applications. The supplier lists aluminum-alloy and steel construction, a side-panel window, dimensions of 229(W) × 494(D) × 410(H) mm, ATX motherboard support up to 305 × 345 mm, ATX PSU support, two 2.5-inch plus one 3.5-inch drive positions, nine PCIe slots, one 12025 fan, CPU-cooler clearance up to 180 mm, water-cooling adapter support, and front USB 3.0/power controls.
Specifications
Identity
| Model Number | CHS-SRV-T7-410T |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty ATX mid-tower chassis with one 120 mm cooling fan and side-panel window. ATX PSU support is provided; PSU, motherboard, CPU, memory, storage, and graphics cards are not included. |
| Use Case / Application | Desktop PC, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Aluminum alloy and steel |
| Finish / Color | Black with side-panel window |
| Width | 229 mm |
| Height | 410 mm |
| Depth | 494 mm |
| Weight | 11.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to 305 × 345 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 1 × 3.5-inch HDD, 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 9 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
| Maximum CPU Cooler Height | Up to 180 mm |
| Liquid Cooling Support | Yes |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power on/off |
| Custom I/O Details | Supplier lists a black side-panel-window chassis, two USB 3.0 ports, power on/off, one included 12025 fan, nine PCIe slots, ATX PSU support, two 2.5-inch plus one 3.5-inch drive positions, CPU-cooler clearance up to 180 mm, and a water-cooling adapter. Rear I/O and exact radiator size are not specified. |
