Server Chassis
CHS-SRV-B43S

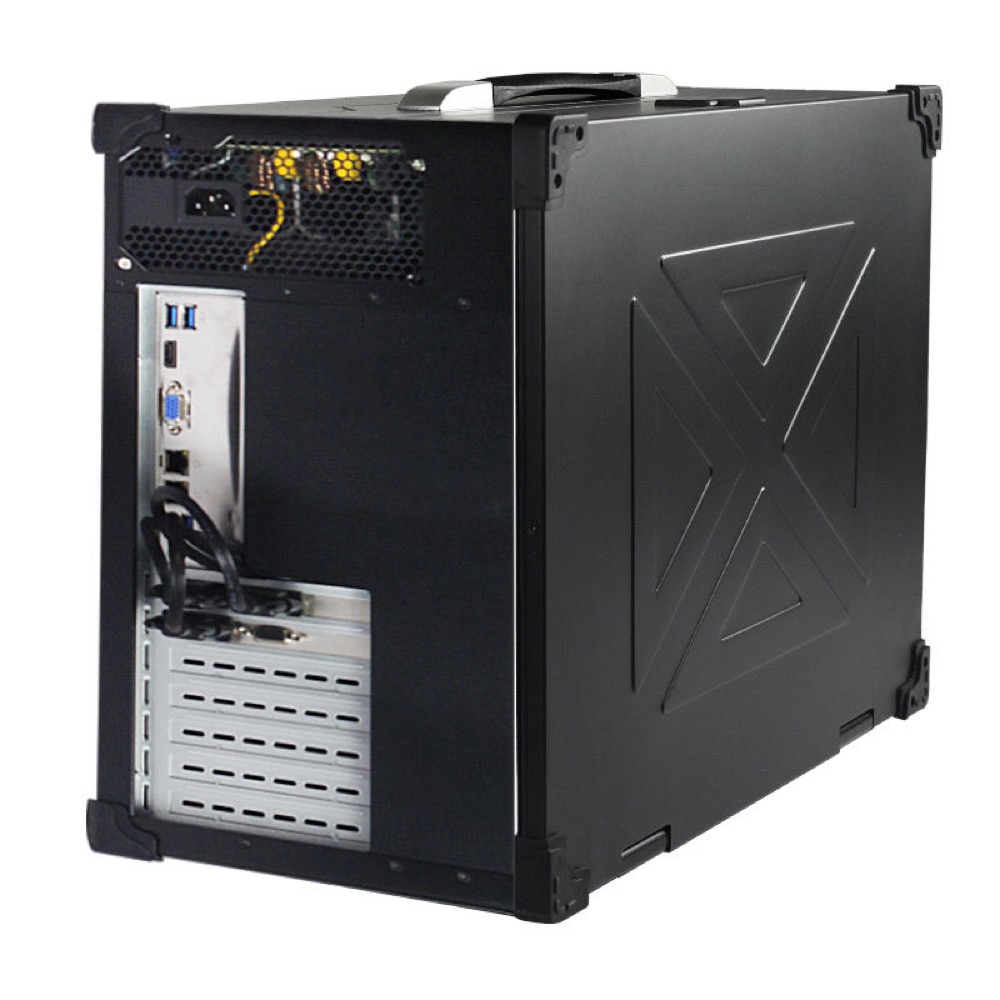

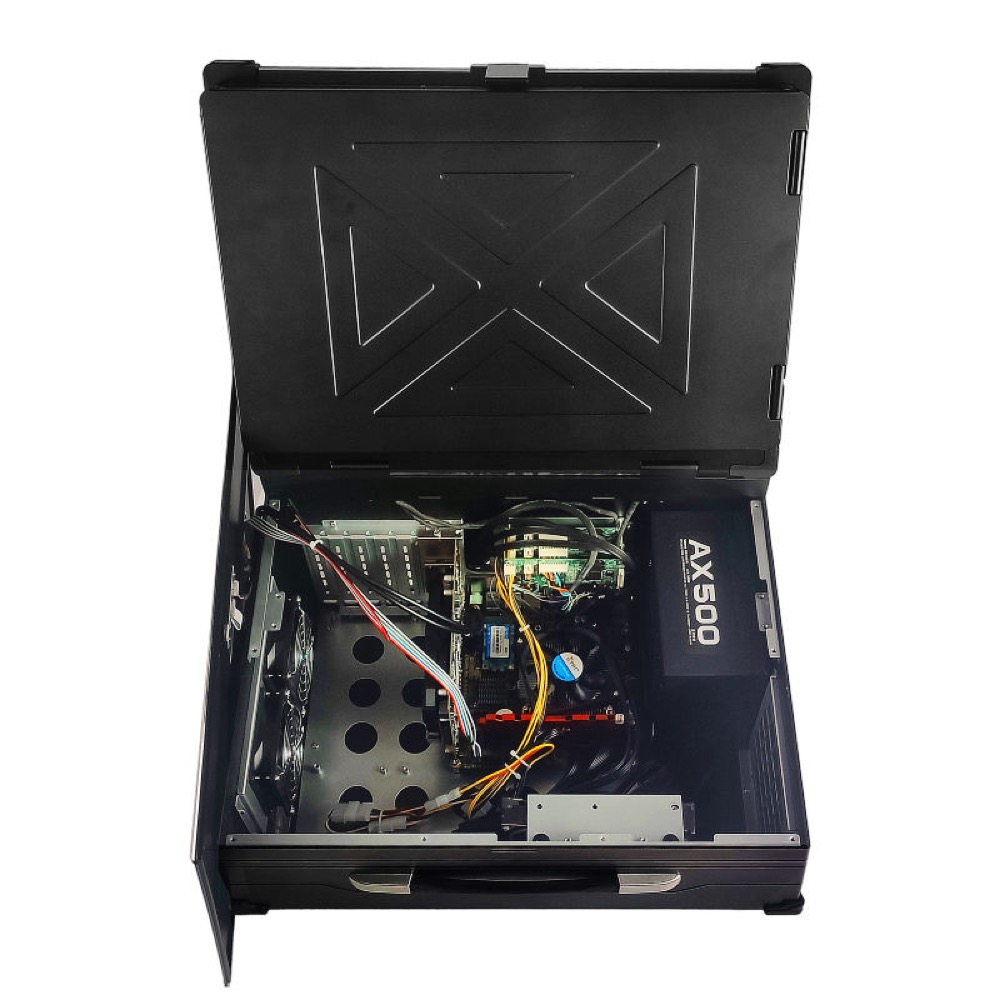

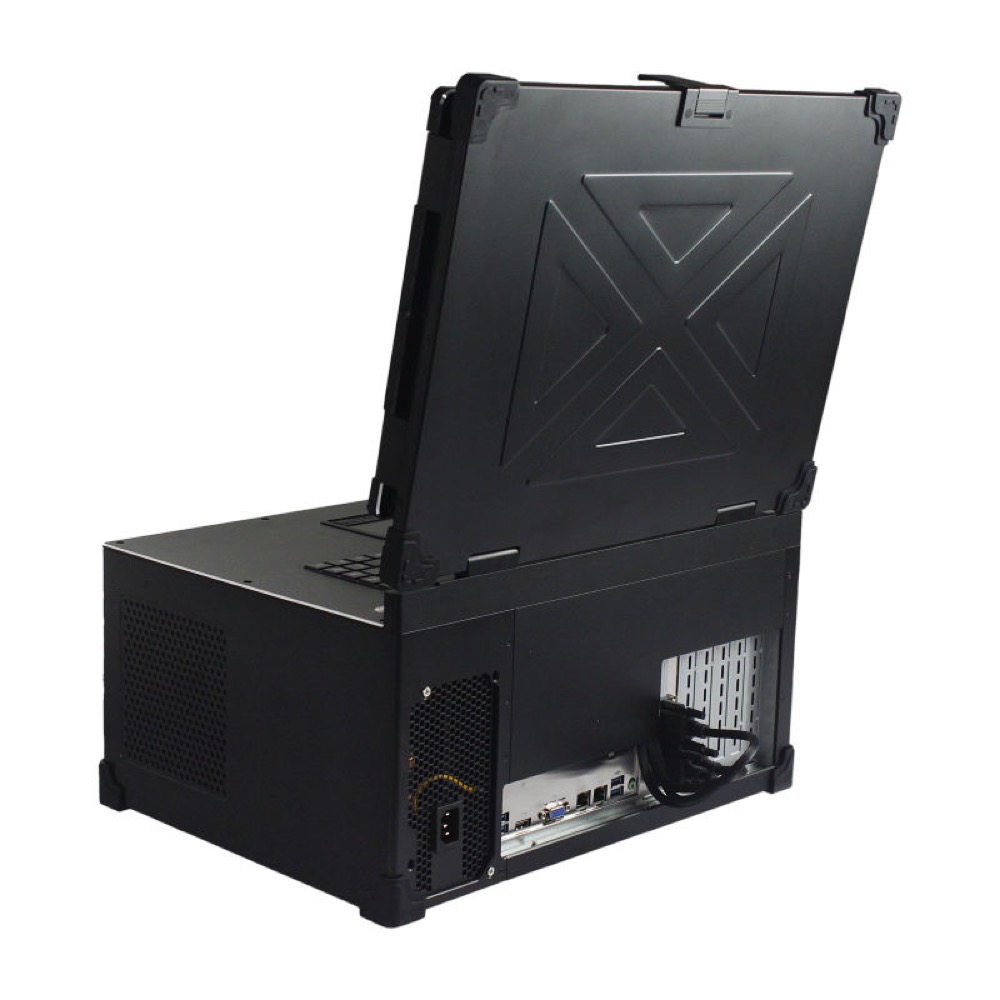

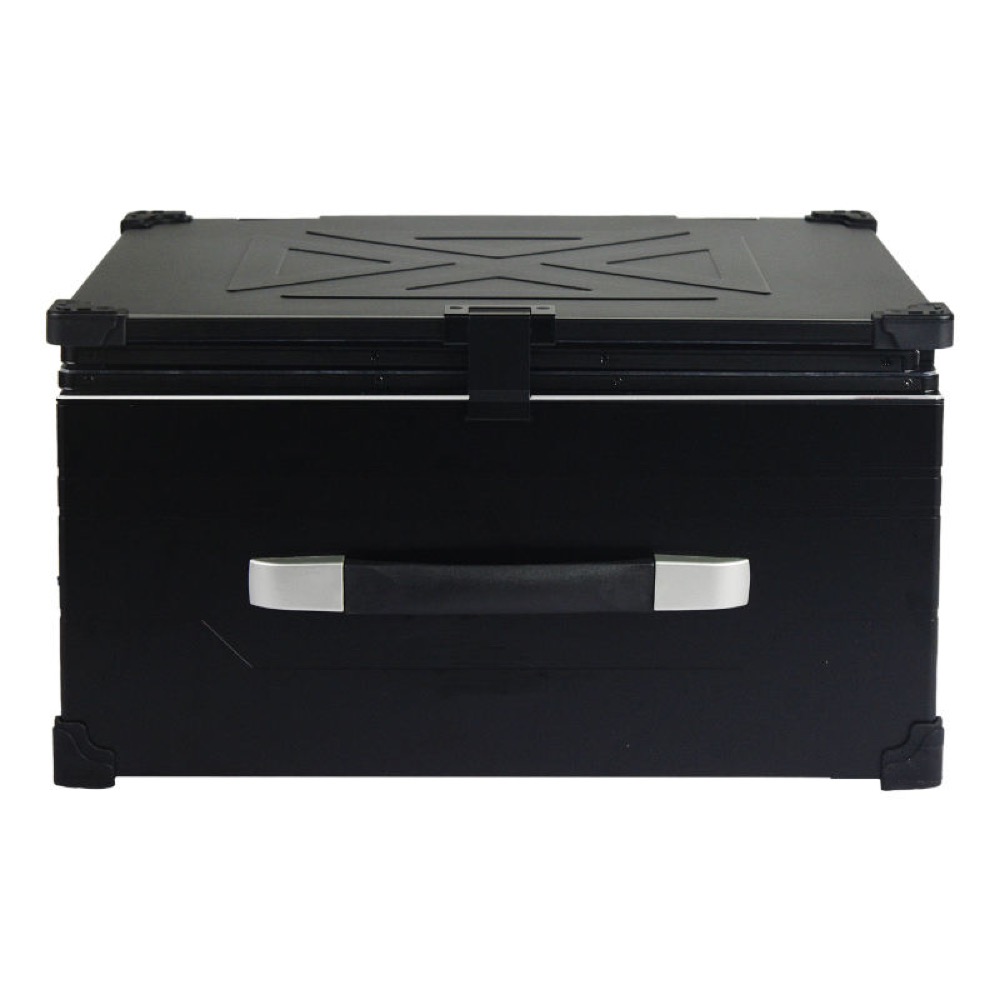

B43S Triple-LCD Industrial Tablet Chassis
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension430(W) × 320(D) × 234(H) mm
MountingDesktop
MotherboardATX
Drive Bays2 bays

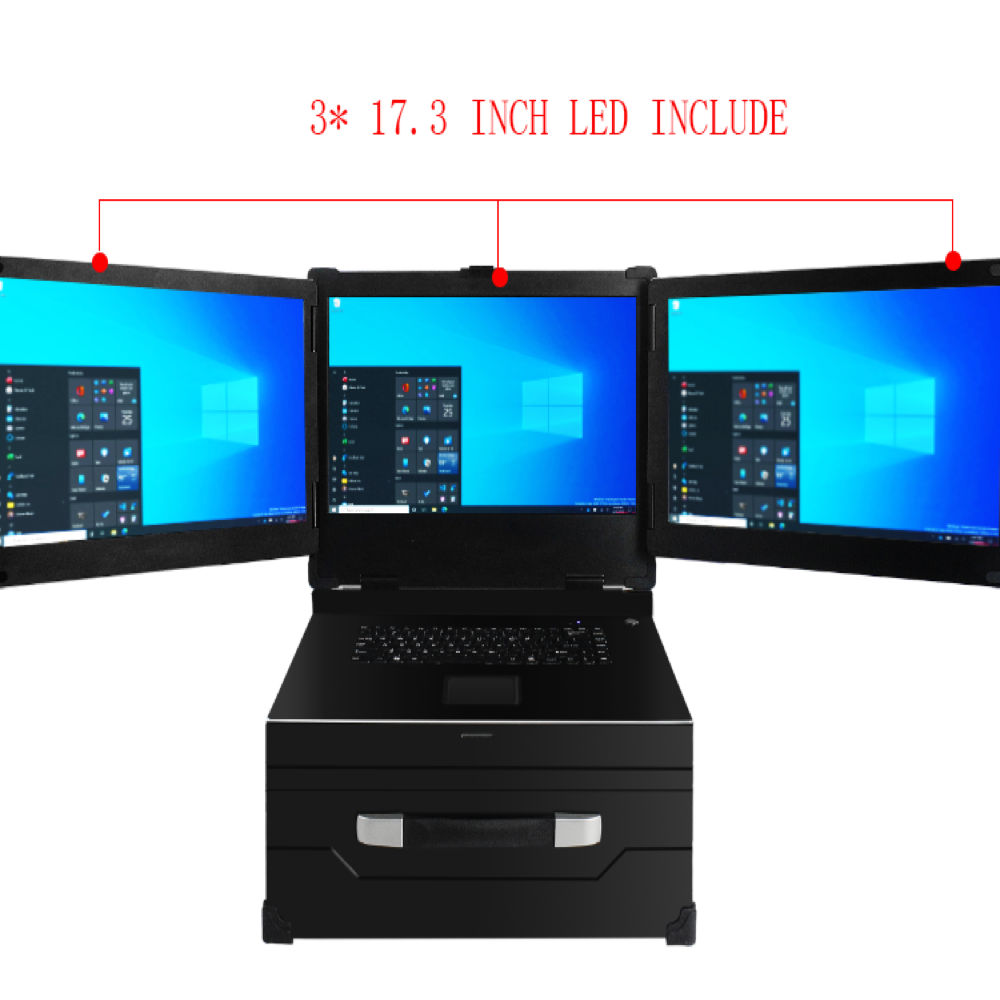

B43S industrial tablet/display chassis for industrial and commercial systems. The supplier lists three integrated 17.3-inch 1920 × 1080 LCD panels, ATX motherboard support, ATX PSU support, one 3.5-inch and one 2.5-inch drive position, seven PCIe positions, two 80 × 80 × 25 mm fans, optional 120 mm water cooling, GPU clearance up to 230 mm, and CPU cooler clearance up to 160 mm. Supplier-listed dimensions are 430 × 320 × 234 mm.
Specifications
Identity
| Model Number | CHS-SRV-B43S |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Industrial chassis with three integrated 17.3-inch LCD panels and two 8025 cooling fans. ATX PSU support is provided; motherboard, CPU, memory, storage, and graphics card are not included. |
| Use Case / Application | Industrial PC, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Not specified by supplier |
| Width | 430 mm |
| Height | 234 mm |
| Depth | 320 mm |
| Weight | 17 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX up to 12 × 9.6 inches |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe expansion positions |
| Maximum GPU Length | 230 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | 160 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 17.3 in |
| LCD Resolution | 1920 × 1080 per panel |
| Display Position | Integrated display panels |
I/O and Connectivity
| Front I/O | Three integrated LCD panels |
| Custom I/O Details | Supplier lists three 17.3-inch 1920 × 1080 LCD panels, two included 8025 fans, optional 120 mm water cooling, GPU length up to 230 mm, CPU cooler height up to 160 mm, seven PCIe positions, one 3.5-inch HDD position, one 2.5-inch HDD position, and ATX PSU support. Front/rear external I/O ports are not specified. |
