Server Chassis
CHS-SRV-G1630
G1630 Rugged Portable Industrial Computer with 16.1-inch Display
Product formComplete system
FamilyPanel PC / Display Chassis

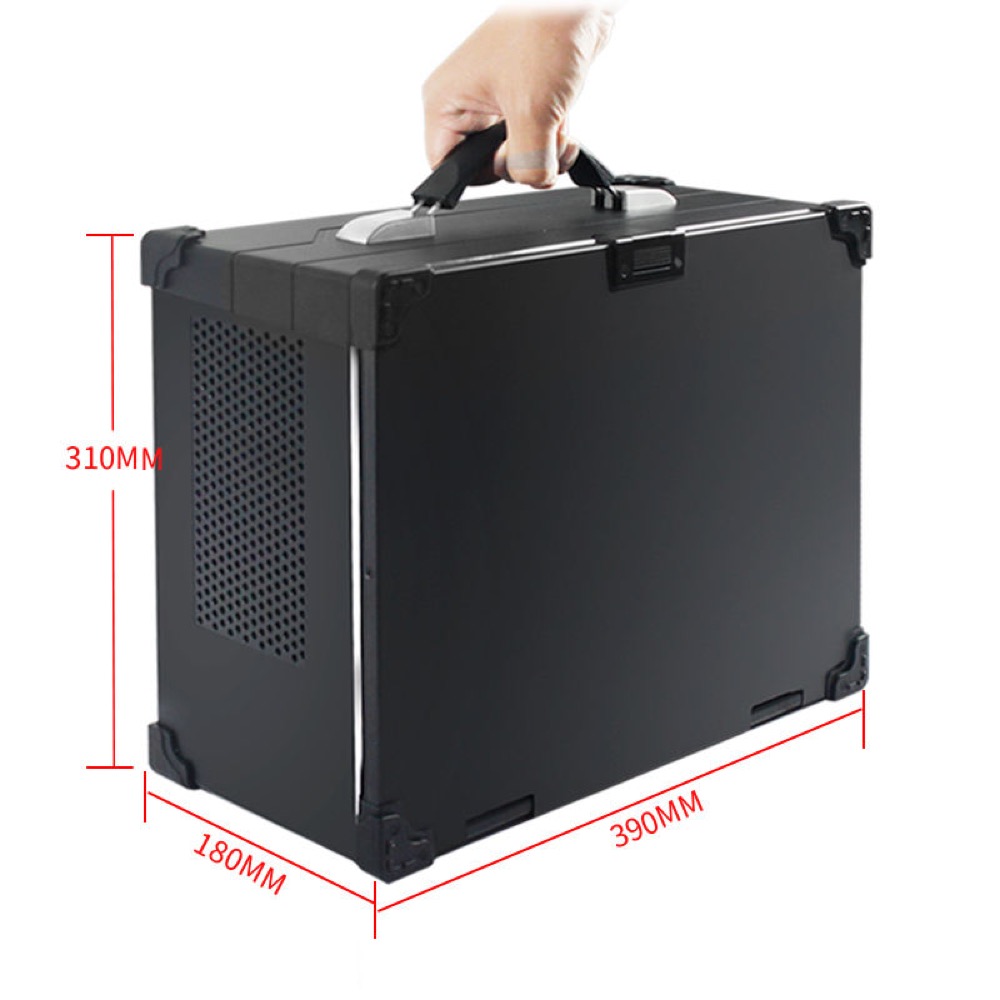

Dimension390(W) × 310(D) × 180(H) mm
MountingDesktop
MotherboardITX
Drive Bays1 bays

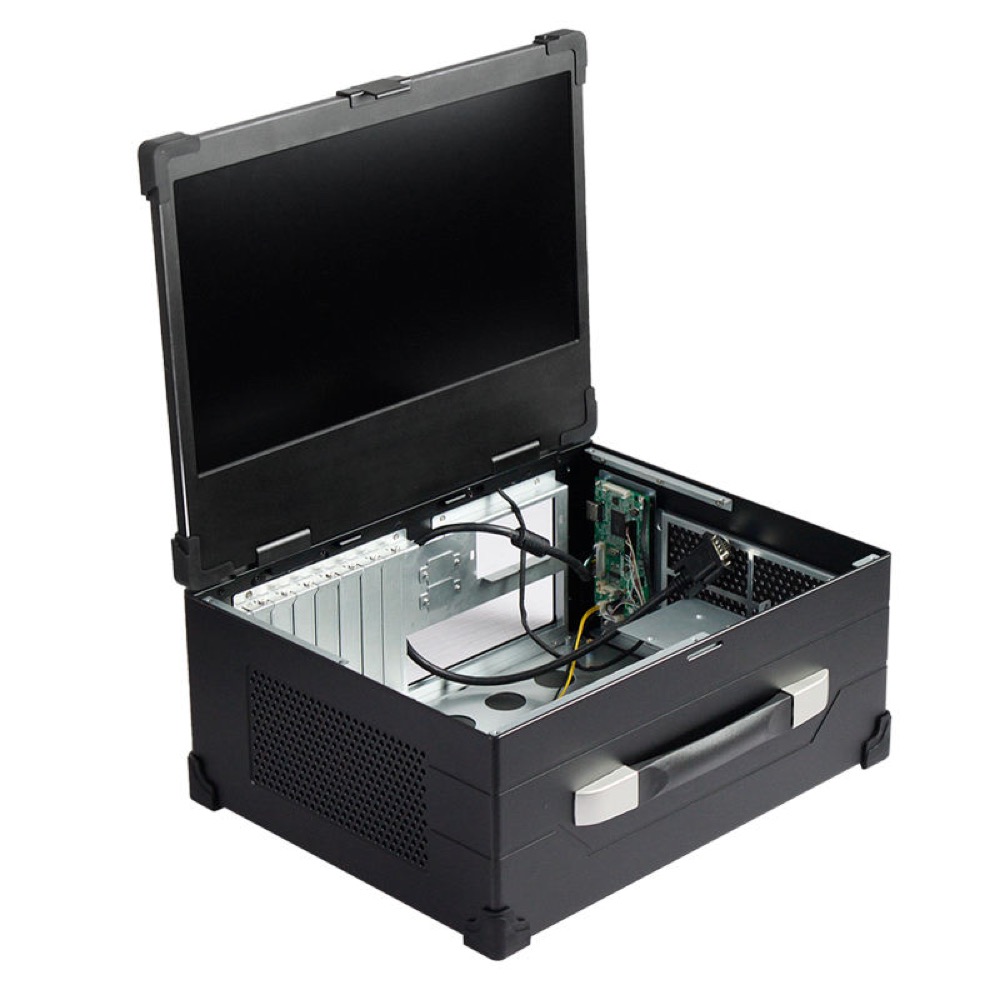

G1630 complete portable industrial computer built in a rugged panel-computer chassis. The supplier lists a 390(W) × 310(D) × 180(H) mm enclosure with a B75 ITX motherboard, Intel G1630 CPU, 4 GB DDR3 RAM, 500 GB 2.5-inch HDD, 300 W power supply, integrated 16.1-inch 1920 × 1080 LCD, keyboard/touch-mouse controls, two included 8025 fans, and seven full-height PCIe slots. G1840, Intel G3900, H18/B365 motherboard, RAM, SSD, and power options are listed as optional variants. This is a complete-system configuration rather than an empty chassis.
Specifications
Identity
| Model Number | CHS-SRV-G1630 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Portable industrial chassis with integrated 16.1-inch LCD, B75 ITX motherboard, Intel G1630 CPU, 4 GB DDR3 RAM, 500 GB 2.5-inch HDD, 300 W PSU, keyboard, touch mouse, HDD activity indicator, reset control, two 8025 cooling fans, and seven full-height PCIe slots. |
| Use Case / Application | Industrial PC, Panel PC, Portable Computer |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Aluminum alloy highlighted in listing; SGCC in detailed specification |
| Width | 390 mm |
| Height | 180 mm |
| Depth | 310 mm |
| Weight | 8.1 kg gross / 6.3 kg net in detailed specification; 10.0 kg gross in key packaging attributes |
Motherboard and Processor
| Maximum Motherboard Dimensions | B75 ITX motherboard included; H18/B365 option listed |
Power Supply
| PSU Support | Flex 300W, 1U 300W |
| PSU Included | Yes |
| PSU Count | 1 units |
| PSU Wattage | 300 W |
Storage and Hot-swap
| 3.5-inch Drive Bays | 0 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 1 × 2.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support

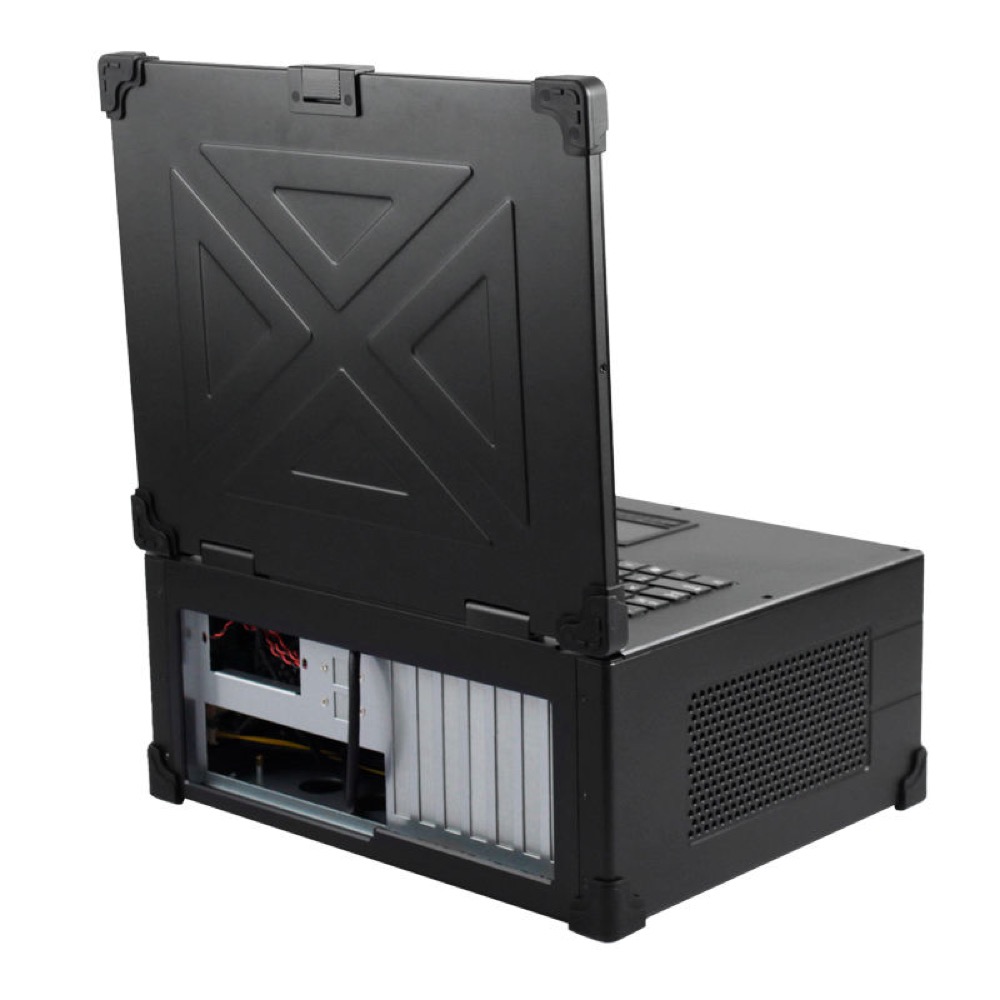

| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height PCIe slots; 2 × 2-port support references |
Cooling and Thermal

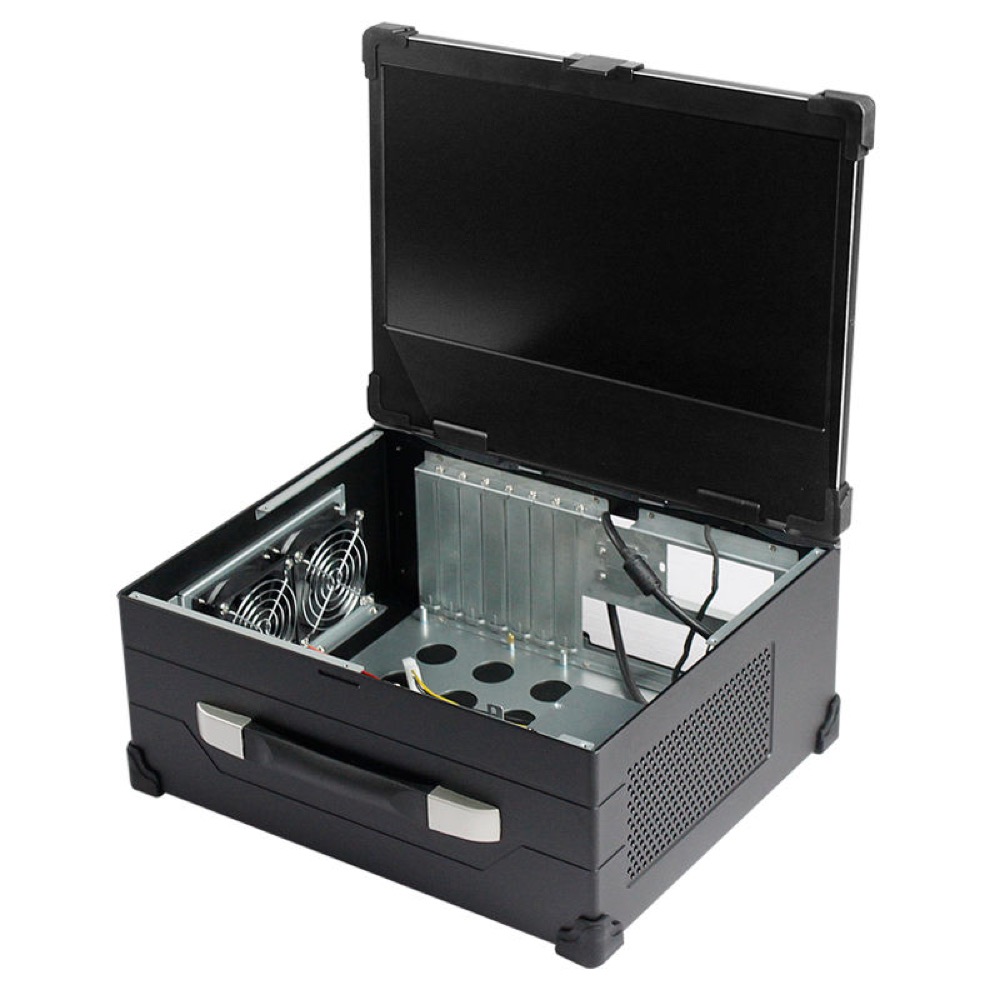

| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | Up to 65 mm in detailed specification; 85 mm in key attributes |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 16.1 in |
| LCD Resolution | 1920 × 1080 |
| Display Position | Integrated display |
I/O and Connectivity
| Front I/O | Integrated 16.1-inch LCD, Keyboard, Touch mouse, HDD activity indicator, Reset switch |
| Custom I/O Details | Complete system includes an integrated 16.1-inch 1920 × 1080 LCD, keyboard, touch mouse, HDD indicator, reset control, four USB 2.0 or 3.0 ports, and seven full-height PCIe slots. The supplier key attributes state three PCIe slots, one 8025 fan, and 85 mm CPU-cooler clearance, while the detailed specification states seven full-height PCIe slots, two 8025 fans, and 65 mm clearance; both views are retained for confirmation. |
| USB Ports | 4 × USB 2.0 or USB 3.0; exact generation not specified |
Industrial and Portable Characteristics
| Portable / Mobile | Yes |
Complete System Configuration
| Included CPU / Processor | Intel G1630 included; G1840 / Intel G3900 optional |
| Included Memory | 4 GB DDR3 RAM included |
| Included Storage | 500 GB 2.5-inch HDD included |
| Operating System | Windows 7 / Windows 8 / Windows 10 / Linux listed as supported options |
