In stock
Server Chassis
CHS-SRV-B21
B21 16.1-Inch LCD ITX Industrial Chassis
Product formEmpty chassis
FamilyPanel PC / Display Chassis

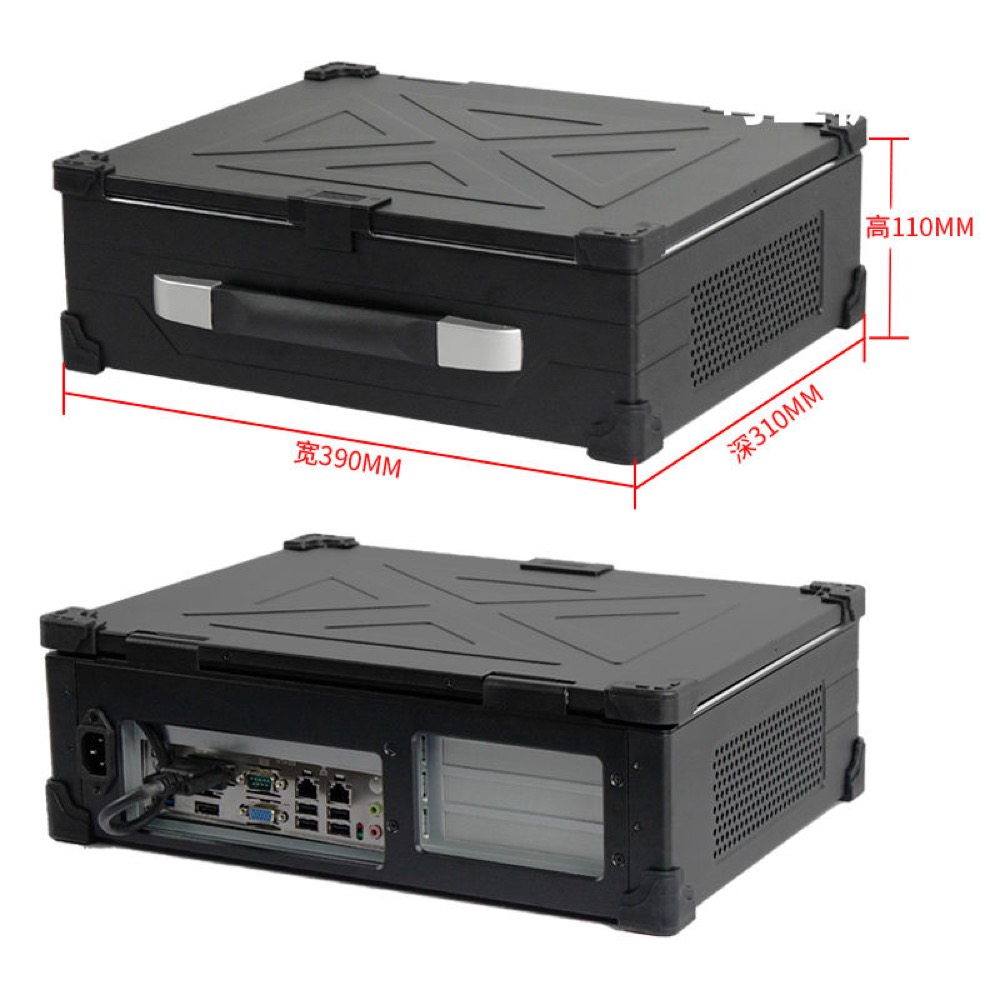

Dimension390(W) × 310(D) × 110(H) mm
MountingDesktop
MotherboardITX
Drive Bays1 bays

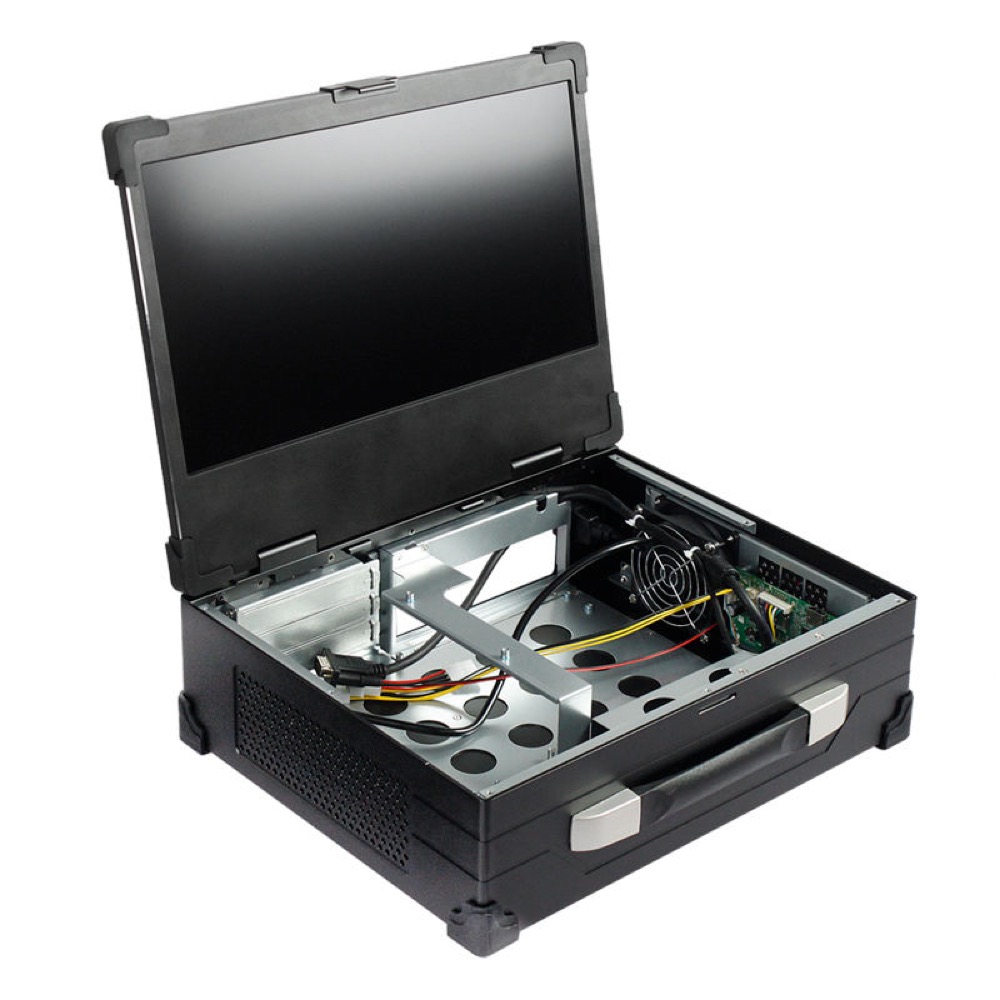

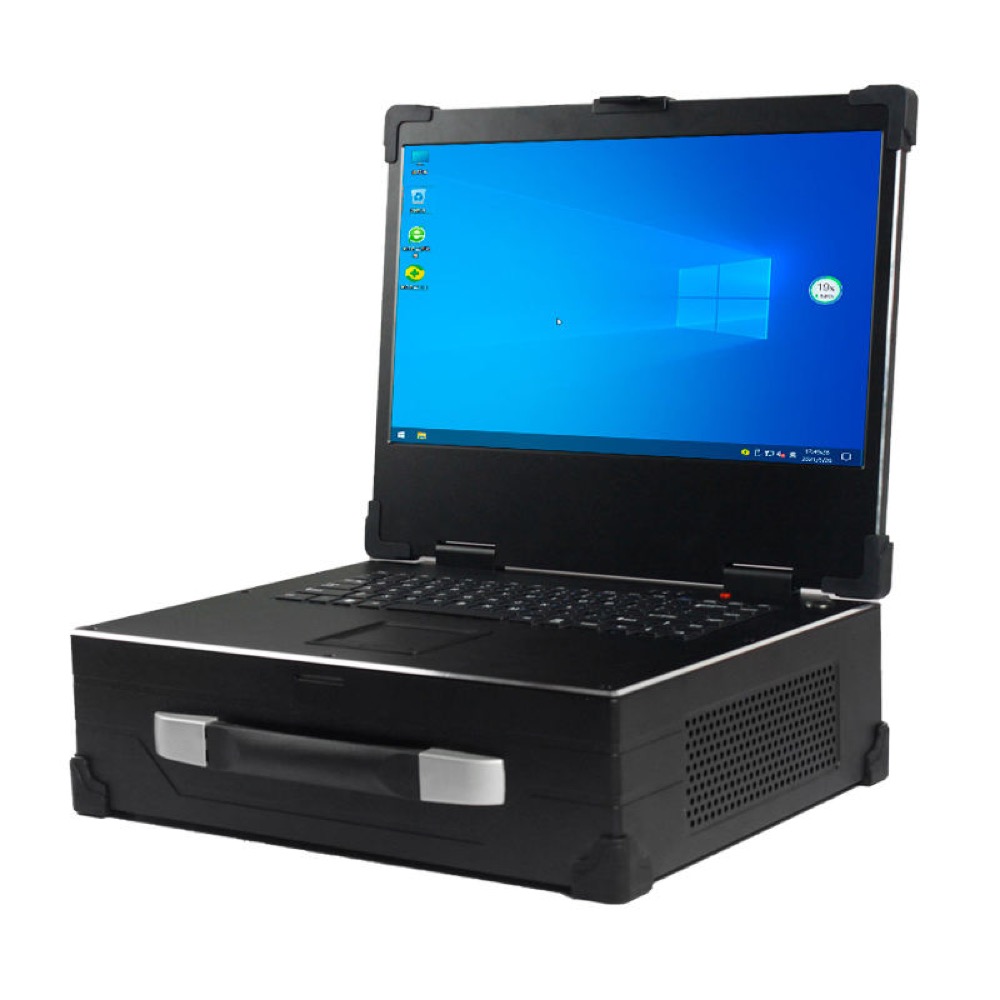

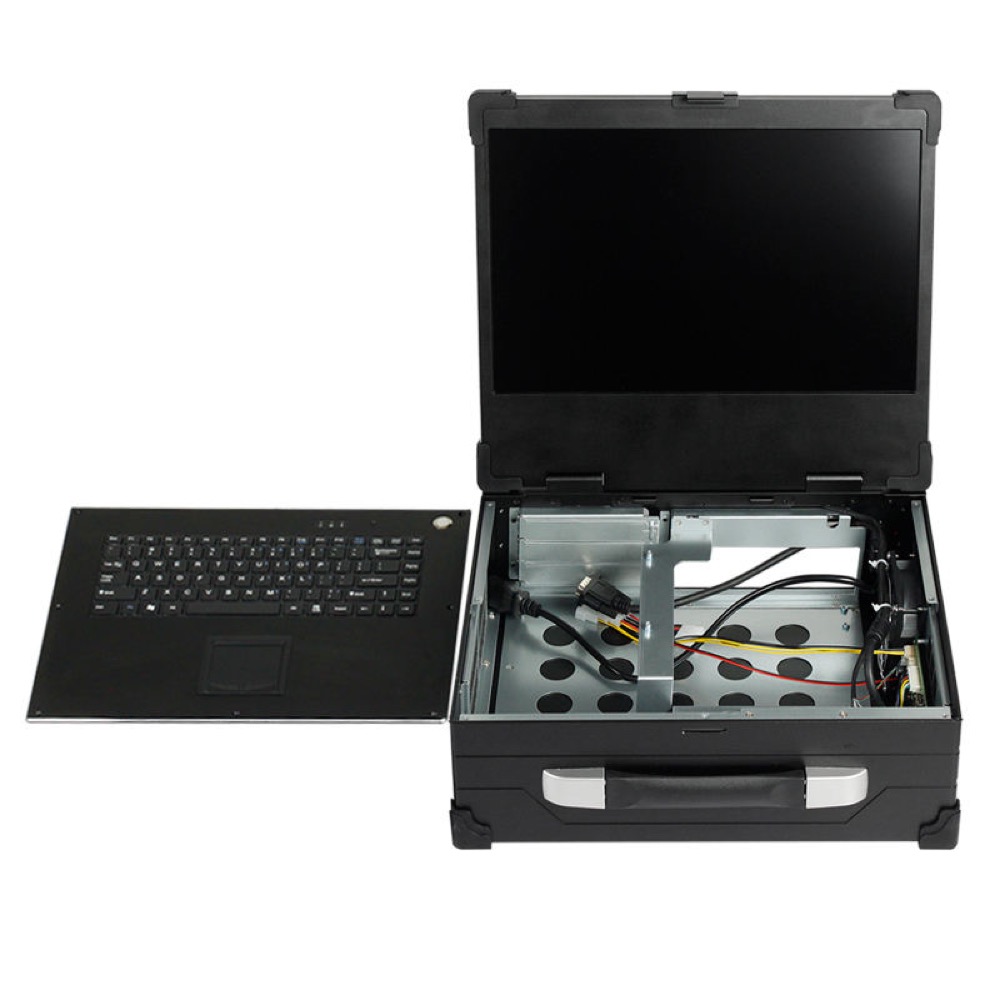

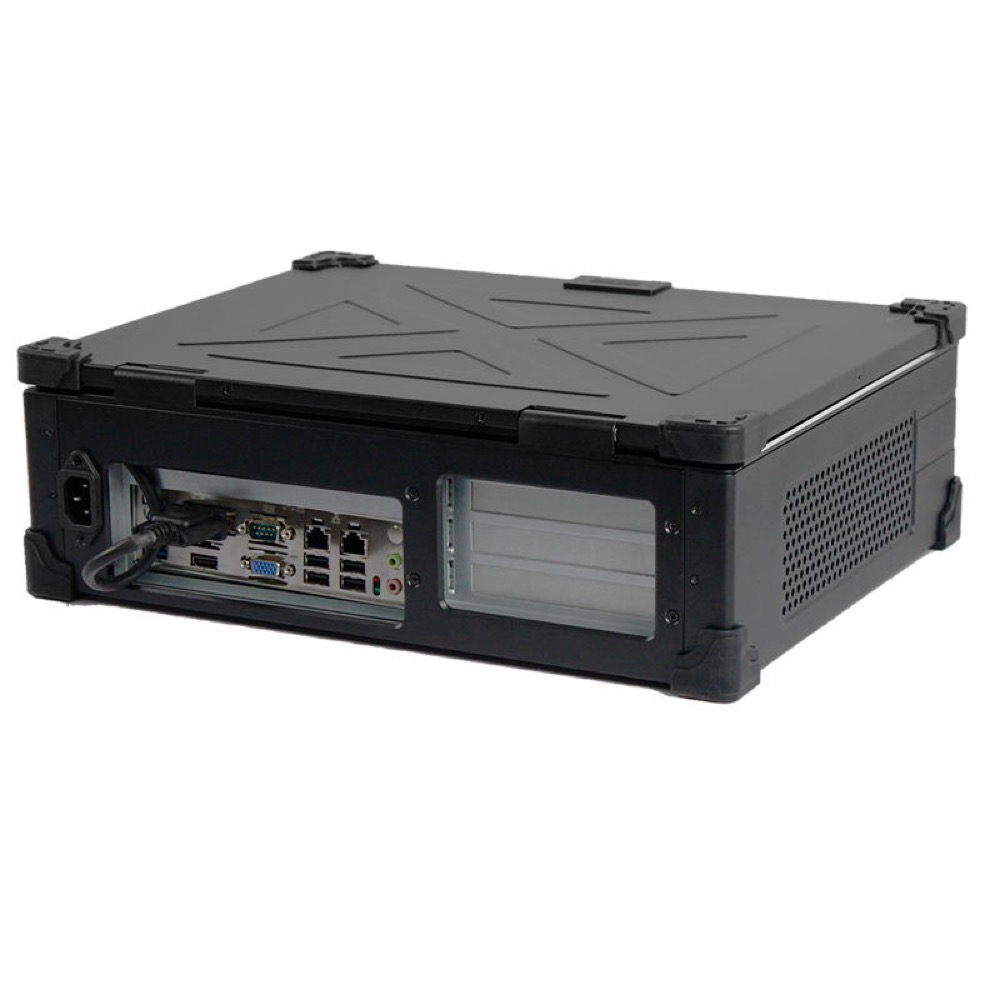

Industrial computer chassis with an integrated 16.1-inch 1920×1080 LCD display. The supplier lists ITX motherboard support, FLEX PSU support, one 2.5-inch HDD position, three PCIe slots, one 8025 cooling fan, and support for CPU coolers up to 85 mm high. CPU and motherboard are not included in the chassis configuration; RAM and a complete-machine configuration are optional by supplier inquiry. Supplier-listed dimensions are 390(W) × 310(D) × 110(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-B21 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty ITX chassis with integrated 16.1-inch LCD display and one 8025 cooling fan. FLEX PSU support is provided; CPU and motherboard are not included. |
| Use Case / Application | Industrial PC, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Width | 390 mm |
| Height | 110 mm |
| Depth | 310 mm |
| Weight | 8.23 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | ITX; exact board dimensions not specified by supplier |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 0 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 3 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
| Maximum CPU Cooler Height | 85 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 16.1 in |
| LCD Resolution | 1920 × 1080 |
| Display Position | Integrated display |
I/O and Connectivity
| Front I/O | LCD display |
| Custom I/O Details | Integrated 16.1-inch LCD display. Supplier lists three PCIe slots; front and rear external I/O ports are not specified on the listing. |
