In stock
Server Chassis
CHS-SRV-S38
Stock Aluminum Mini ITX Case Industrial PC & HTPC Mini ITX Case
Product formEmpty chassis
FamilyIndustrial / Embedded Chassis
Dimension330(W) × 406(D) × 196.5(H) mm
MountingDesktop
MotherboardMicro-ATX
Drive Bays1 bays
Compact desktop industrial chassis for Mini-ITX/HTPC-style systems. Supplier-listed configuration: SGCC 1.2 mm flower-free zinc-plated steel, support for a 12 × 9.6-inch motherboard (305 × 245 mm), ATX PSU support, one 3.5-inch HDD position, one CD-ROM position and two floppy-drive positions, one 12025 cooling fan, one I/O expansion slot plus seven full-height straight PCI slots, and front-panel power, restart, power-indicator, HDD-indicator, PS/2, and two USB 2.0 connections. Dimensions: 330(W) × 406(D) × 196.5(H) mm. Supplier lists CE/RoHS certification and 7.261 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-S38 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; one 12025 cooling fan. ATX PSU support is provided; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Industrial PC, Embedded / Compact PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |

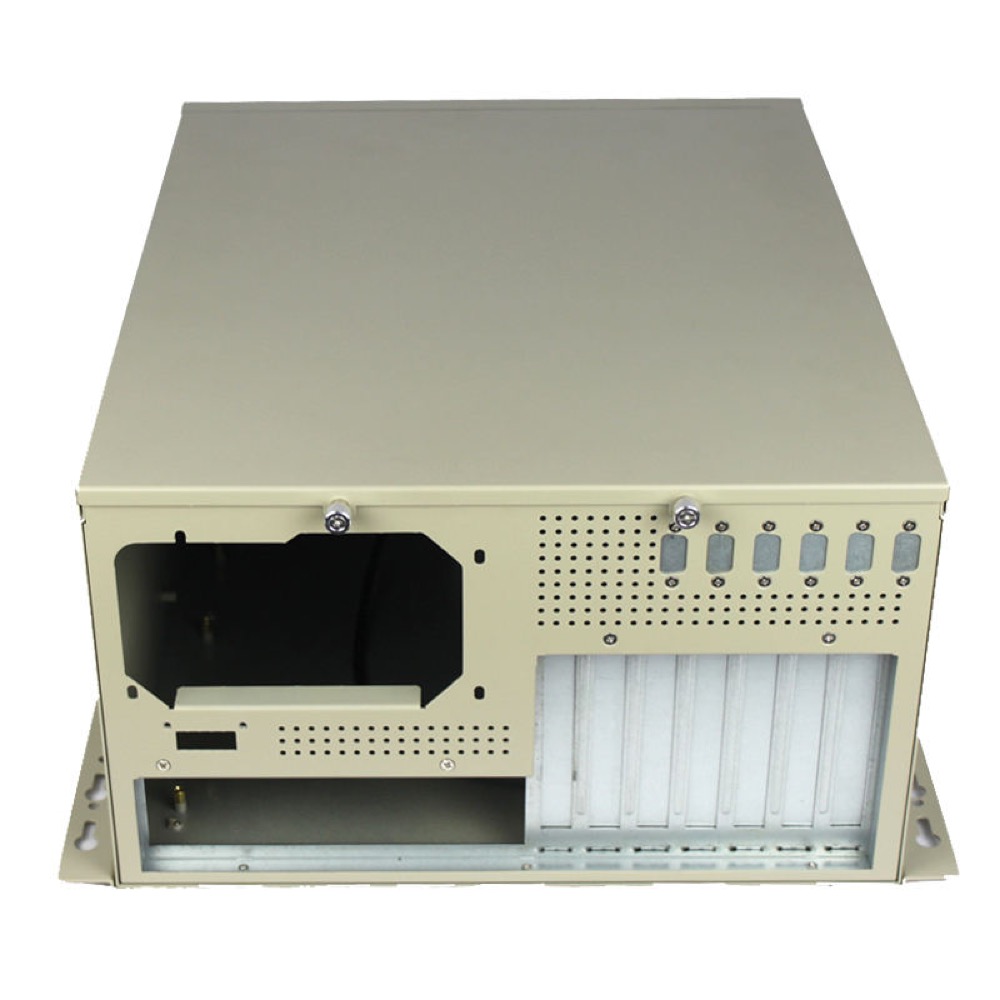

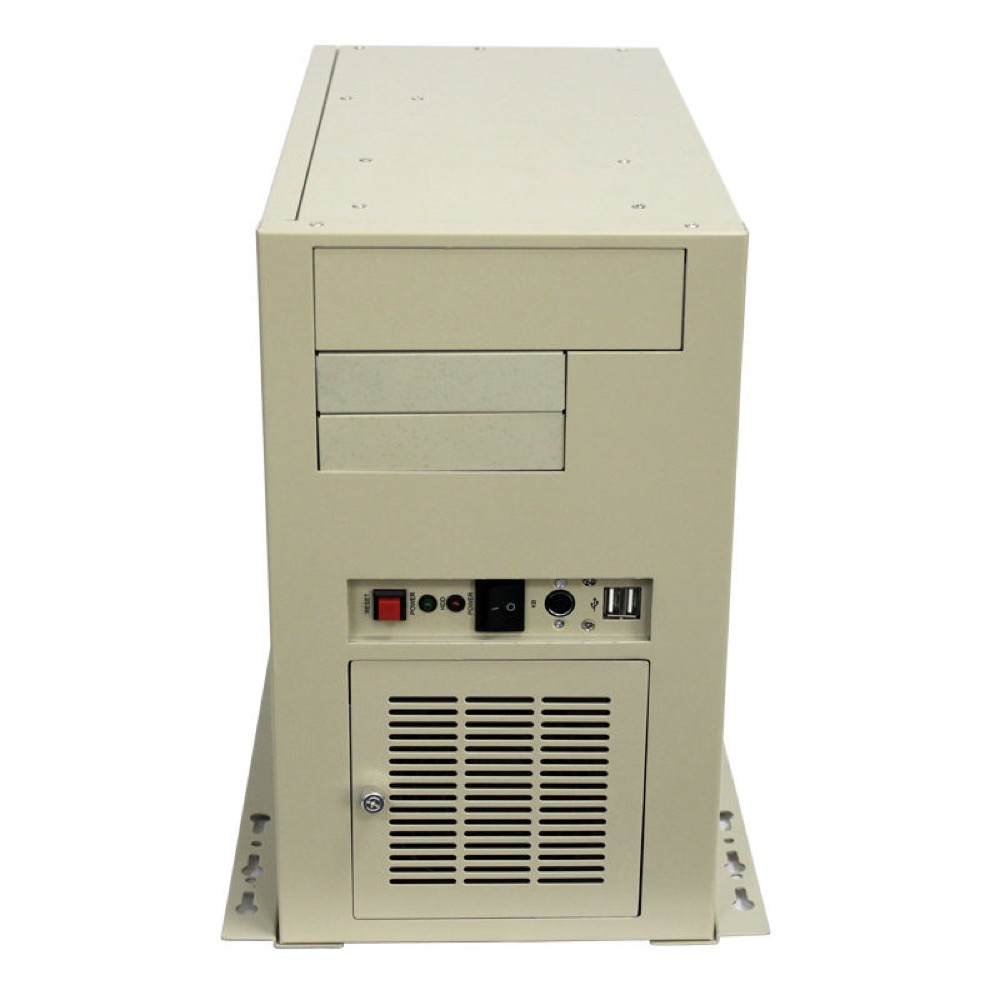

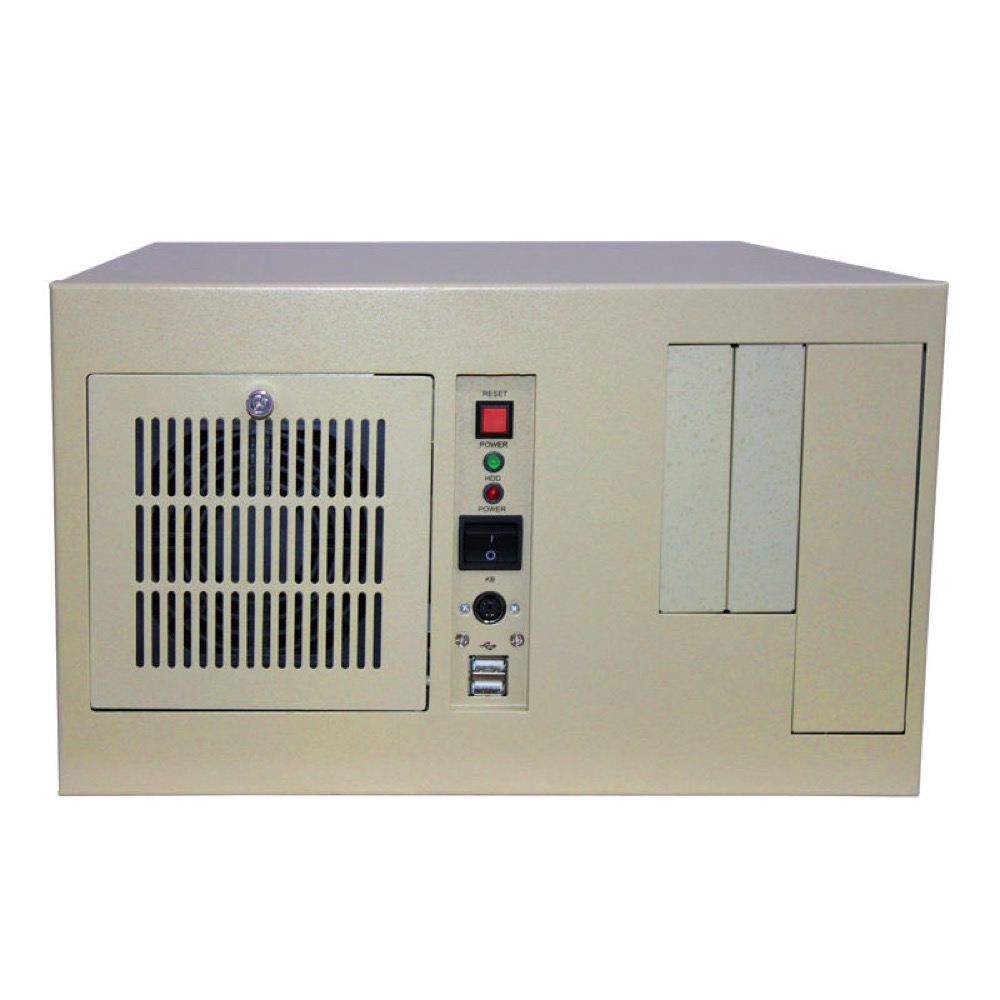

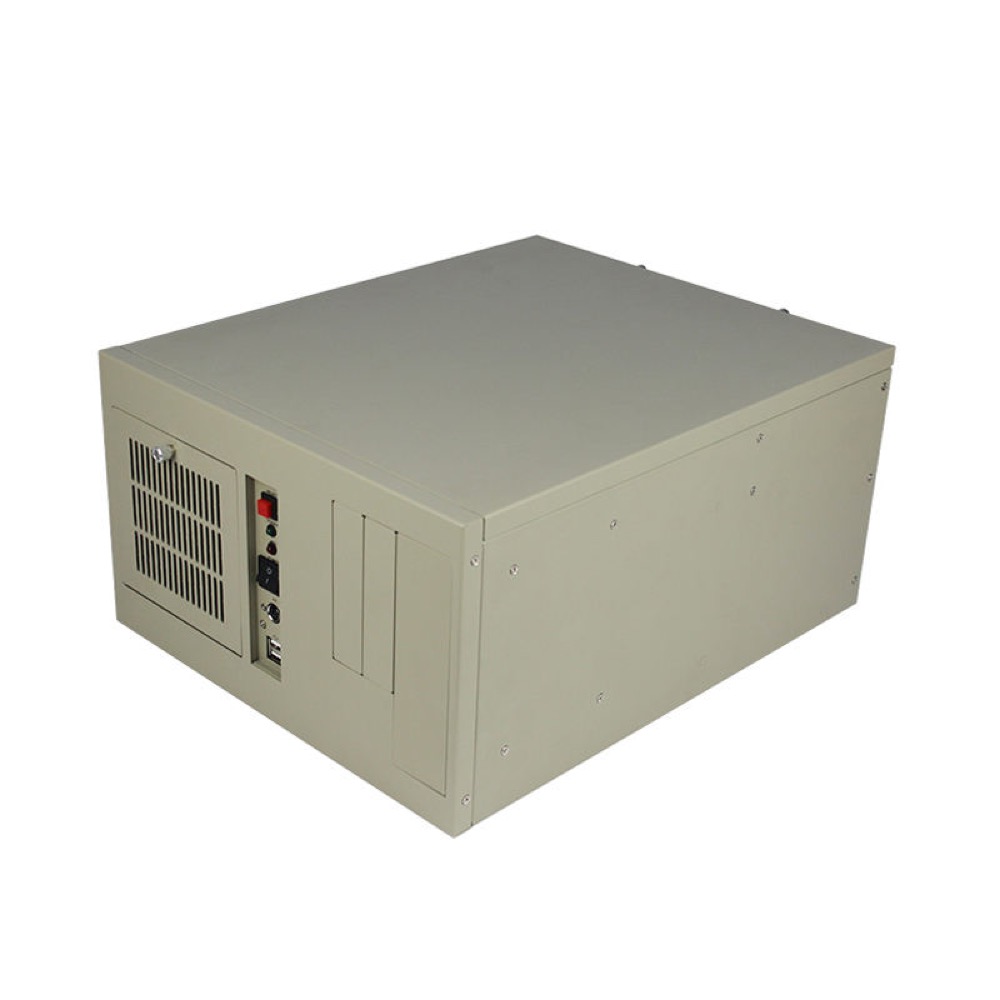

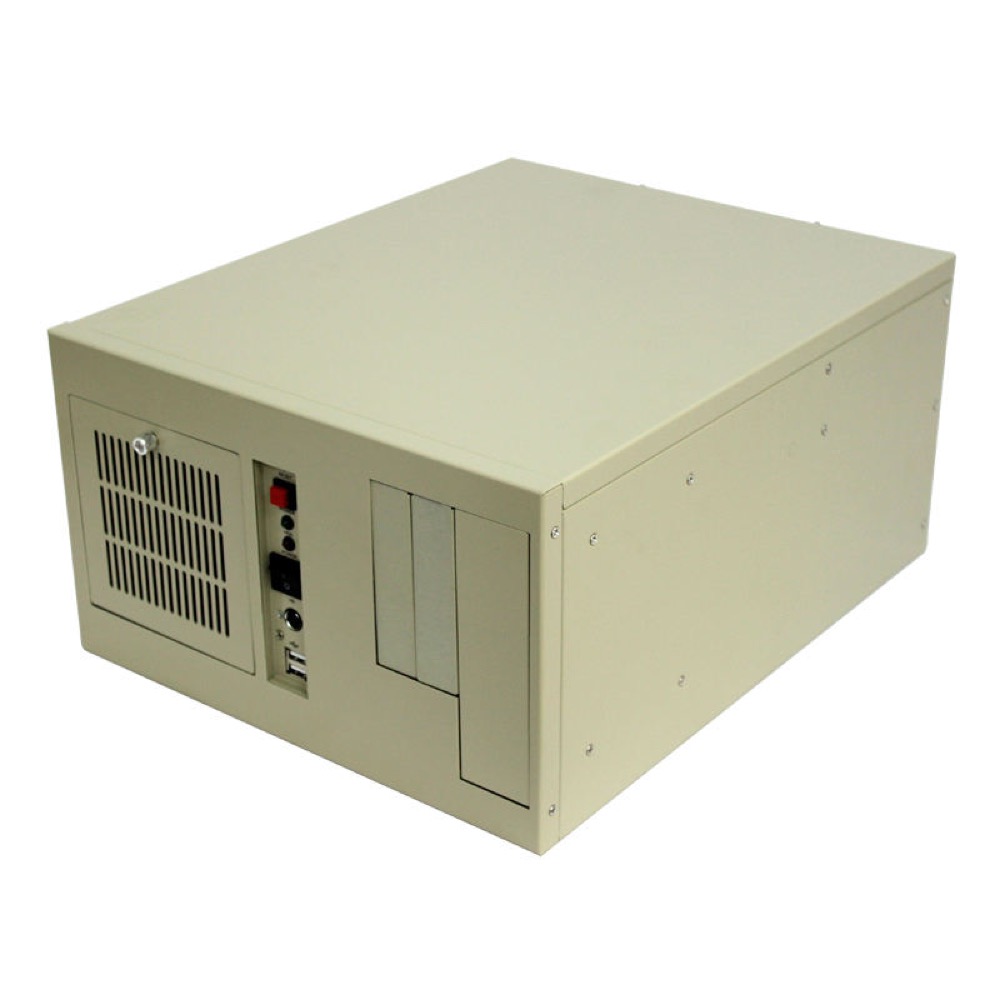

| Finish / Color | Zinc-plated steel; supplier product image shows light beige finish |
| Width | 330 mm |
| Height | 196.5 mm |
| Depth | 406 mm |
| Weight | 7.261 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5" |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, power indicator, HDD indicator, and PS/2 connector. Supplier also lists one CD-ROM position, two floppy-drive positions, one I/O expansion slot, and seven full-height straight PCI slots. |
