In stock
Server Chassis
CHS-SRV-B4

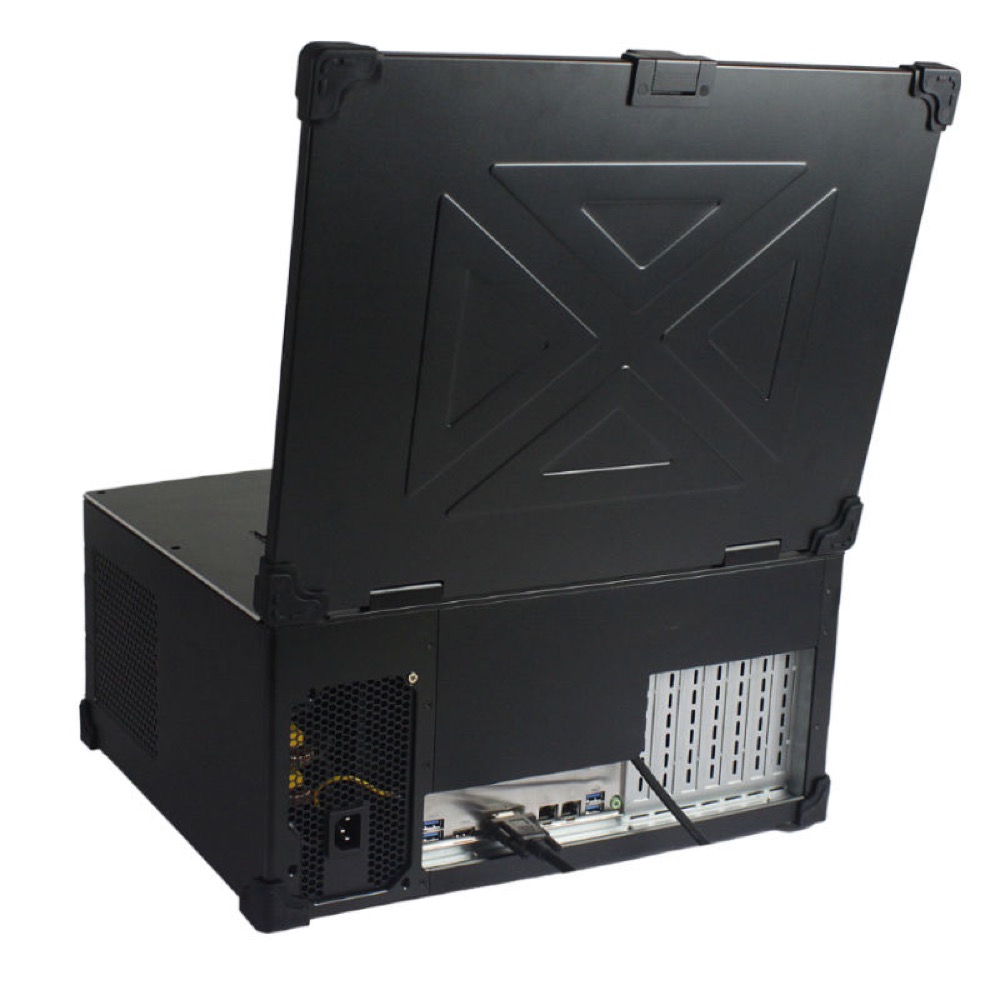

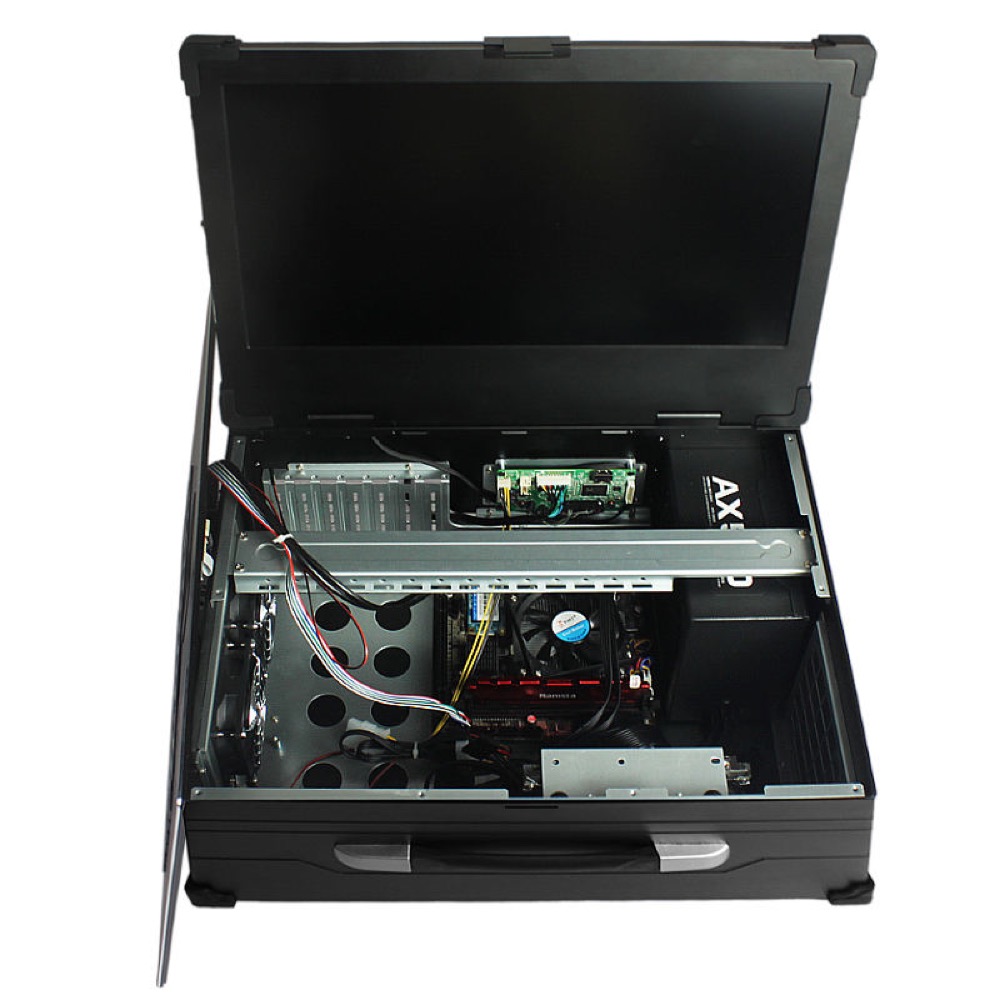

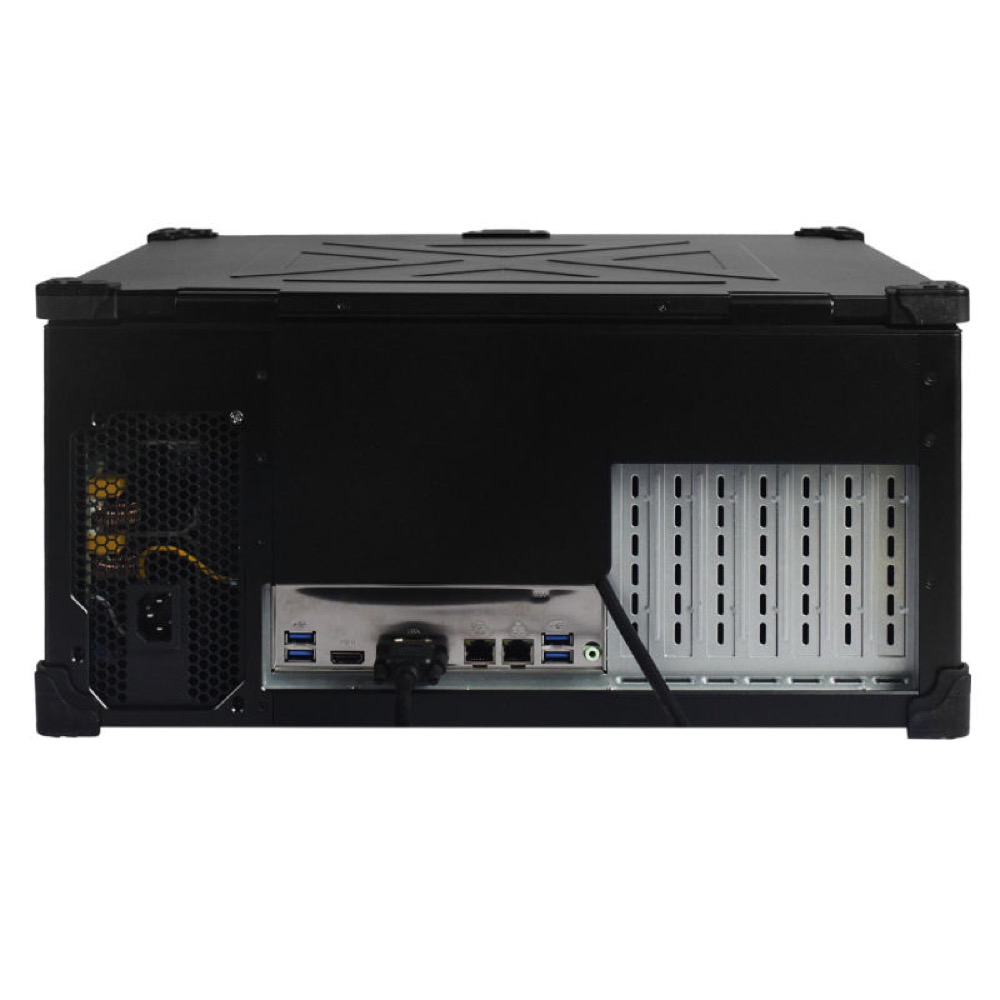

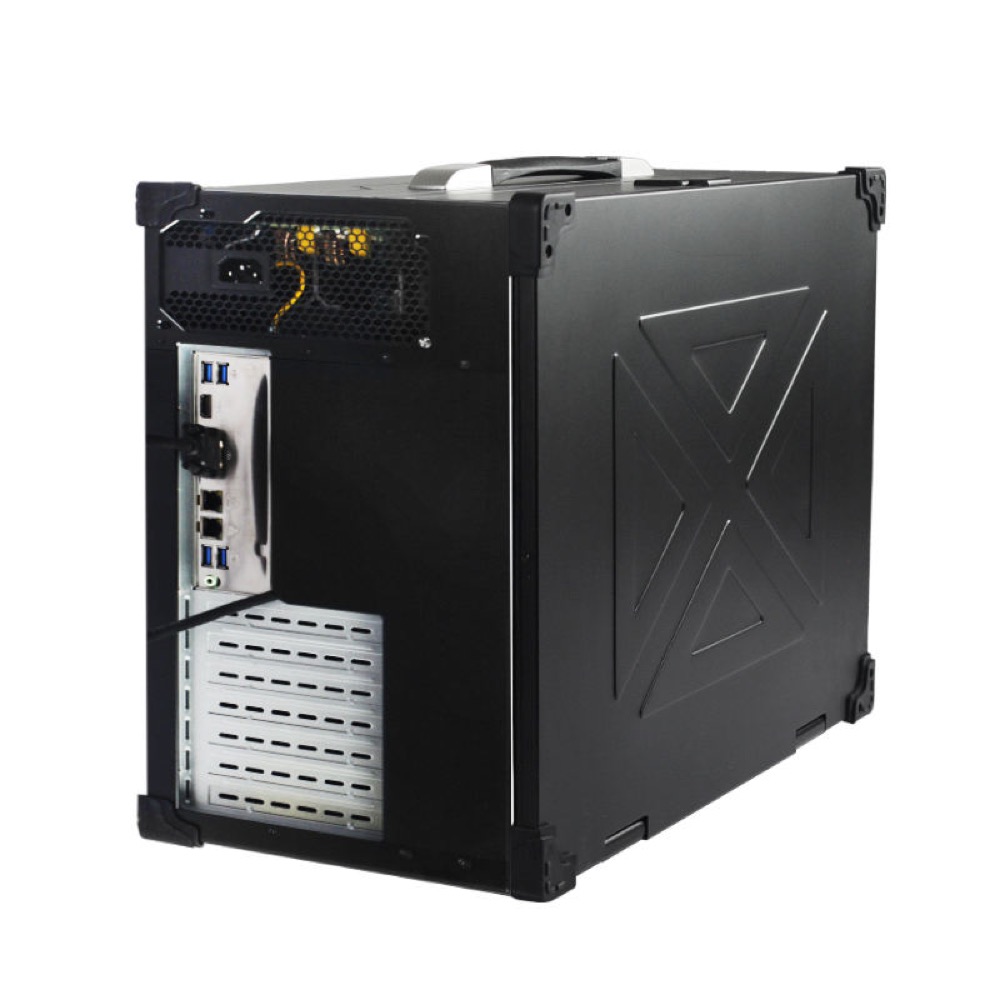

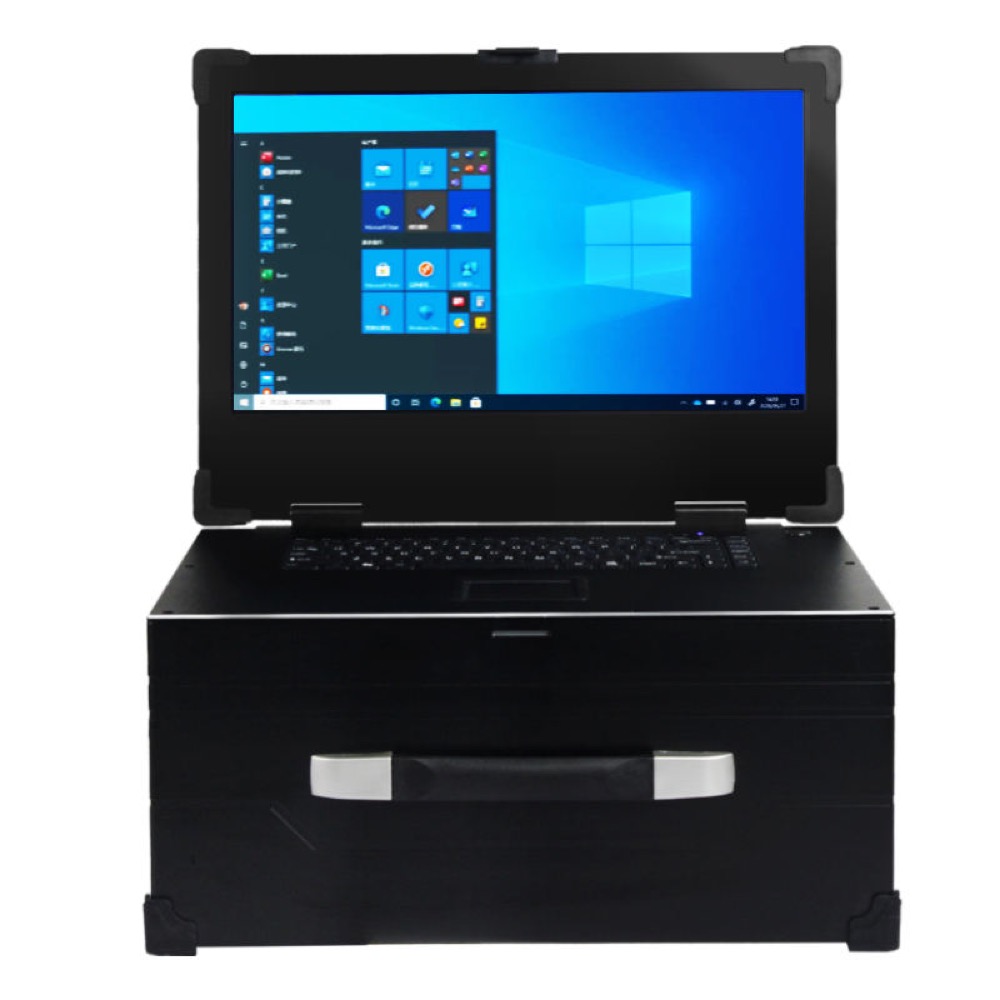

B4 Portable Industrial Panel Chassis with 17.3-inch Display
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension430(W) × 320(D) × 210(H) mm
MountingDesktop
MotherboardATX, MicroATX, ITX
Drive Bays4 bays
B4 rugged portable industrial panel-computer chassis for industrial and commercial systems. The supplier lists a 430(W) × 320(D) × 210(H) mm enclosure with support for ATX, MicroATX, and ITX motherboards, an ATX PSU, two 3.5-inch and two 2.5-inch drive positions or an alternate three 2.5-inch plus one 3.5-inch layout, seven PCIe slots, an integrated 17.3-inch 1920 × 1080 LCD, two included 8025 fans, and an optional 12025 fan/water-cooler adapter. The listing is a chassis rather than a complete system: motherboard, CPU, memory, storage, graphics card, and power supply are not included.
Specifications
Identity
| Model Number | CHS-SRV-B4 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Portable industrial chassis with integrated 17.3-inch LCD and two included 8025 cooling fans. An optional 12025 fan/water-cooler adapter is listed. Motherboard, CPU, memory, storage, graphics card, and power supply are not included. |
| Use Case / Application | Industrial PC, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Not specified by supplier |
| Width | 430 mm |
| Height | 210 mm |
| Depth | 320 mm |
| Weight | 16 kg listed; 10.53 kg single gross in packaging attributes |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX up to 305 × 244 mm (12 × 9.6 inches); MicroATX and ITX adapter support |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 3 bays |
| Drive Types | 2 × 2.5-inch HDD/SSD + 2 × 3.5-inch HDD, Alternate layout: 3 × 2.5-inch HDD/SSD + 1 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe expansion slots |
| Maximum GPU Length | Up to 290 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2; optional 120 × 120 × 25 mm (12025) fan/water-cooler adapter |
| Maximum CPU Cooler Height | Up to 140 mm |
| Liquid Cooling Support | Yes |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 17.3 in |
| LCD Resolution | 1920 × 1080 |
| Display Position | Integrated display |
I/O and Connectivity
| Front I/O | Integrated 17.3-inch LCD |
| Custom I/O Details | Supplier lists an integrated 17.3-inch 1920 × 1080 LCD, ATX/MicroATX/ITX motherboard support, ATX PSU support, seven PCIe slots, two 8025 fans, an optional 12025 fan/water-cooler adapter, and alternate 2.5/3.5-inch HDD layouts. Exact USB count/version, display inputs, touchscreen capability, handle details, and front/rear port layout are not specified in the supplier technical table. A supplier review mentions VGA and HDMI connectivity, but this is not treated as a formal specification. |
Industrial and Portable Characteristics
| Portable / Mobile | Yes |
