Server Chassis
CHS-SRV-T431

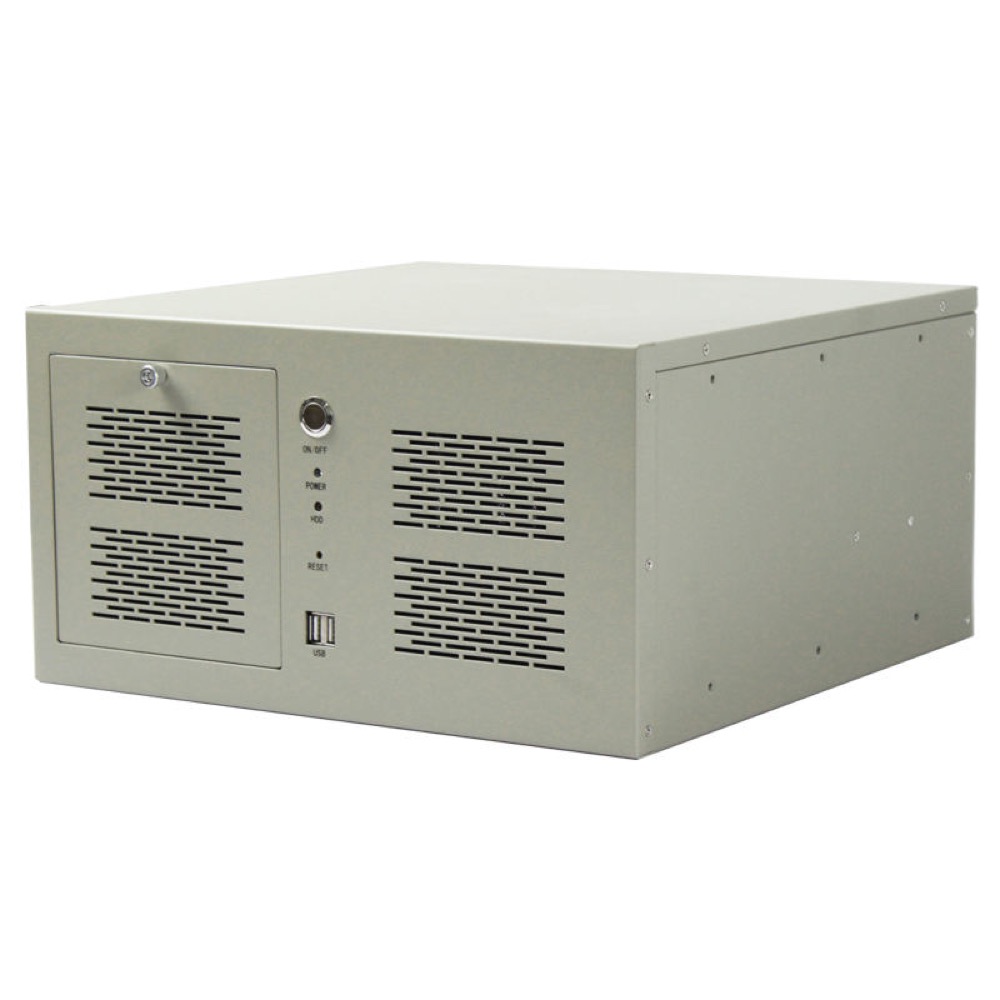

T431 Wall-Mount ATX Industrial Chassis
Product formEmpty chassis
FamilyIndustrial / Embedded Chassis

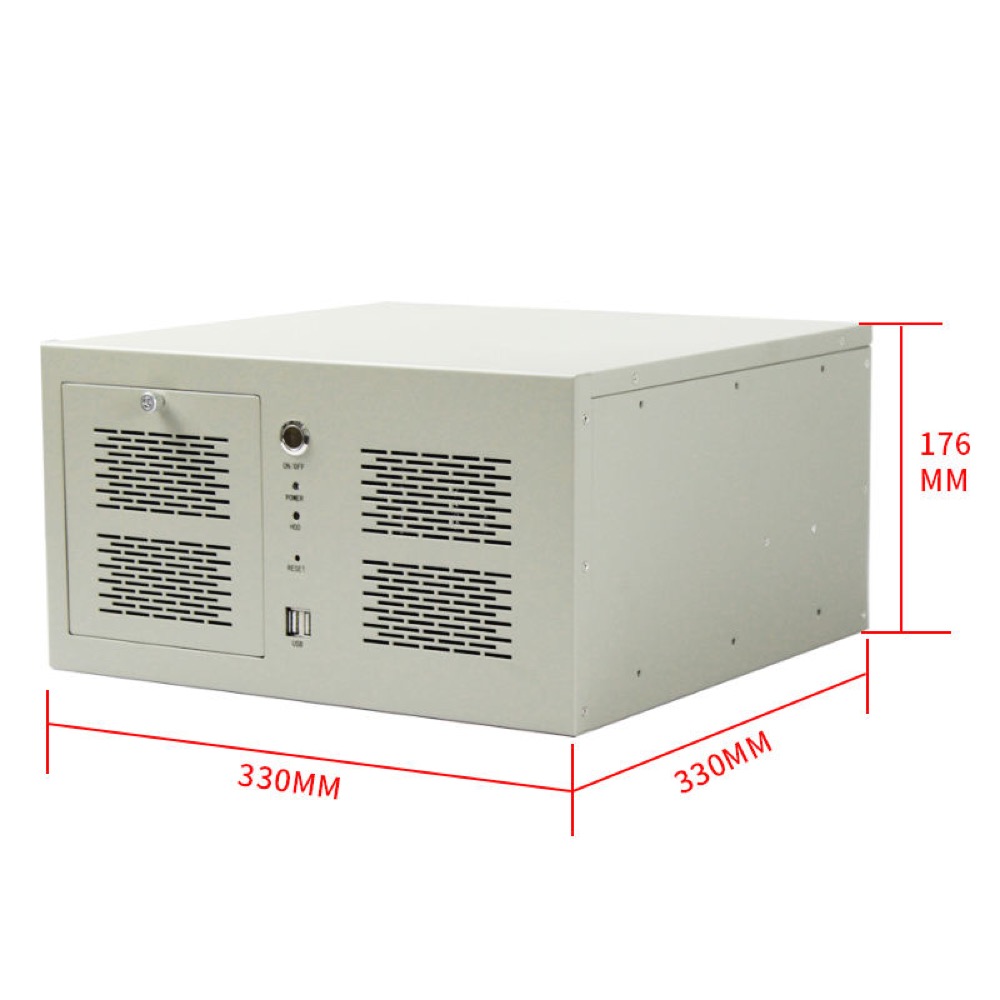

Dimension330(W) × 330(D) × 176(H) mm
MountingWall-mount
MotherboardATX
Drive Bays2 bays

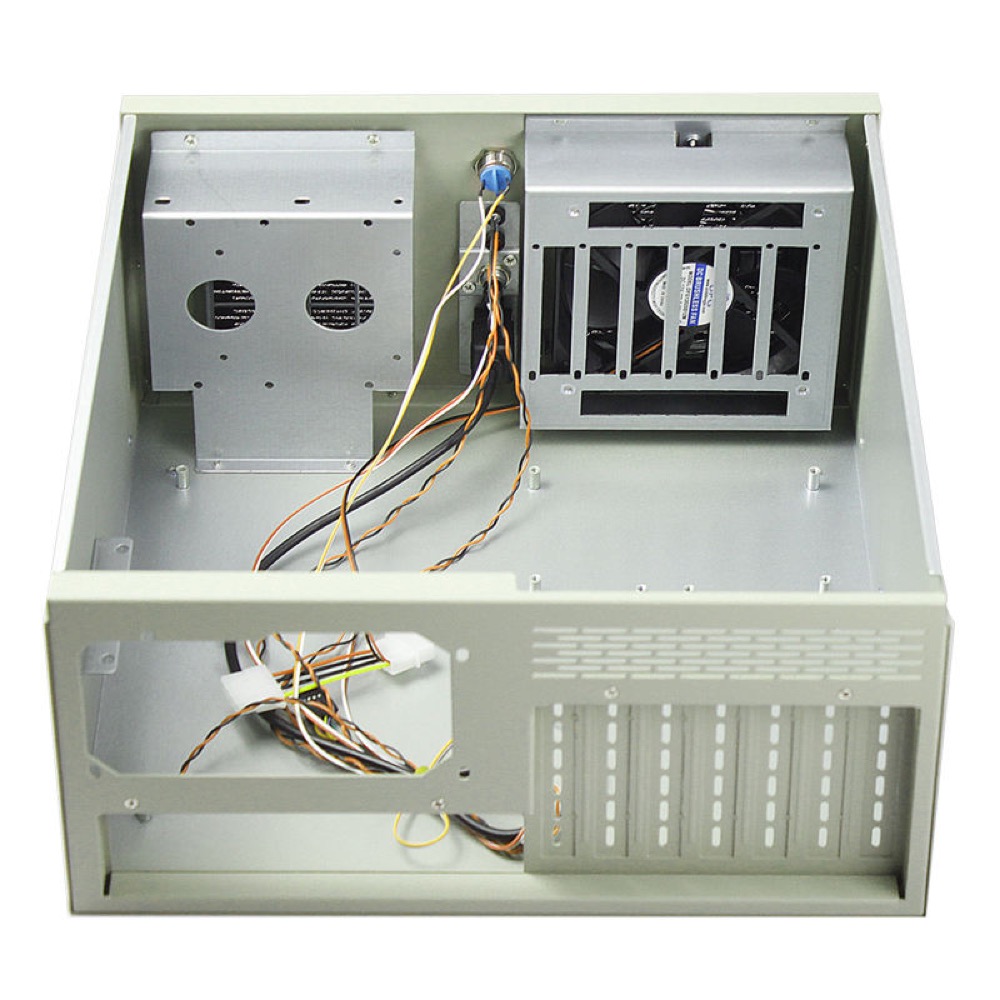

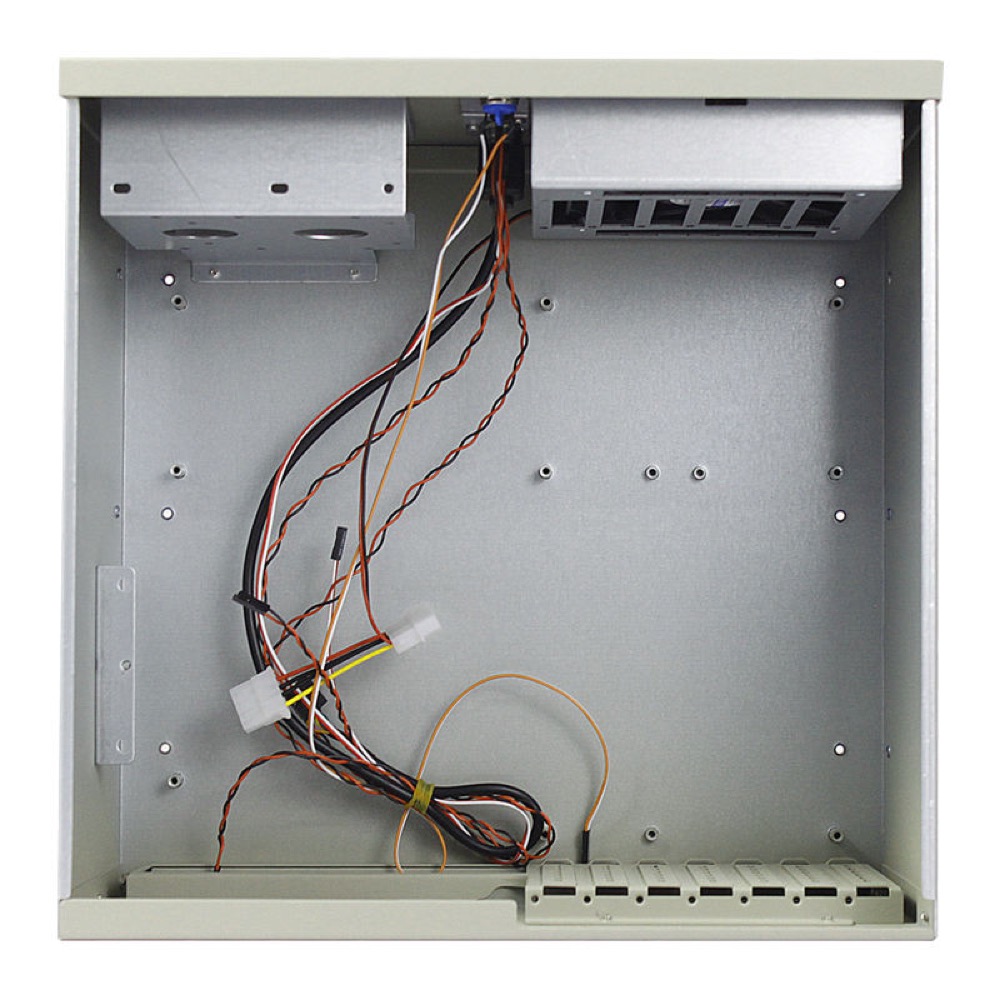

T431 vertical wall-mount industrial chassis for ATX-based industrial PC systems. The supplier lists a 330(W) × 330(D) × 176(H) mm enclosure with ATX motherboard support, ATX PSU support, one 3.5-inch plus one 2.5-inch drive position, one included 120 × 120 × 25 mm fan, and seven PCIe slots. The chassis is listed for wall-mounted industrial applications and supplied empty without motherboard, CPU, memory, storage, or PSU.
Specifications
Identity
| Model Number | CHS-SRV-T431 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty vertical wall-mount chassis with one included 12025 cooling fan and ATX PSU support. Motherboard, CPU, memory, storage, and power supply are not included. |
| Use Case / Application | Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Not specified by supplier |
| Width | 330 mm |
| Height | 176 mm |
| Depth | 330 mm |
| Weight | 5.9 kg gross / 4.5 kg net in detailed specification; 6.0 kg gross in packaging attributes |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX motherboard; exact maximum dimensions not specified |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 1 × 3.5-inch HDD, 1 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support

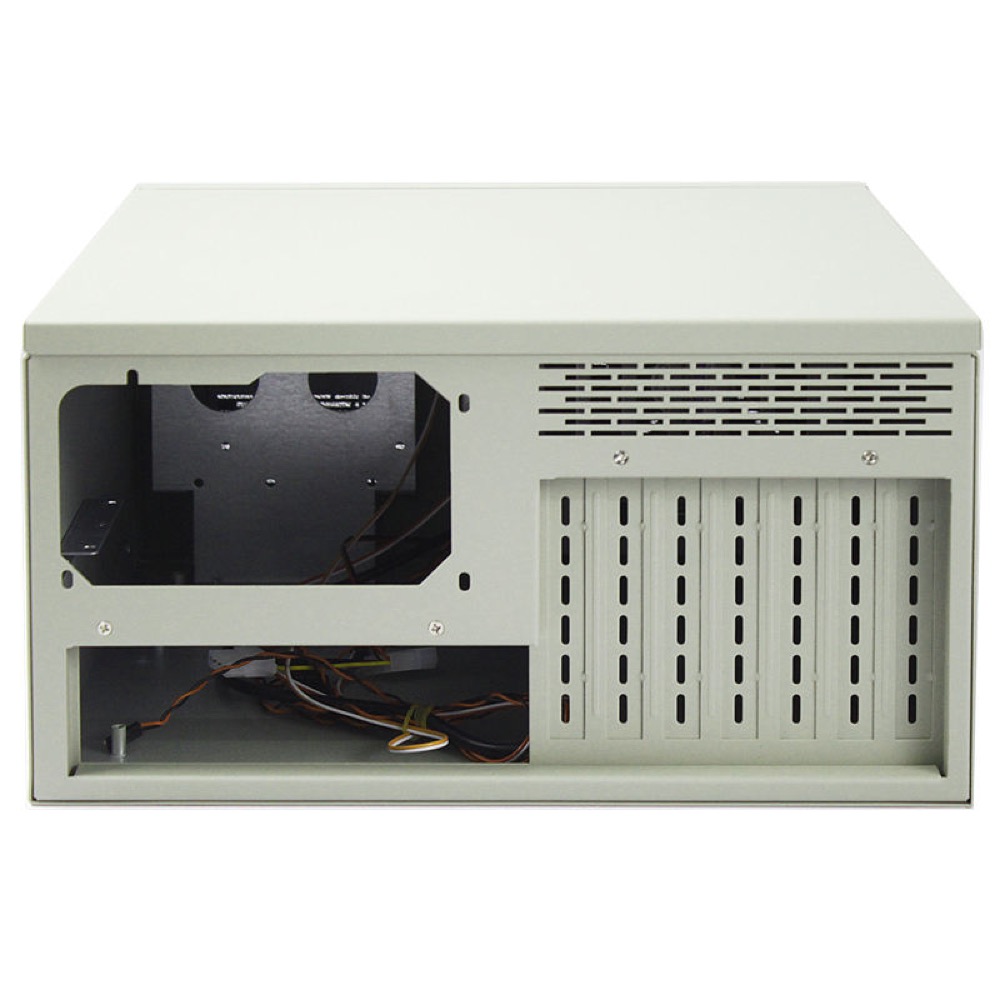

| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Custom I/O Details | Supplier lists one 12025 fan, seven PCIe slots, ATX motherboard support, ATX PSU support, and one 3.5-inch plus one 2.5-inch drive position. Exact front/rear USB, power, reset, indicator, and network I/O are not specified. |
