Server Chassis
CHS-SRV-K445L
K445L 4U DVR/NVR Rackmount Chassis
Product formEmpty chassis
FamilyNetwork / NVR Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays2 bays

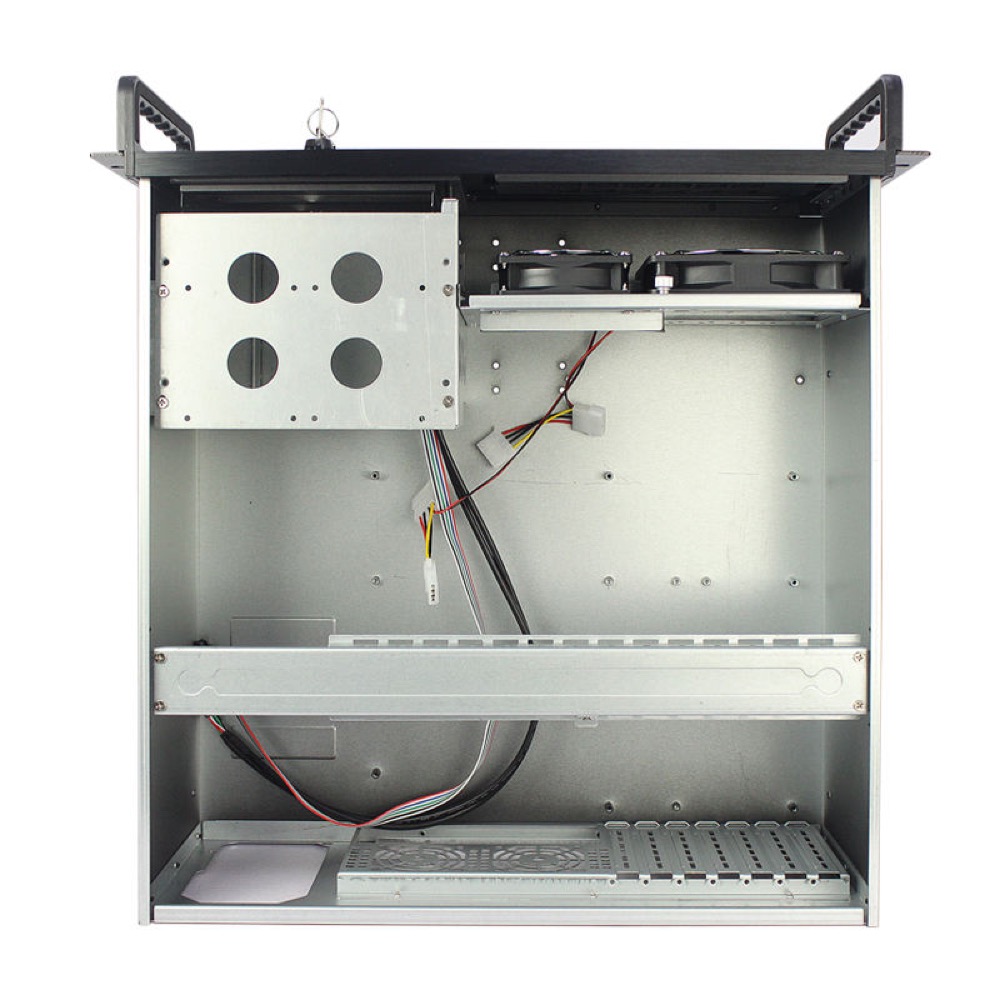

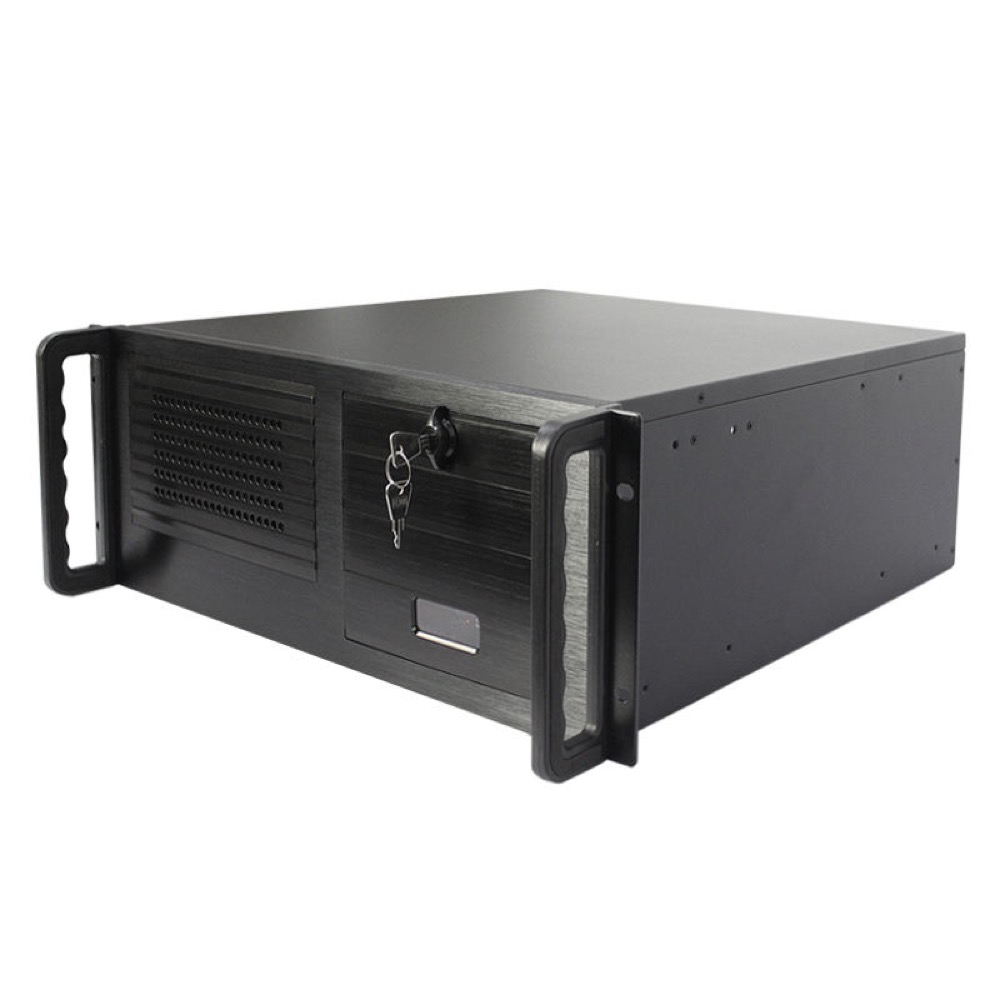

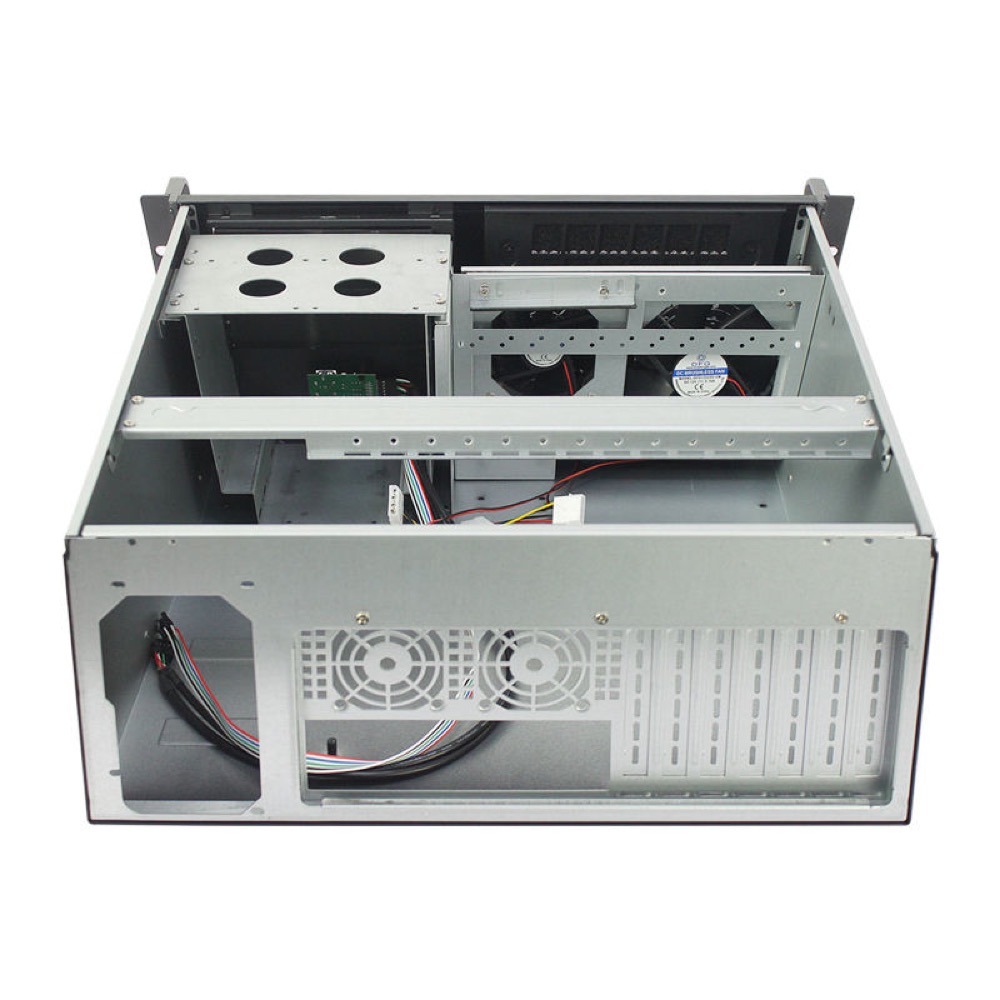

K445L 4U 19-inch industrial DVR/NVR rackmount chassis for ATX systems. The supplier lists a zinc-plated SGCC steel enclosure measuring 482(W) × 450(D) × 178(H) mm, ATX motherboard support up to 305 × 245 mm, ATX PSU support, two 3.5-inch HDD bays, two 5.25-inch optical-drive bays, seven full-height PCIe slots, one 12025 fan plus one 8 cm fan, front USB 2.0 ports, power/reset controls, indicators, and a front lock.
Specifications
Identity
| Model Number | CHS-SRV-K445L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with one 120 mm fan and one 8 cm fan. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Network Video Recorder, DVR / NVR, Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, zinc-plated |
| Finish / Color | Black front panel |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 10.19 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 2 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support

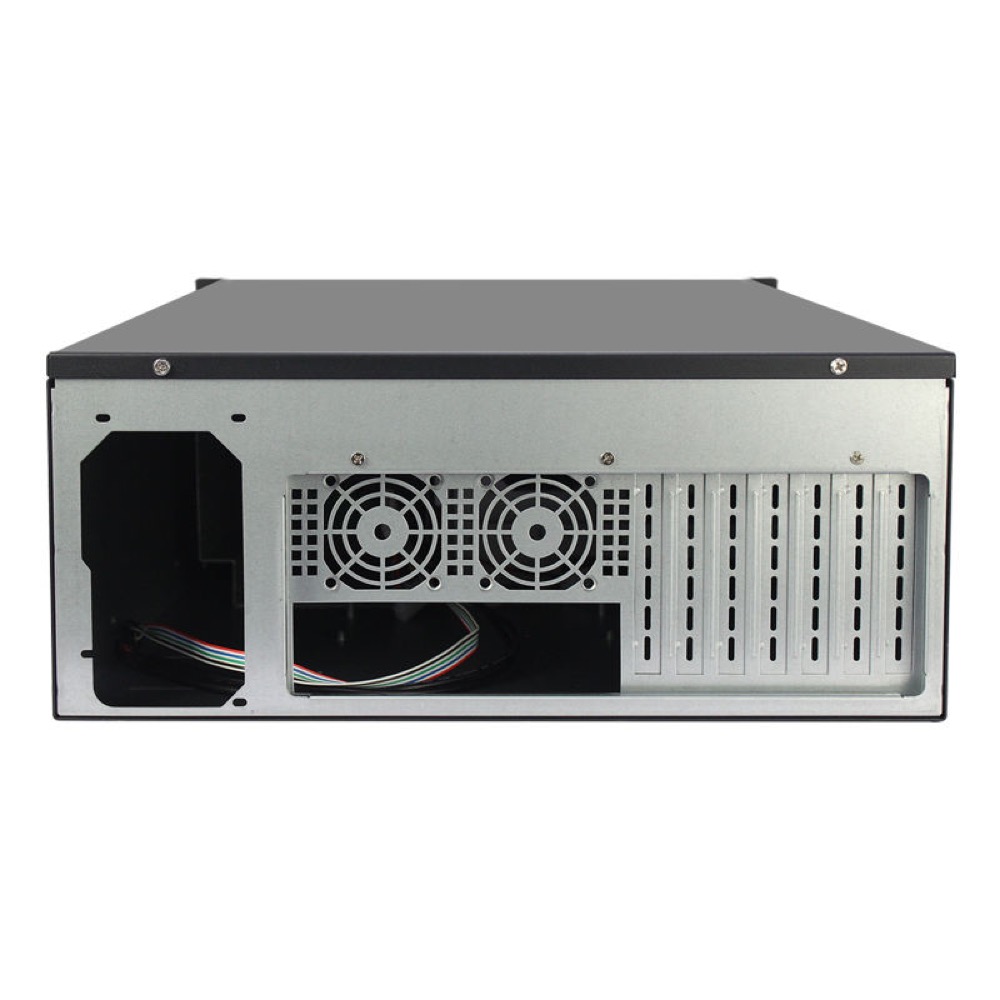

| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 + approximately 80 × 80 mm × 1 |
I/O and Connectivity

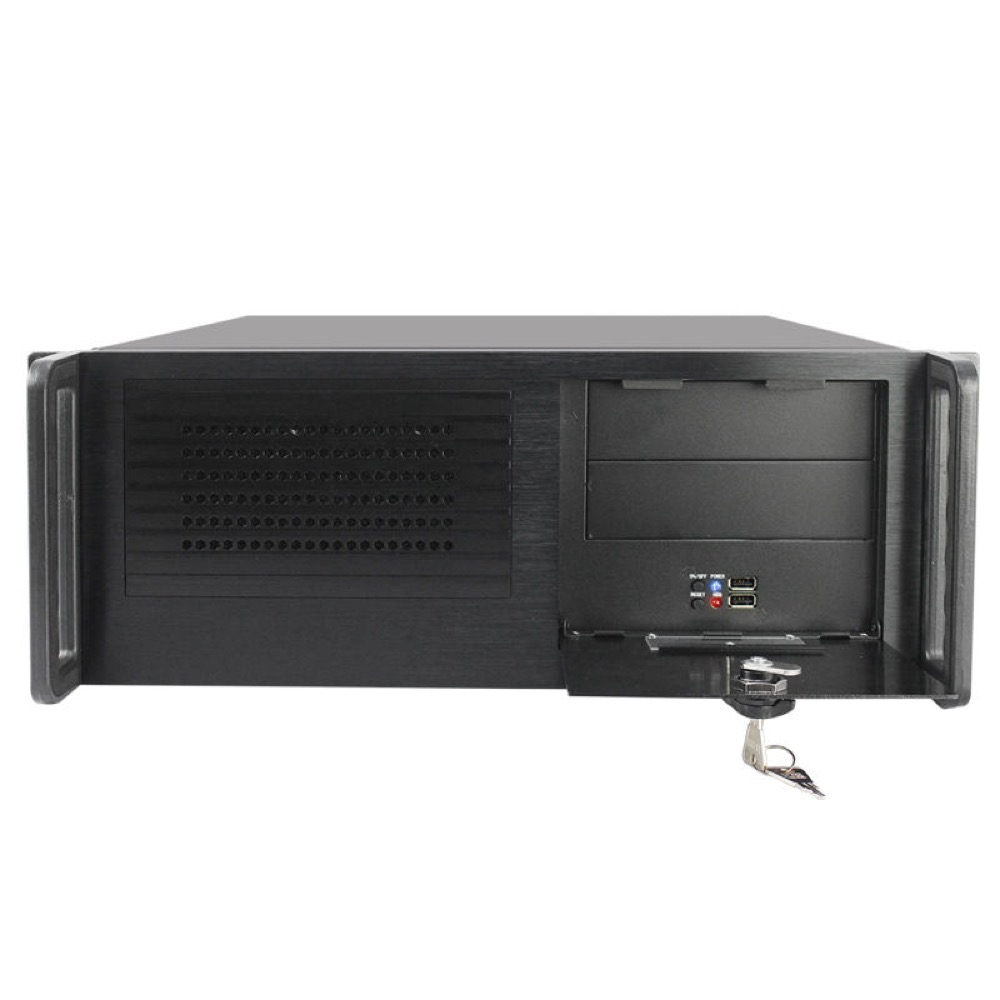

| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD activity indicator, Front lock |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and reset switches, power/HDD indicators, and a safety lock. Supplier also lists two 5.25-inch CD/optical-drive bays and seven full-height straight expansion slots. |
