In stock
Server Chassis
CHS-SRV-K445LC

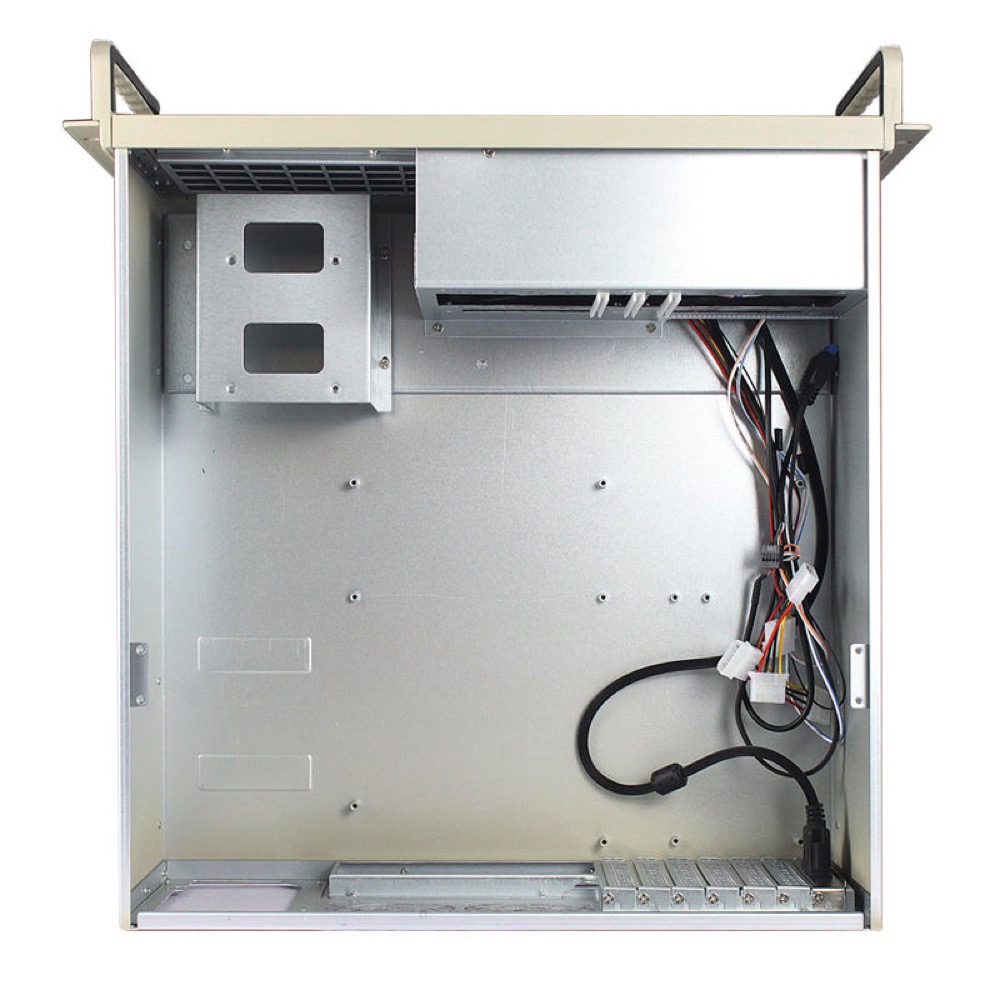

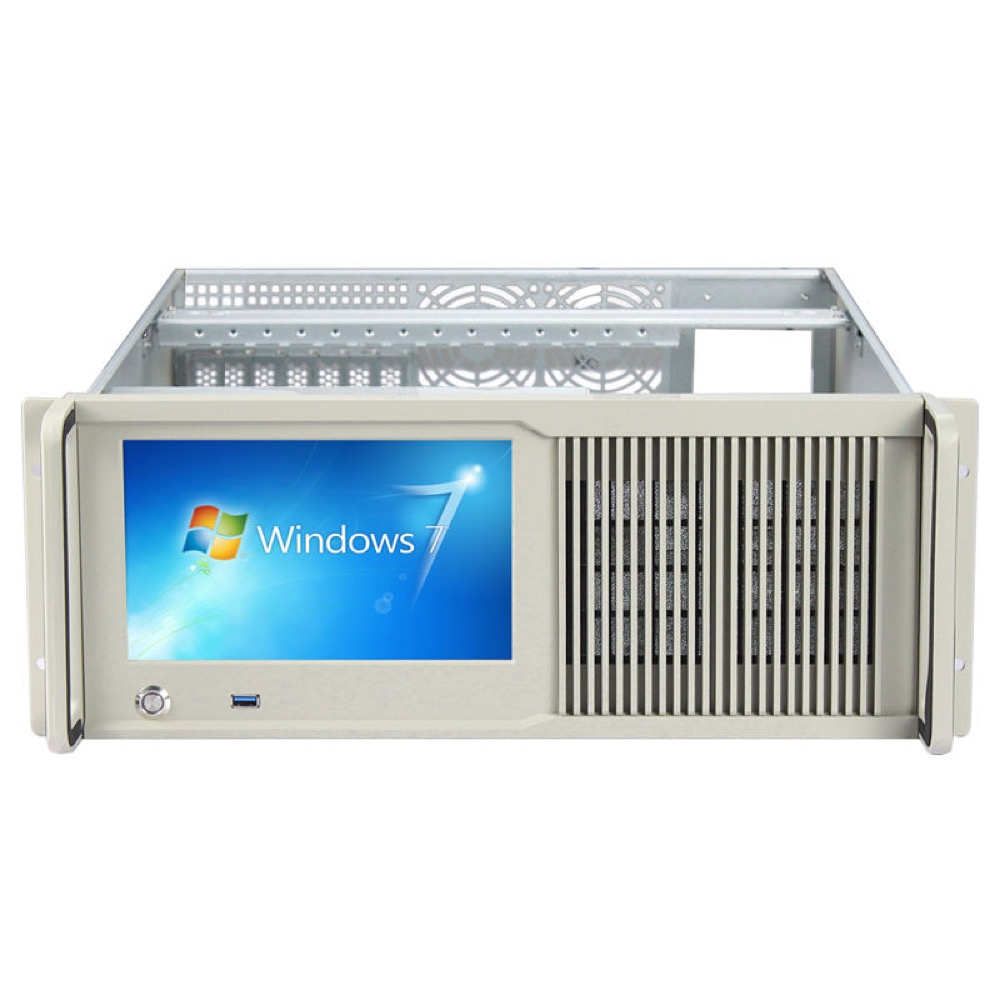

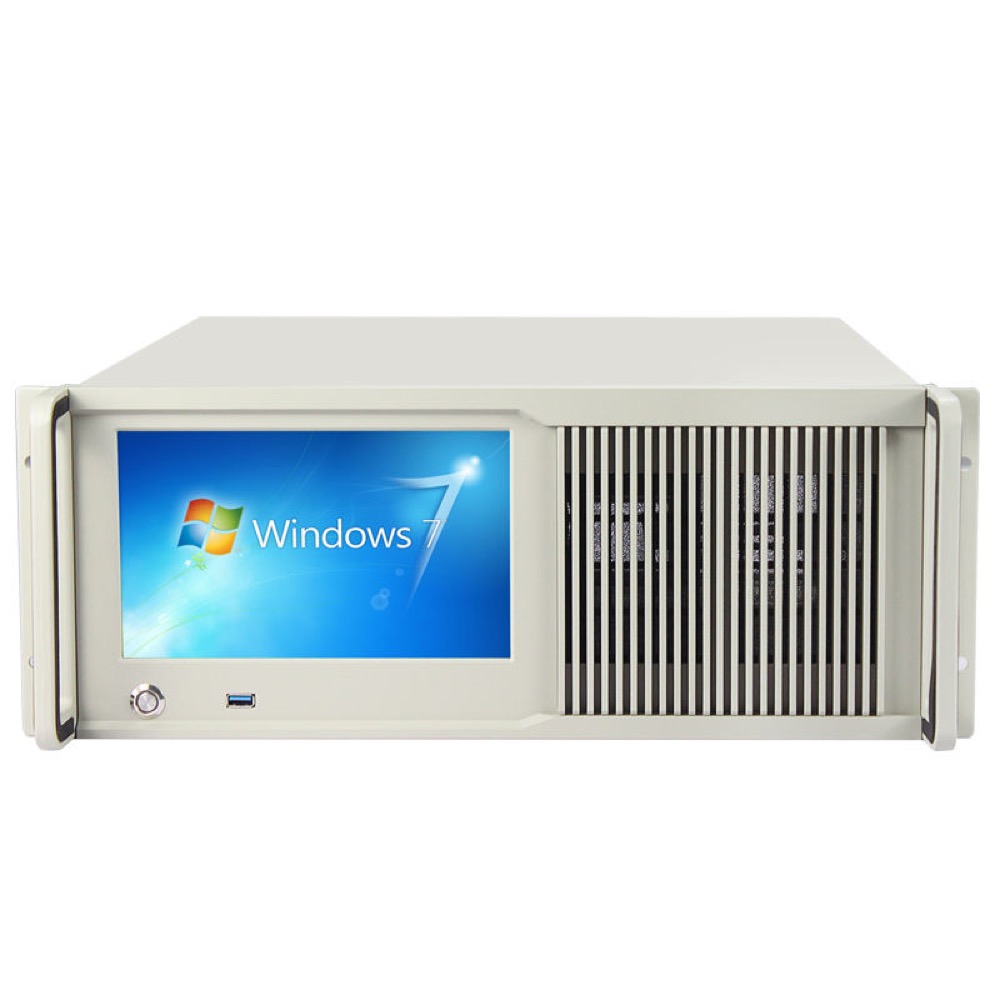

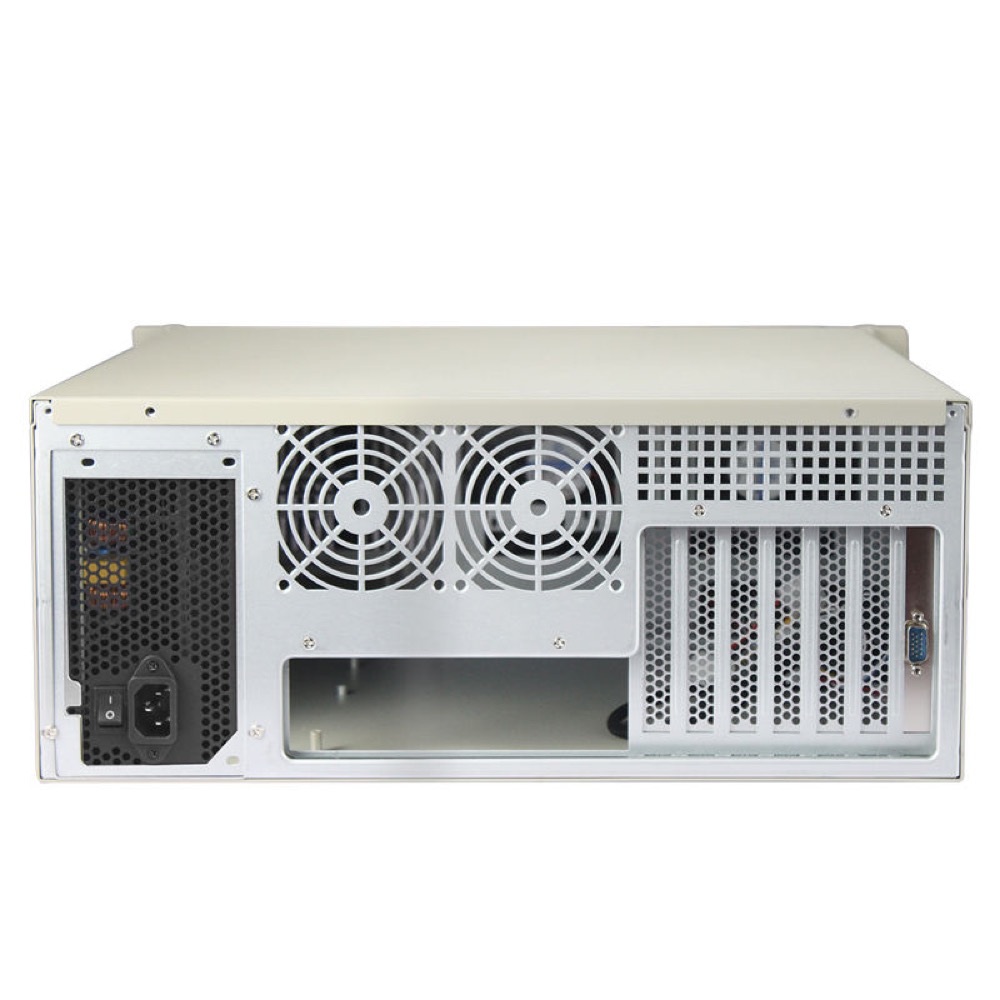

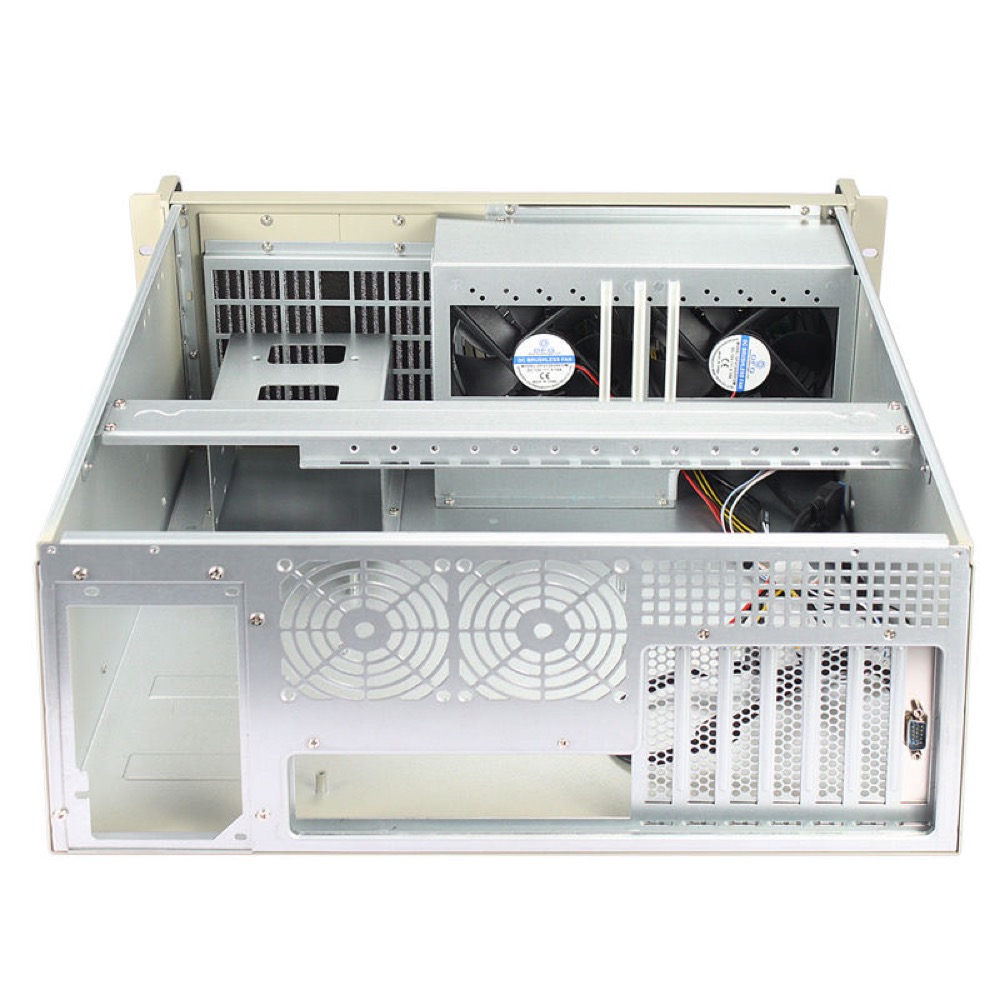

K445LC 4U ATX Rackmount Chassis with 8.9-inch Touch Display
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX, MicroATX, Mini-ITX
Drive Bays3 bays
4U 19-inch rackmount industrial chassis with integrated operator display for server-room, industrial-control, and workstation applications. The supplier lists ATX, MicroATX, and Mini-ITX motherboard support, ATX PSU support, three 3.5-inch drive bays, seven PCIe slots supporting GPUs up to 320 mm, two included 12025 fans, two USB 3.0 ports, and an 8.9-inch 1024 × 600 touch display with a power indicator. The chassis uses SGCC steel with an aluminum front panel and measures 482(W) × 450(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K445LC |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with integrated 8.9-inch touch display and two included 12025 fans. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Industrial PC, Server, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel with aluminum front panel, 1.2 mm |
| Finish / Color | White |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 11.5 kg gross / 9.5 kg net; batch packaging view lists 12.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX 305 × 245 mm; MicroATX 245 × 245 mm; Mini-ITX 170 × 170 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe slots |
| Maximum GPU Length | Up to 320 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2, 4-pin interface |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 8.9 in |
| LCD Resolution | 1024 × 600 |
| Touchscreen Support | Yes |
| Touch Technology | Touchscreen |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power switch with indicator, 8.9-inch touchscreen LCD |
| Custom I/O Details | Front panel includes two USB 3.0 ports, one power switch with indicator, and an integrated 8.9-inch 1024 × 600 touch display. Supplier lists seven PCIe slots with support for a 320 mm GPU. |
