In stock
Server Chassis
CHS-SRV-610H
610H 4U ATX Industrial Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482.4(W) × 450(D) × 177.6(H) mm
MountingRackmount
MotherboardATX
Drive Bays1 bays

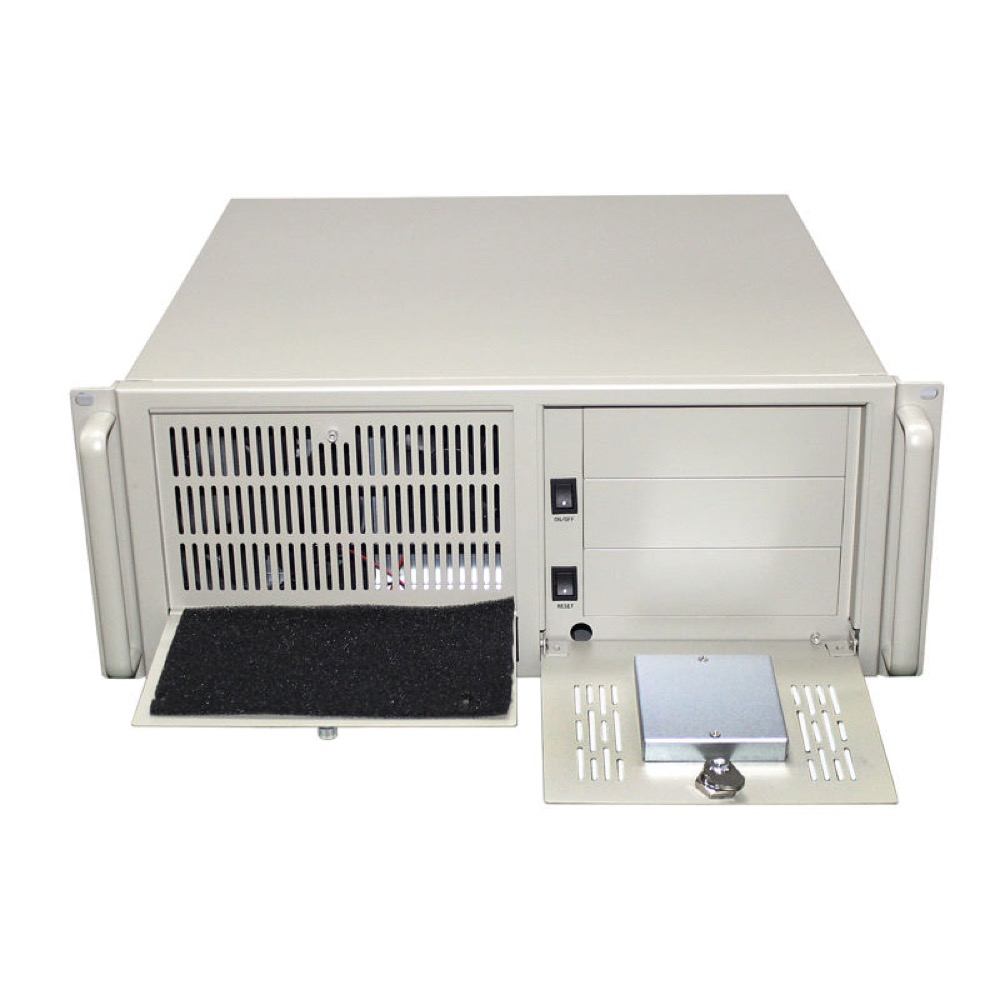

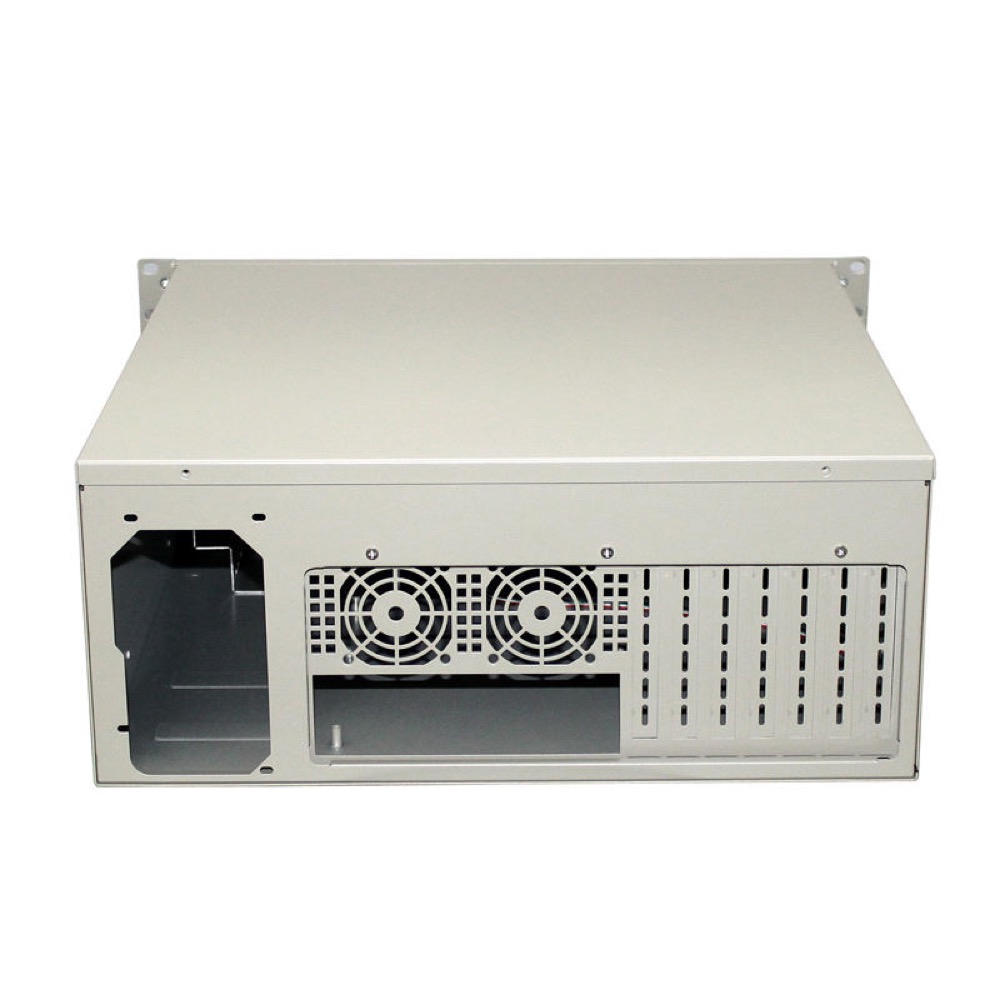

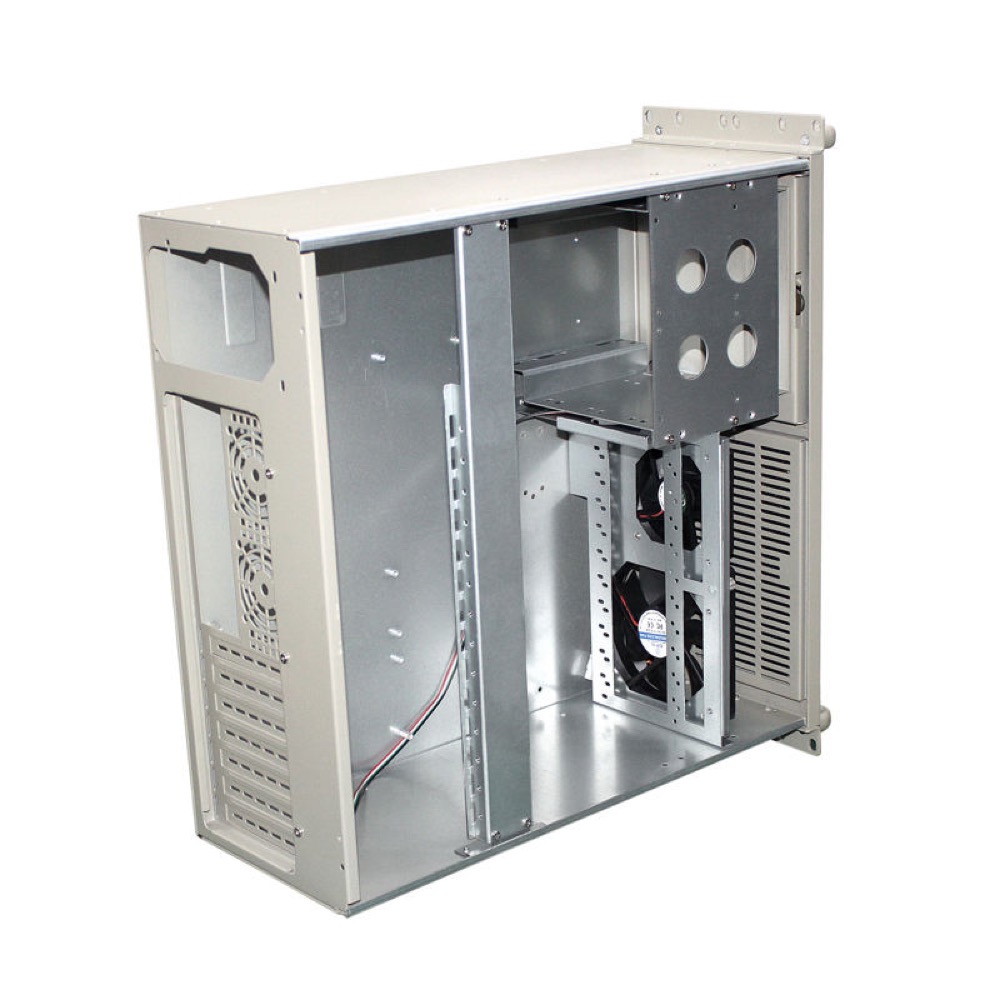

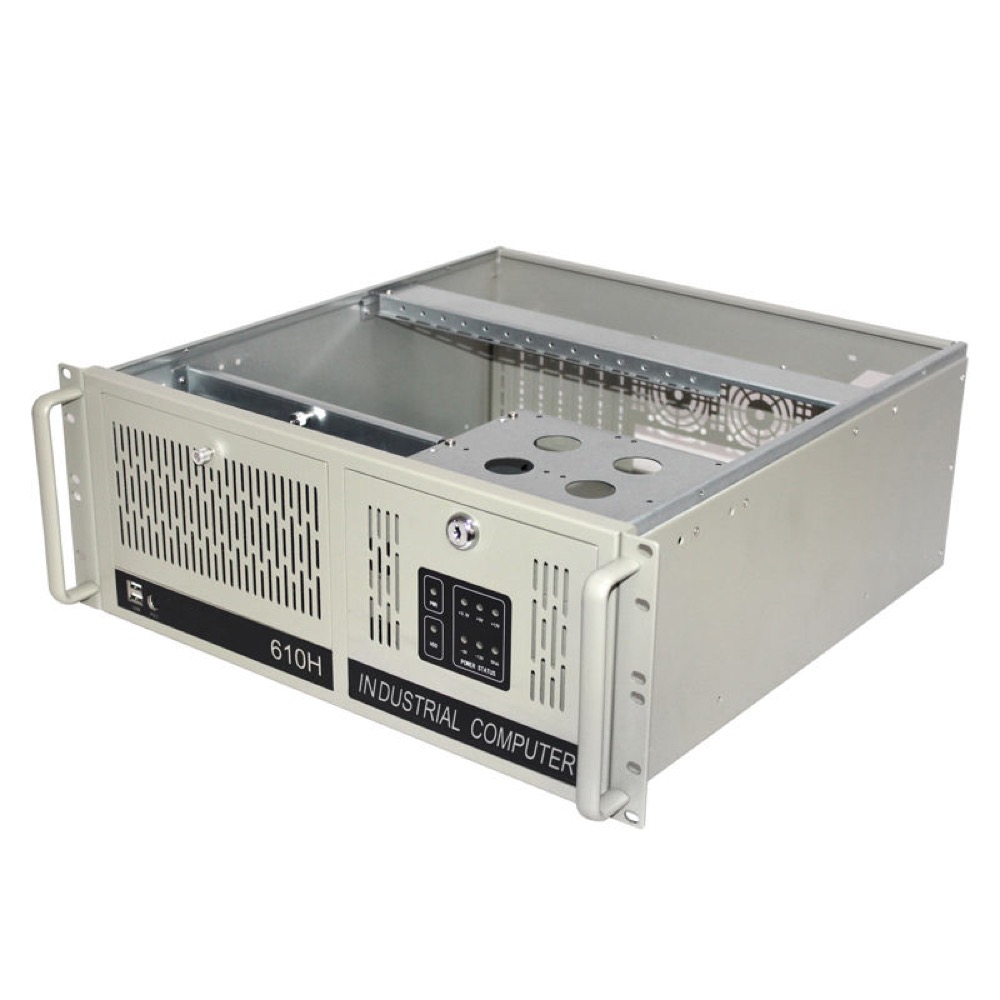

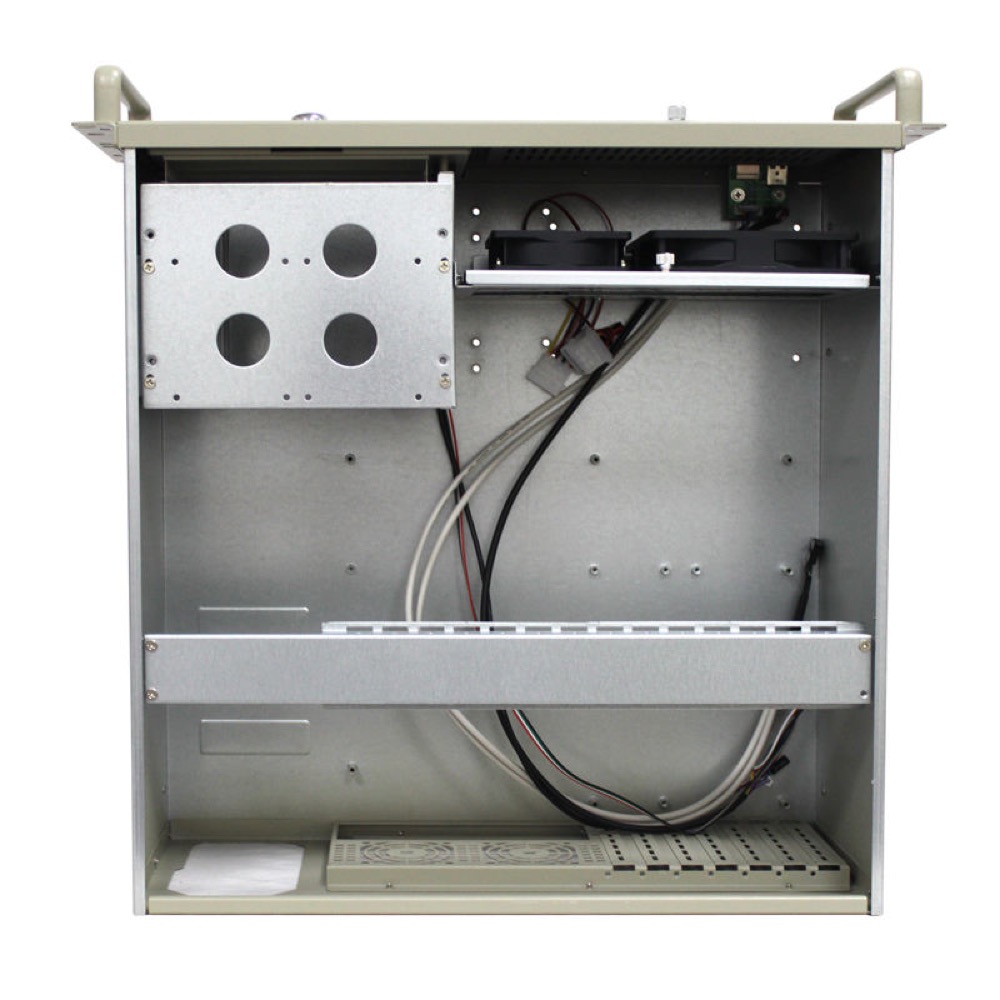

Standard 4U 19-inch industrial rackmount chassis for server and industrial PC installations. The supplier lists a locked front design, an ATX-sized board footprint, one 3.5-inch or 2.5-inch drive, three 5.25-inch optical bays, an ordinary desktop-style ATX/PS2 power supply, seven full-height straight expansion slots, one 12025 fan plus one 8025 fan, and front USB 2.0, power, reset, and status controls. The enclosure uses 1.2 mm SGCC steel and measures 482.4(W) × 450(D) × 177.6(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-610H |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U SGCC steel rackmount chassis with one 12025 fan and one 8025 fan. ATX/PS2 PSU support is provided; PSU, motherboard, CPU, memory, storage drives, and optical drives are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, 1.2 mm; zinc-plated finish |
| Finish / Color | Silver |
| Width | 482.4 mm |
| Height | 177.6 mm |
| Depth | 450 mm |
| Weight | 11.35 kg gross / 9.35 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm detailed listing; key attribute also states 305 × 340 mm |
Power Supply
| PSU Support | ATX/PS2 desktop-style PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | One 3.5-inch HDD or one 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1; 80 × 80 × 25 mm (8025) × 1 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator, LED indicator, PS/2 |
| Custom I/O Details | Locked front panel includes two USB 2.0 ports, power switch, restart switch, power indicator, hard-disk indicator, LED indicator, and PS/2. Supplier lists CE/RoHS certification and seven full-height straight expansion slots. |
