In stock
Server Chassis
CHS-SRV-K446E

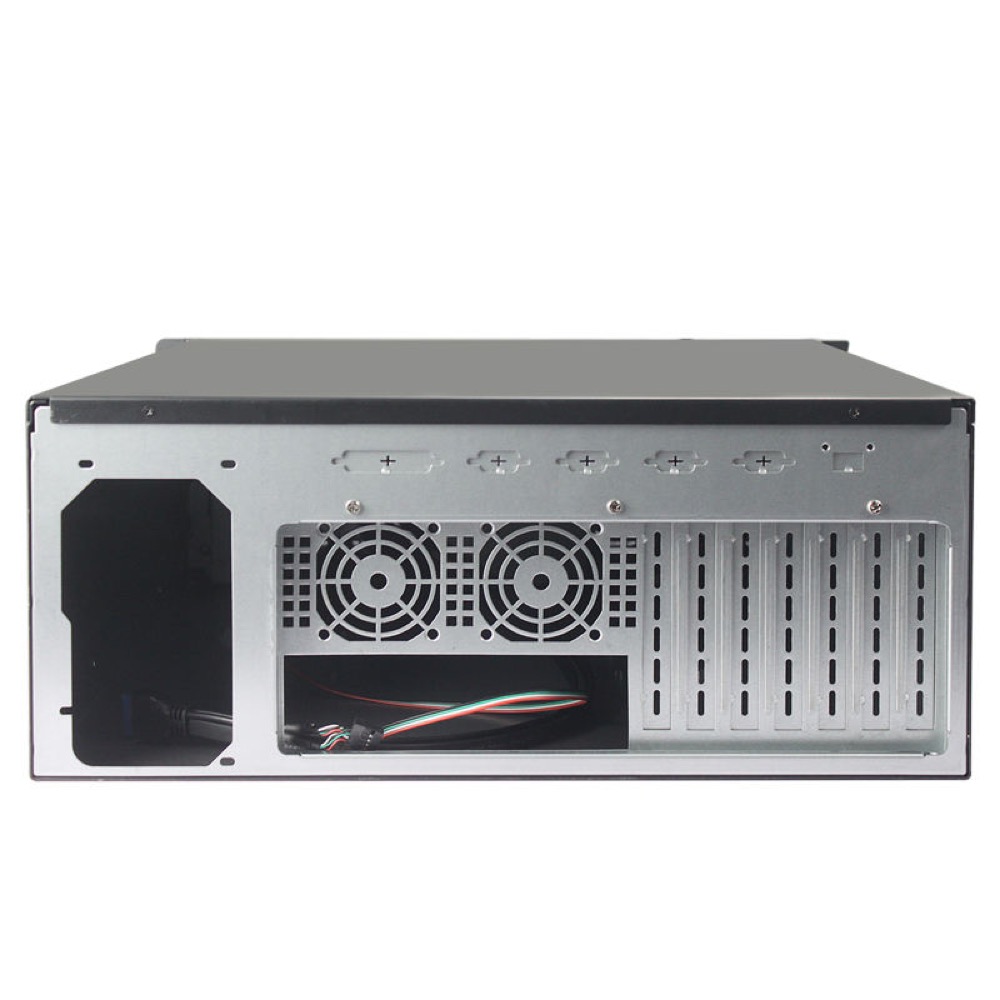

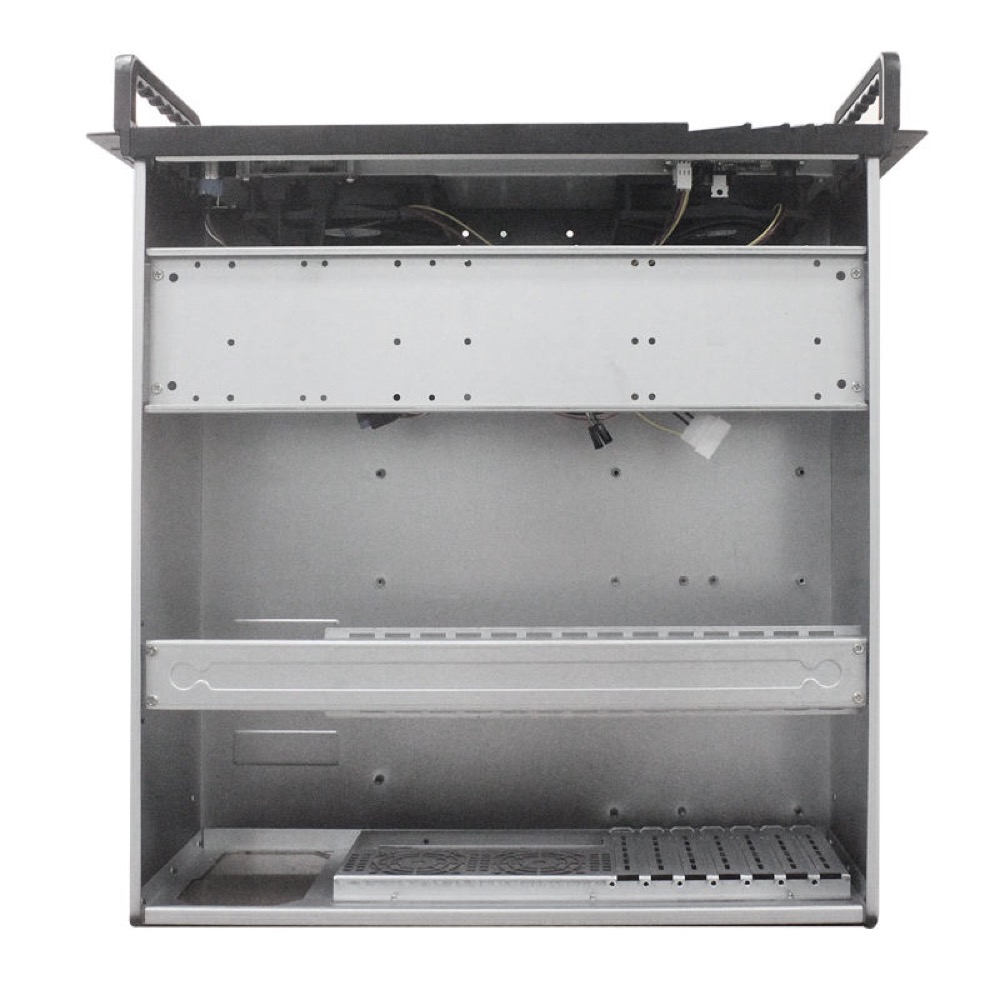

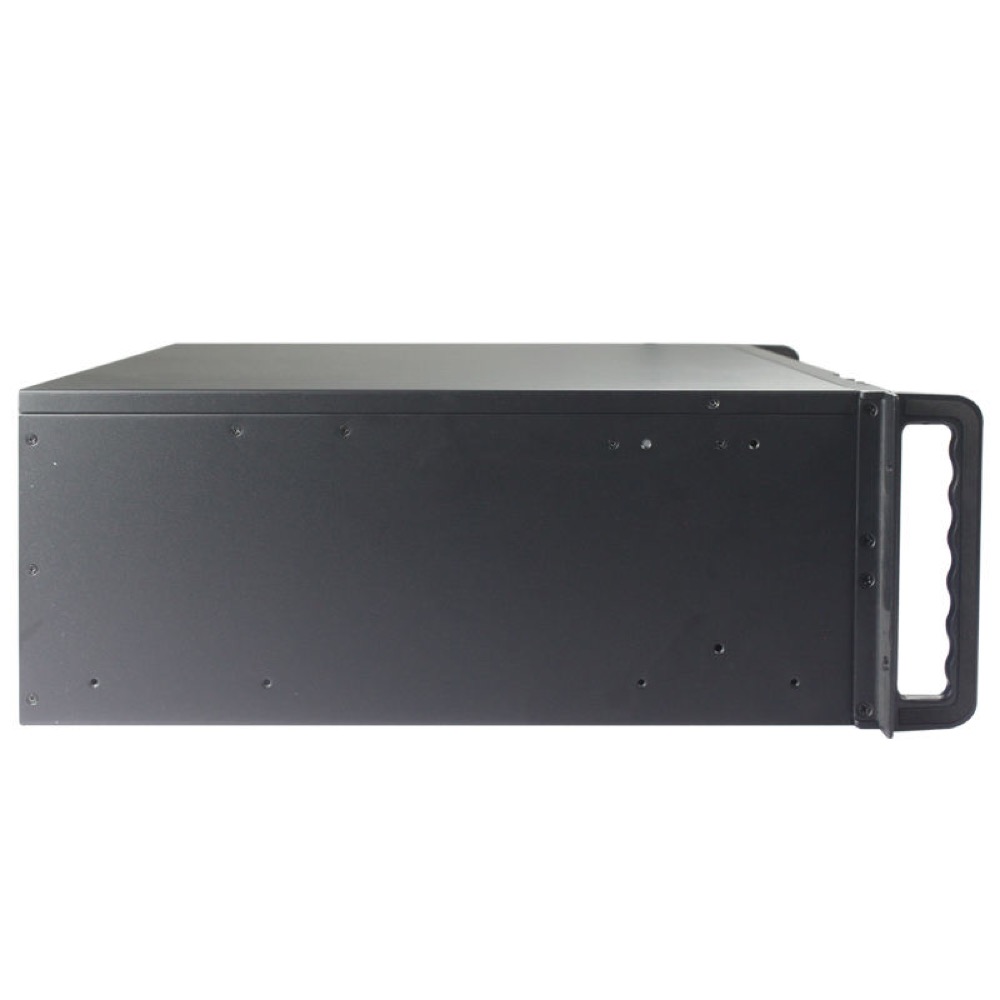

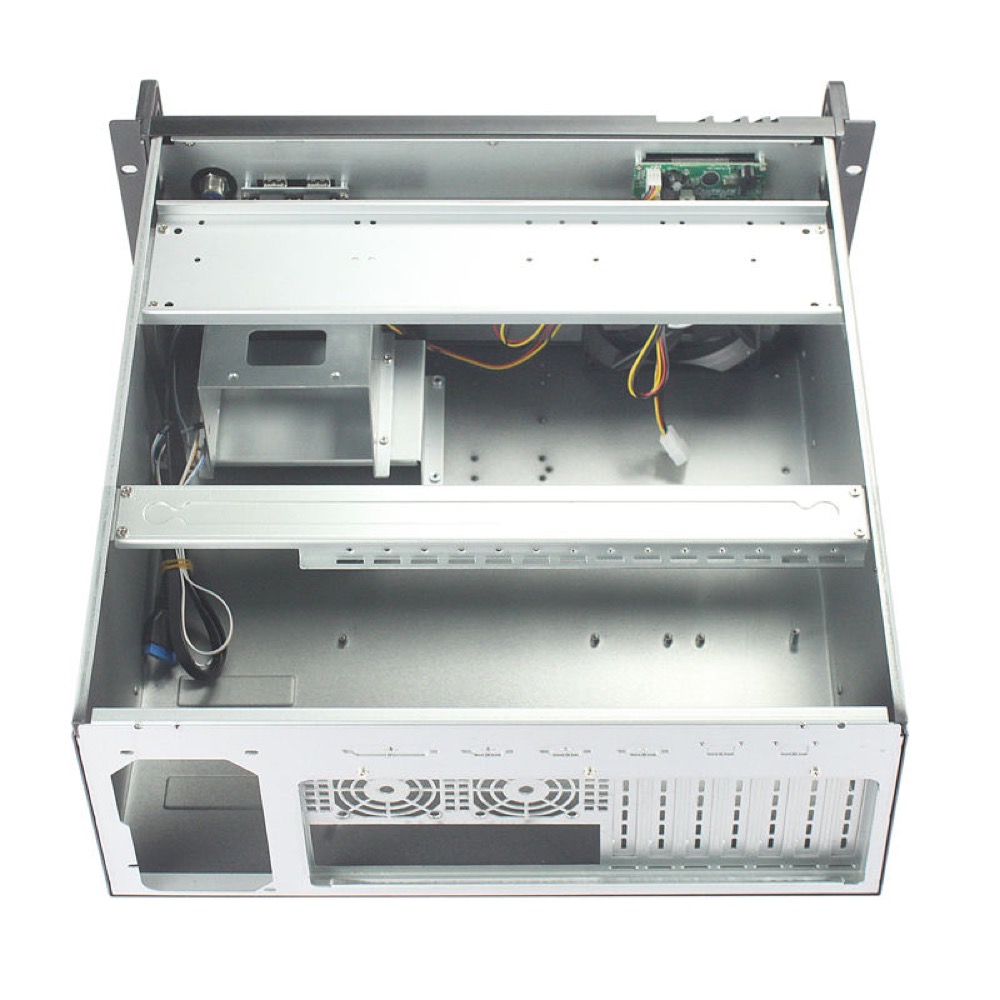

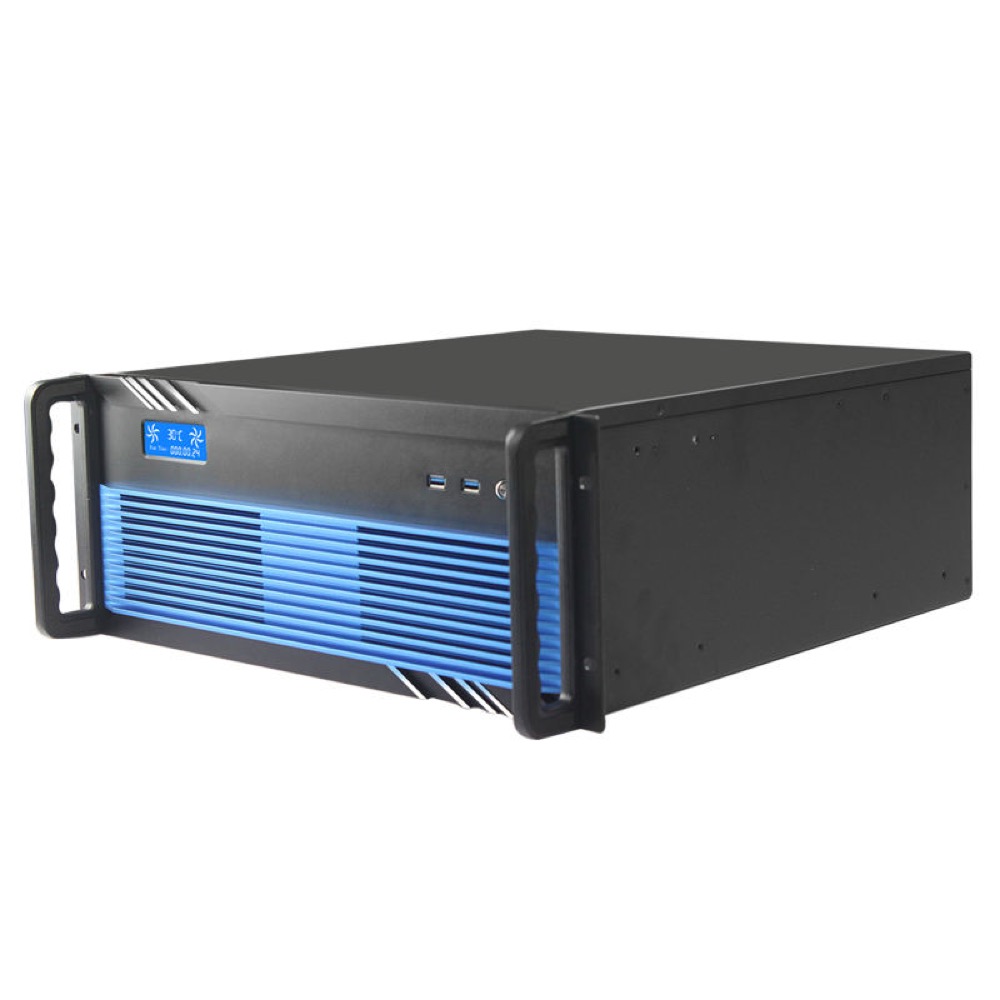

K446E 4U Rackmount Chassis with Temperature LCD
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays4 bays
4U 19-inch industrial rackmount chassis with a front temperature LCD, two USB 3.0 ports, seven PCIe slots, ATX motherboard support, two included 12025 fans, and a CPU cooler clearance of up to 140 mm. The supplier lists either three 3.5-inch drive positions or a mixed configuration of two 3.5-inch and two 2.5-inch positions. The enclosure measures 482 × 450 × 178 mm and supports an ATX power supply.
Specifications
Identity
| Model Number | CHS-SRV-K446E |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with front temperature LCD, two included 12025 cooling fans, two USB 3.0 ports, and power switch. ATX power supply, motherboard, CPU, memory, storage drives, and expansion cards are not included. |
| Use Case / Application | Industrial PC, Server, Workstation |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel enclosure with aluminum front panel |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 11.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm per key attributes; detailed specification states 305 × 243 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 3 × 3.5-inch HDD positions, 2 × 3.5-inch + 2 × 2.5-inch alternative configuration |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2 included |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Not specified |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Temperature LCD, Power switch |
| Custom I/O Details | Front panel includes two USB 3.0 ports, a temperature LCD, and a power switch. Seven PCIe slots and ATX PSU support are listed by the supplier. |
