In stock
Server Chassis
CHS-SRV-T610L
T610L 4U 5-Bay ATX Rackmount NAS Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 350(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays5 bays

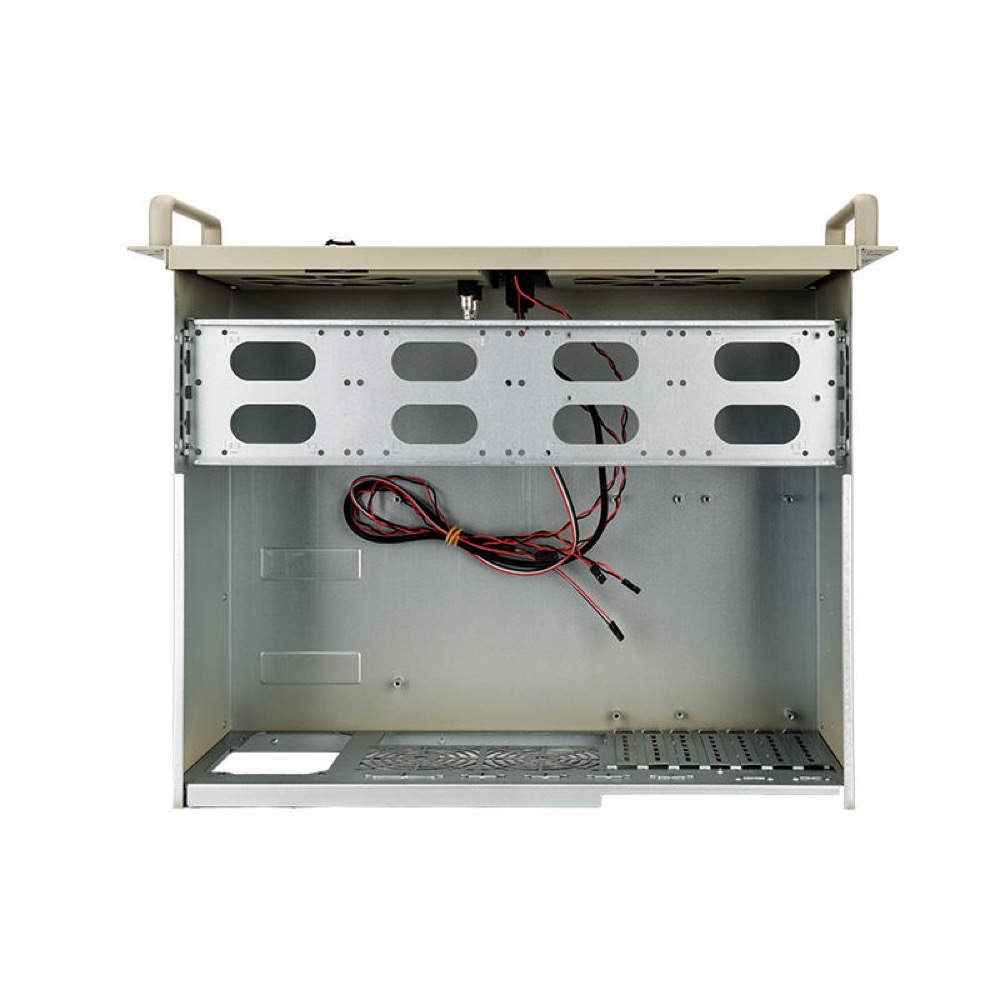

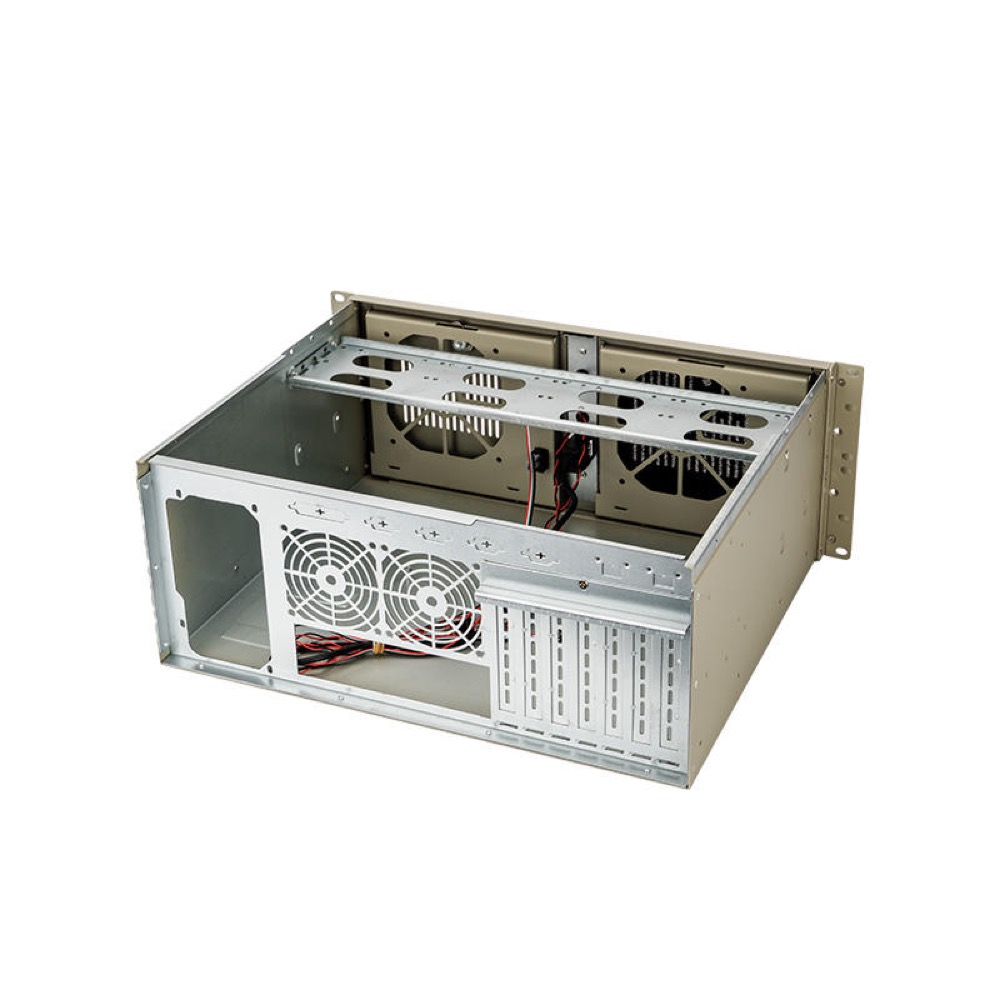

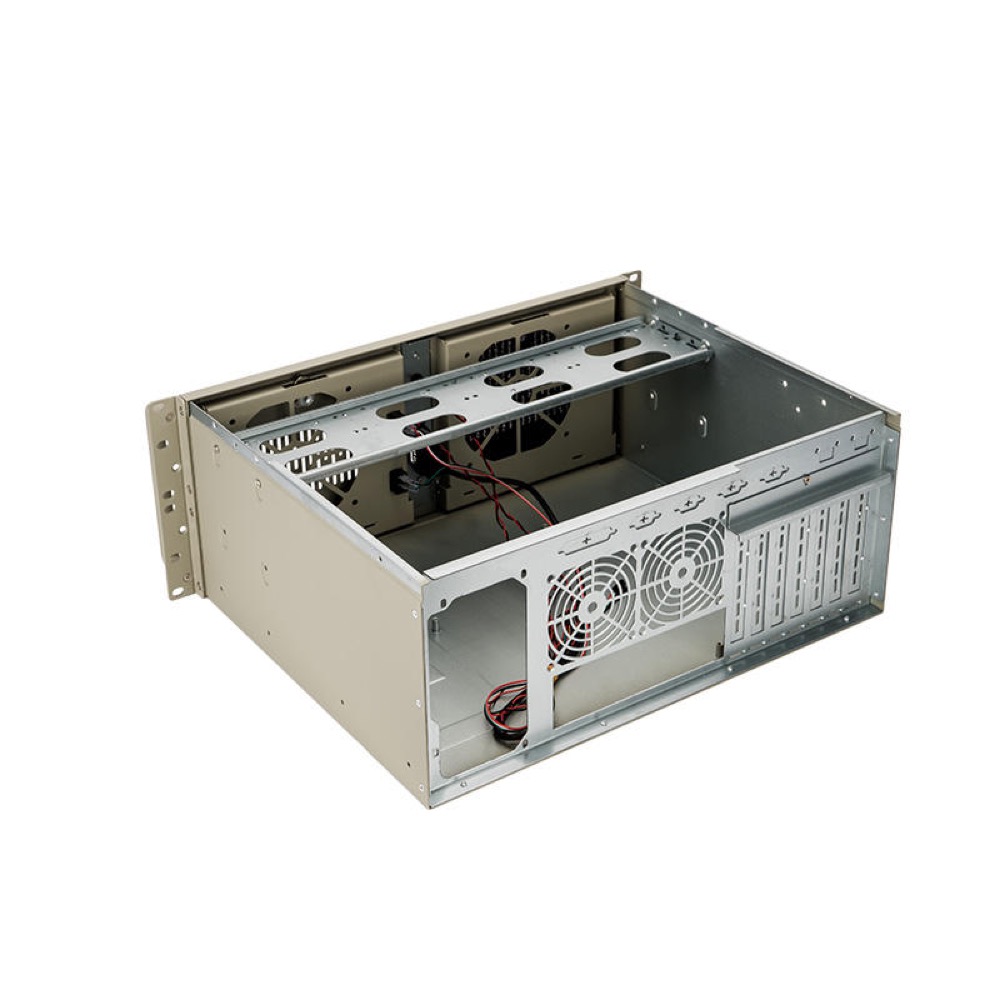

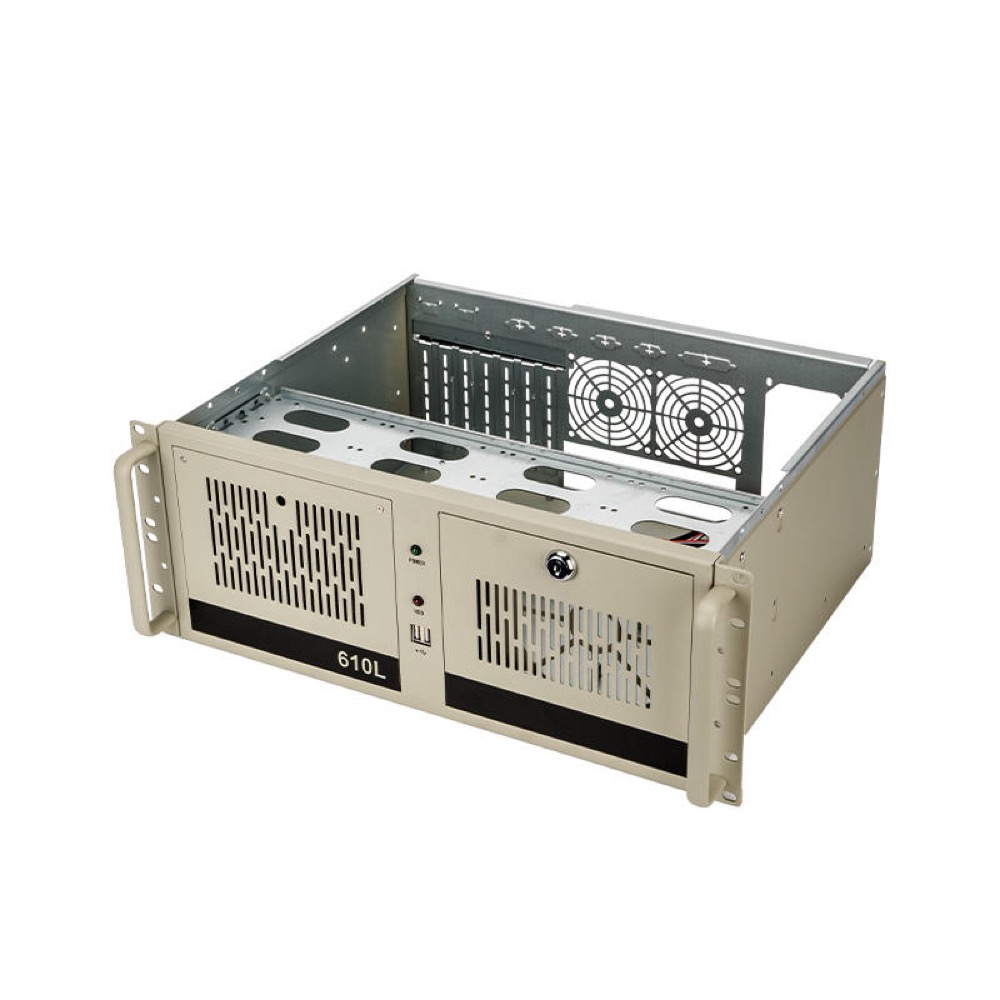

T610L 4U 19-inch rackmount NAS and industrial server chassis for ATX systems. The supplier lists a 482 × 350 × 178 mm SGCC steel enclosure supporting an ATX motherboard up to 305 × 245 mm, five 3.5-inch or five 2.5-inch drive positions, seven full-height PCIe slots, and ATX PSU support. Cooling is listed as optional dual 12025 and dual 8025 fans. The supplier's key attributes say there is no CD-ROM position, while the detailed description also mentions support for three 5.25-inch CD-ROM positions; this configuration should be confirmed before ordering. It is an empty chassis; motherboard, CPU, memory, storage, PSU, and optional fans are not included.
Specifications
Identity
| Model Number | CHS-SRV-T610L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty SGCC chassis enclosure with seven full-height expansion slots and ATX PSU support. Supplier lists dual 12025 and dual 8025 fans as optional; PSU, motherboard, CPU, memory, storage, and fans are not included. |
| Use Case / Application | NAS, Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, 1.2 mm |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 350 mm |
| Weight | 11.35 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 5 bays |
| Drive Types | Alternate layout: 5 × 3.5-inch HDD, Alternate layout: 5 × 2.5-inch HDD/SSD, Key attributes: no CD-ROM, Detailed description: supports 3 × 5.25-inch CD-ROM positions; verify configuration |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height straight expansion slots |
Cooling and Thermal
| Included Fan Count | 0 fans |
| Fan Size | 2 × 120 × 25 mm (12025) and 2 × 80 × 25 mm (8025), optional |
I/O and Connectivity

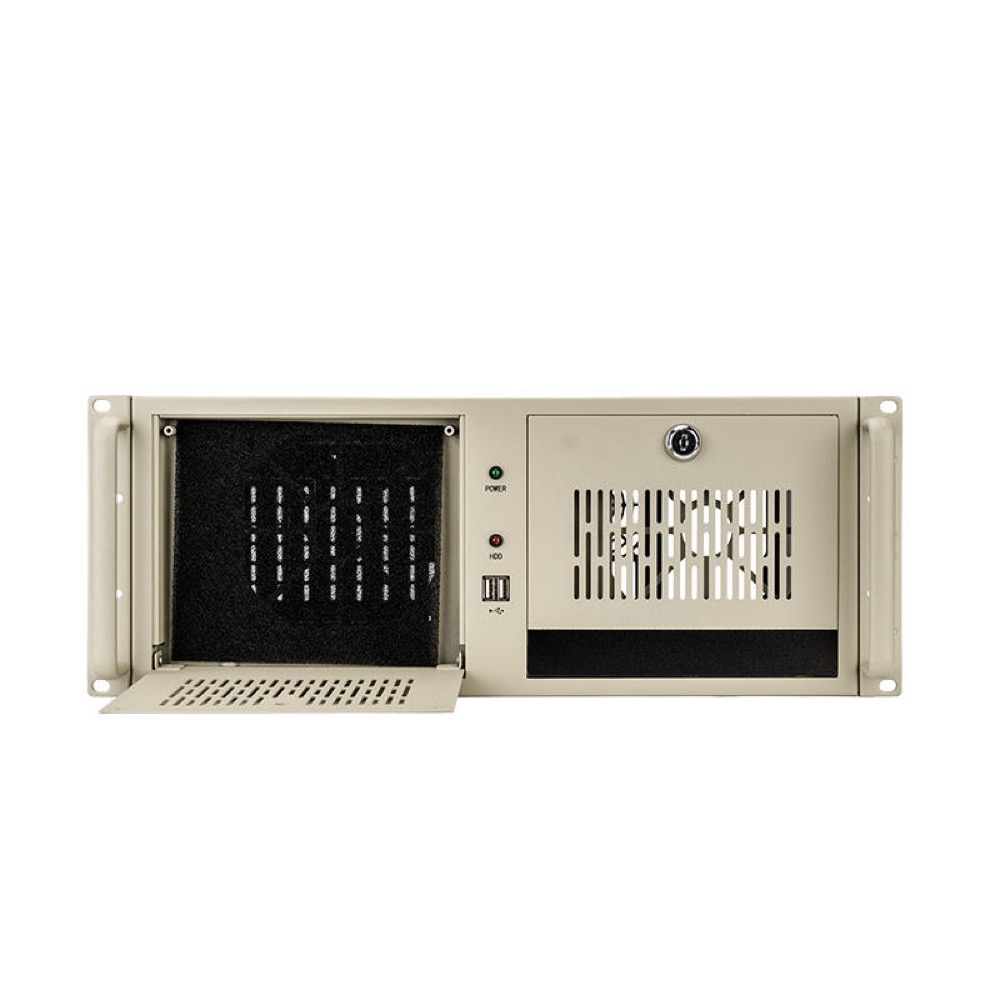

| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator, LED indicator, PS/2 |
| Custom I/O Details | Supplier lists two USB 2.0 ports, power on/off, reset, power and HDD indicators, LED indicator, and PS/2. The detailed description also mentions three 5.25-inch CD-ROM positions, while the key attributes say CD-ROM: No; confirm the final drive-cage configuration. |
| USB Ports | 2 |
