Server Chassis
CHS-SRV-K430FB

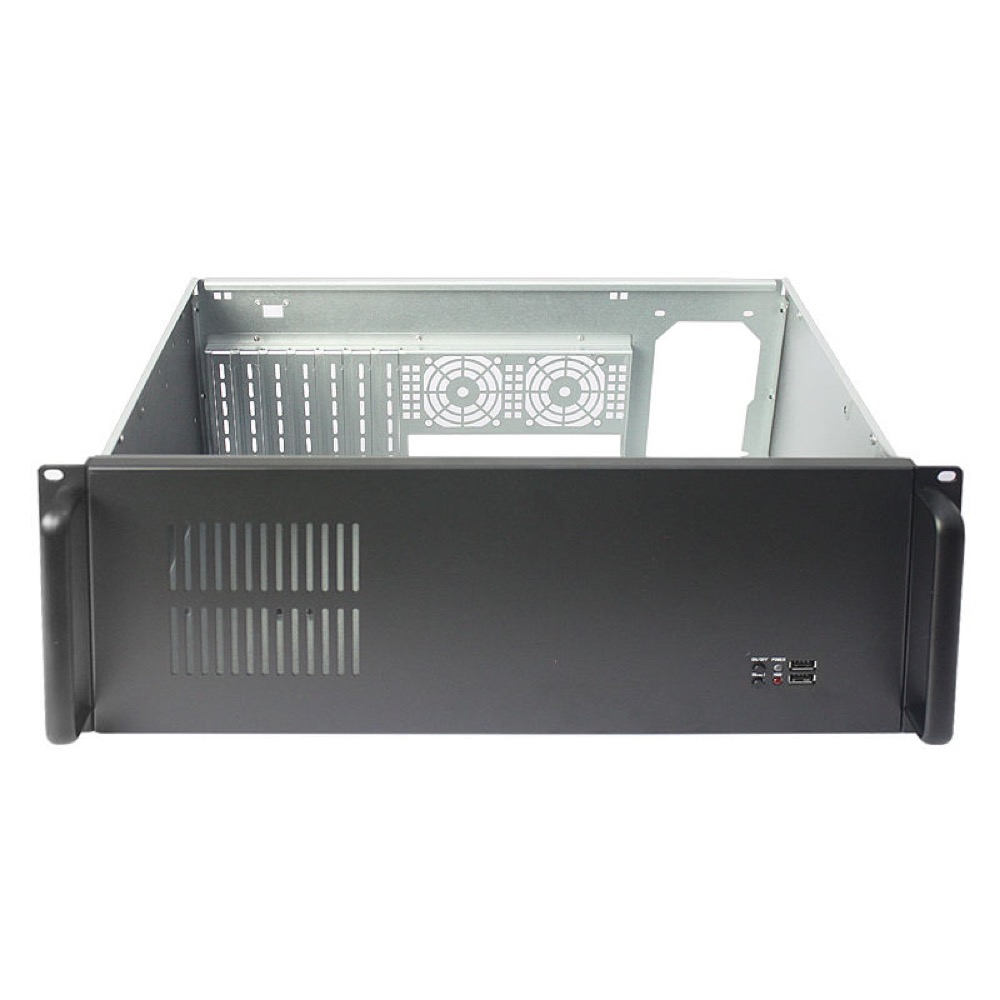

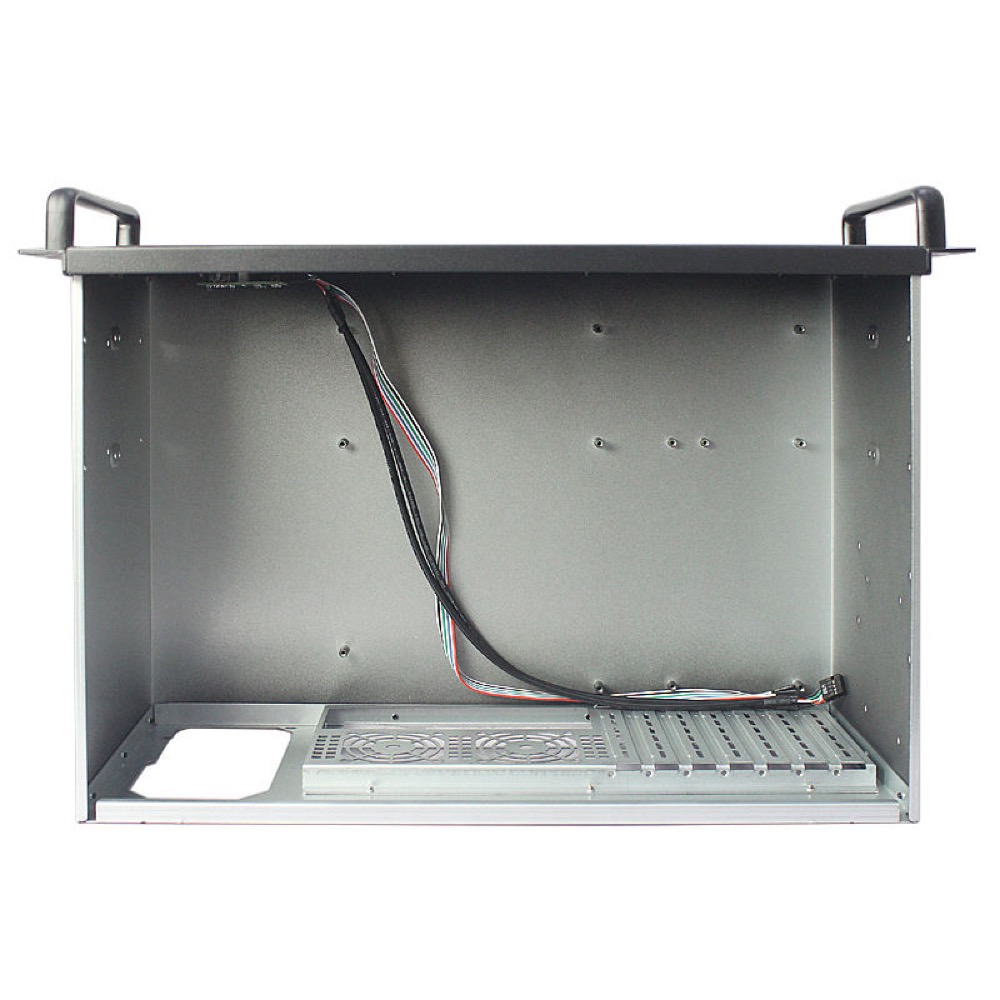

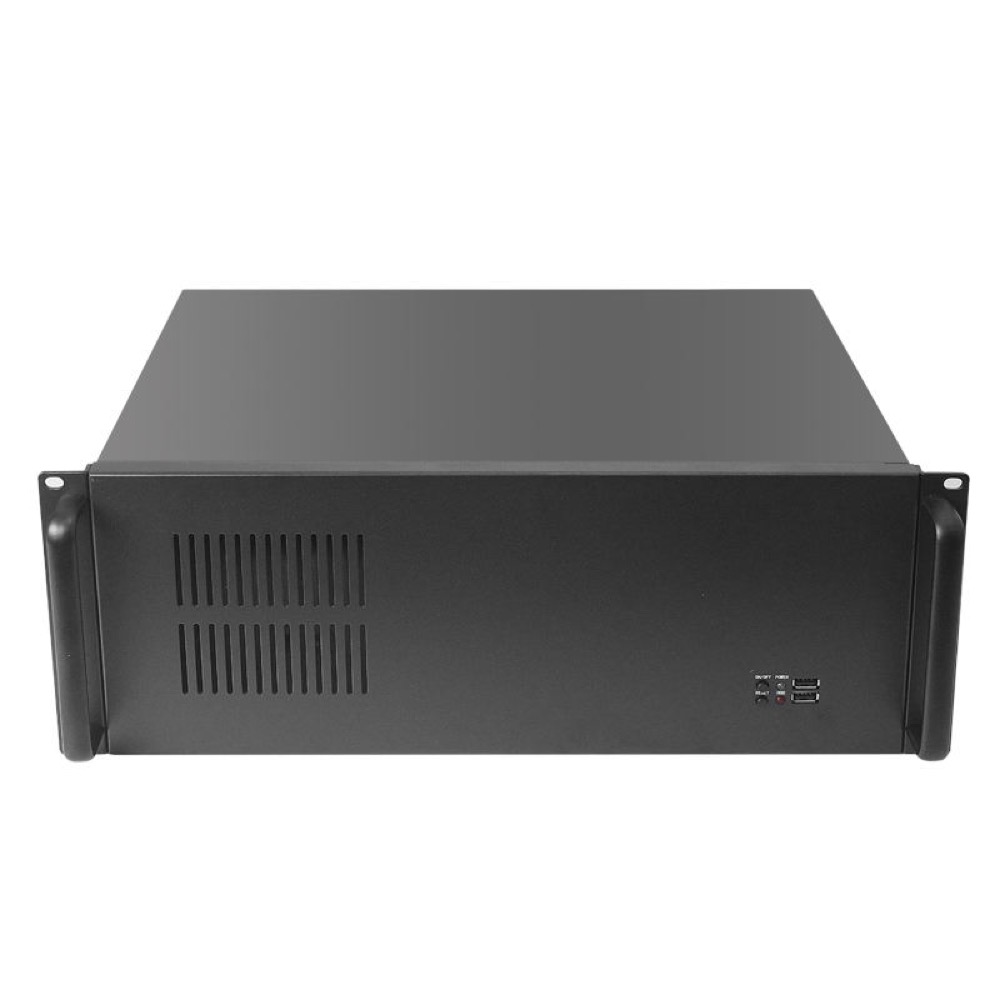

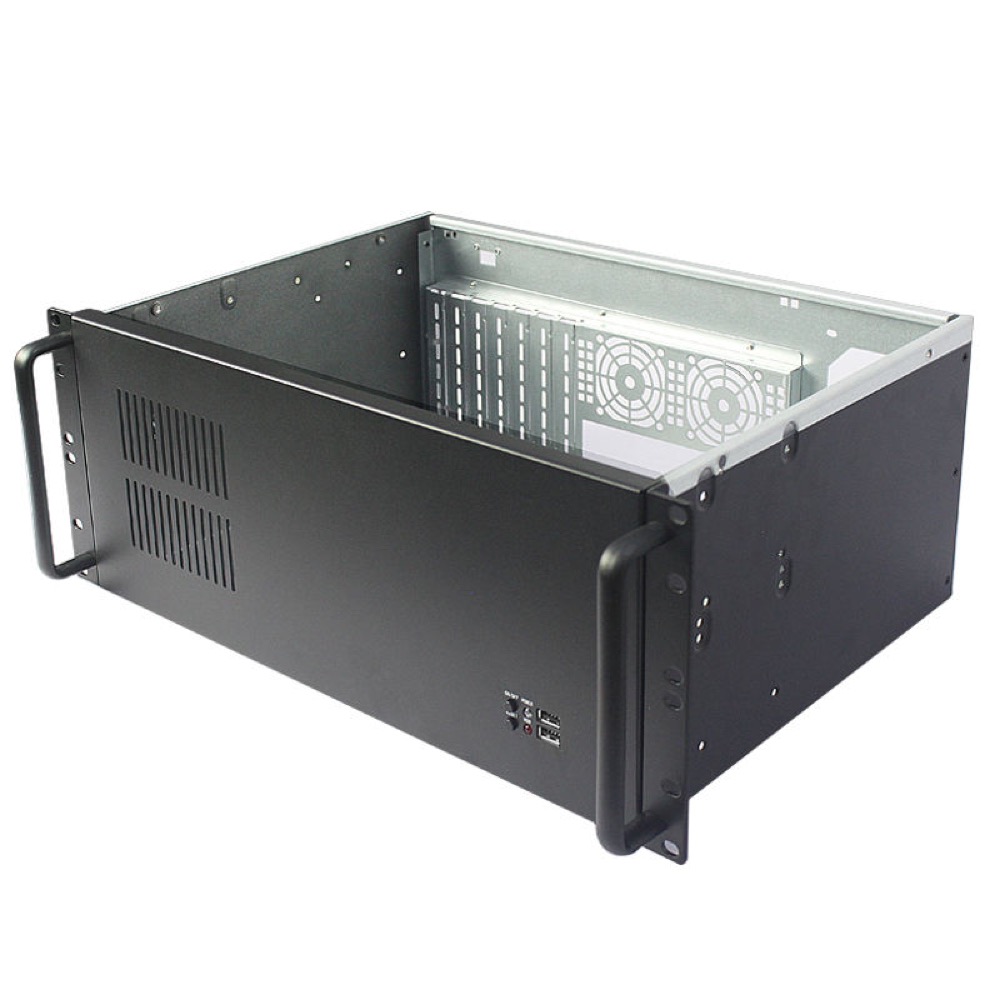

Good Price 4U K430FB 19 Inch Industrial Rackmount Chassis 7 Full Height Slots 3x3.5" HDD Support Application Servers Security
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 300(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays3 bays
4U 19-inch industrial rackmount chassis for server and security applications. Supplier-listed configuration: SGCC construction, ATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX PSU support, three 3.5-inch HDD positions with 2.5-inch adapter support, seven full-height expansion slots, and front USB 2.0 × 2 with power, reset, and HDD indicators. Dimensions: 482(W) × 300(D) × 178(H) mm. The supplier lists two 6025 cooling fans as optional and not included. Single-package information: 55 × 41 × 25 cm and 5.75 kg gross weight.
Specifications
Identity
| Model Number | CHS-SRV-K430FB |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; ATX PSU support. Supplier lists two 6025 cooling fans as optional and not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel |
| Finish / Color | SGCC steel; finish/color not specified |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 300 mm |
| Weight | 5.75 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12" × 9.6") |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| Drive Types | 3.5" HDD, 2.5" via adapter |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 0 fans |
| Fan Size | 60 × 60 × 25 mm (2 × 6025 optional fans; supplier states not included) |
I/O and Connectivity
| Front I/O | USB 2.0 × 2, Power switch with indicator, Reset switch, HDD activity indicator |
| Custom I/O Details | CD-ROM: none. Supplier lists RAM 0 and hard-drive capacity 0 for the empty chassis listing. |
| USB Ports | 2 |
