In stock
Server Chassis
CHS-SRV-K430F-2

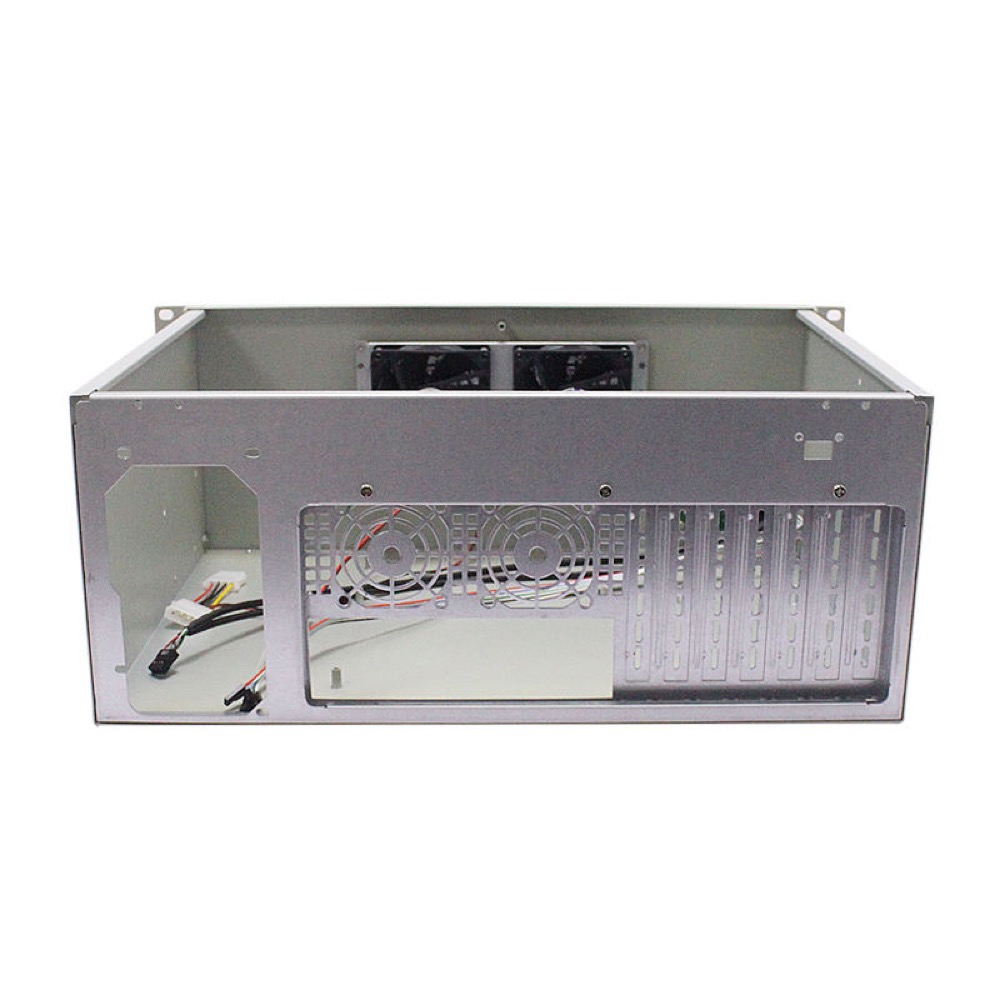

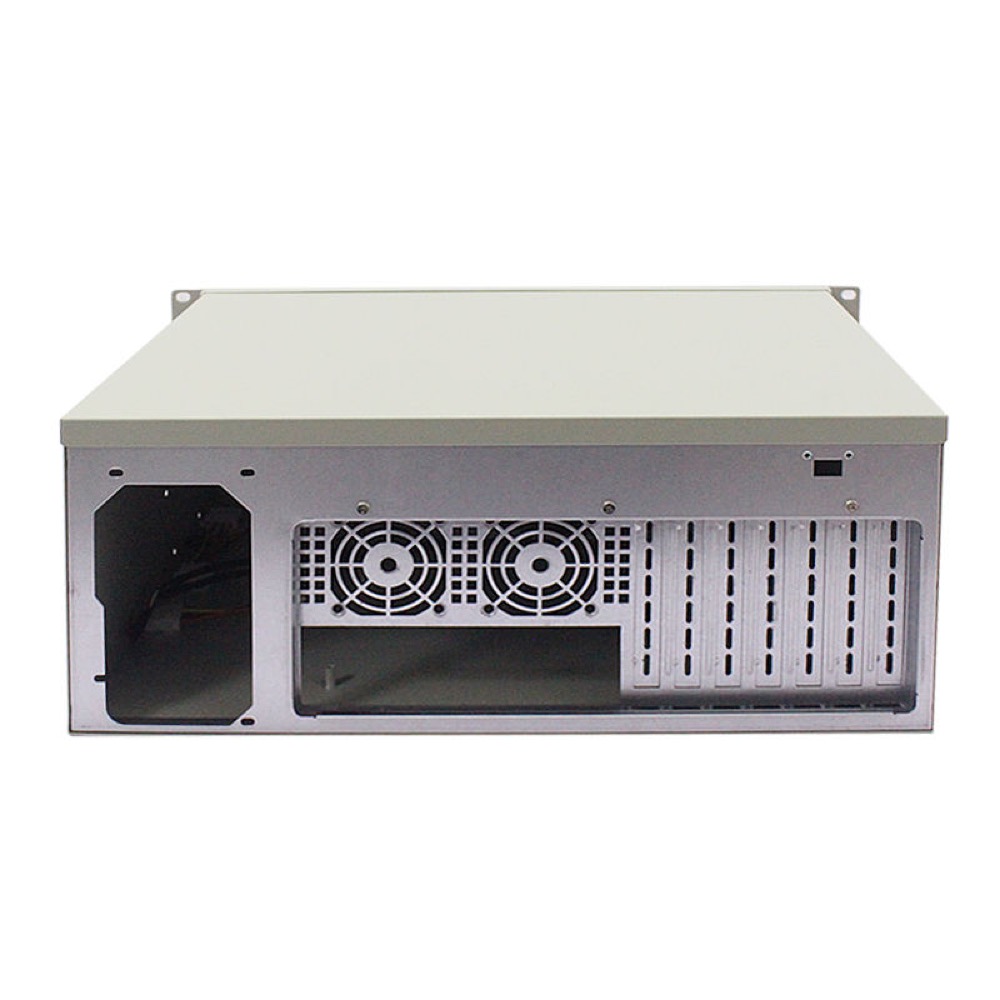

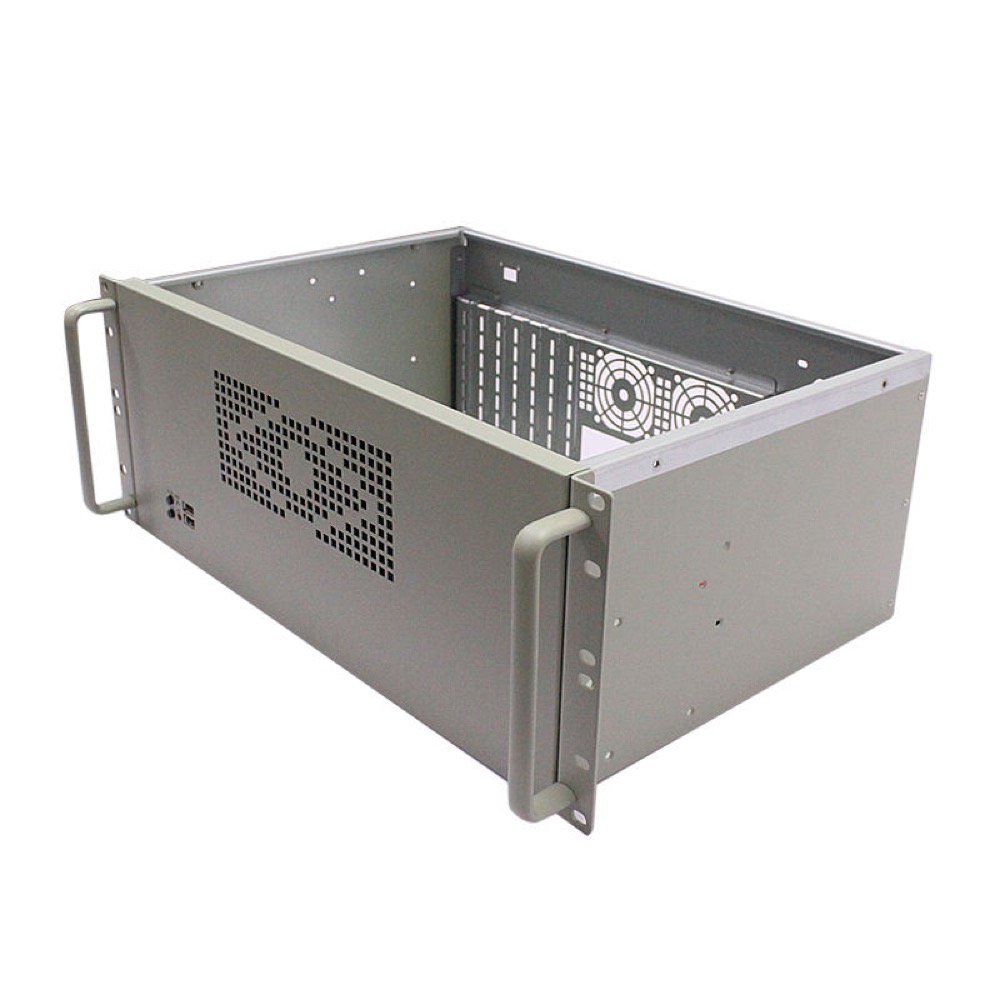

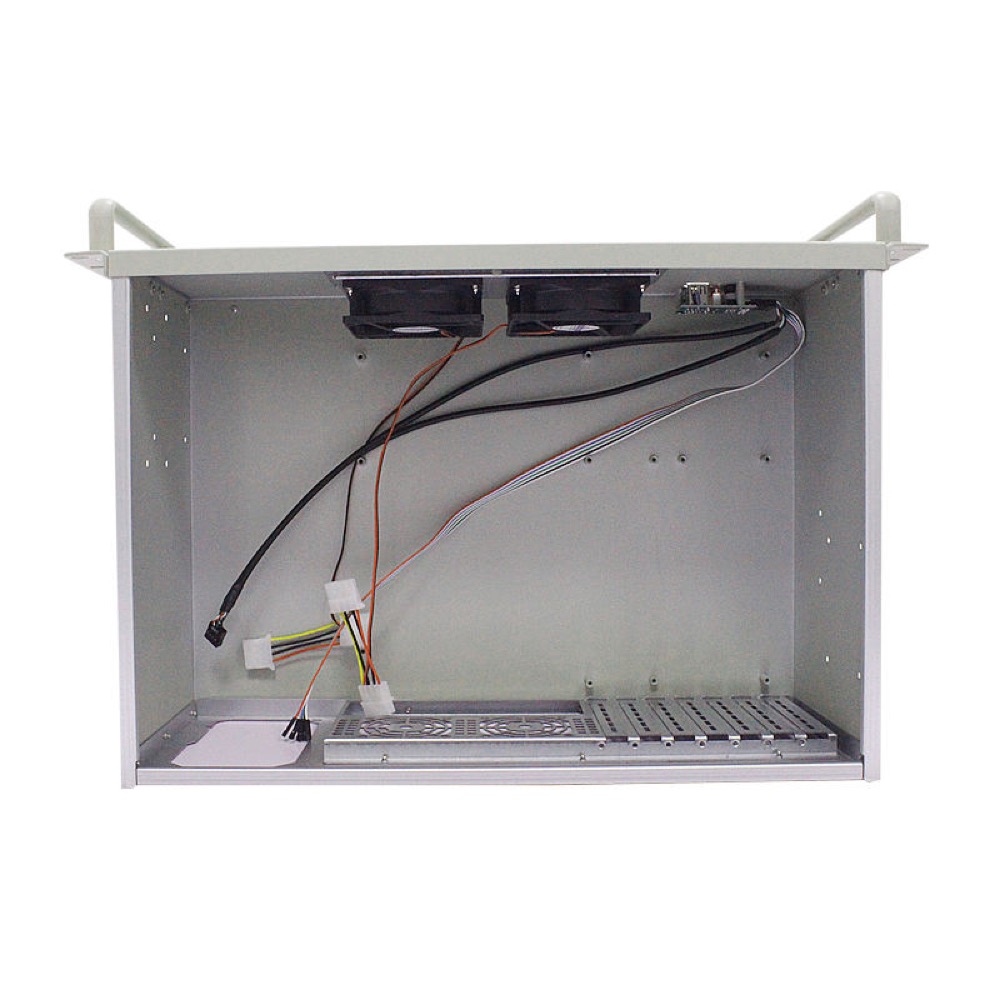

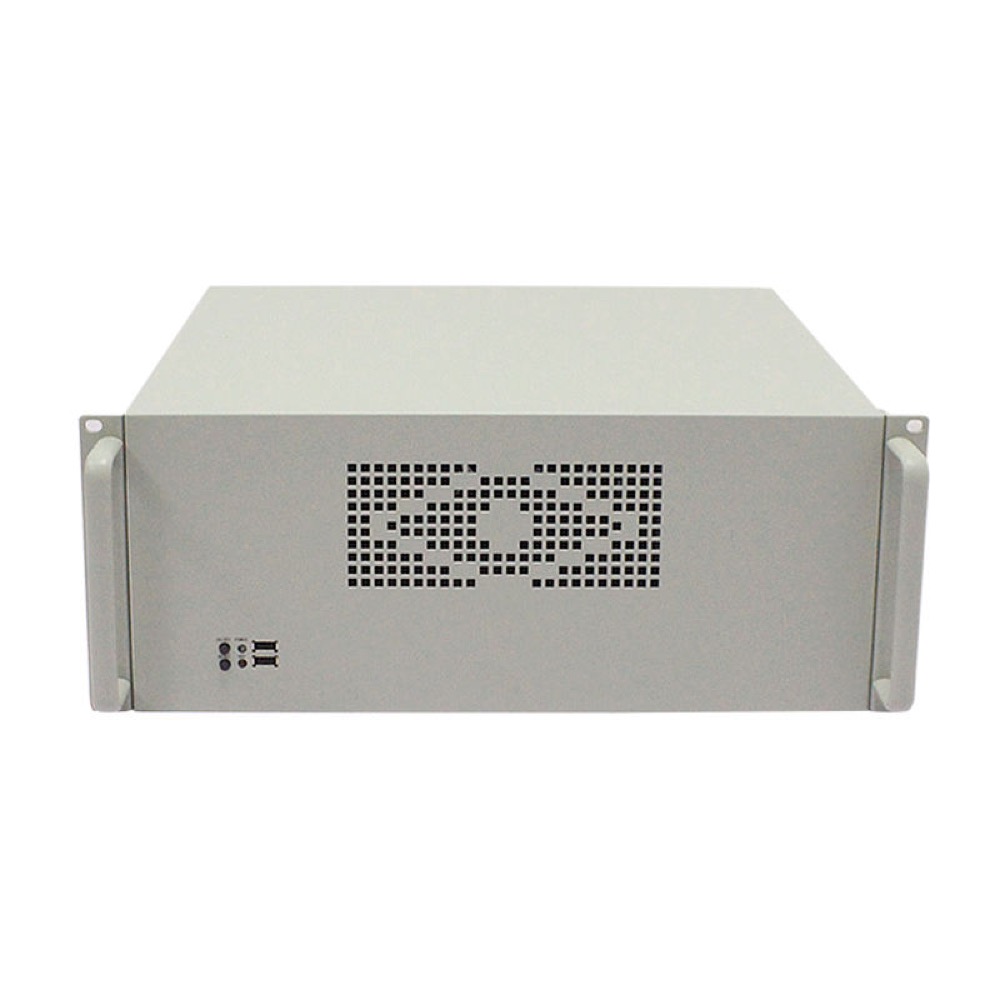

2019 New IPC Server 4U case With Short Bady 19inch Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 300(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays2 bays
4U 19-inch short-depth industrial rackmount chassis for server and industrial PC applications. Supplier-listed configuration: SGCC construction, ATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX PSU support, two 3.5-inch hard-drive positions, two included 8025 cooling fans, seven full-height expansion slots, and front power, indicator, and USB 2.0 × 2 controls. Dimensions: 482(W) × 300(D) × 178(H) mm. Supplier lists 4.5 kg net weight and 5.8 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K430F-2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel |
| Finish / Color | Finish/color not specified |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 300 mm |
| Weight | 4.5 kg net; 5.8 kg gross single package |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| Drive Types | 3.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | Power switch with indicator, USB 2.0 × 2 |
| Custom I/O Details | Short-depth rackmount chassis. Supplier lists seven full-height expansion slots and does not specify reset, HDD indicator, audio, or network I/O. |
| USB Ports | 2 |
