In stock
Server Chassis
CHS-SRV-K435DF

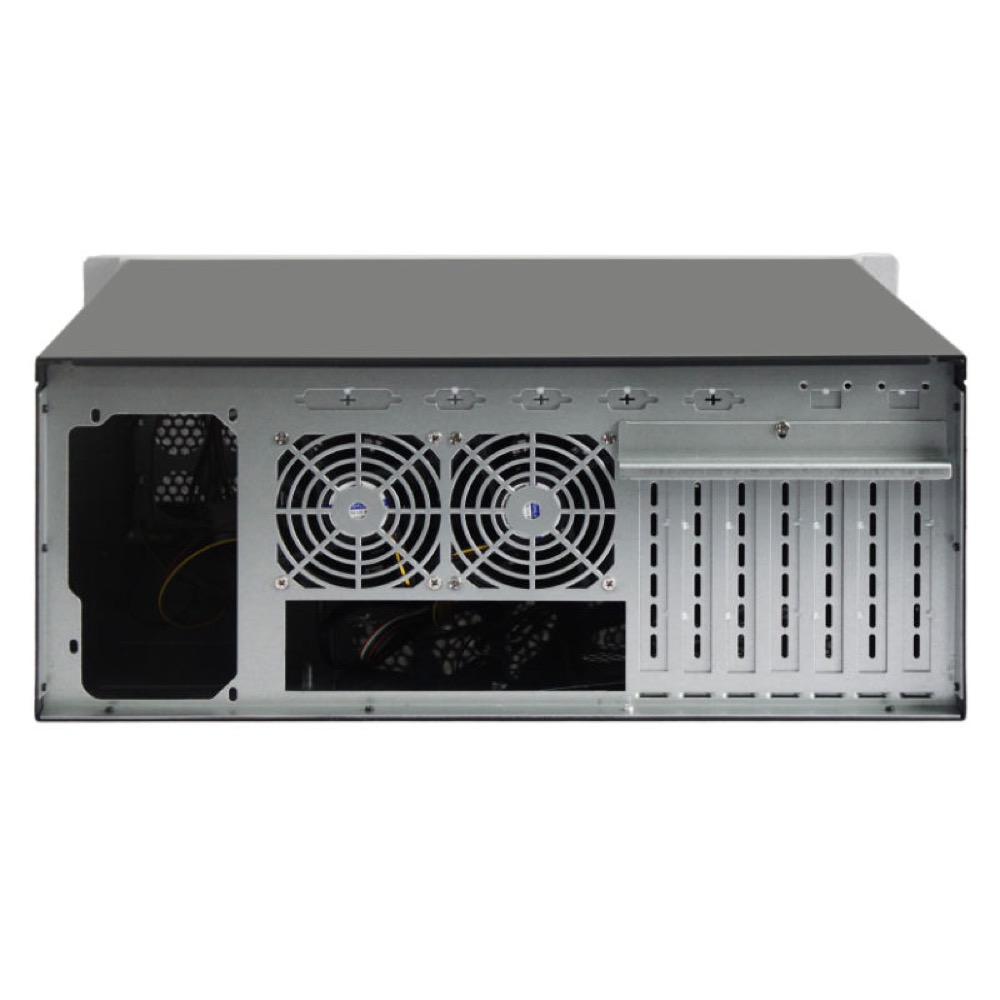

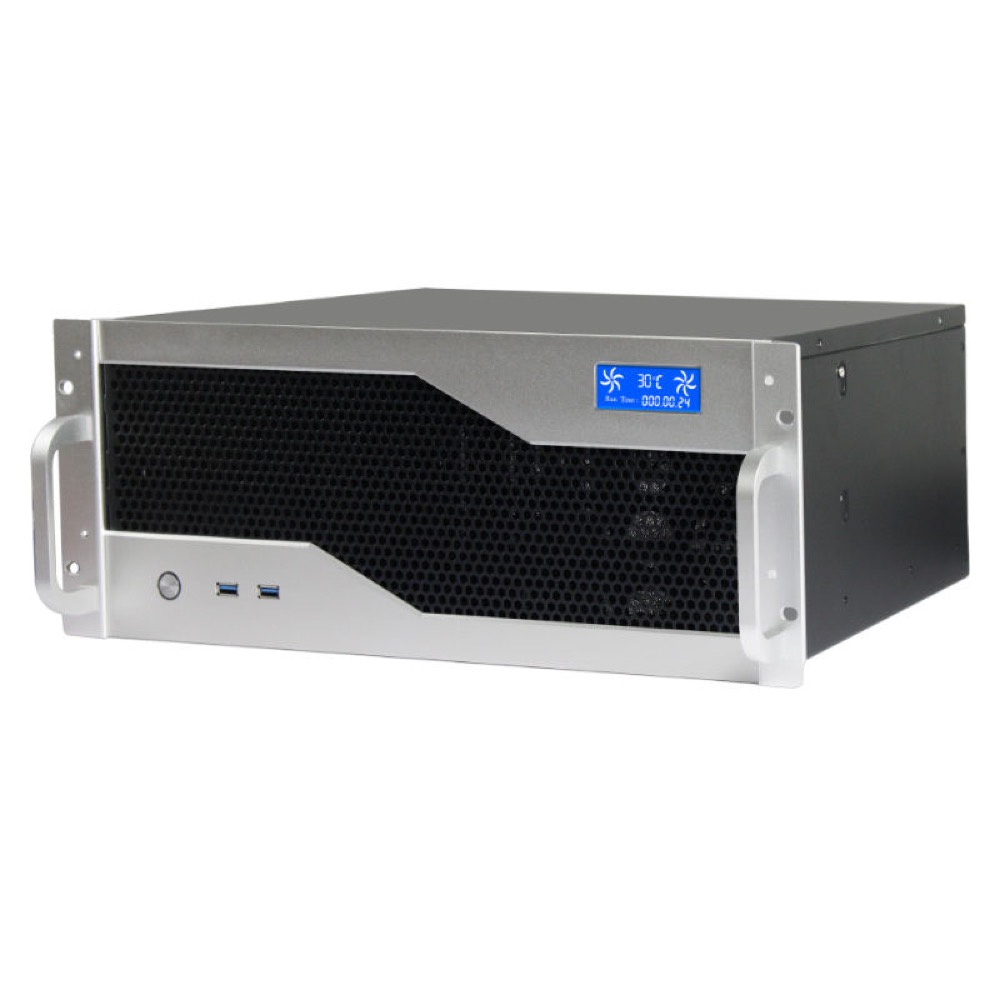

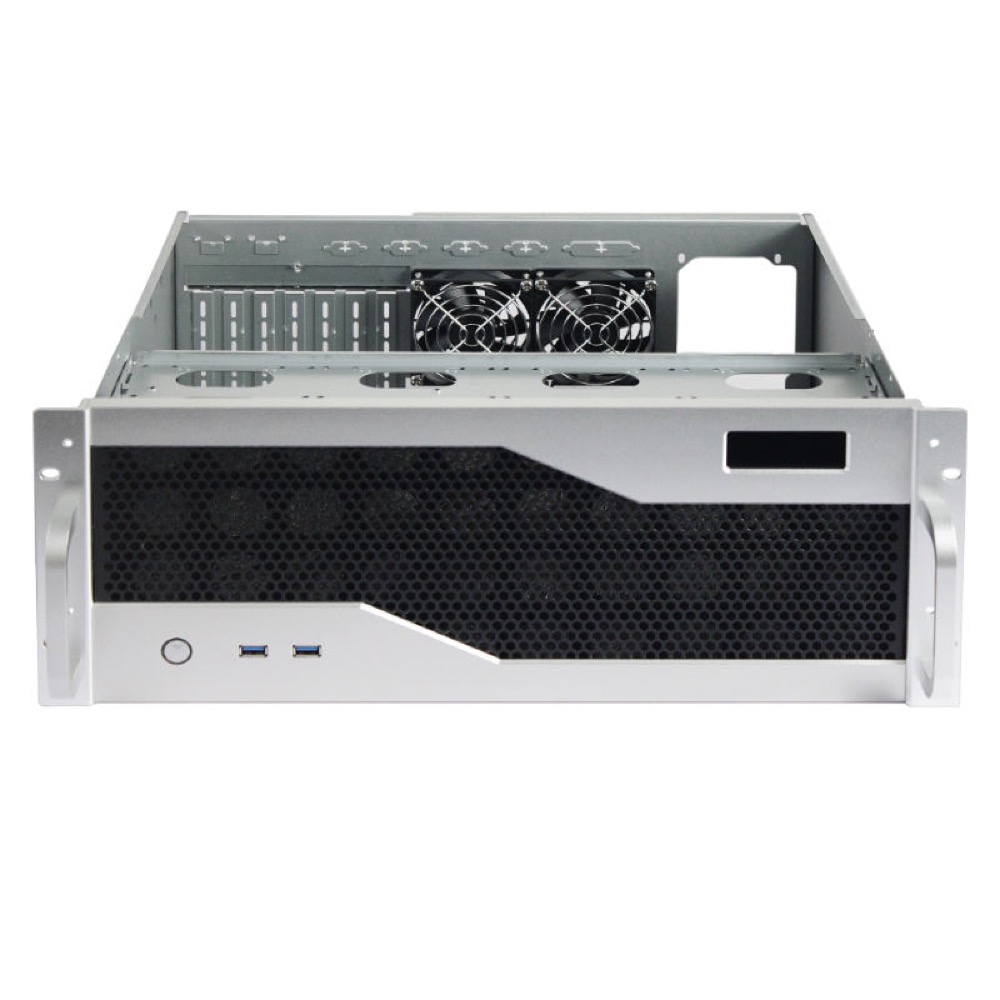

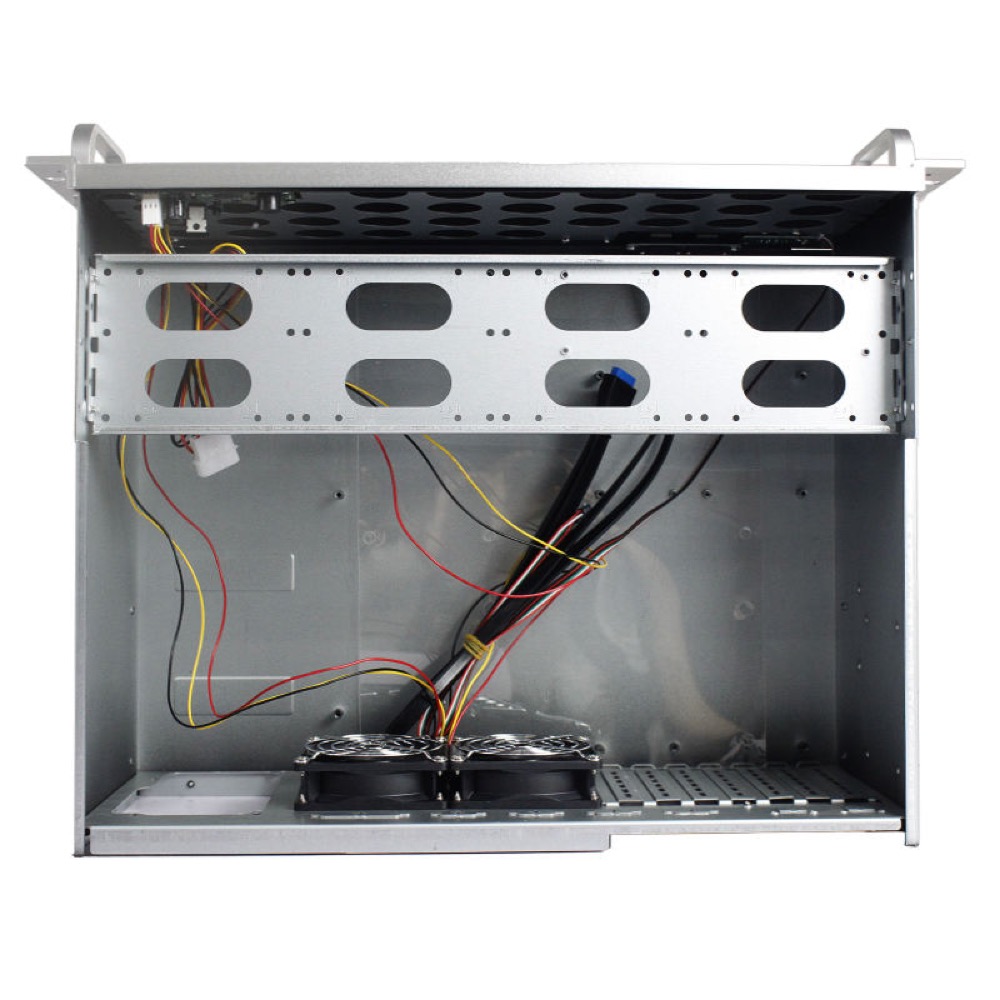

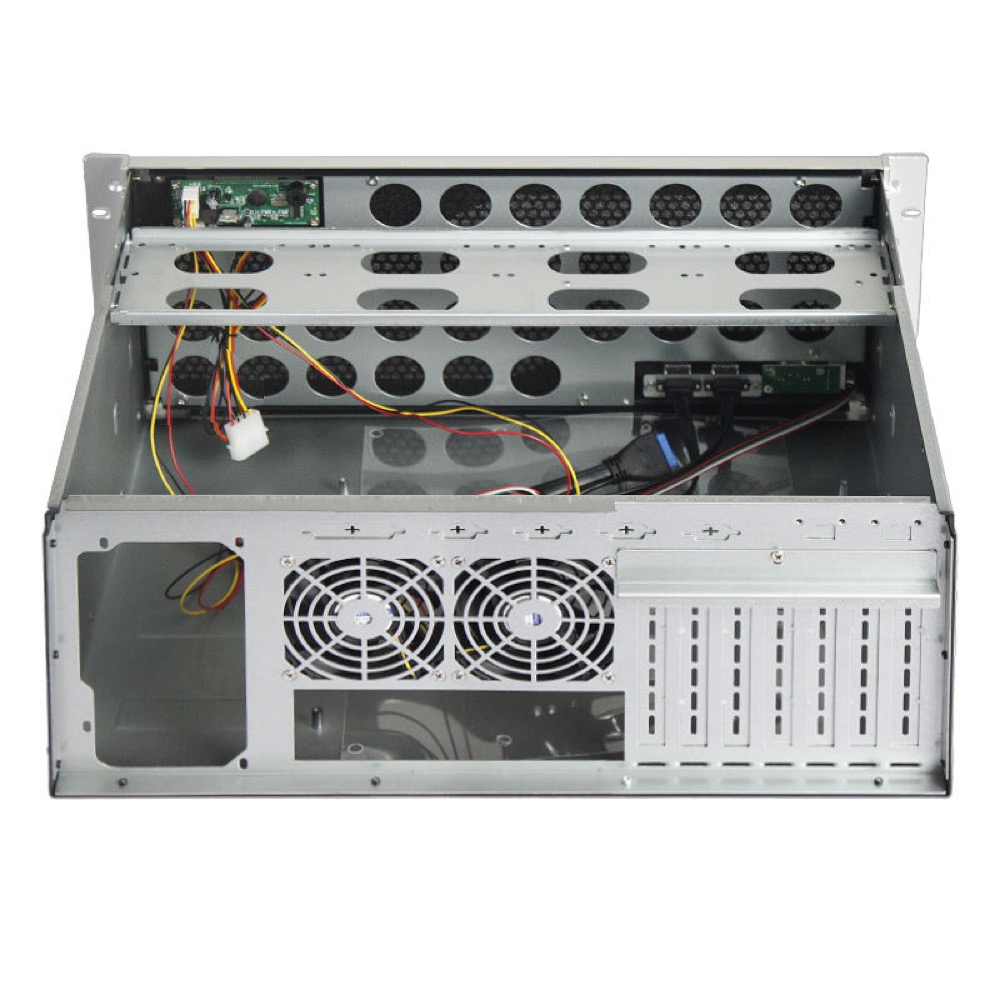

K435DF 4U ATX Rackmount Chassis with Temperature LCD
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays5 bays
K435DF 4U 19-inch industrial rackmount chassis for ATX server and industrial PC systems. The supplier lists a 482 × 350 × 178 mm enclosure with a 4 mm aluminum front panel, ATX motherboard and PSU support, five alternate 3.5-inch or 2.5-inch drive positions, seven PCIe slots, two included 8025 fans, CPU cooler clearance up to 150 mm, two USB 3.0 ports, and a front temperature LCD. It is an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-K435DF |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty rackmount chassis with 4 mm aluminum front panel, two included 8025 fans, seven PCIe slots, and front temperature LCD. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Aluminum front panel; steel chassis |
| Finish / Color | Finish/color not specified |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 350 mm |
| Weight | 8.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX; supplier does not specify maximum dimensions |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 5 bays |
| Drive Types | Alternate layout: 5 × 3.5-inch HDD, Alternate layout: 5 × 2.5-inch HDD/SSD via adapter |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe slots; height not explicitly stated by supplier |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | Up to 150 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Temperature display; resolution and size not specified by supplier |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Temperature LCD |
| Custom I/O Details | 4 mm aluminum front panel with two USB 3.0 ports and a front temperature LCD. Supplier does not specify display size, resolution, touchscreen support, display interface, power/reset controls, or additional rear I/O. |
| USB Ports | 2 |
