In stock
Server Chassis
CHS-SRV-K447F

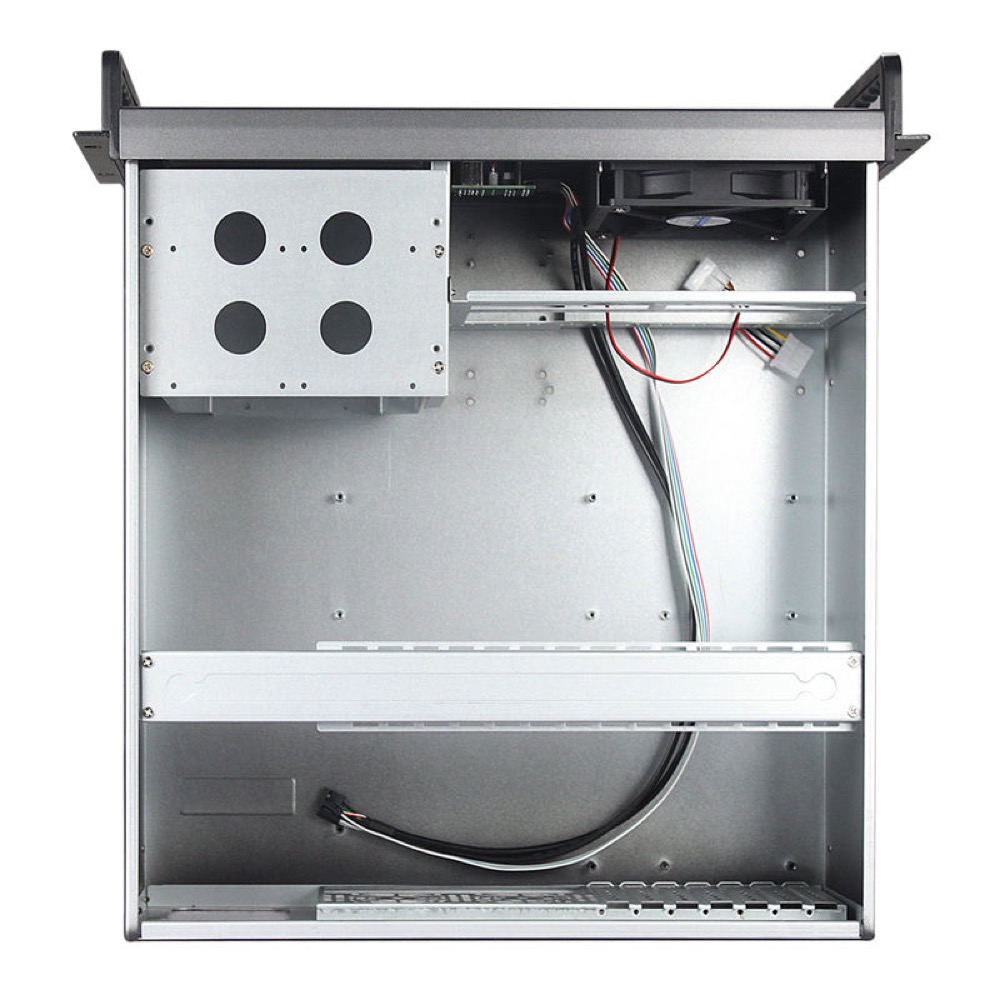

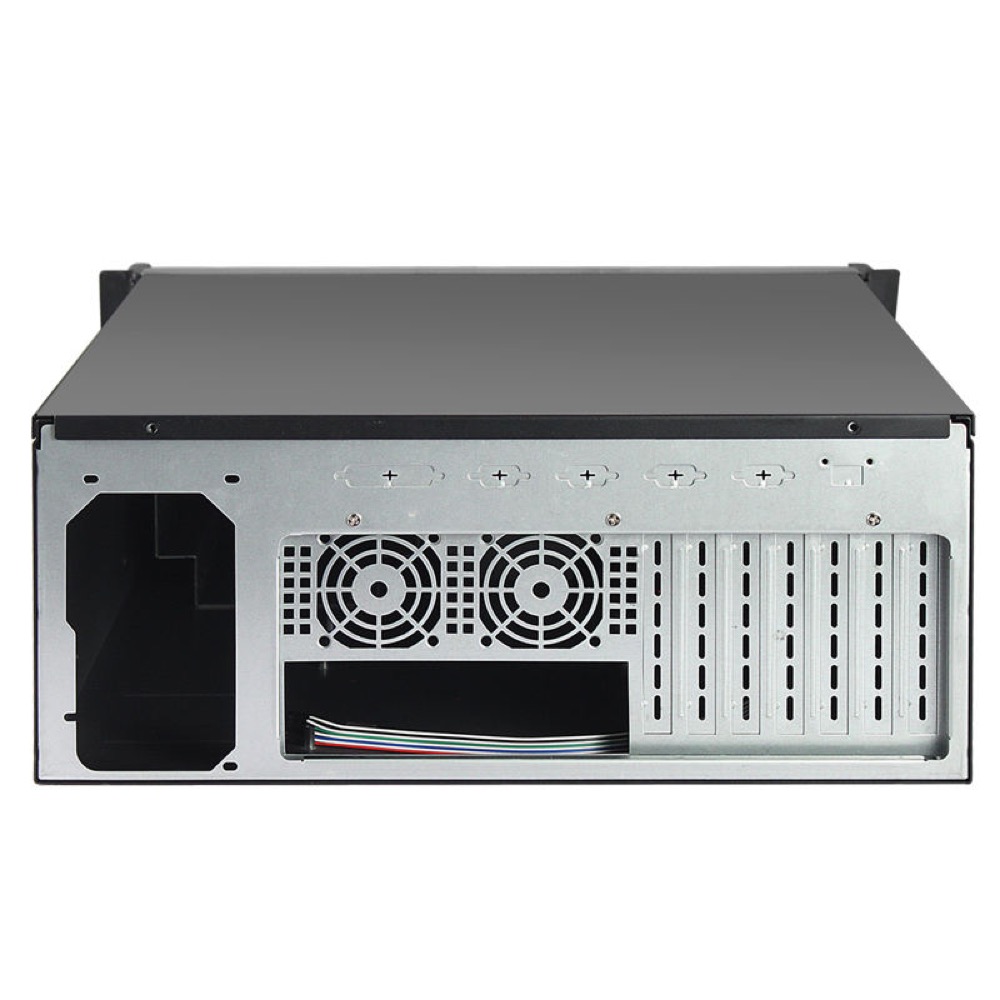

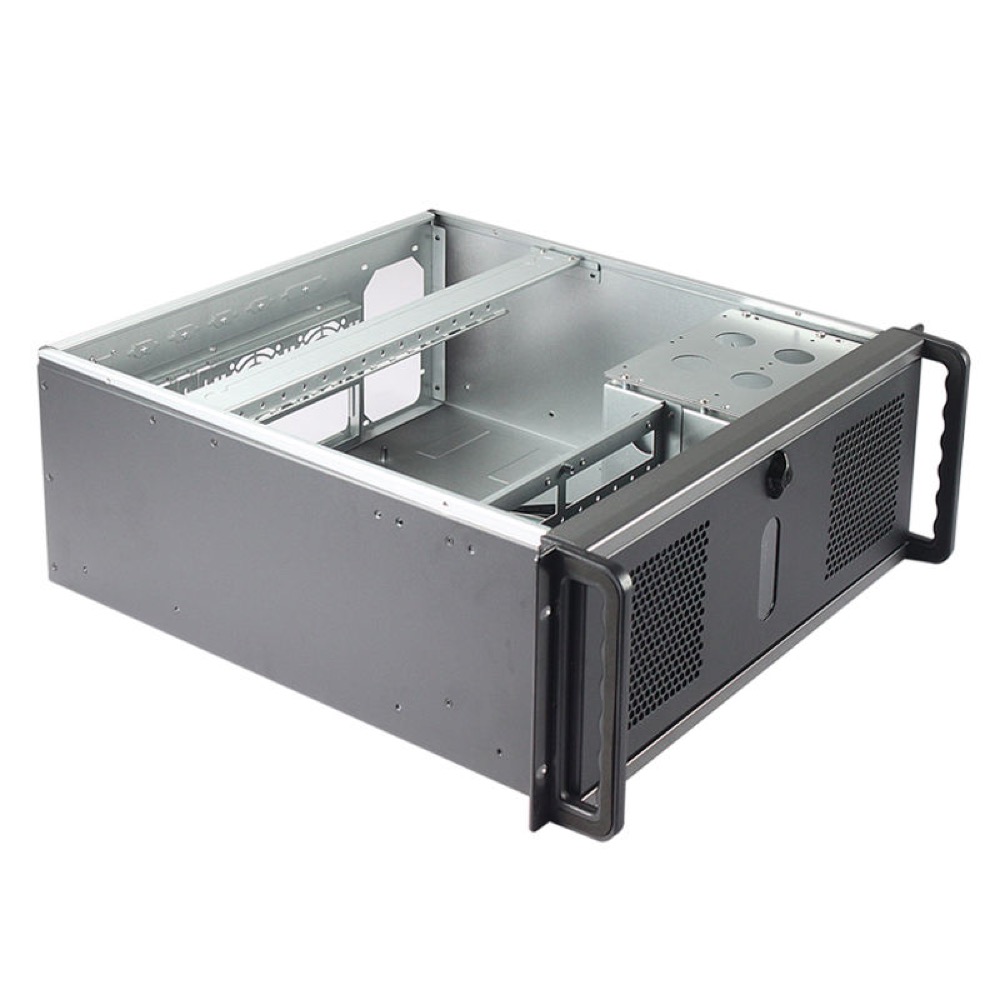

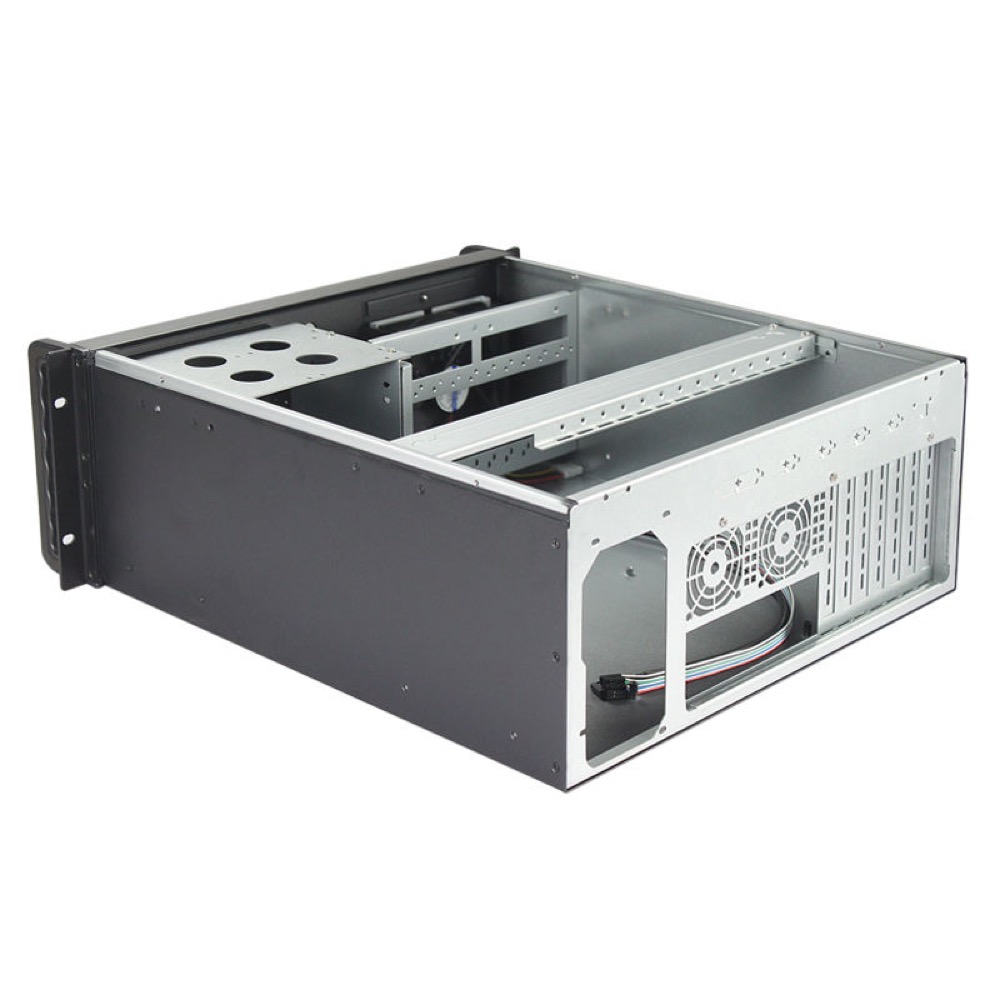

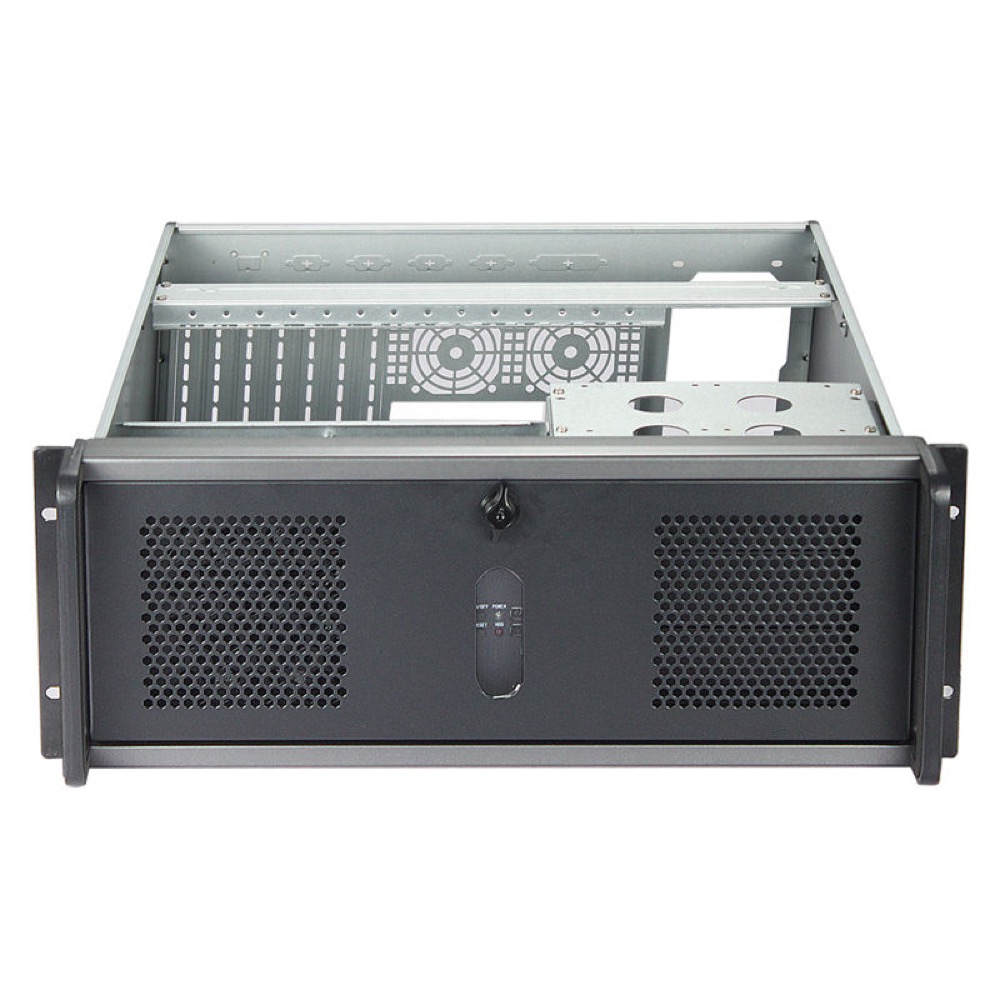

4U ATX Rackmount Chassis with 7 PCIe Slots
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 470(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays3 bays
4U 19-inch industrial rackmount chassis for server and industrial PC applications. Supplier-listed configuration: ATX motherboard support up to 305 × 245 mm, ATX PSU support, three 3.5-inch HDD positions, three 5.25-inch optical-drive positions, seven PCIe slots, one included 12025 fan, two USB 2.0 ports, and CPU-cooler height up to 145 mm. Dimensions: 482(W) × 470(D) × 178(H) mm. Supplier lists 9.55 kg net and 11.1 kg gross package weight and marks the product status as Used.
Specifications
Identity
| Model Number | CHS-SRV-K447F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis; one included 12025 cooling fan; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Industrial steel |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 470 mm |
| Weight | 9.55 kg net; 11.1 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| Drive Types | 3.5" |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, PCIe |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
| Maximum CPU Cooler Height | Up to 145 mm |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power on/off, reset, and status indicators. Supplier also lists three 5.25-inch optical-drive positions. |
