In stock
Server Chassis
CHS-SRV-K443F

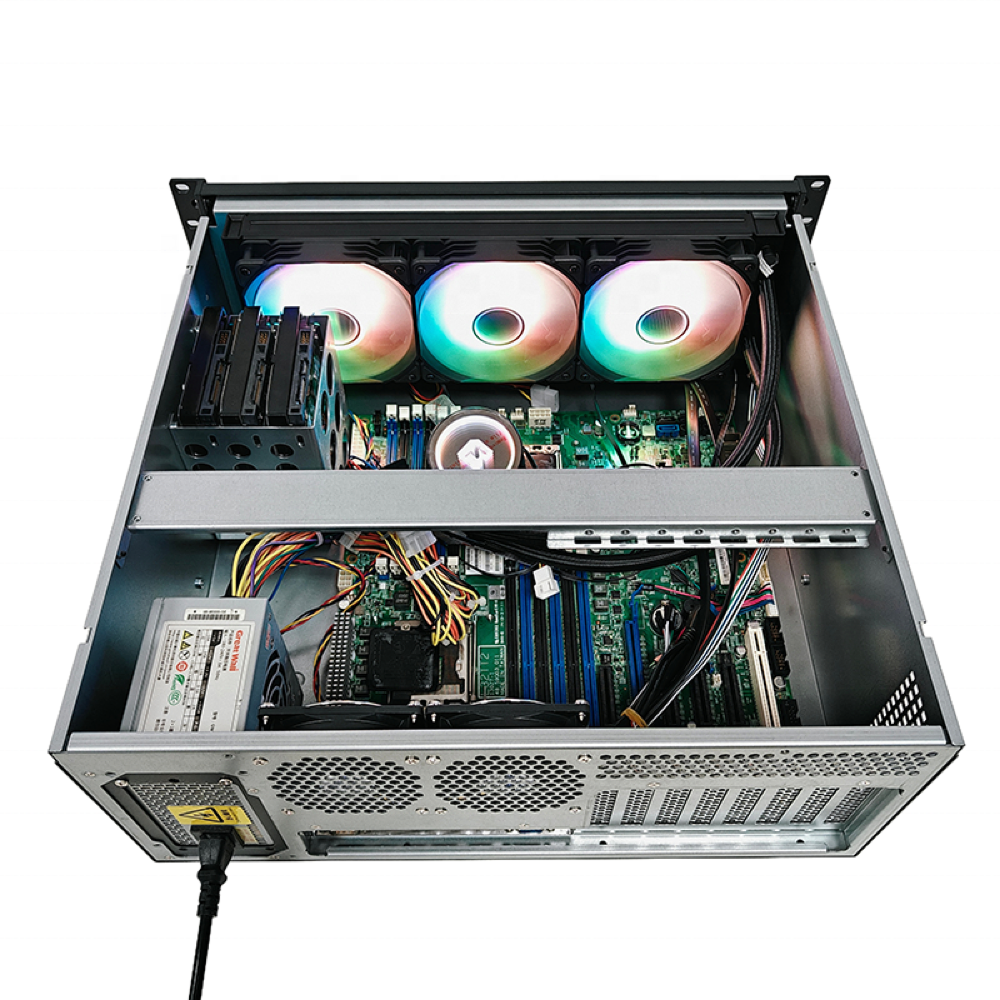

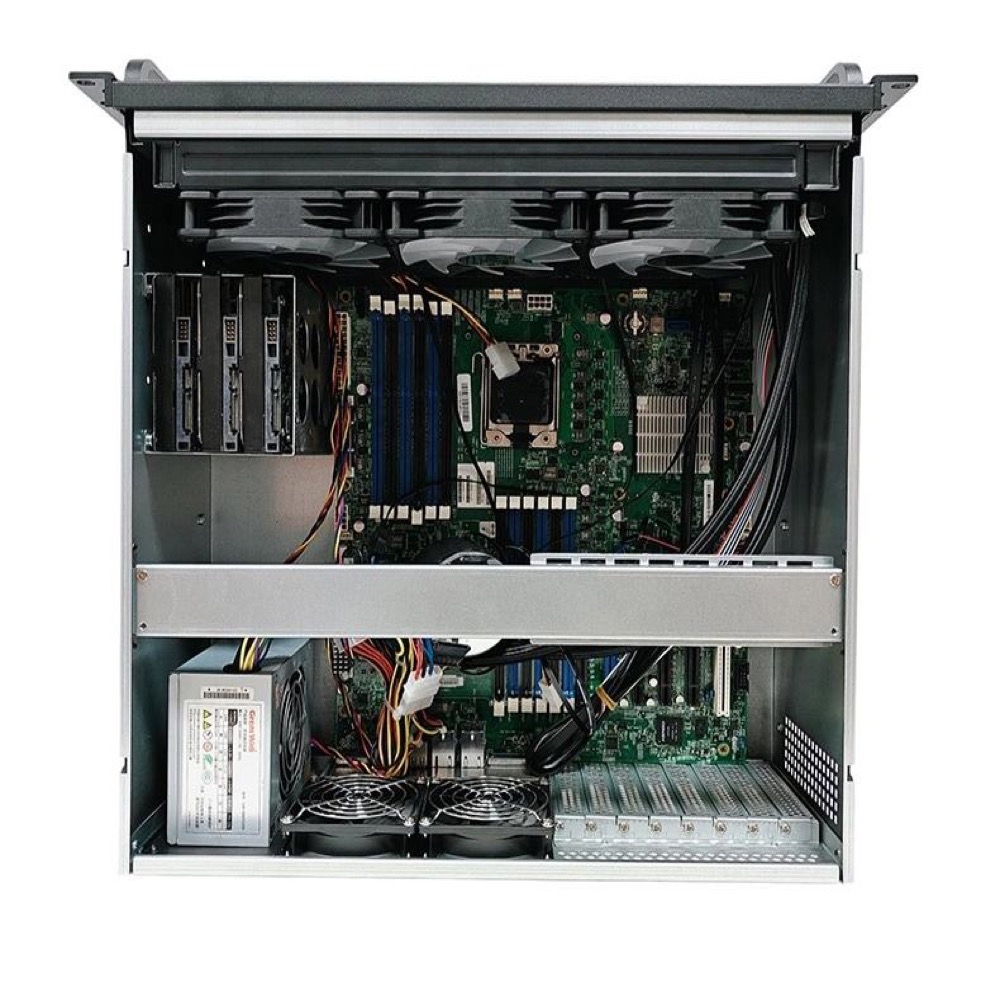

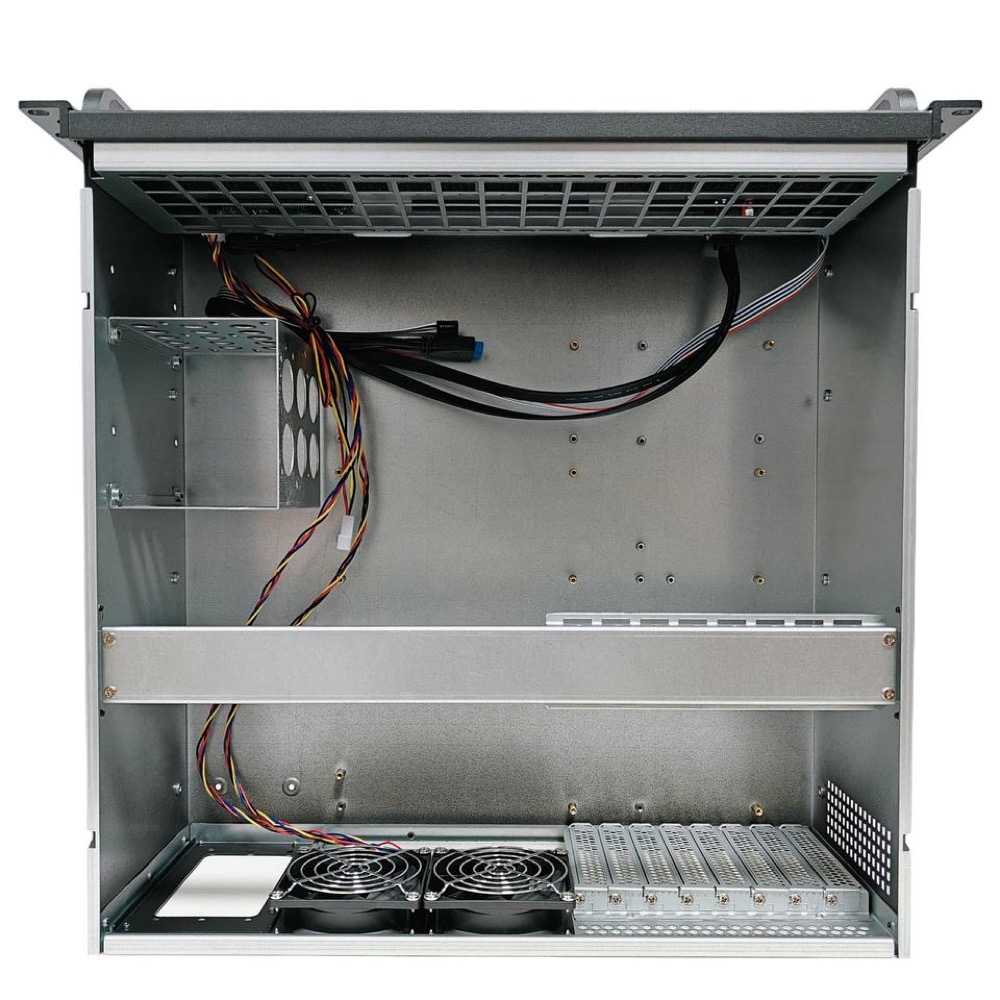

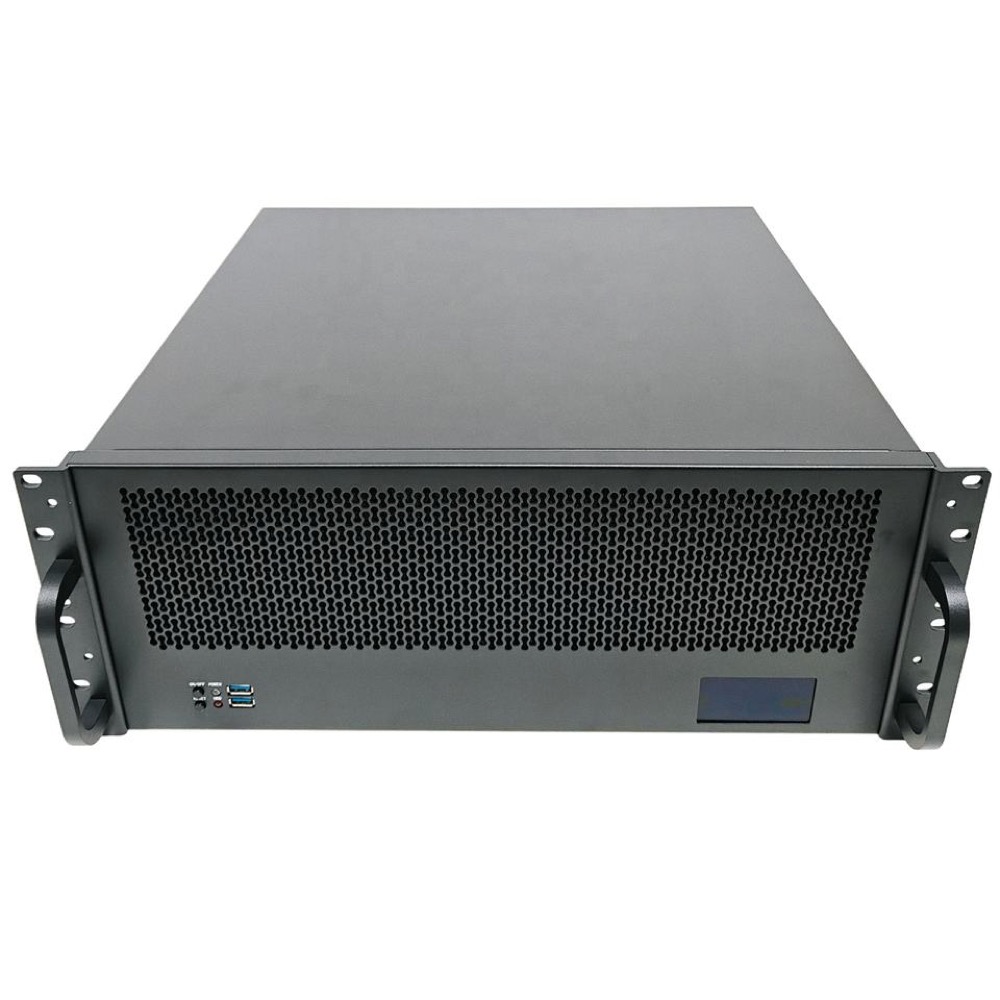

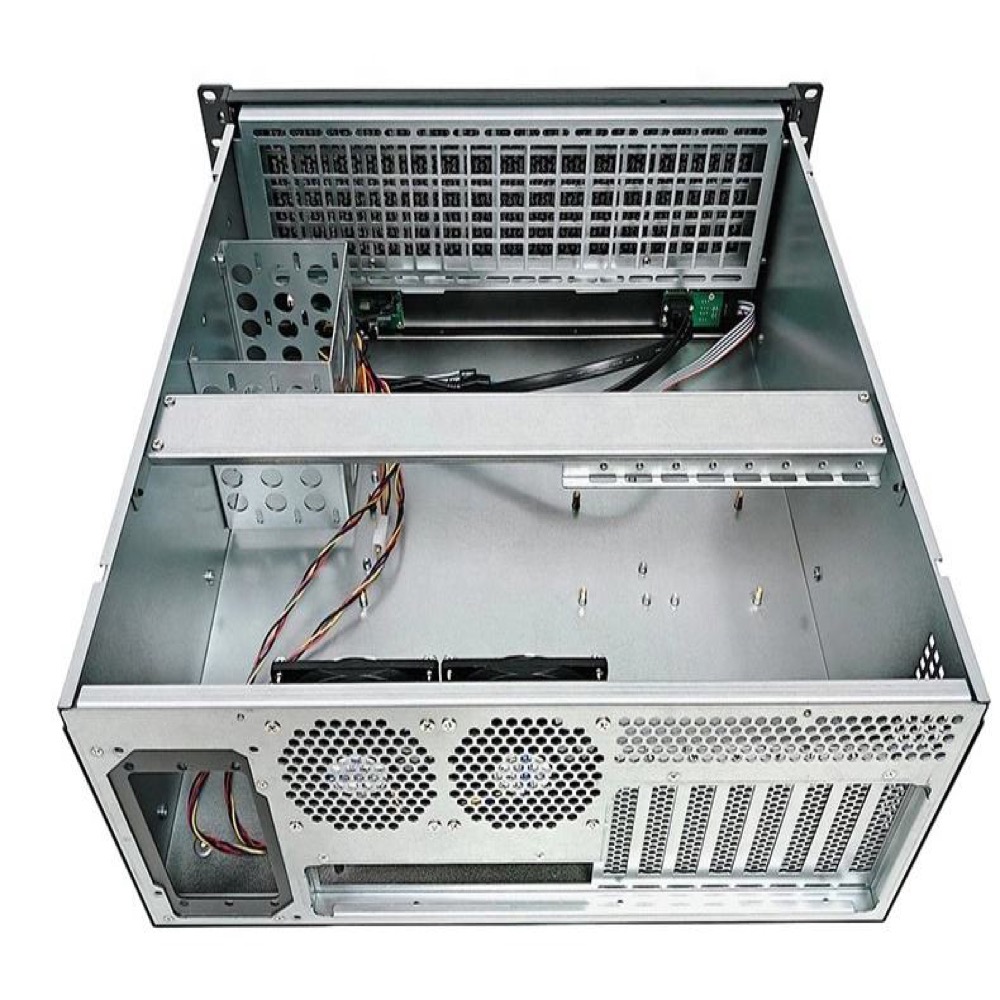

K443F 4U Rackmount ATX Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 430(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX, ATX, Micro-ATX, Mini-ITX
Drive Bays4 bays
Industrial 4U rackmount chassis for ATX-class systems. The supplier lists support for E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards using an adapter, ATX or SFX PSU support, three 3.5-inch HDD positions plus one 2.5-inch position, eight full-height PCIe slots, graphics cards up to 345 mm long, two 8025 fans, and a 360 mm liquid-cooling radiator position. The front panel includes two USB 3.0 ports, power, reset, and an HDD indicator. Supplier-listed dimensions are 482(W) × 430(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K443F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with two 8025 cooling fans. ATX and SFX PSU support and a 360 mm radiator position are provided; PSU, radiator, and motherboard are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 430 mm |
| Weight | 8.95 kg gross / 7.3 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to E-ATX; ATX, Micro-ATX, and Mini-ITX supported with the supplier’s adapter configuration |
Power Supply
| PSU Support | ATX, SFX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 8 slots |
| PCIe Slot Types | Full-height |
| Maximum GPU Length | 345 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | 150 mm |
| Liquid Cooling Support | 360 mm radiator support; radiator not included |
I/O and Connectivity
| Front I/O | USB 3.0, Power, Reset, HDD indicator |
| Custom I/O Details | Front panel: two USB 3.0 ports, power on/off with indicator, reset, and HDD indicator. Rear: eight full-height PCIe slots. Supplier lists ATX/SFX PSU support and adapter support for ATX-class motherboards. |
