In stock
Server Chassis
CHS-SRV-K439L

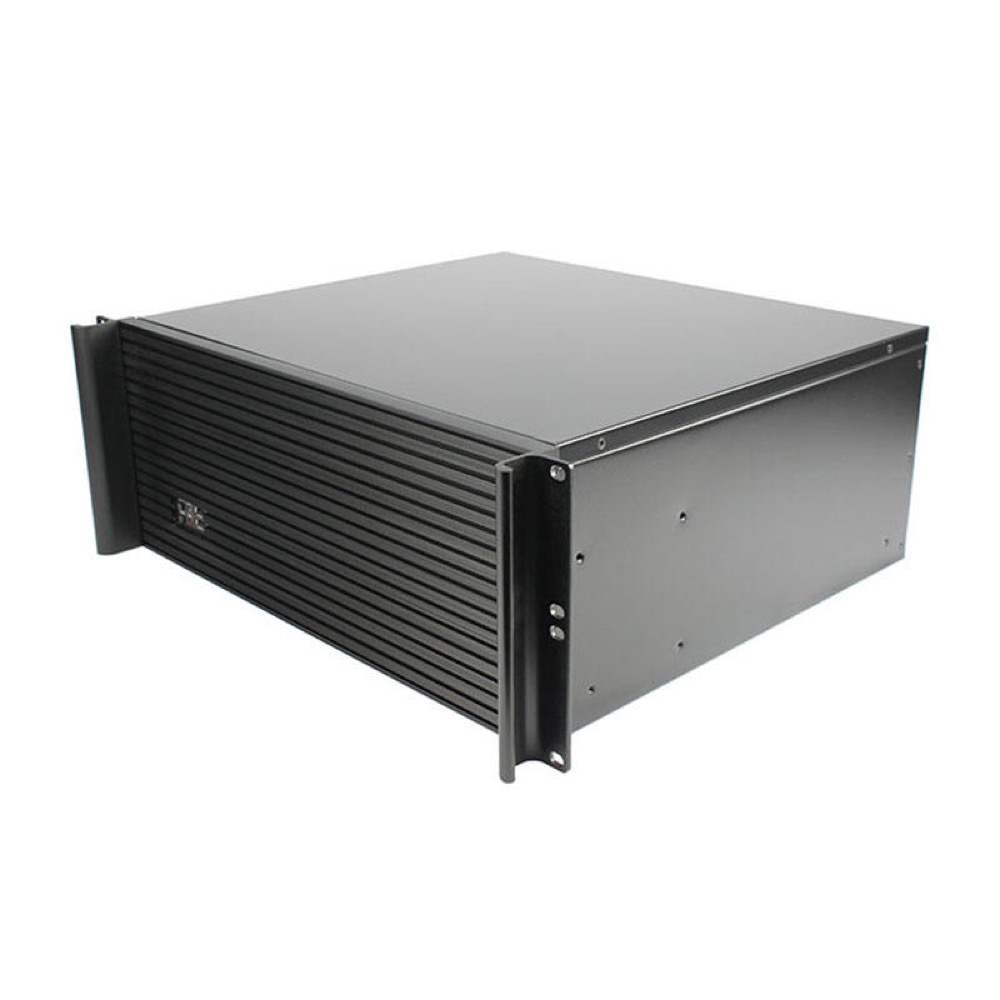

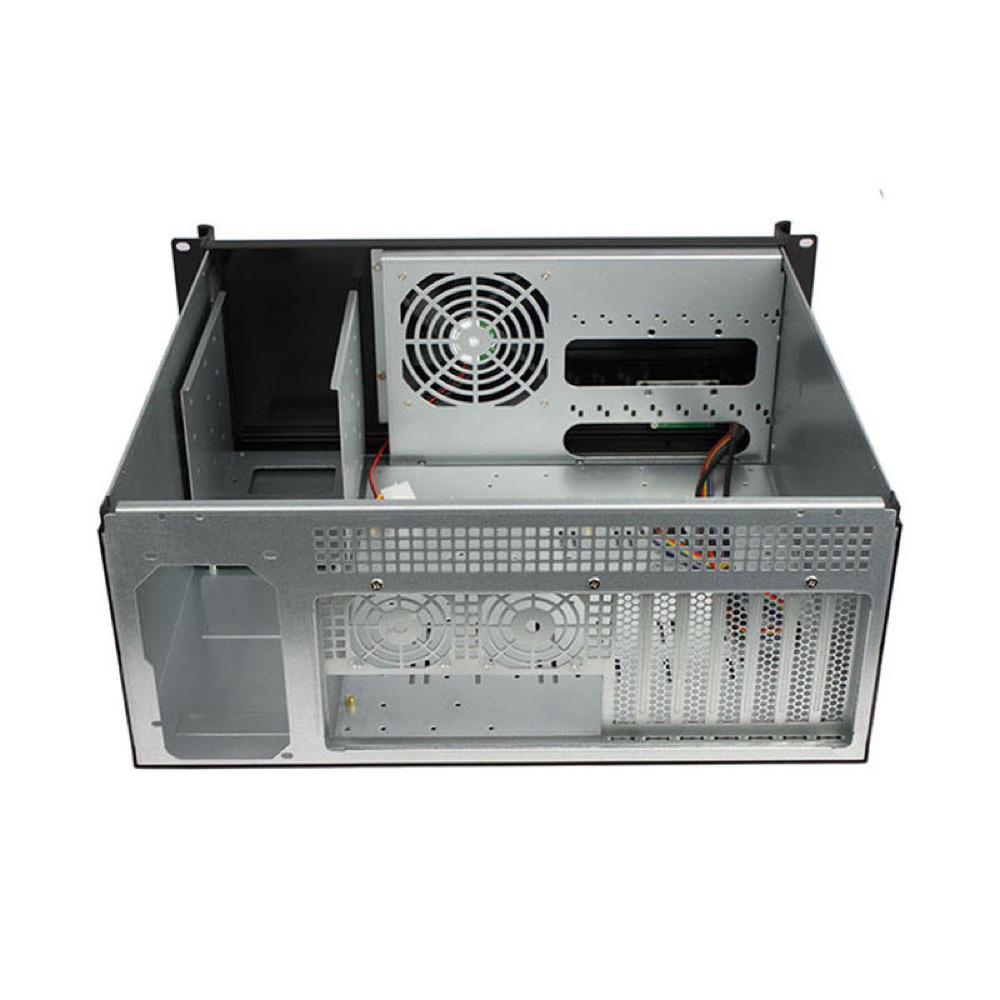

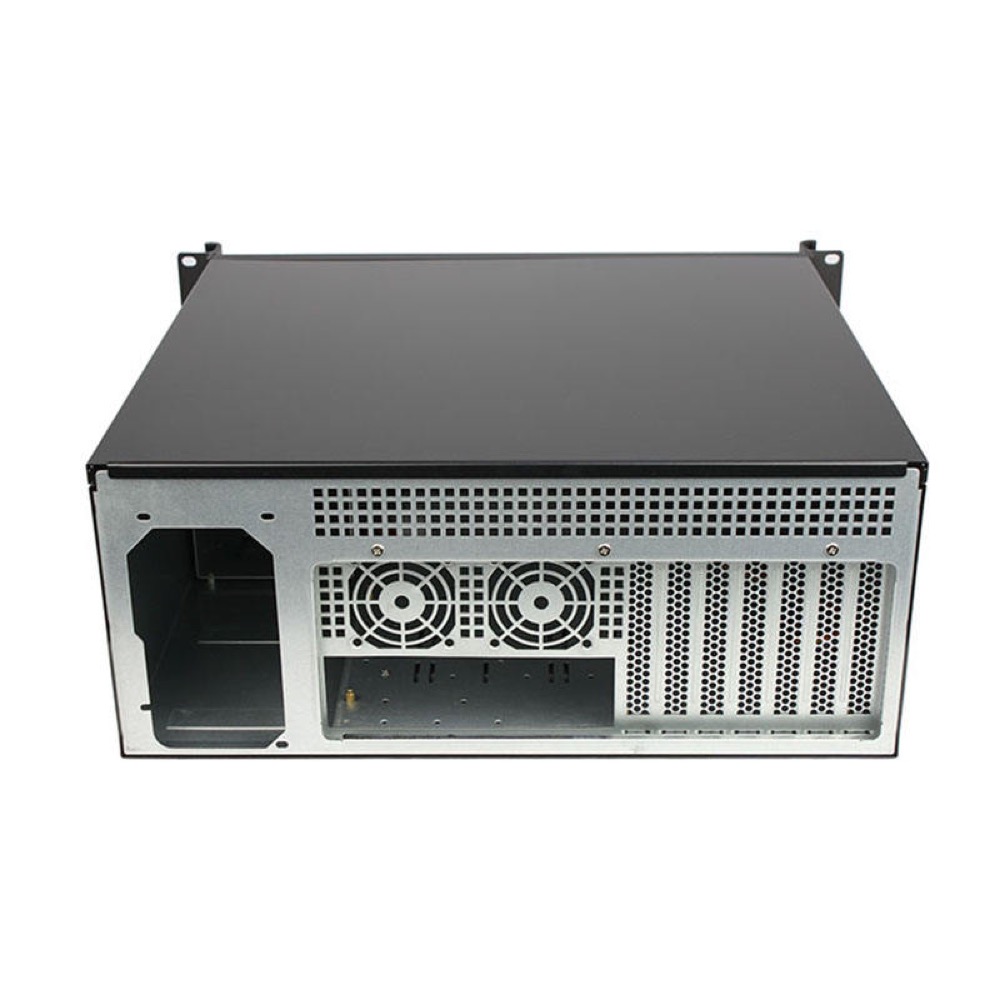

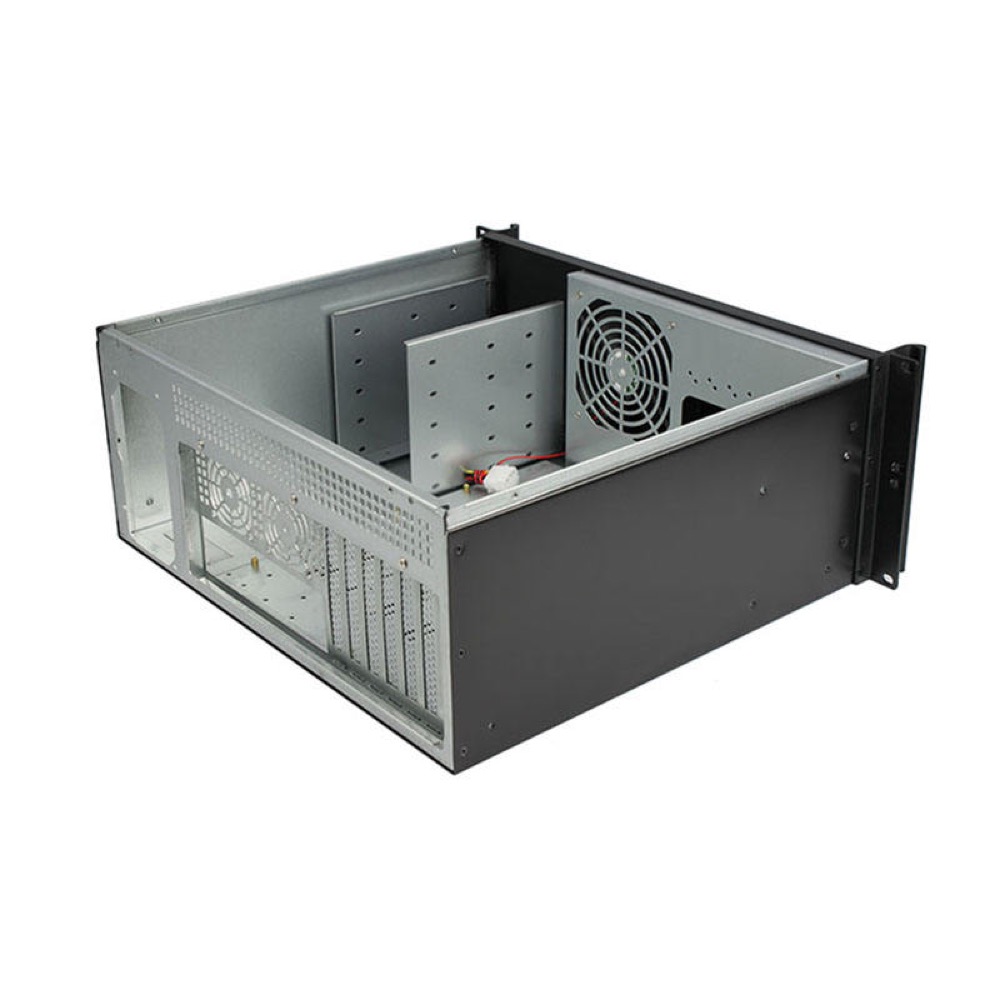

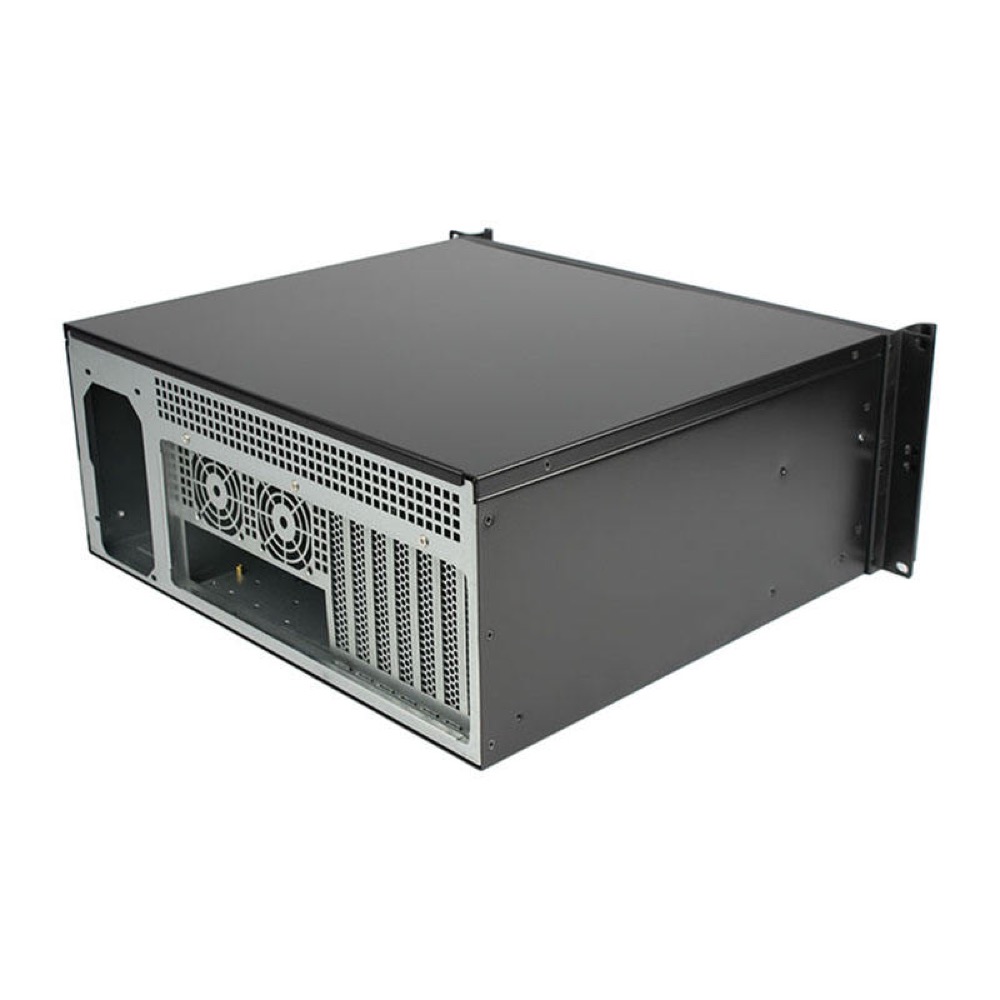

K439L 4U E-ATX Rackmount Server Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 390(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX
Drive Bays5 bays
K439L 4U 19-inch rackmount server chassis with a steel and aluminum construction, side-panel window, E-ATX motherboard support up to 305 × 340 mm, ATX PSU compatibility, five 3.5-inch hard-drive bays, seven full-height straight PCIe slots, two USB 2.0 ports, and one 12025 cooling fan. Supplier-listed dimensions are 482(W) × 390(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K439L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with one 120 mm cooling fan. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel and aluminum alloy, 1.2 mm steel |
| Finish / Color | Black with side-panel window |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 390 mm |
| Weight | 9.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 5 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier lists a black front panel with side-panel window, two USB 2.0 ports, power/reset controls, power/HDD indicators, five 3.5-inch HDD positions, seven full-height straight expansion slots, and no CD-ROM bay. |
