In stock
Server Chassis
CHS-SRV-R466-24

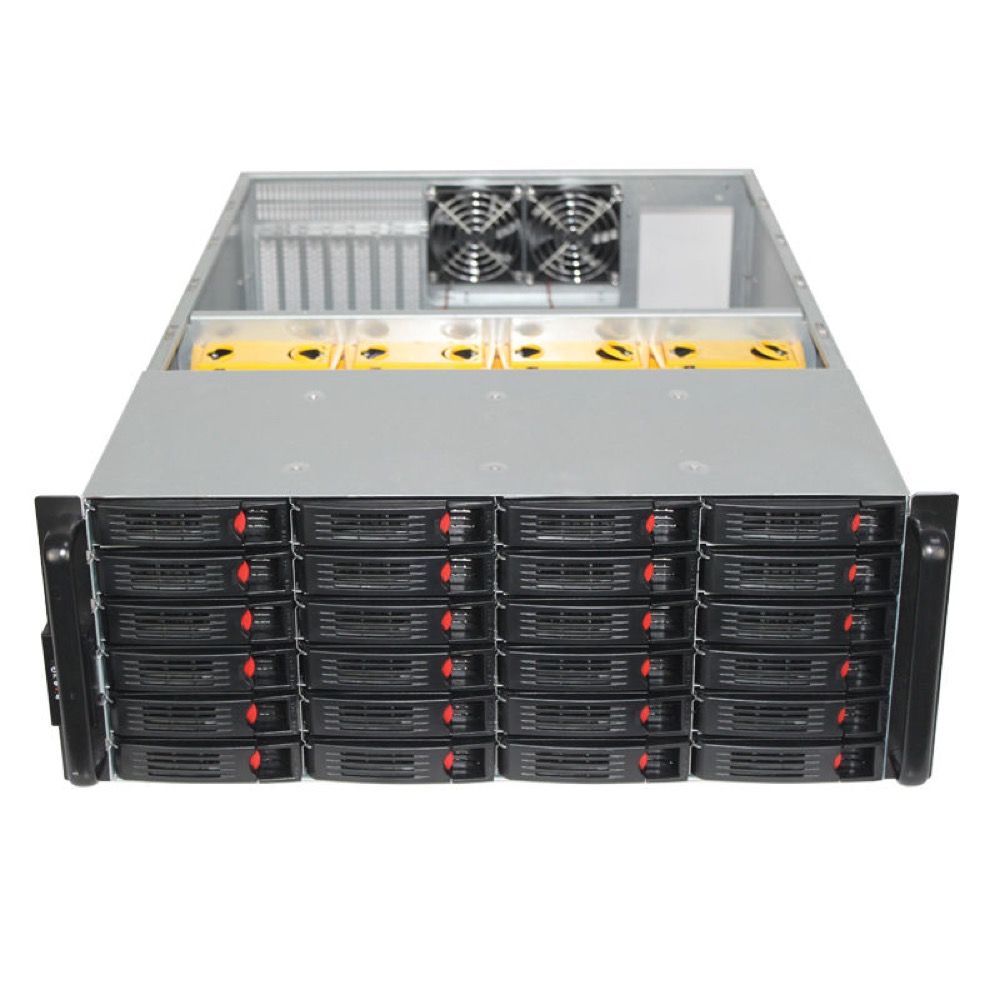

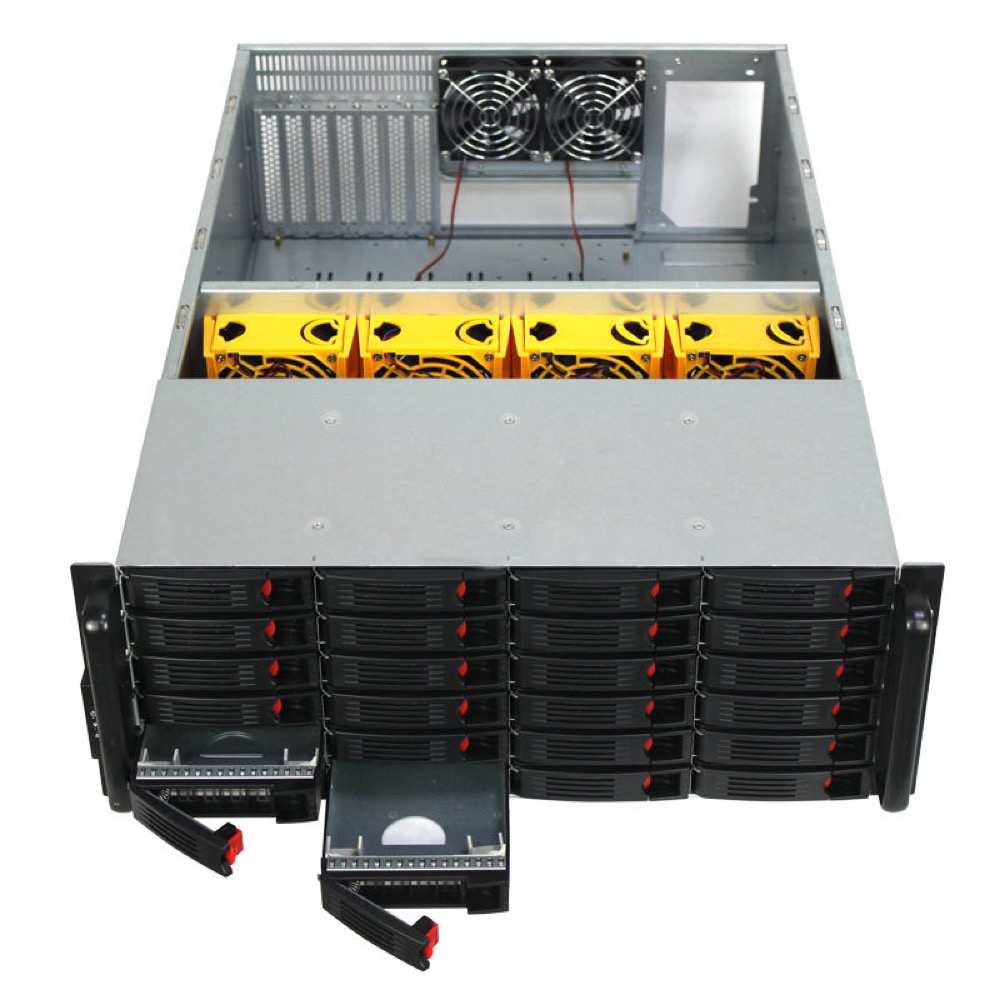

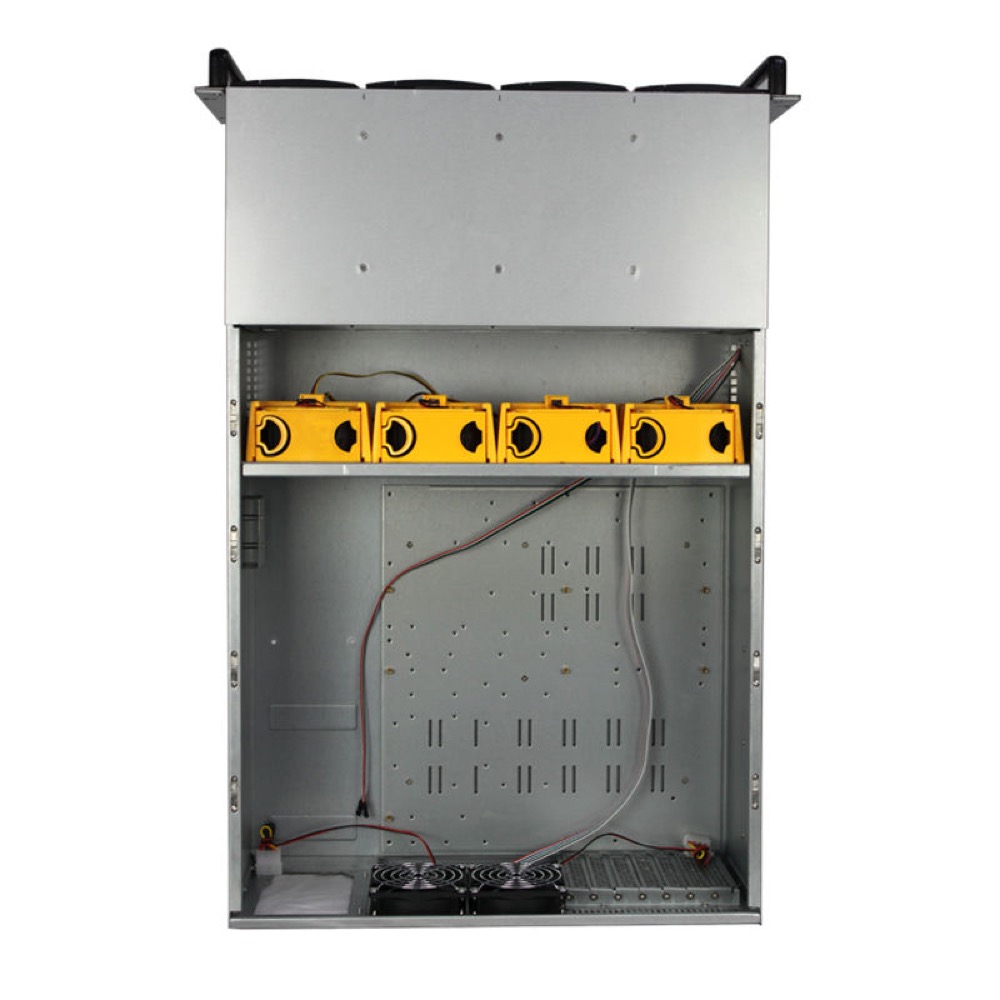

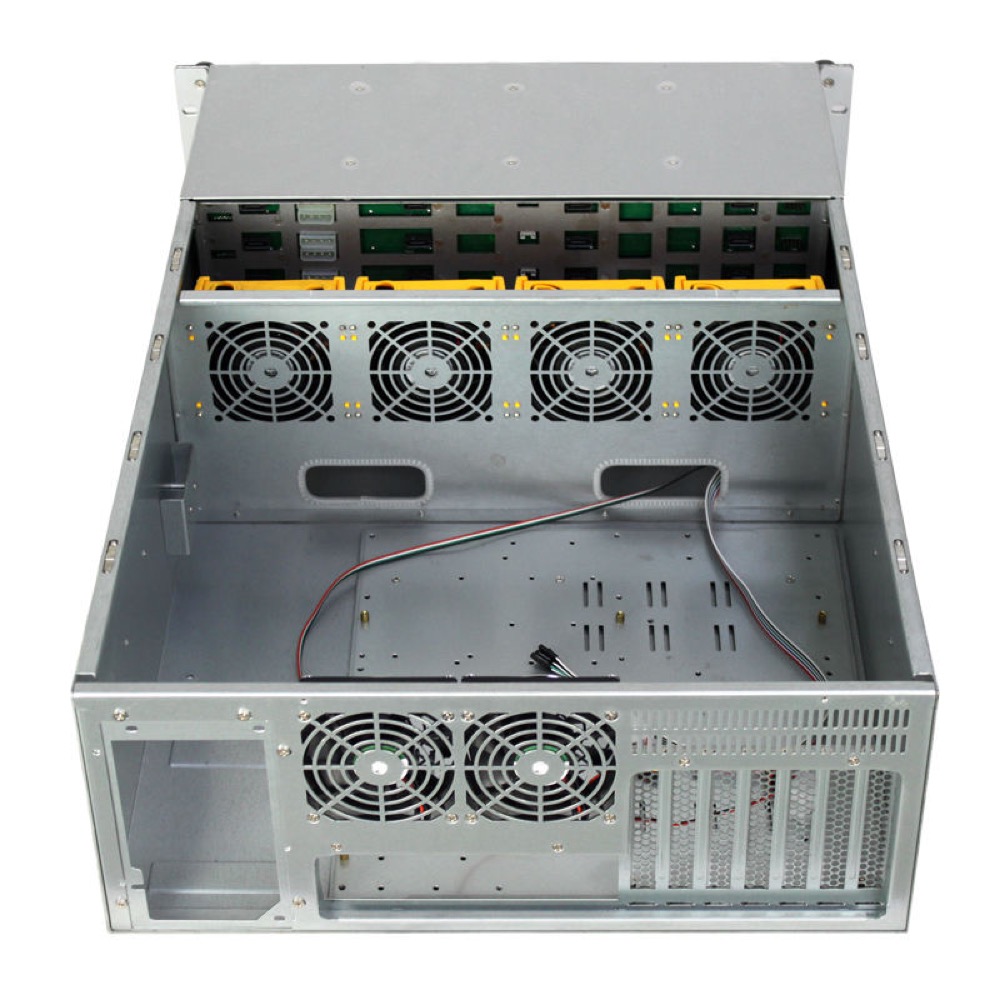

4U Hot-Swap SAS/SATA 24-Bay Storage Rackmount Server Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 660(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX
Drive Bays24 bays
4U 19-inch rackmount storage chassis for high-density NAS, RAID, and server applications. Supplier-listed configuration: SGCC steel with 1.2 mm material thickness, support for a 12 × 13-inch motherboard (305 × 340 mm), ATX PSU or PS2 redundant PSU support, twenty-four 3.5-inch hot-swap drive trays, four 8038 cooling fans, seven full-height straight PCIe slots, and front USB 2.0, power/reset, power/HDD, and network indicators. Dimensions: 482(W) × 660(D) × 178(H) mm. Supplier lists stock availability, 16 kg net weight, and 20 kg gross weight.
Specifications
Identity
| Model Number | CHS-SRV-R466-24 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty storage chassis enclosure; twenty-four hot-swap 3.5-inch drive trays/bays; four 8038 cooling fans. ATX and PS2 redundant PSU support is provided; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Storage / NAS, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 660 mm |
| Weight | 16 kg net; 20 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm (12 × 13 inches) |
Power Supply
| PSU Support | ATX, Custom |
| PSU Included | No |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 24 bays |
| Drive Types | 3.5" |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 24 bays |
| Backplane / Interface | SATA / SAS |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 38 mm (8038) |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, blue power indicator, red HDD indicator, and two yellow network-connection indicators. Supplier lists twenty-four 3.5-inch hot-swap trays, seven full-height straight slots, and ATX or PS2 redundant PSU support. |
