In stock
Server Chassis
CHS-SRV-K448C

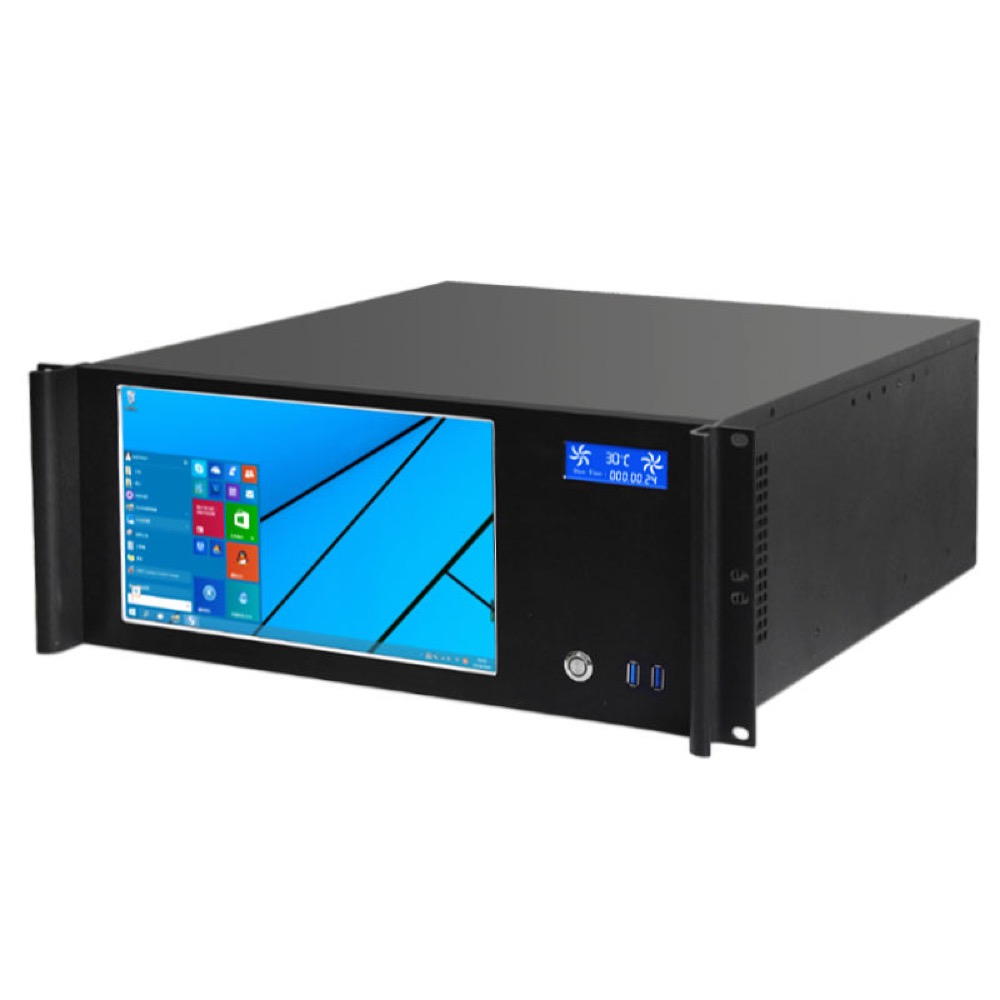

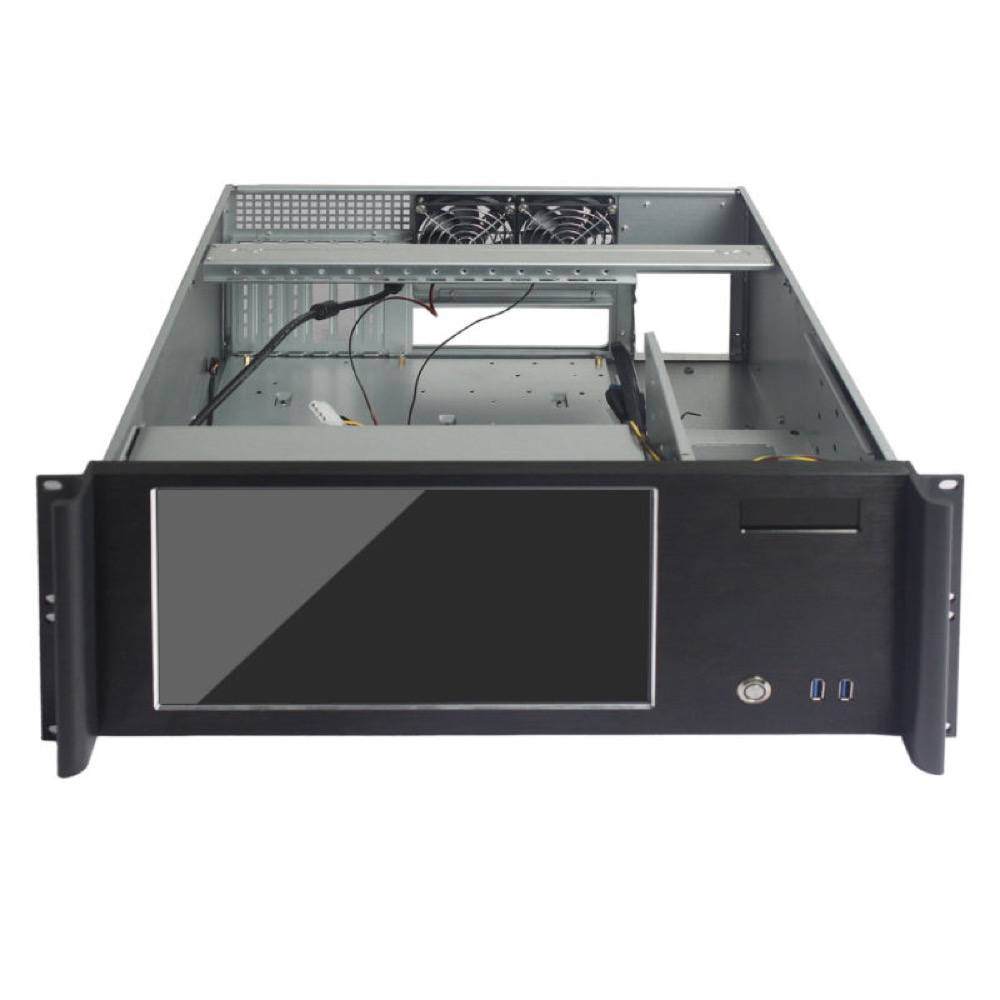

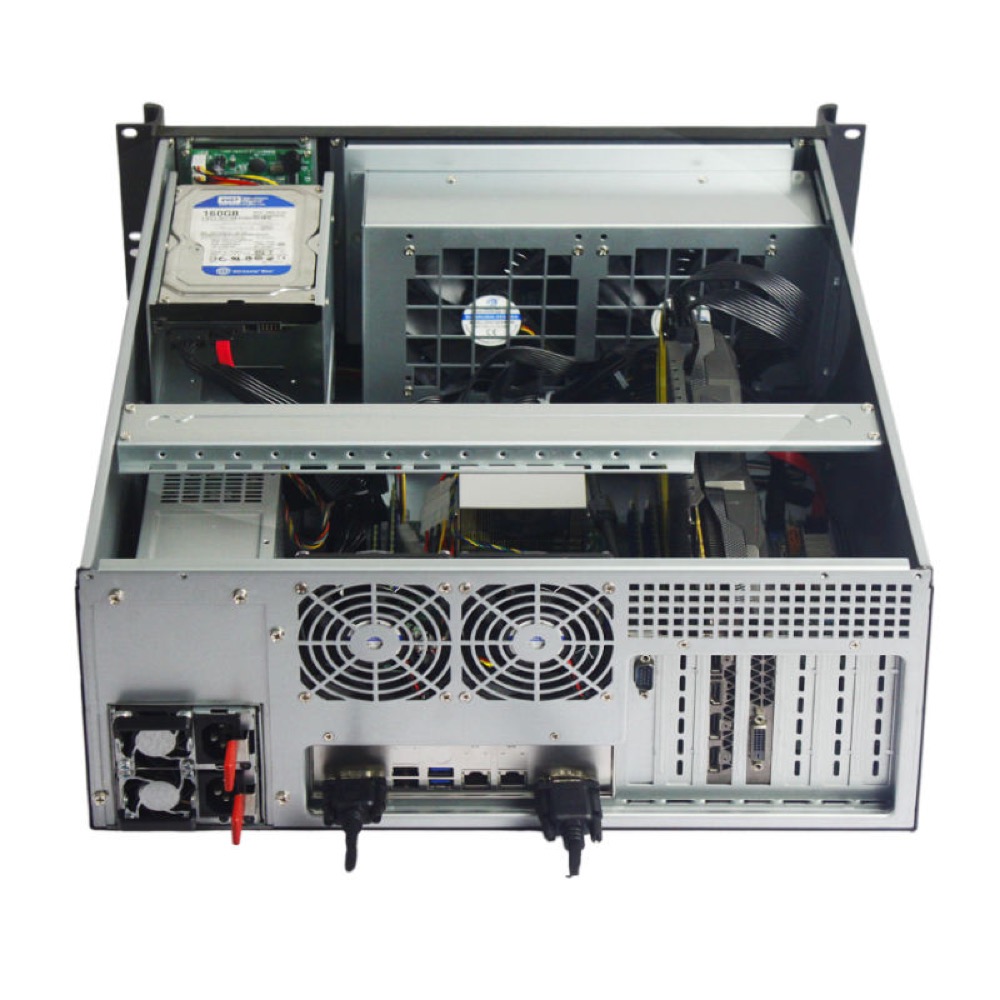

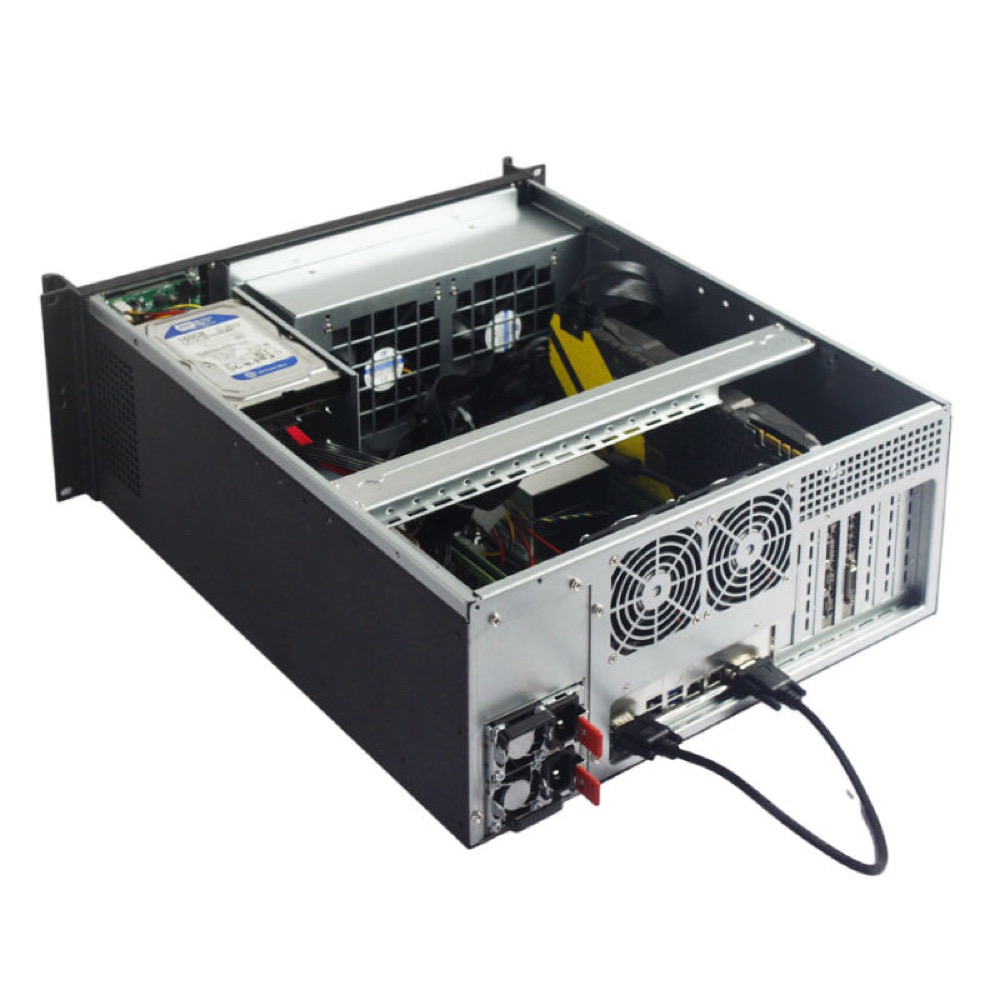

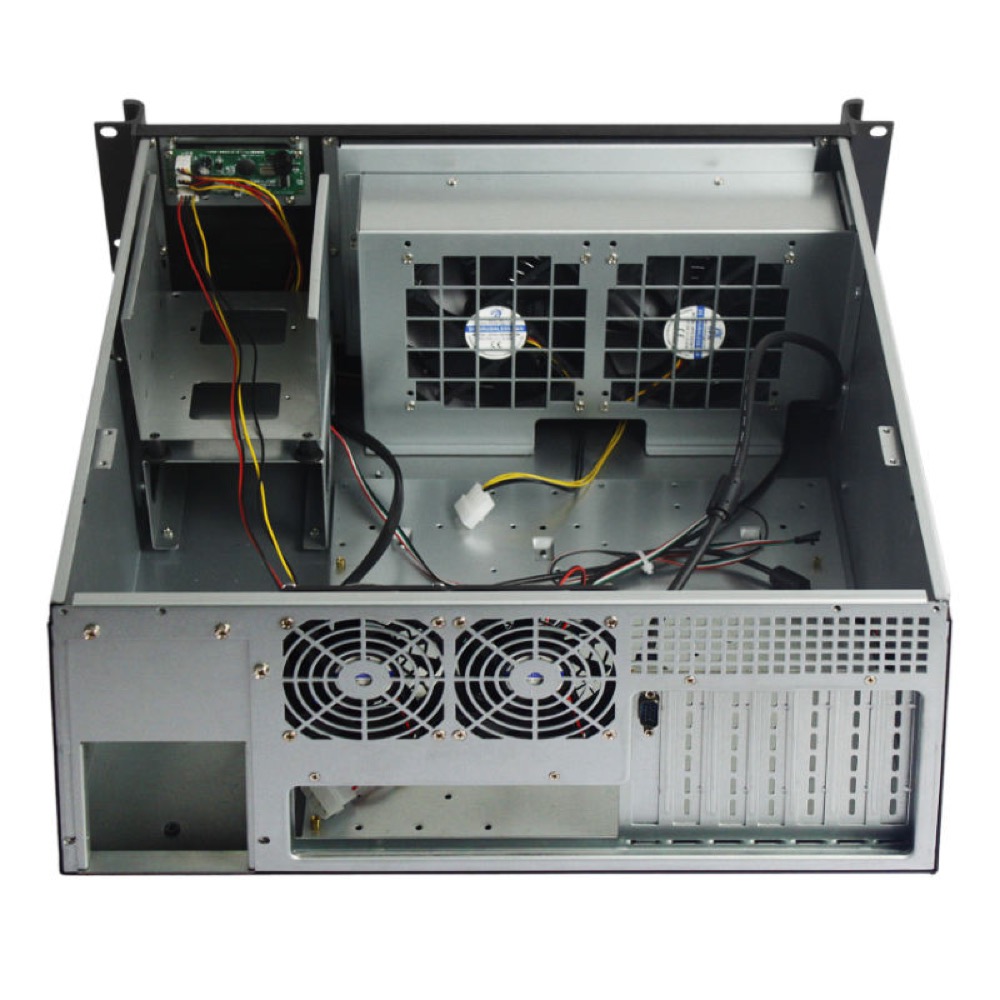

New Design Aluminum 4U Industrial ATX Computer Server Chassis 11.6" LCD Touch Screen 1366×768 Resolution with Fan Rack Style
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482 × 480 × 178 mm
MountingRackmount
MotherboardE-ATX
Drive Bays3 bays
4U rackmount server chassis for ATX-class systems. Supplier-listed configuration: 5 mm aluminum front panel with 1.2 mm SGCC steel body, support up to E-ATX motherboards, ATX PSU support, either three 3.5-inch drives or two 3.5-inch plus one 2.5-inch drive, seven PCIe expansion slots, an included 11.6-inch 1366 × 768 LCD touchscreen with temperature display, two USB 3.0 front ports, up to 140 mm CPU cooler height, and two 12025 plus two 8025 fans. Dimensions: 482 × 480 × 178 mm. Supplier lists stock availability, black color, 14 kg net weight and 16 kg gross weight.
Specifications
Identity
| Model Number | CHS-SRV-K448C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; 11.6-inch LCD touchscreen/temperature panel; two 12025 fans; two 8025 fans. ATX PSU support is provided; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, 1.2 mm body |
| Finish / Color | Black; 5 mm aluminum front panel |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 480 mm |
| Weight | 14 kg net; 16 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to E-ATX; exact maximum board dimensions not specified |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5", Mixed 2.5" / 3.5" |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2; 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | Up to 140 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 11.6 in |
| LCD Resolution | 1366 × 768 |
| Touchscreen Support | Yes |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | USB 3.x, Custom I/O |
| Custom I/O Details | Front panel: two USB 3.0 ports, 11.6-inch 1366 × 768 LCD touchscreen with temperature display, and rackmount controls. Drive layout is either three 3.5-inch HDDs or two 3.5-inch HDDs plus one 2.5-inch HDD. Supplier lists seven PCIe slots and up to 140 mm CPU cooler height. |
