In stock
Server Chassis
CHS-SRV-R466-24-HQ

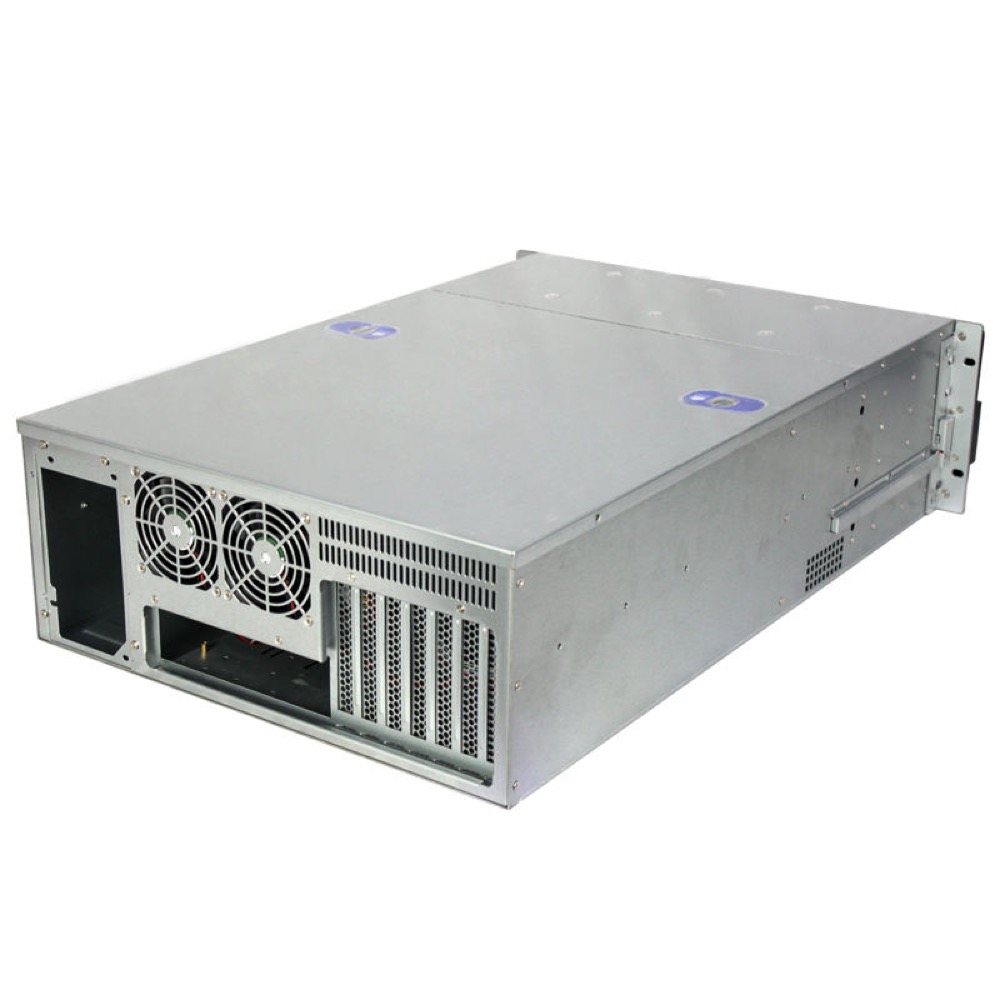

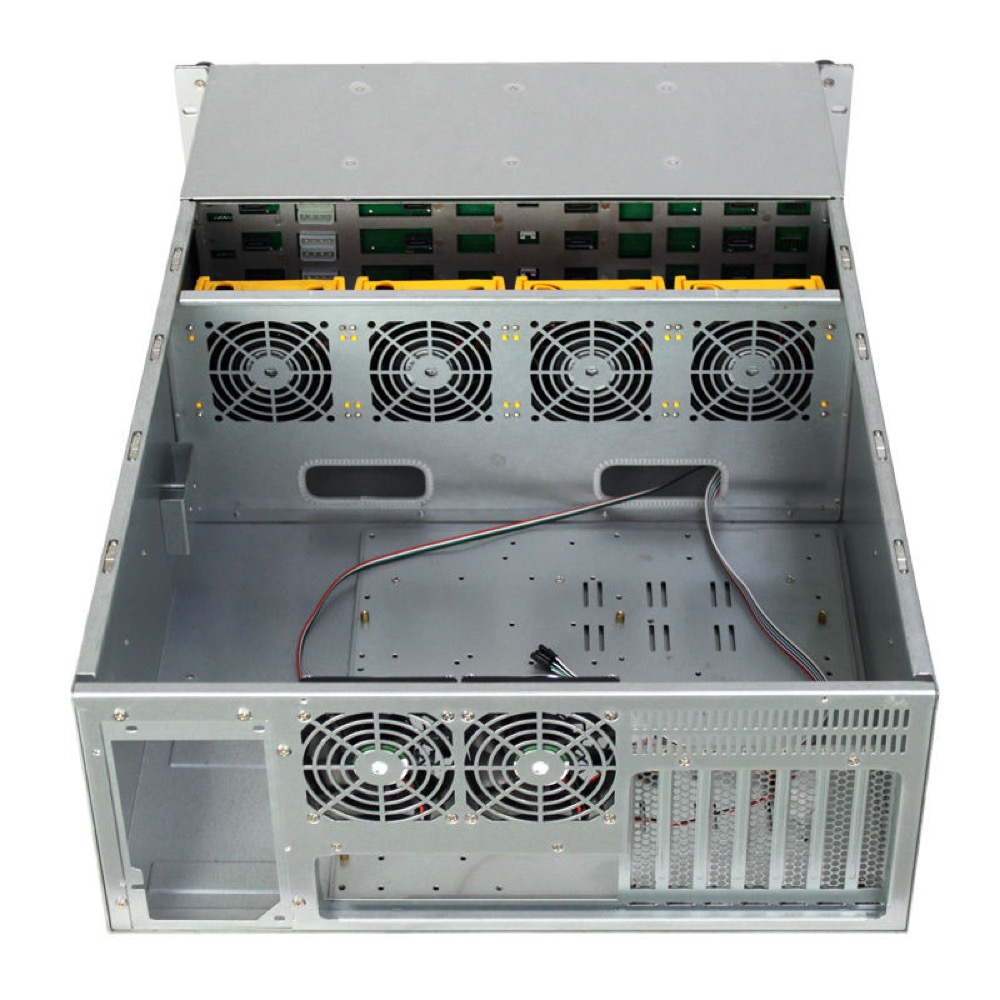

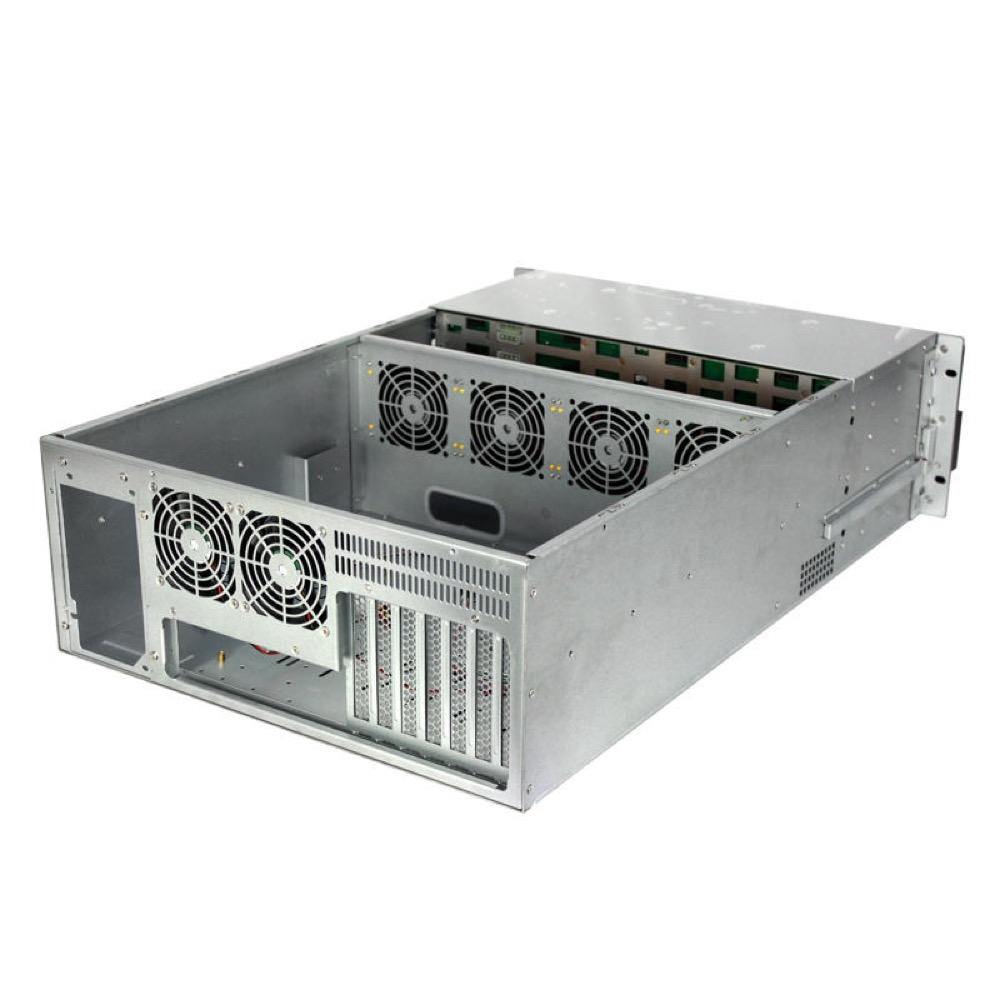

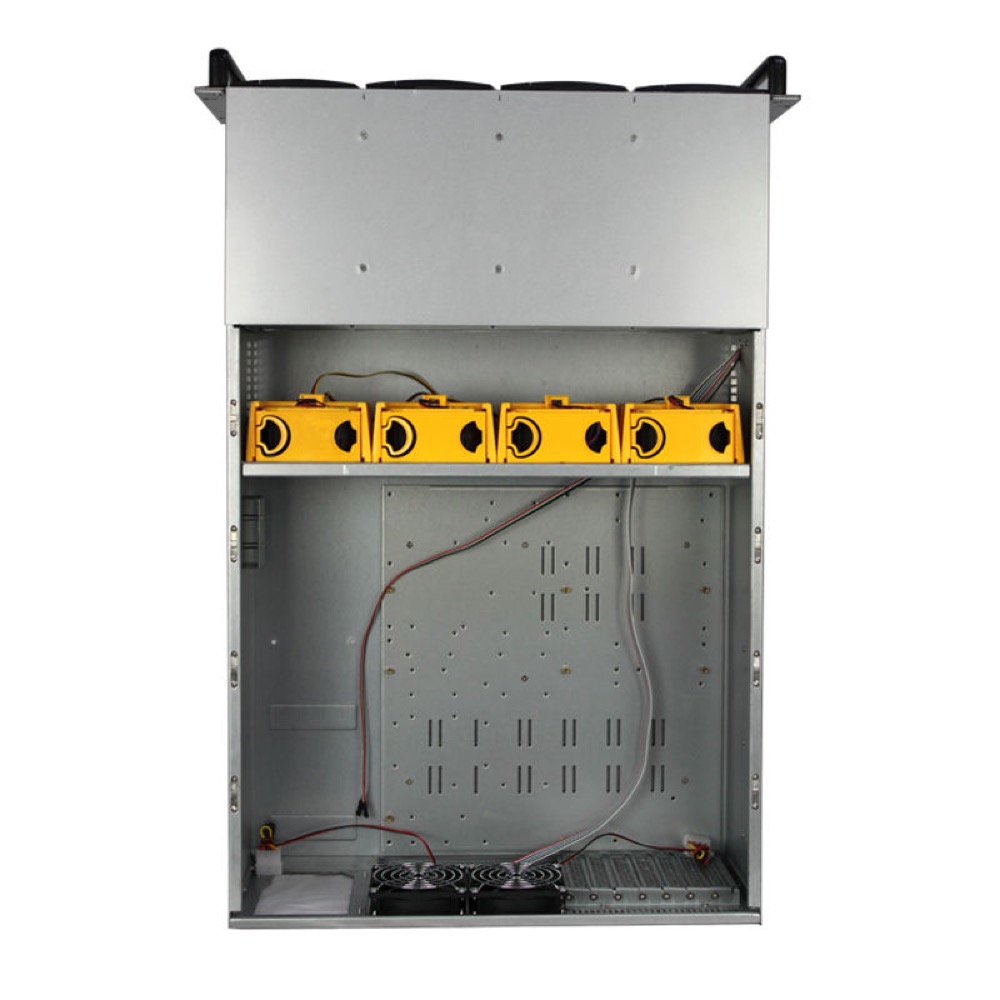

R466-24 4U 24-Bay Hot-Swap Storage Chassis - High Capacity
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 660(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX
Drive Bays24 bays
R466-24 high-capacity rackmount storage chassis for data centers, server rooms, CCTV storage, and industrial storage applications. The supplier lists a 482 × 660 × 178 mm enclosure supporting a 305 × 340 mm E-ATX-class motherboard envelope, 24 hot-swap 3.5-inch drive trays, ATX or PS2 redundant power-supply compatibility, seven full-height expansion slots, and four 8038 fans. The chassis is empty; motherboard, CPU, memory, drives, PSU, and expansion cards are not included.
Specifications
Identity
| Model Number | CHS-SRV-R466-24-HQ |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount storage chassis with 24 hot-swap 3.5-inch trays, four included 8038 fans, seven full-height PCIe slots, and front USB/status controls. ATX or PS2 redundant PSU compatibility is provided; PSU, motherboard, CPU, memory, drives, and expansion cards are not included. |
| Use Case / Application | Network Storage, Server, CCTV Storage |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Zinc-plated steel, 1.2 mm |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 660 mm |
| Weight | 20 kg gross / 16 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm (12 × 13 in); E-ATX-class envelope inferred from supplier board dimensions |
Power Supply
| PSU Support | ATX PSU, PS2 redundant PSU |
| PSU Included | No |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 24 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 24 × 3.5-inch hot-swap HDD trays |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 24 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 38 mm (8038) × 4 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator, 2 × network connection indicators |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, blue power and red hard-drive indicators, and two yellow network-connection indicators. |
