Server Chassis
CHS-SRV-K465F-18-EMPTY

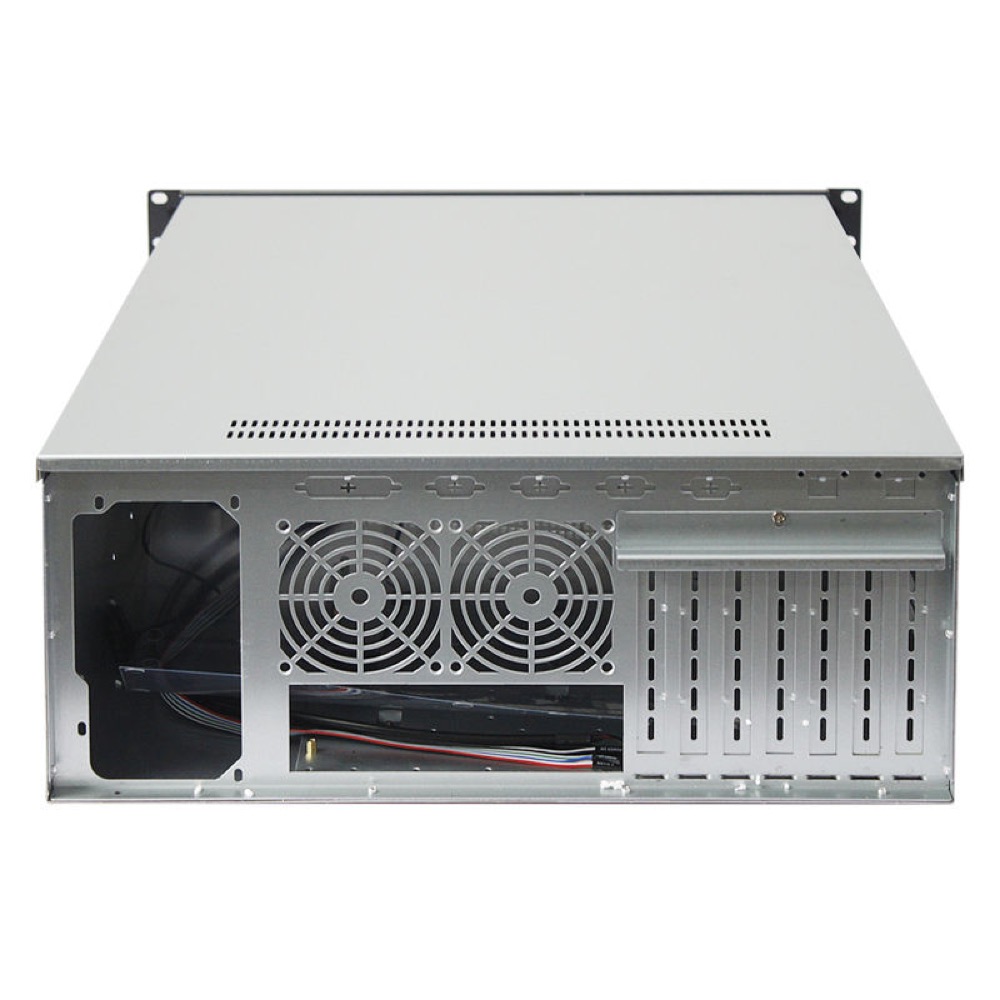

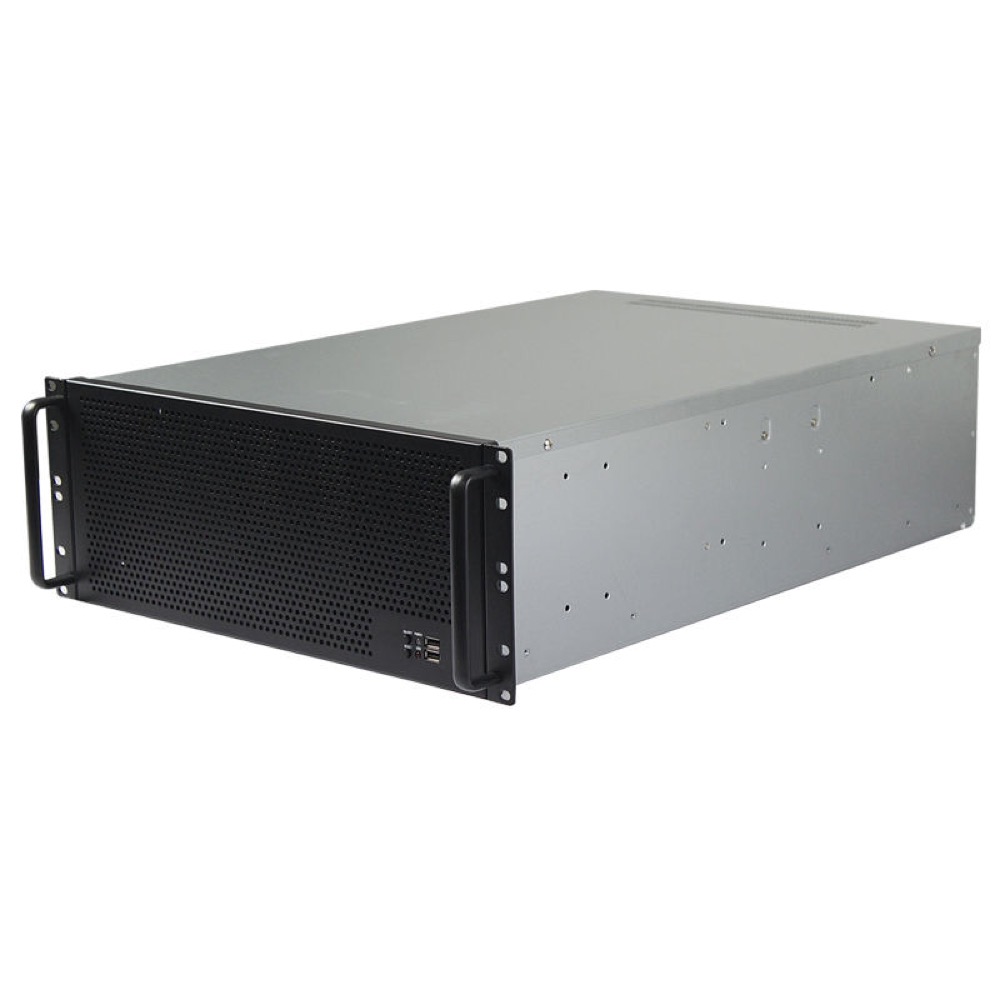

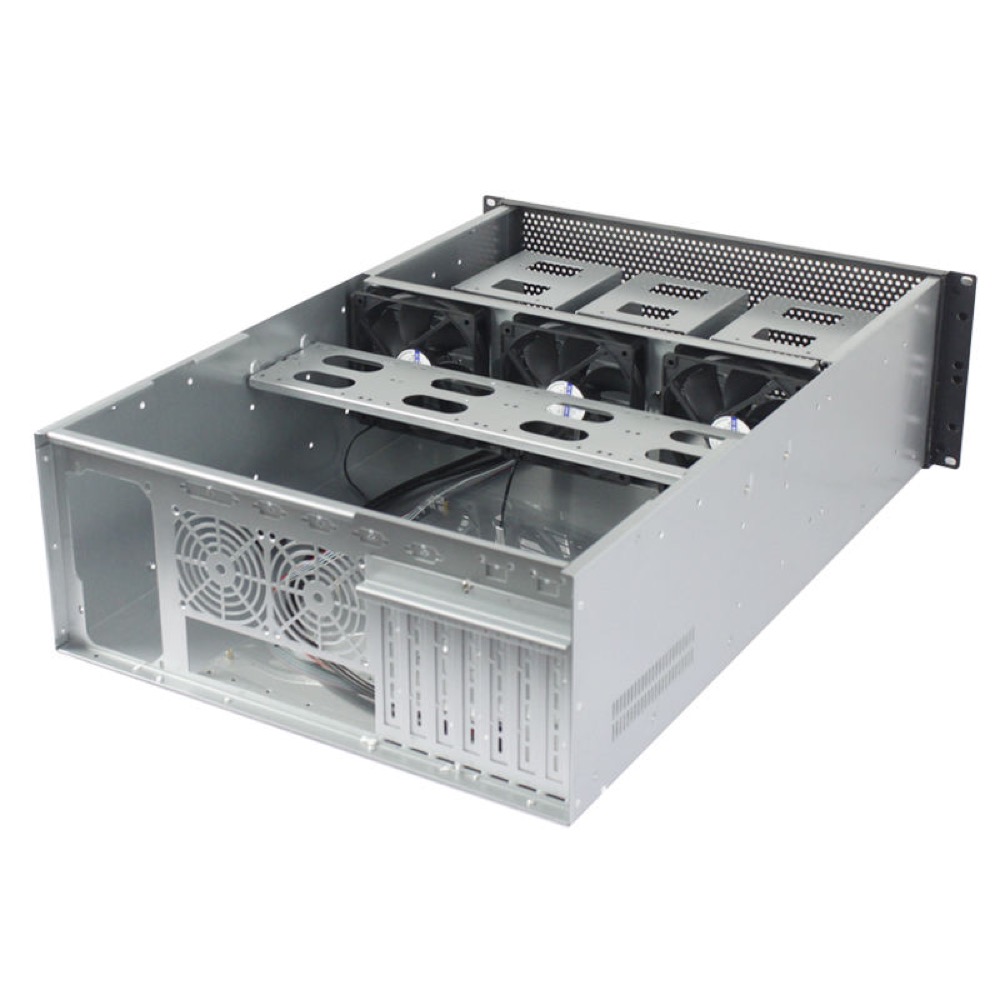

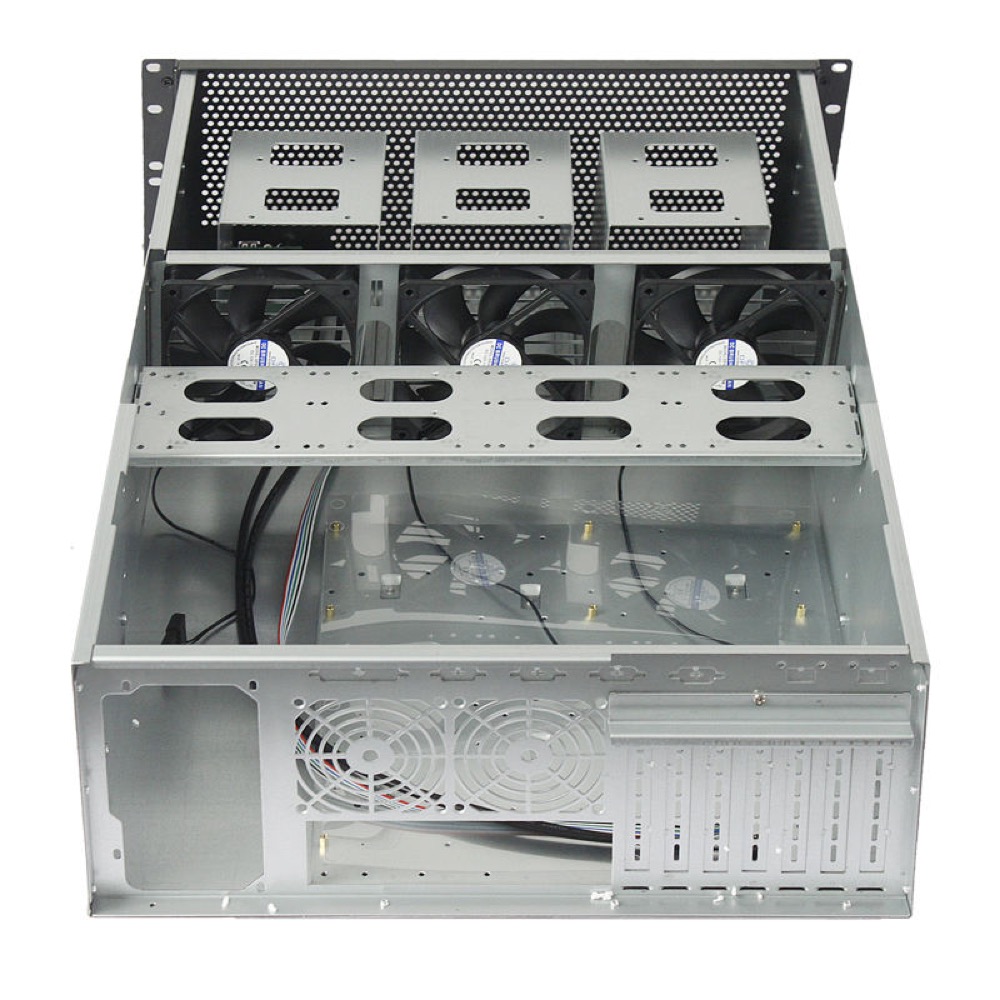

K465F-18 4U 20-Bay Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 650(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX
Drive Bays20 bays
K465F-18 4U 19-inch industrial rackmount storage chassis for high-capacity server and NAS deployments. This is the supplier's empty-case listing: EATX motherboard support up to 305 × 345 mm, twenty 3.5-inch HDD positions with 2.5-inch adapter support, seven PCIe slots, three 12025 cooling fans, CPU-cooler clearance up to 150 mm, front USB 2.0 and power/HDD indicators, and ATX PSU support without a PSU included. Supplier-listed dimensions are 482(W) × 650(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K465F-18-EMPTY |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount storage chassis with three 120 mm cooling fans and ATX PSU support. PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Storage / NAS, Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Not specified by supplier |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 650 mm |
| Weight | 12.5 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 345 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
| PSU Count | 0 units |
Storage and Hot-swap
| 3.5-inch Drive Bays | 20 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 20 × 3.5-inch HDD, 2.5-inch HDD/SSD via adapter |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 3 |
| Maximum CPU Cooler Height | Up to 150 mm |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power on/off, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier lists up to twenty 3.5-inch HDD positions with 2.5-inch adapter support, EATX motherboard support up to 305 × 345 mm, ATX PSU support, three 12025 fans, seven PCIe slots, CPU-cooler clearance up to 150 mm, two USB 2.0 ports, power on/off, power indicator, and HDD indicator. PSU is not included in this empty-case listing. Hot-swap capability, backplane/interface, exact 2.5-inch adapter count, rear I/O, and material are not specified. |
