In stock
Server Chassis
CHS-SRV-K445F-8C
K445F-8C 4U Rackmount Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482 × 450 × 178 mm
MountingRackmount
MotherboardATX
Drive Bays12 bays

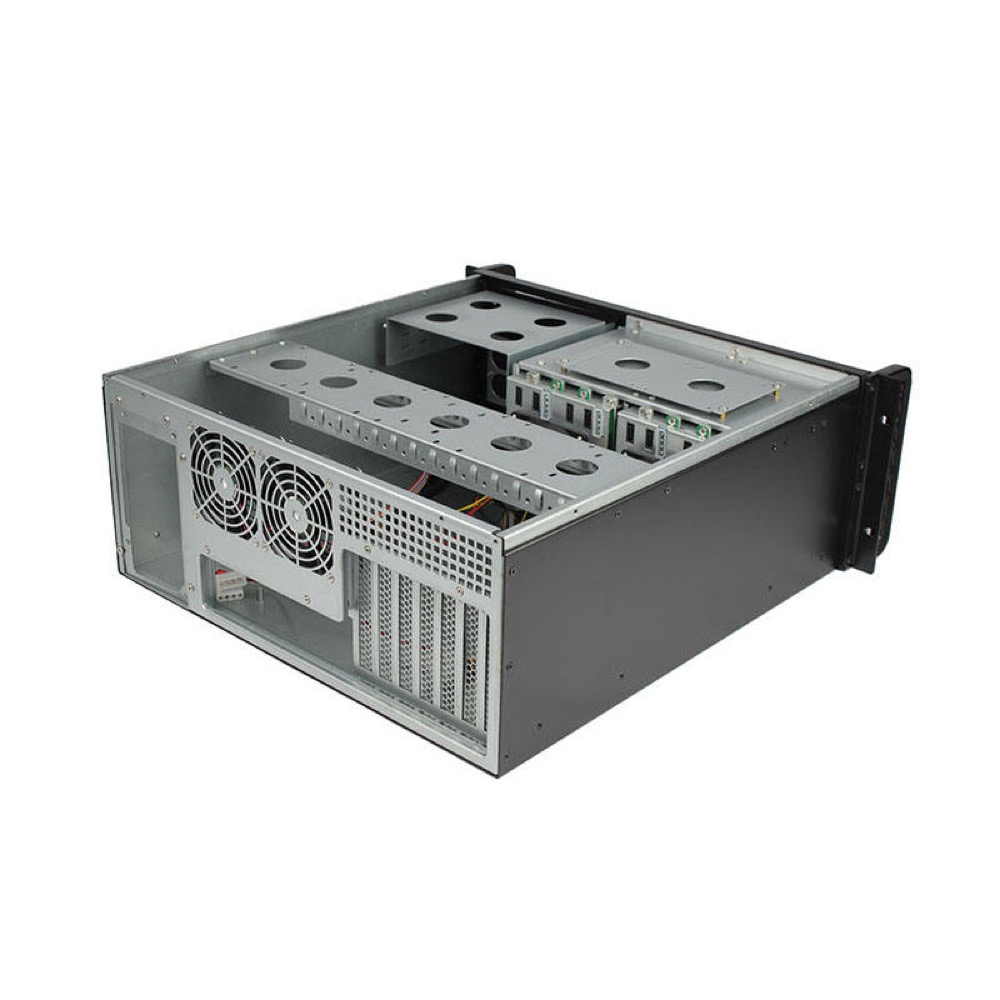

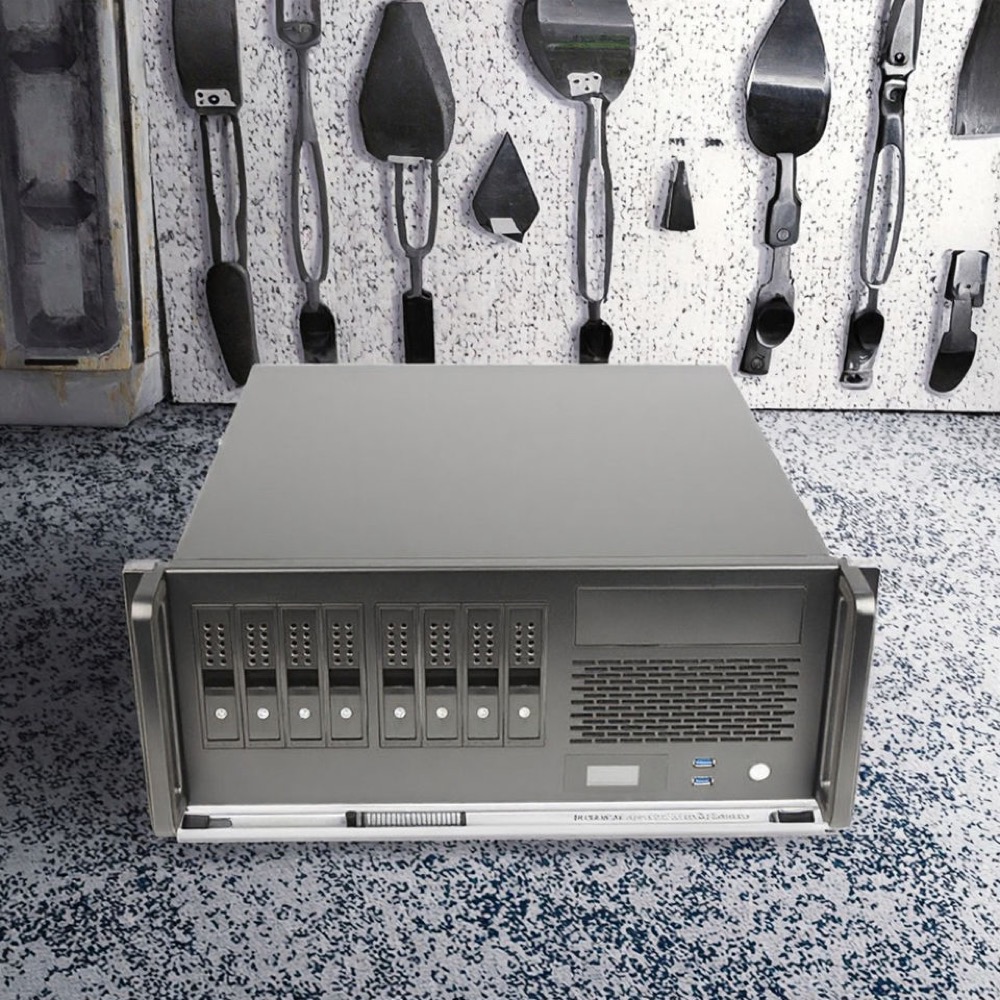

4U 19-inch industrial rackmount chassis for server and storage applications. The supplier lists ATX motherboard support, eight 3.5-inch HDD positions plus four 2.5-inch SSD positions, one 5.25-inch optical-drive position with an optional modular 2.5-inch exchange, seven PCIe slots, four pre-installed 8025 fans, two USB 3.0 ports, a front temperature LCD, and ATX PSU support. Dimensions are 482 × 450 × 178 mm. The supplier lists 13 kg net and 18 kg gross weight. PSU inclusion is not stated, so this is classified as an empty chassis.
Specifications
Identity
| Model Number | CHS-SRV-K445F-8C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis; four pre-installed 8025 fans; front temperature LCD. ATX PSU support is provided, but the supplier does not state that a PSU is included. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 13 kg net; 18 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX; exact maximum board dimensions not specified |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 4 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch SSD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe, Full-height |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 4 |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | USB 3.x, Custom I/O |

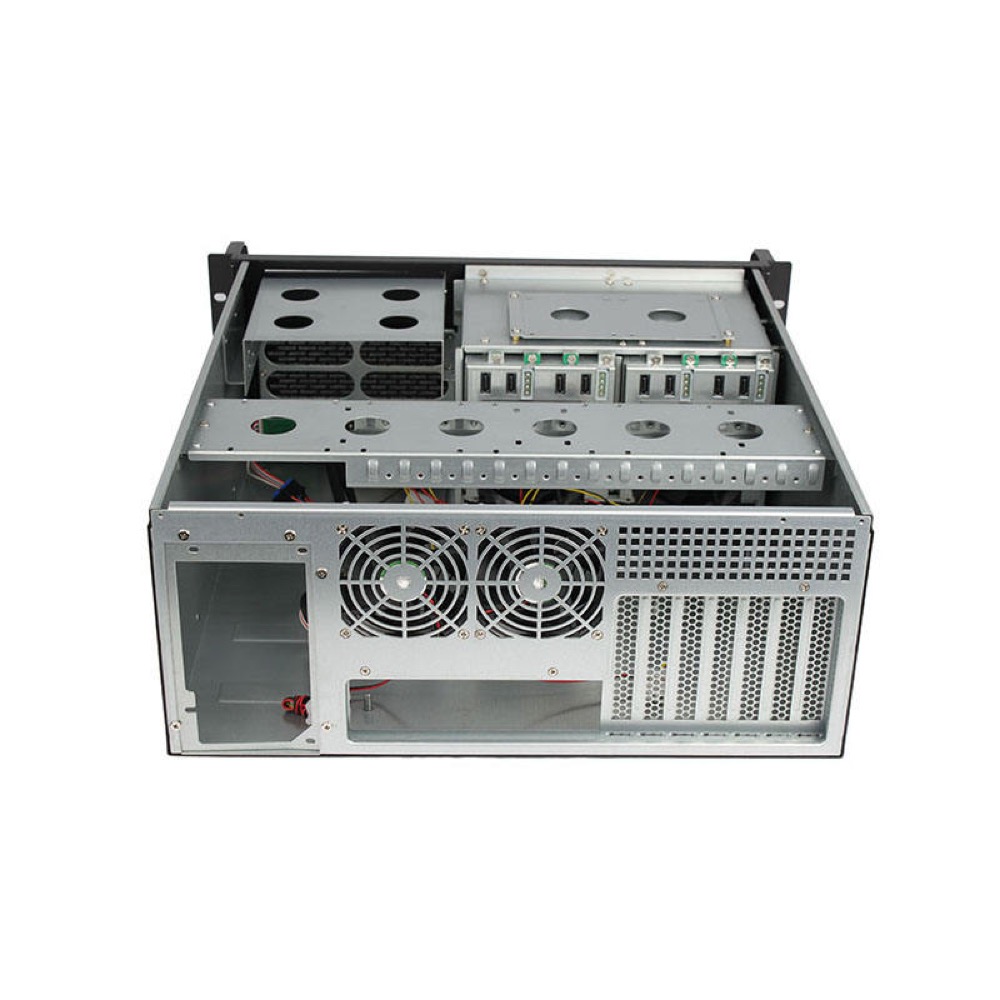

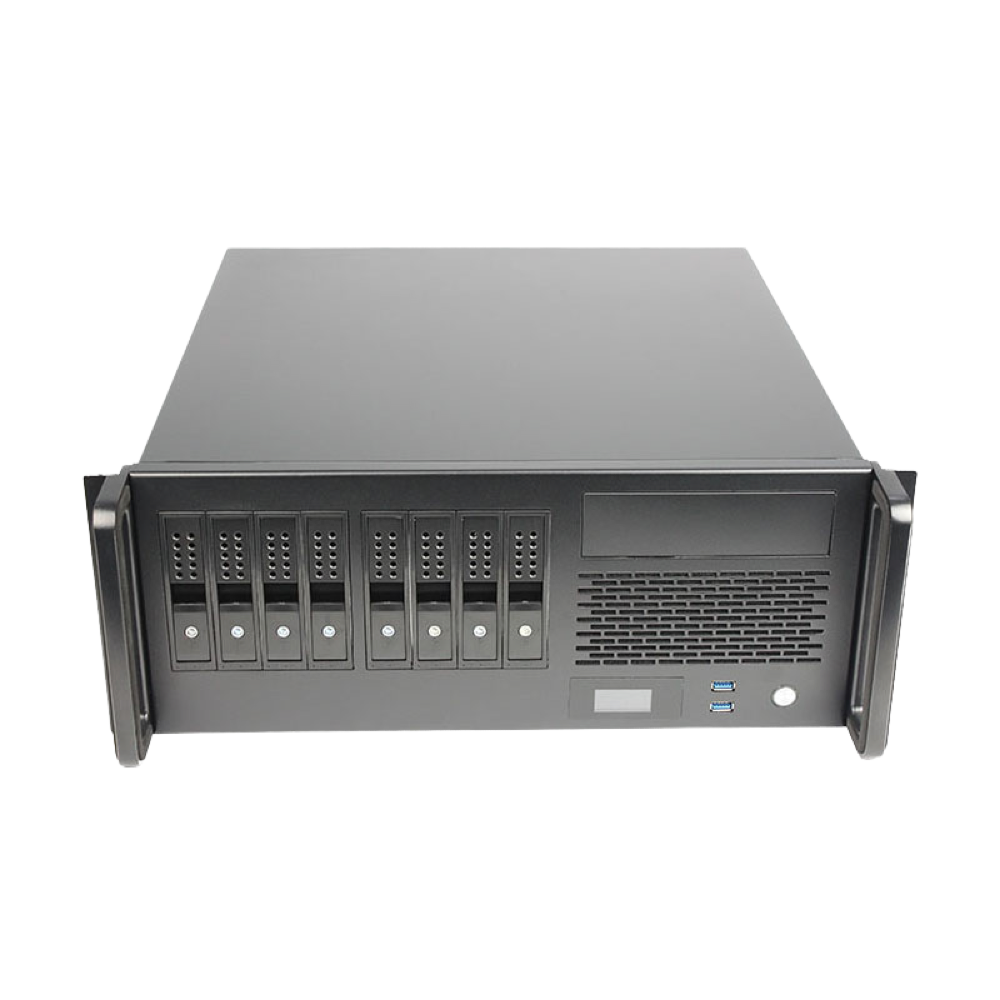

| Custom I/O Details | Front panel: two USB 3.0 ports, one temperature LCD, and power on/off control. Rear panel: seven PCIe slots. Storage layout includes eight 3.5-inch HDDs, four 2.5-inch SSDs, and one 5.25-inch optical-drive position that can optionally exchange for a 2.5-inch SSD module. |
