In stock
Server Chassis
CHS-SRV-810H

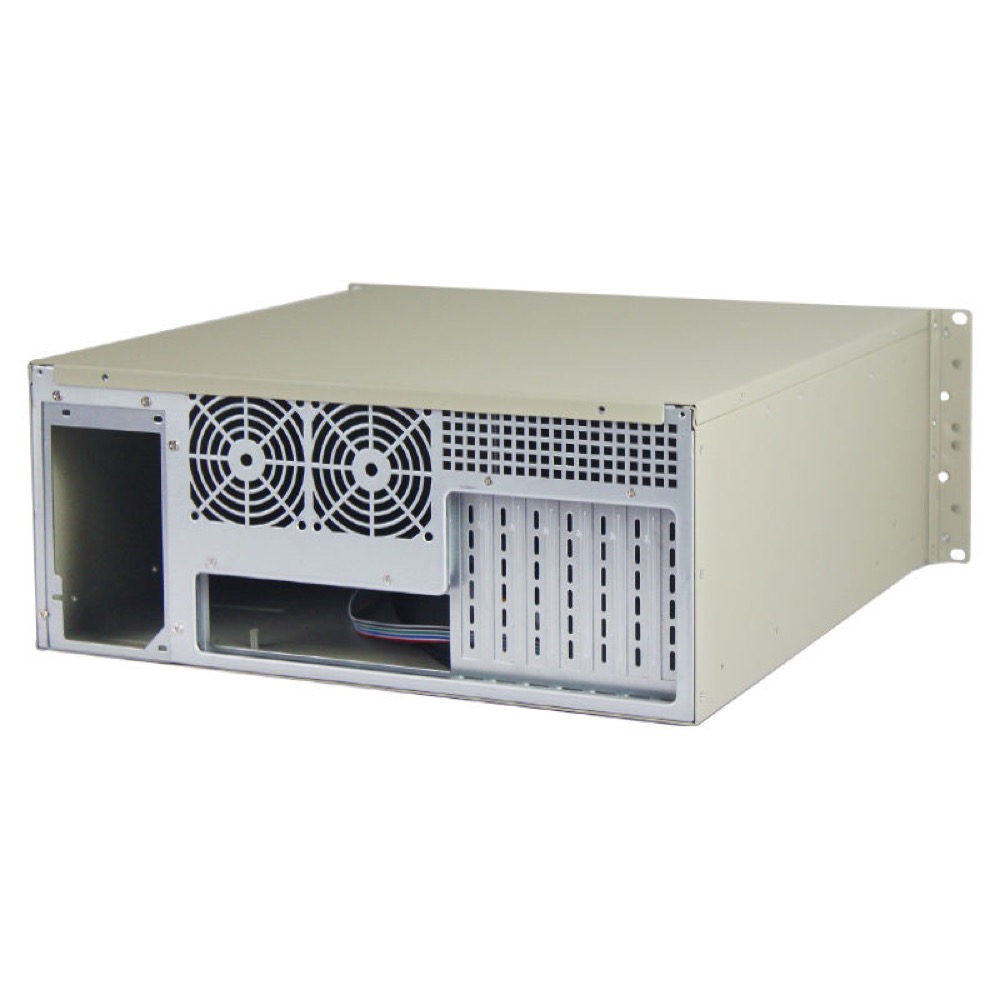

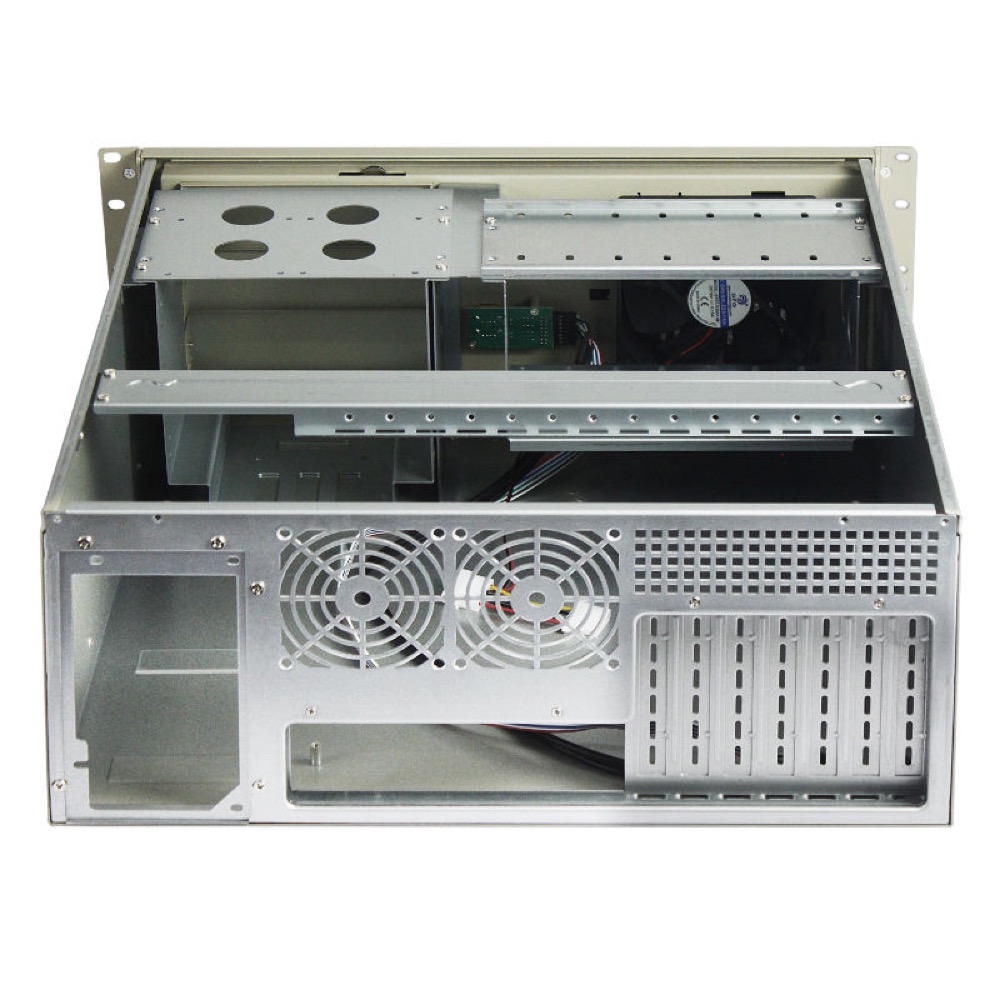

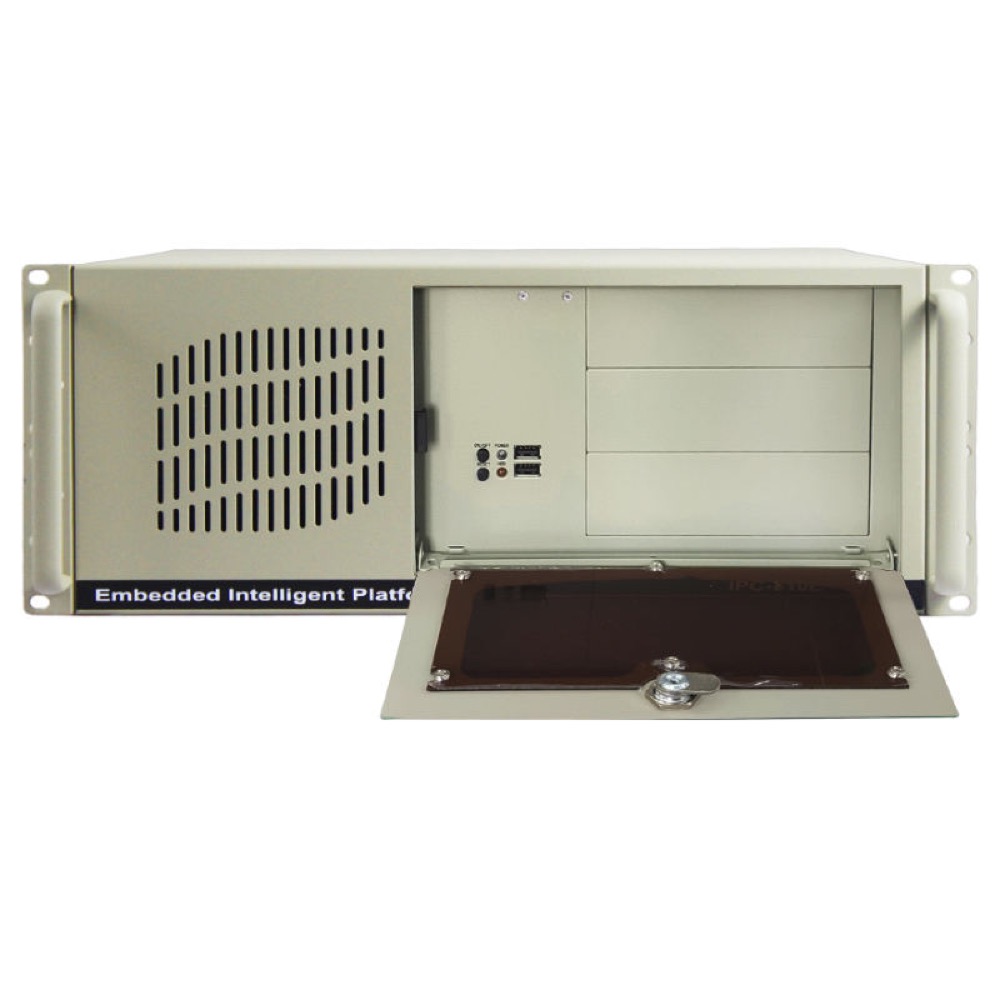

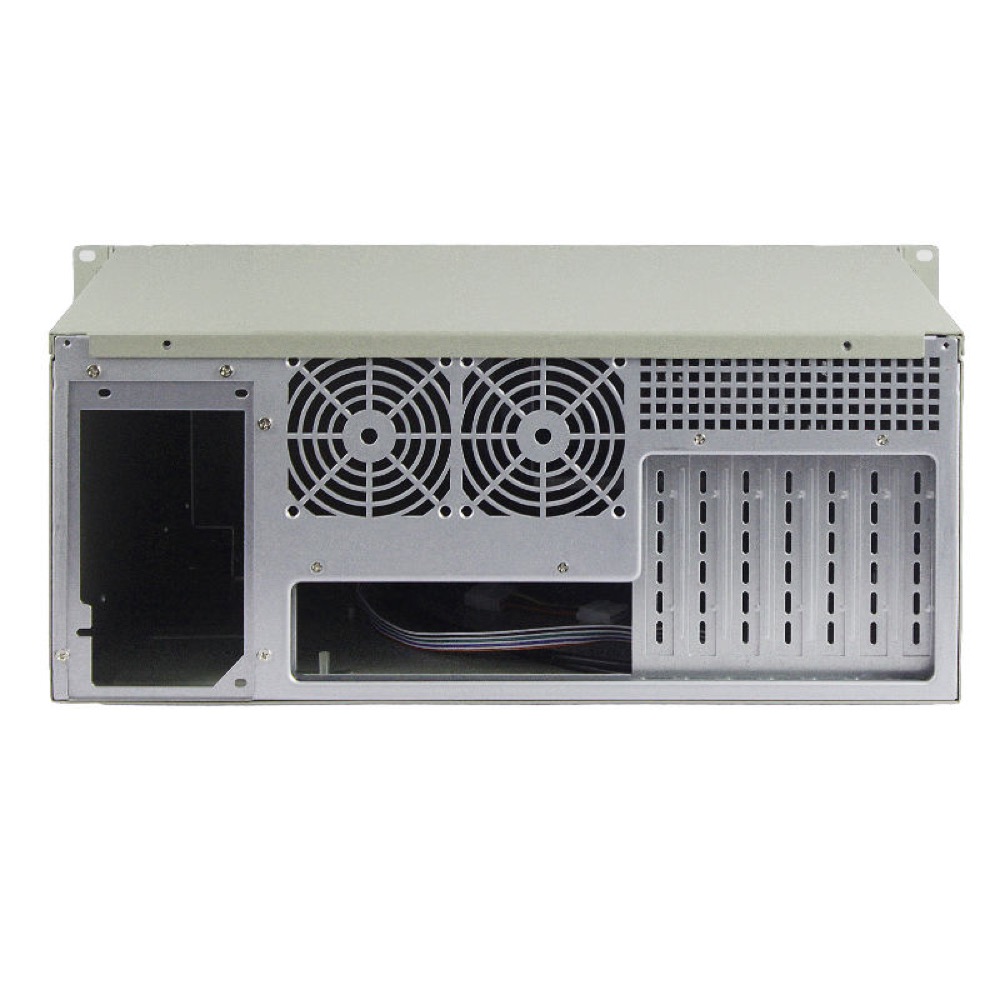

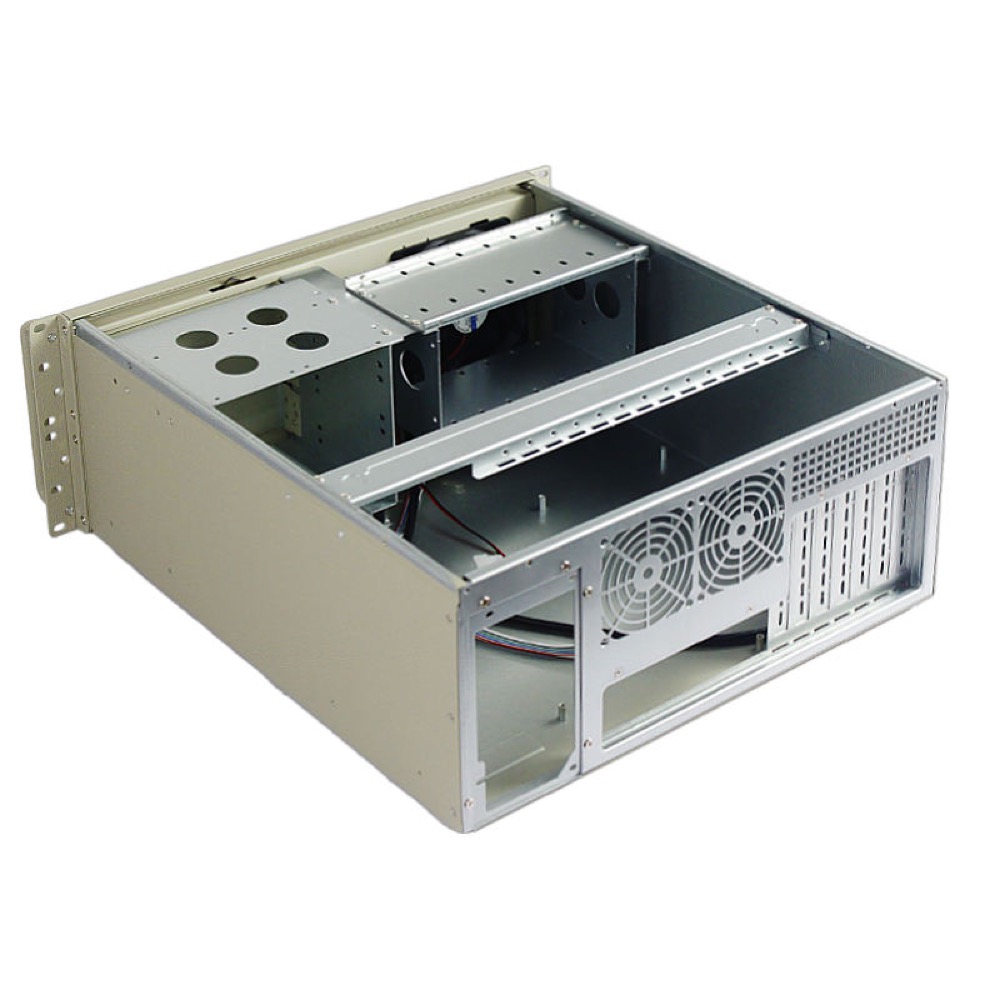

810H 4U 3-Bay ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays10 bays
810H 4U rackmount industrial chassis for server and industrial PC applications. The supplier lists a 482 × 450 × 178 mm enclosure supporting an ATX motherboard and ATX PSU, eight 3.5-inch HDDs plus two 2.5-inch HDD/SSD positions, three modular 5.25-inch adapter positions, one 12025 fan, and CPU-cooler clearance up to 140 mm. The listing is for an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-810H |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with one included 12025 fan and modular 5.25-inch adapter positions. ATX PSU compatibility is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Not specified by supplier |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 12 kg supplier-listed weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX (supplier does not specify an exact maximum in mm) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 8 × 3.5-inch HDD positions, 2 × 2.5-inch HDD/SSD positions, 3 × 5.25-inch modular adapter positions |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
| Maximum CPU Cooler Height | Up to 140 mm |
I/O and Connectivity
| Custom I/O Details | Supplier does not list dedicated front I/O in the key attributes. The detailed specification lists ATX PSU support, eight 3.5-inch plus two 2.5-inch drive support, three modular 5.25-inch adapter positions, one 12025 fan, ATX motherboard support, and CPU-cooler clearance up to 140 mm. |
