In stock
Server Chassis
CHS-SRV-4K-118

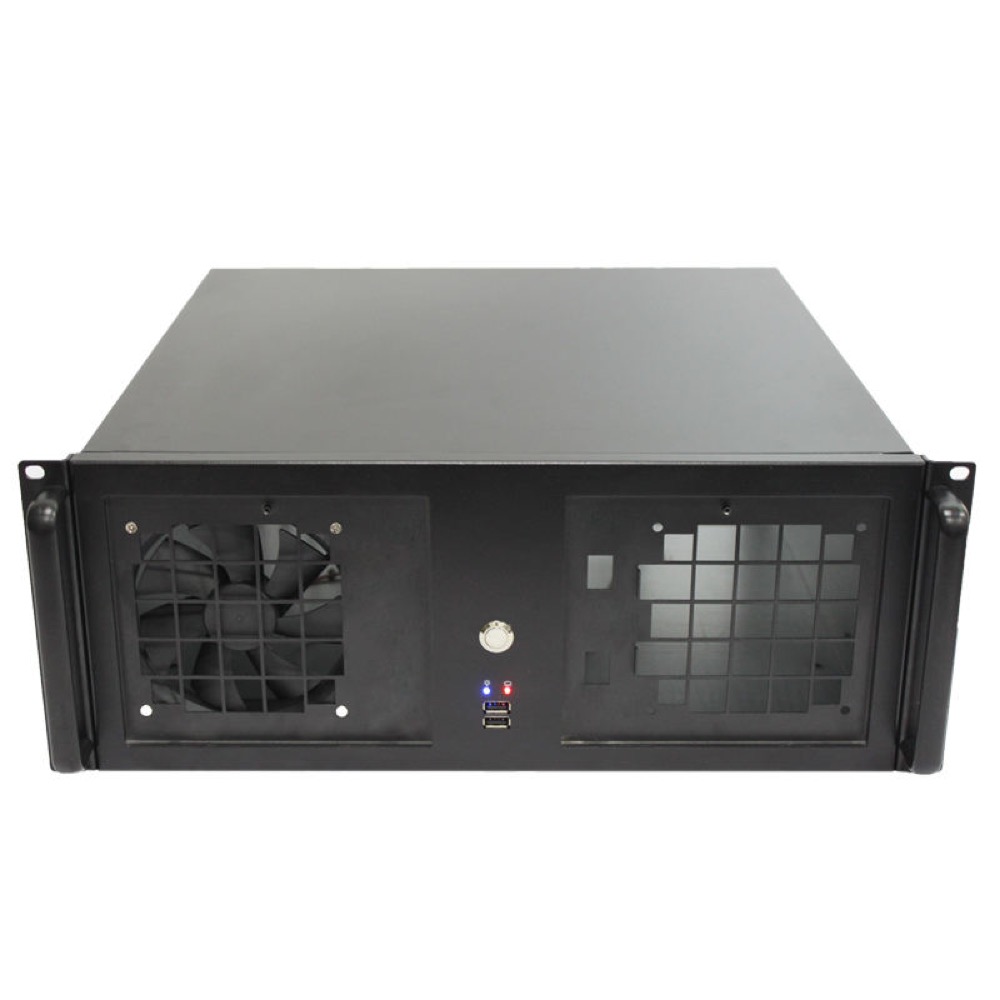

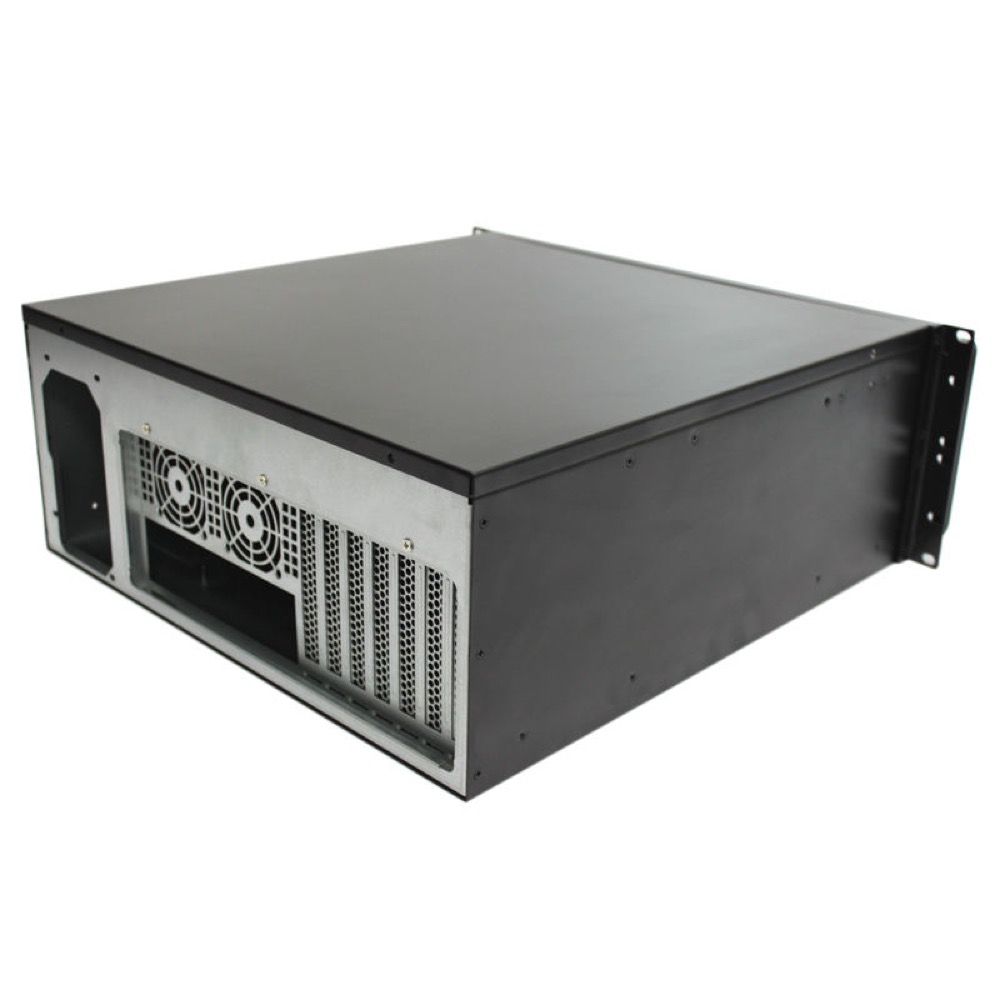

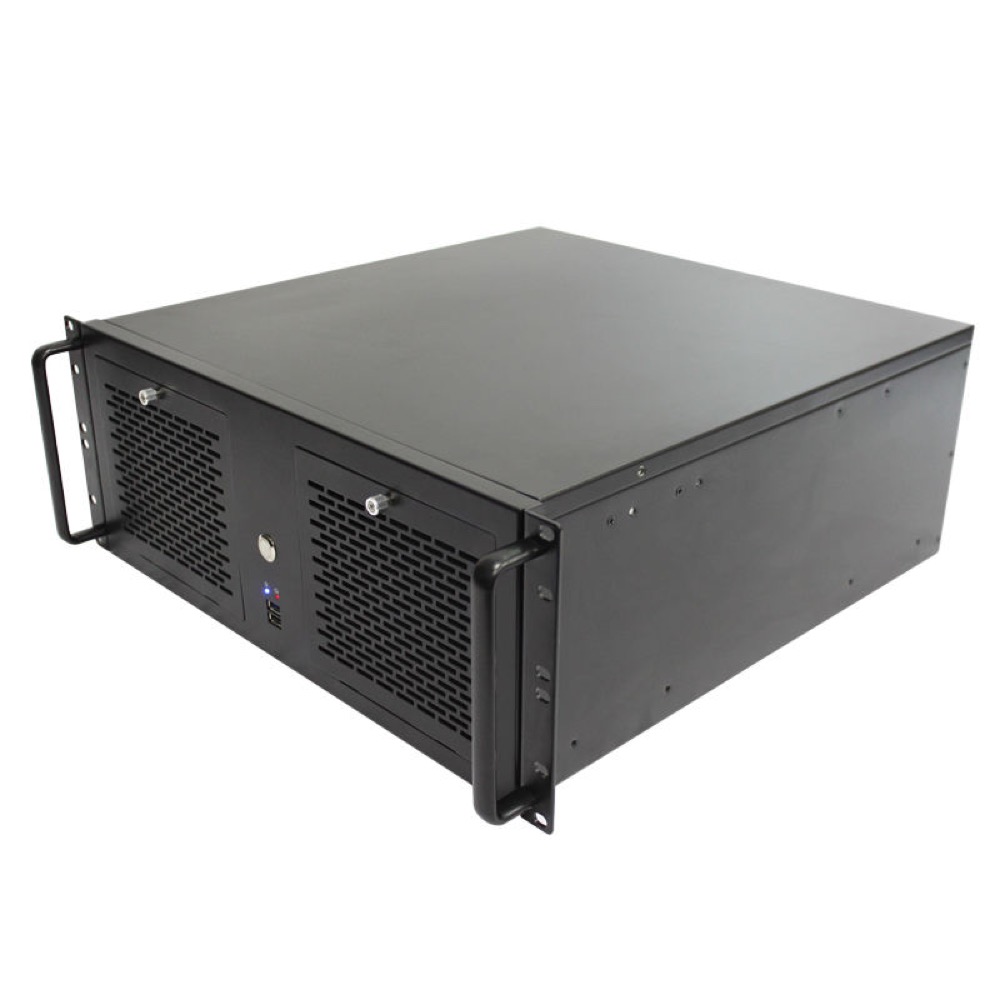

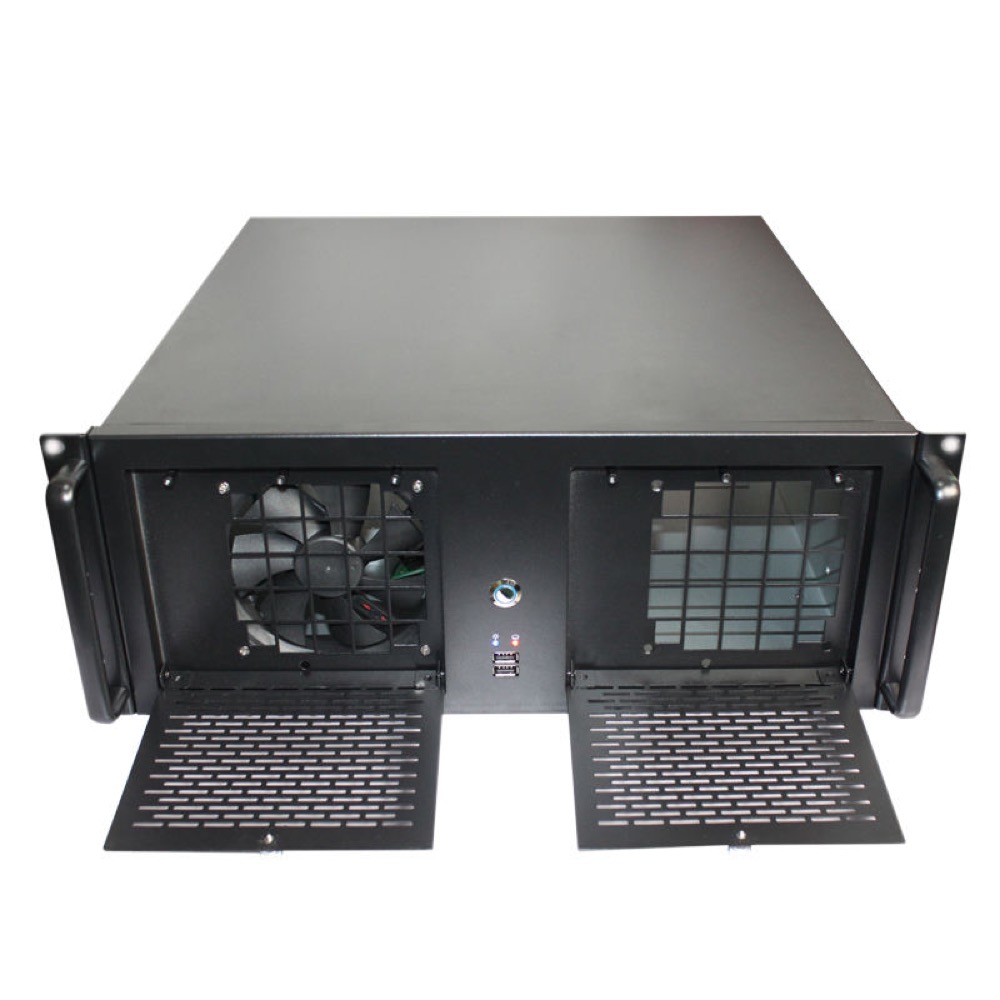

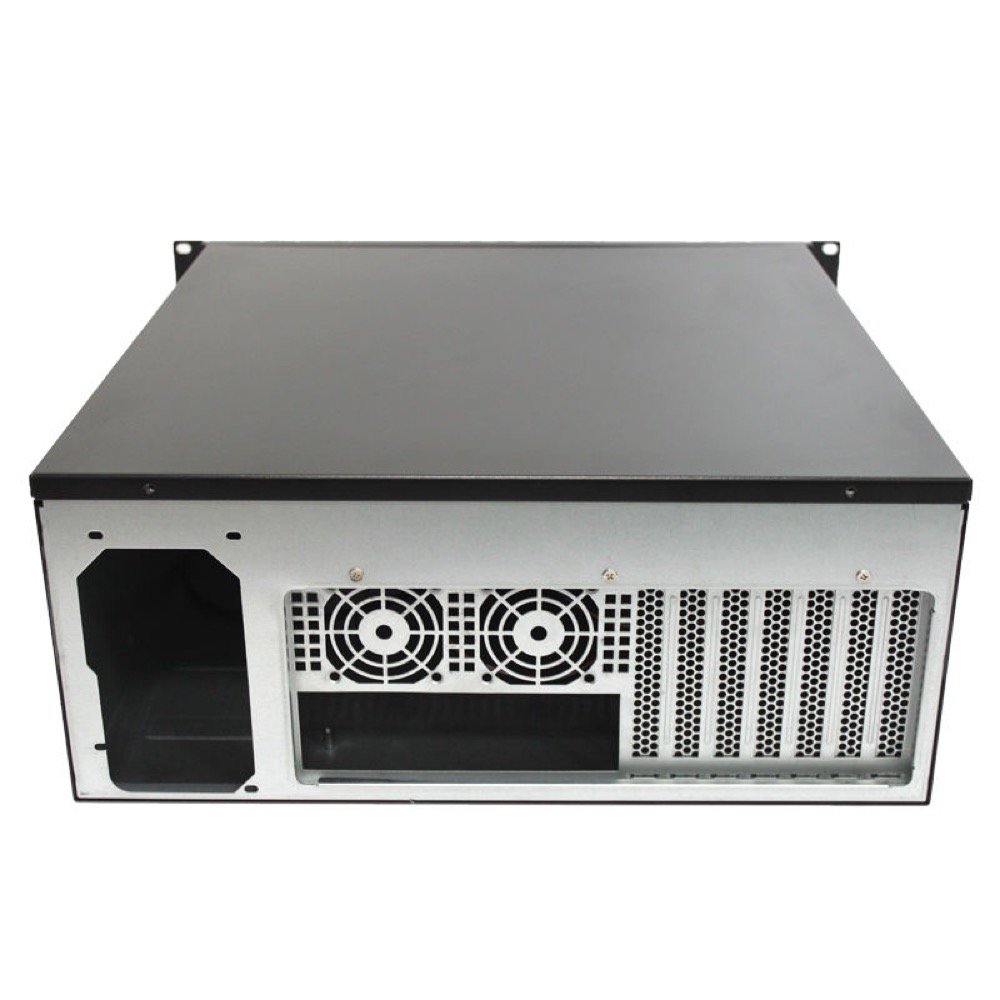

OEM & ODM Custom Rack Atx Hot Swap 4U Computer Pc Chassis Storage Rack System
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
4U 19-inch rackmount storage/server chassis for server applications. Supplier-listed configuration: black SGCC 1.2 mm steel construction, ATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX power support, two 3.5-inch and six 2.5-inch hard-drive positions, one included 12025 fan with an additional 12025 fan and two 6025 fans optional, seven full-height and straight expansion slots, and front USB connectivity. Dimensions: 482(W) × 450(D) × 178(H) mm. Supplier lists no CD-ROM bay, CE/RoHS certification, and 10.528 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-4K-118 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty hot-swap chassis enclosure; one 12025 cooling fan; ATX PSU support. Additional 12025 and 6025 fans are optional; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Storage Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 10.528 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 6 bays |
| Drive Types | 3.5" HDD, 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) included; one additional 12025 and two 6025 fans optional |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Hot-swap storage chassis. Supplier lists no CD-ROM bay, seven full-height/straight slots, and CE/RoHS certification; USB port count and front power/reset indicators are not specified. |
Similar products
Alternatives in this class
CHS-SRV-K465F

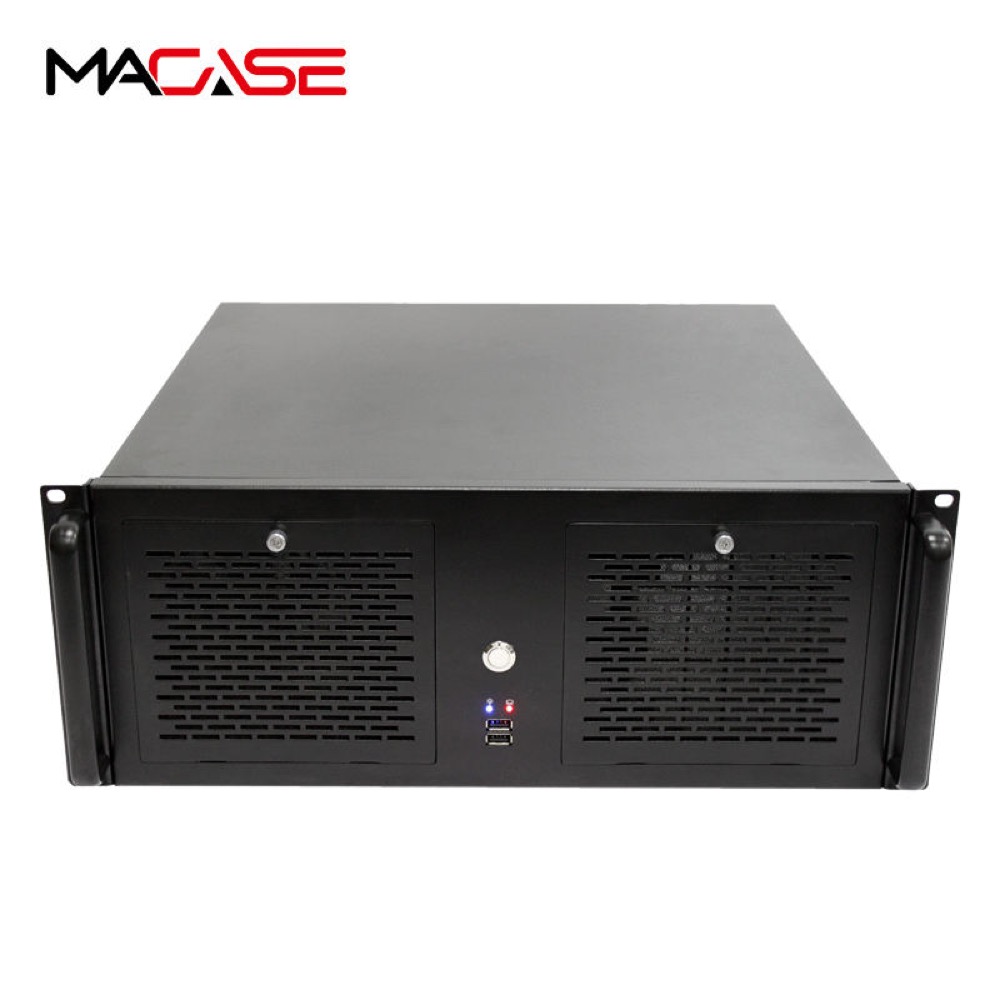

Macase High Quality 4u Rackmount Server case with 2*12025fan 13*3.5inch HDD• Height: 178 mm
