In stock
Server Chassis
CHS-SRV-K435F

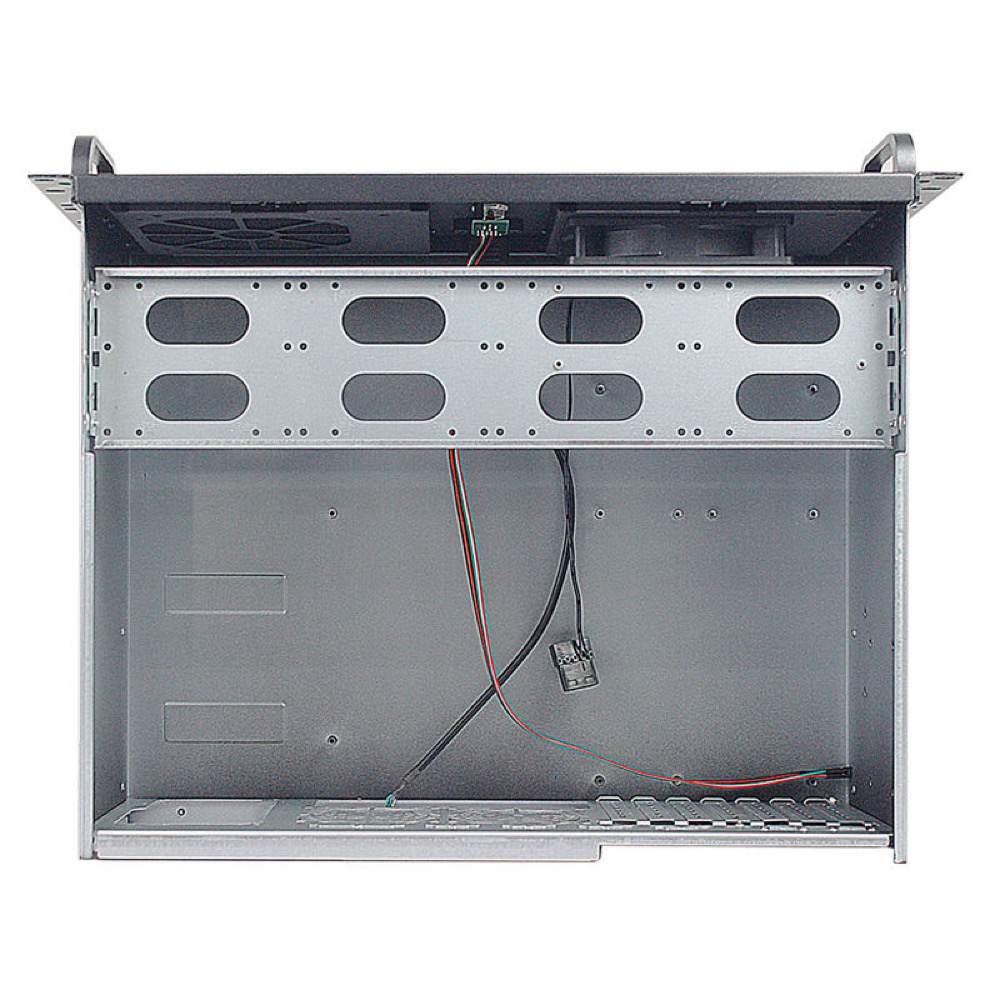

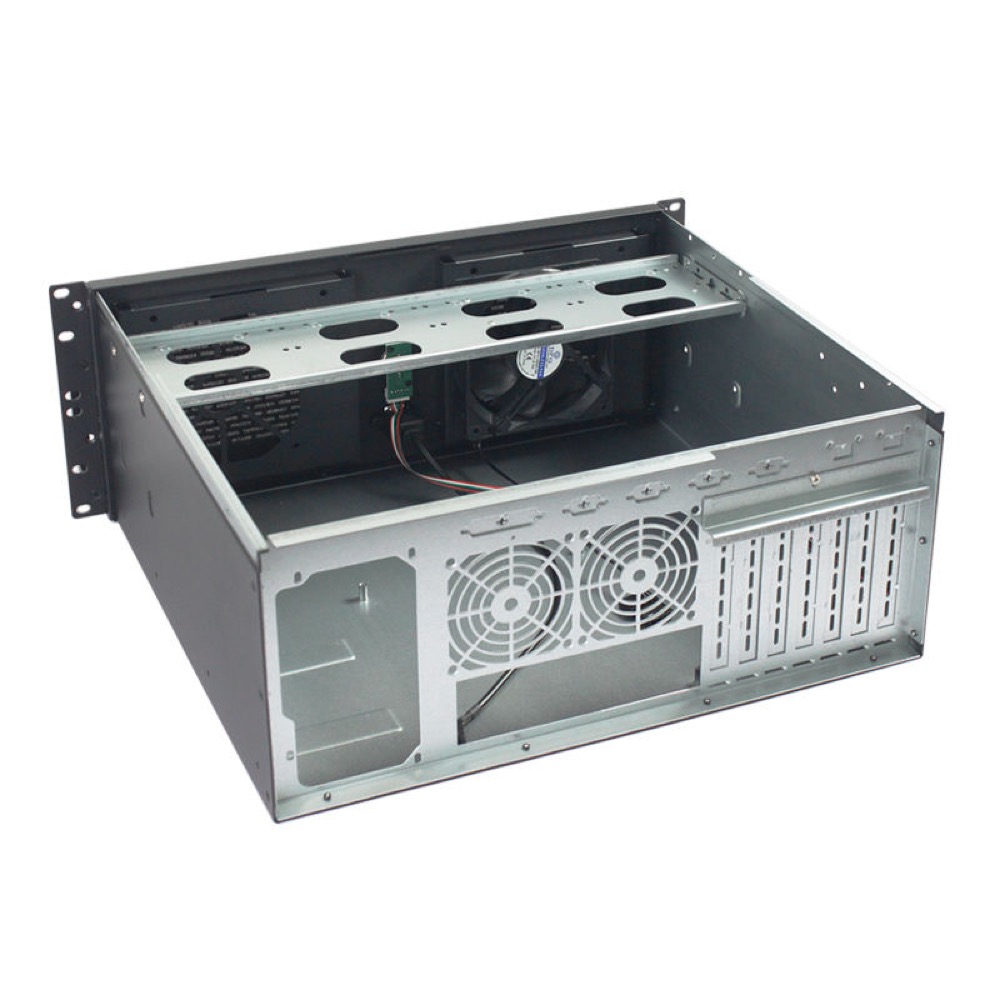

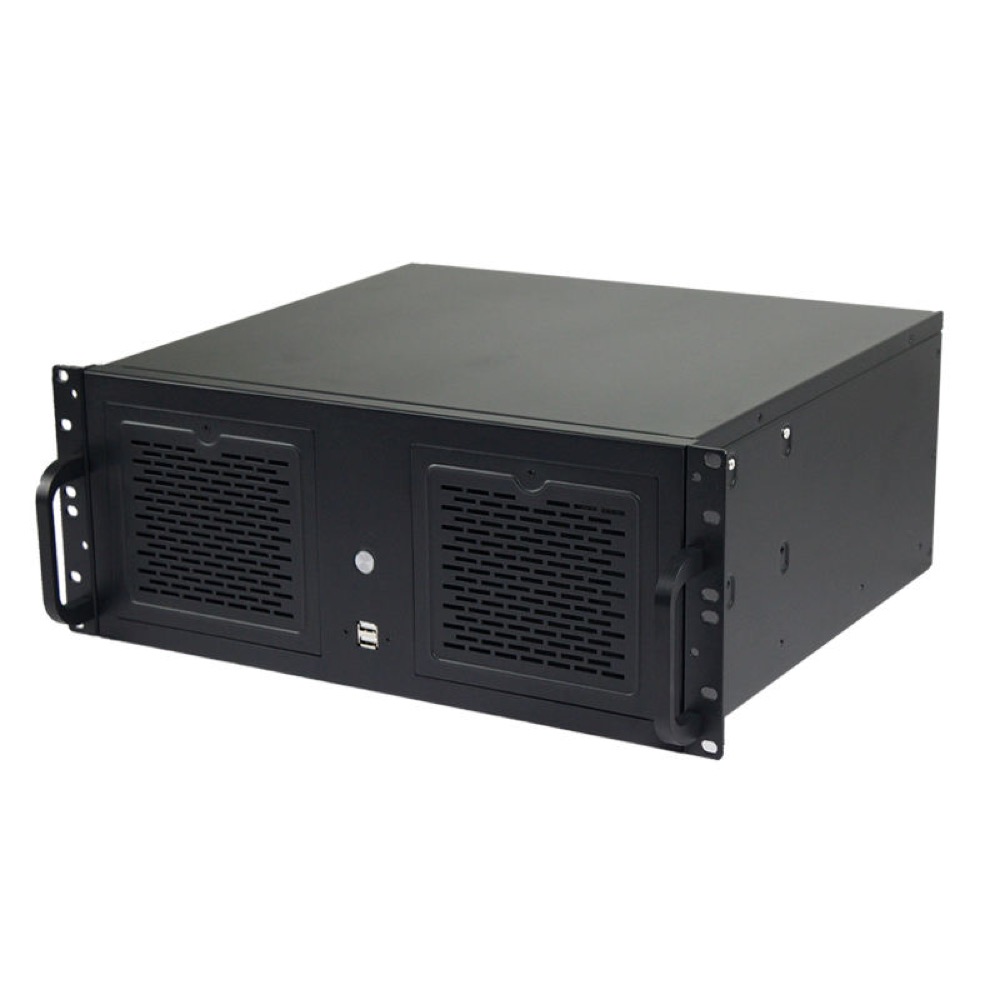

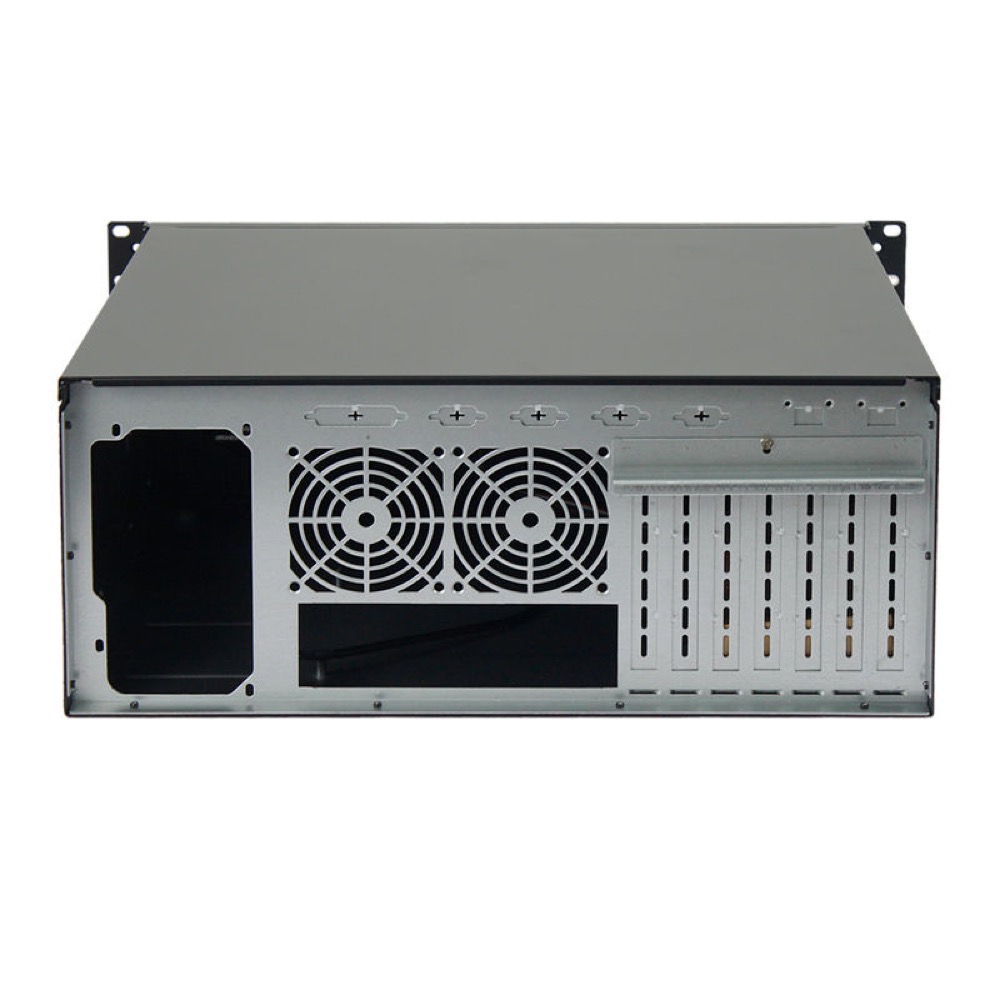

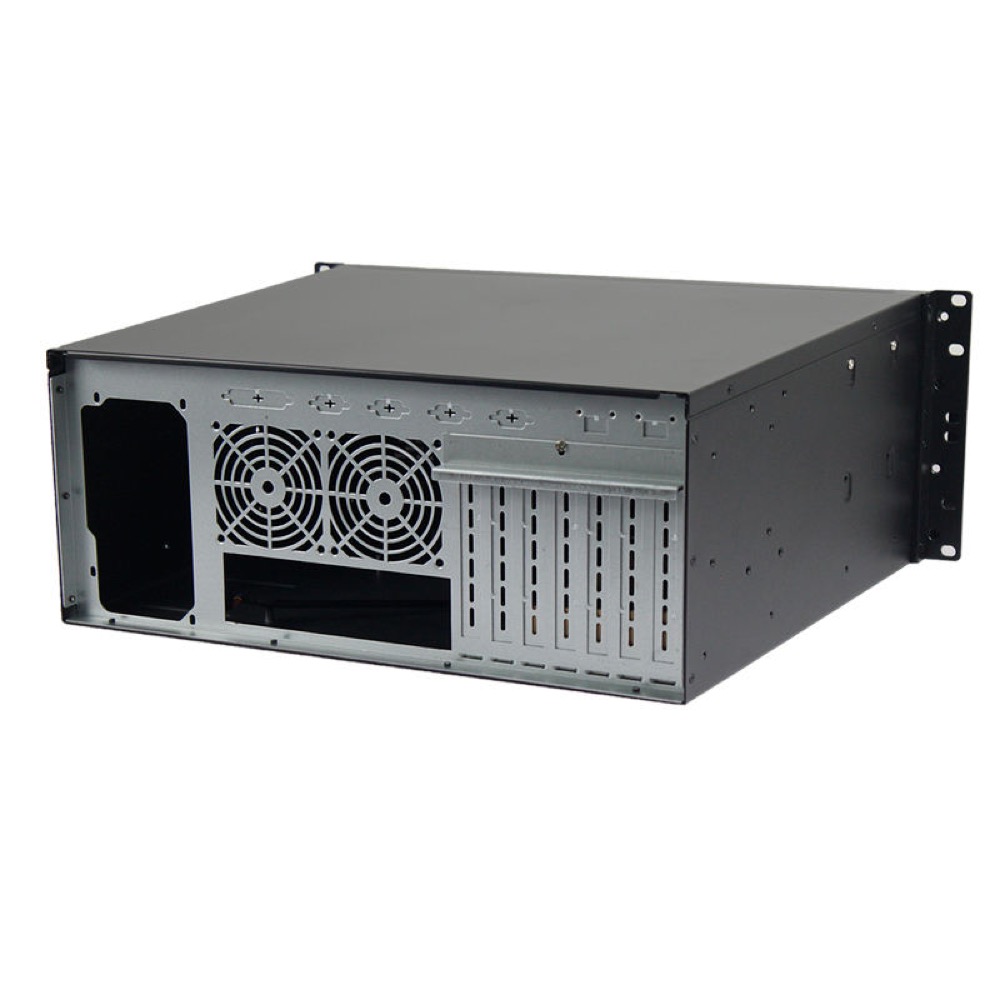

4U Rackmount Industrial ATX Chassis with 7 PCIe Slots
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays4 bays
4U 19-inch industrial rackmount chassis for server and industrial PC applications. Supplier-listed configuration: K435F industrial chassis with ATX motherboard support, ATX PSU support, seven PCIe slots, support for either four 2.5-inch drives or two 3.5-inch plus two 2.5-inch drives, one included 12025 fan with an optional 120 mm fan, and CPU-cooler height up to 160 mm. Dimensions: 482 × 350 × 178 mm. Supplier lists stock availability and a steel enclosure with a front door.
Specifications
Identity
| Model Number | CHS-SRV-K435F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with front door; one included 12025 cooling fan; ATX PSU support. Supplier lists one additional 120 mm fan as optional; PSU inclusion is not specified. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Industrial steel |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 350 mm |
| Weight | 8 kg gross in supplier specification; 10.0 kg in packaging attributes |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 4 bays |
| Drive Types | 4 × 2.5" HDD, 2 × 3.5" HDD + 2 × 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, PCIe |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025); one optional 120 mm fan |
| Maximum CPU Cooler Height | Up to 160 mm |
I/O and Connectivity
| Front I/O | Custom I/O |
| Custom I/O Details | Supplier lists an industrial steel chassis with a front door. Exact front/rear port count and USB version are not specified. |
