In stock
Server Chassis
CHS-SRV-K435L2

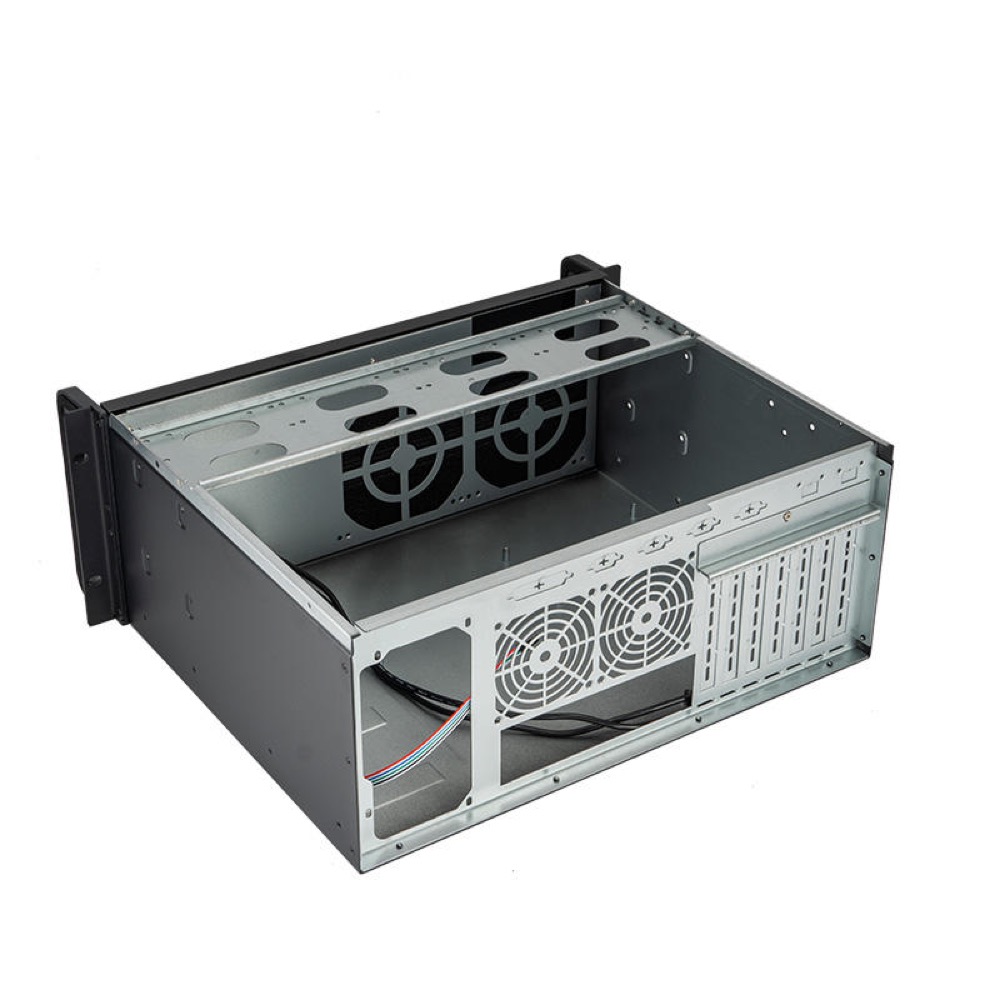

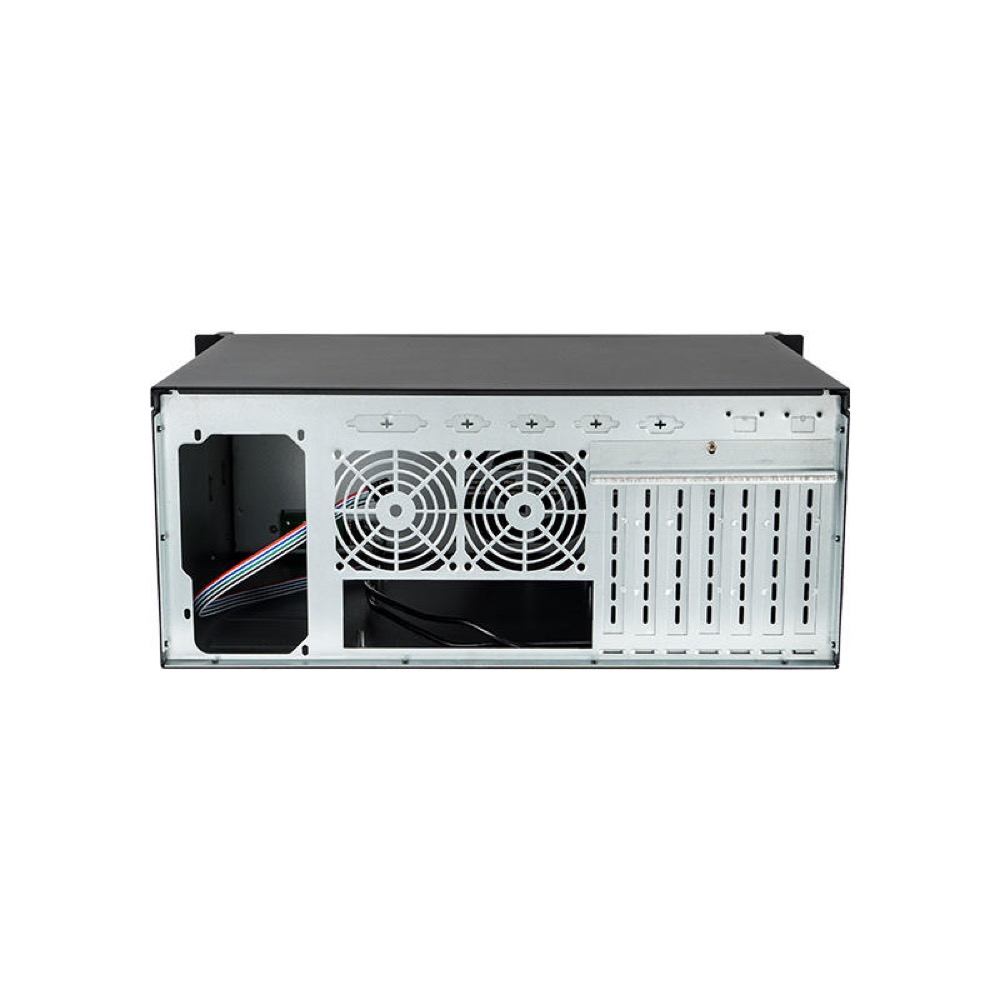

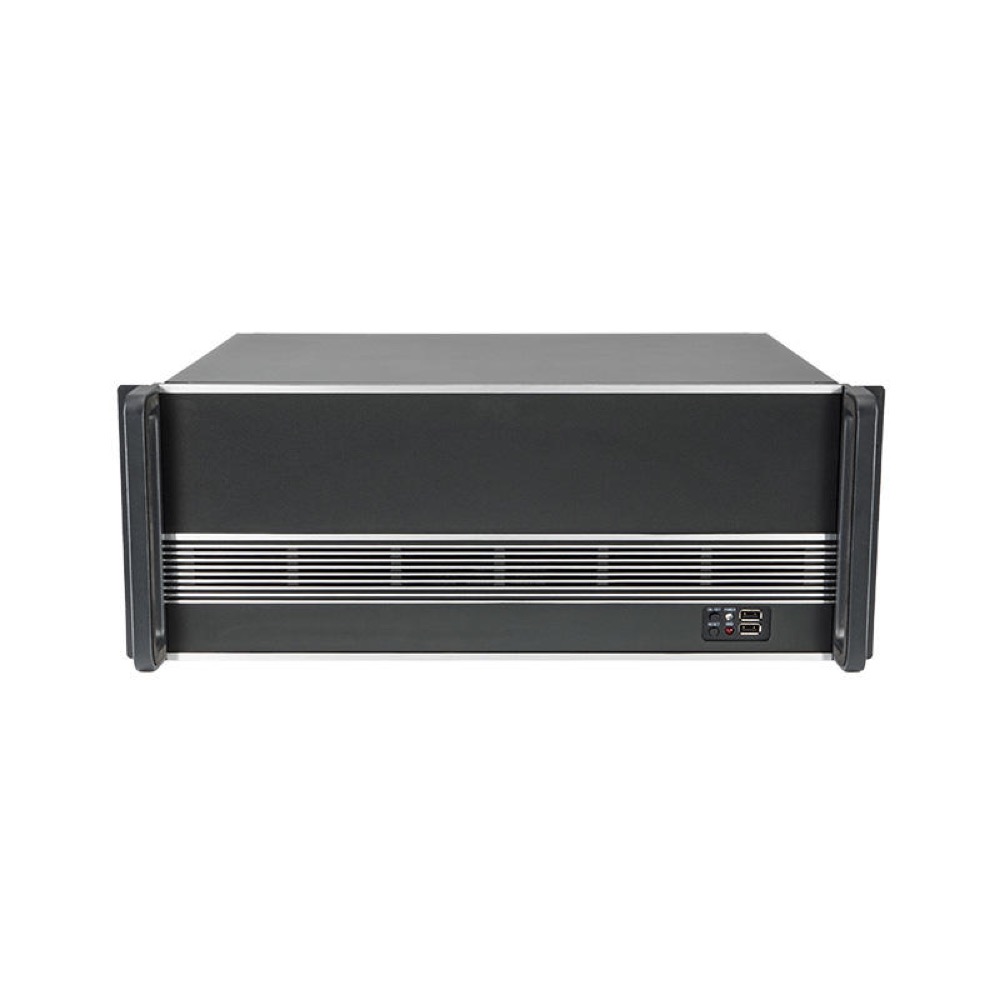

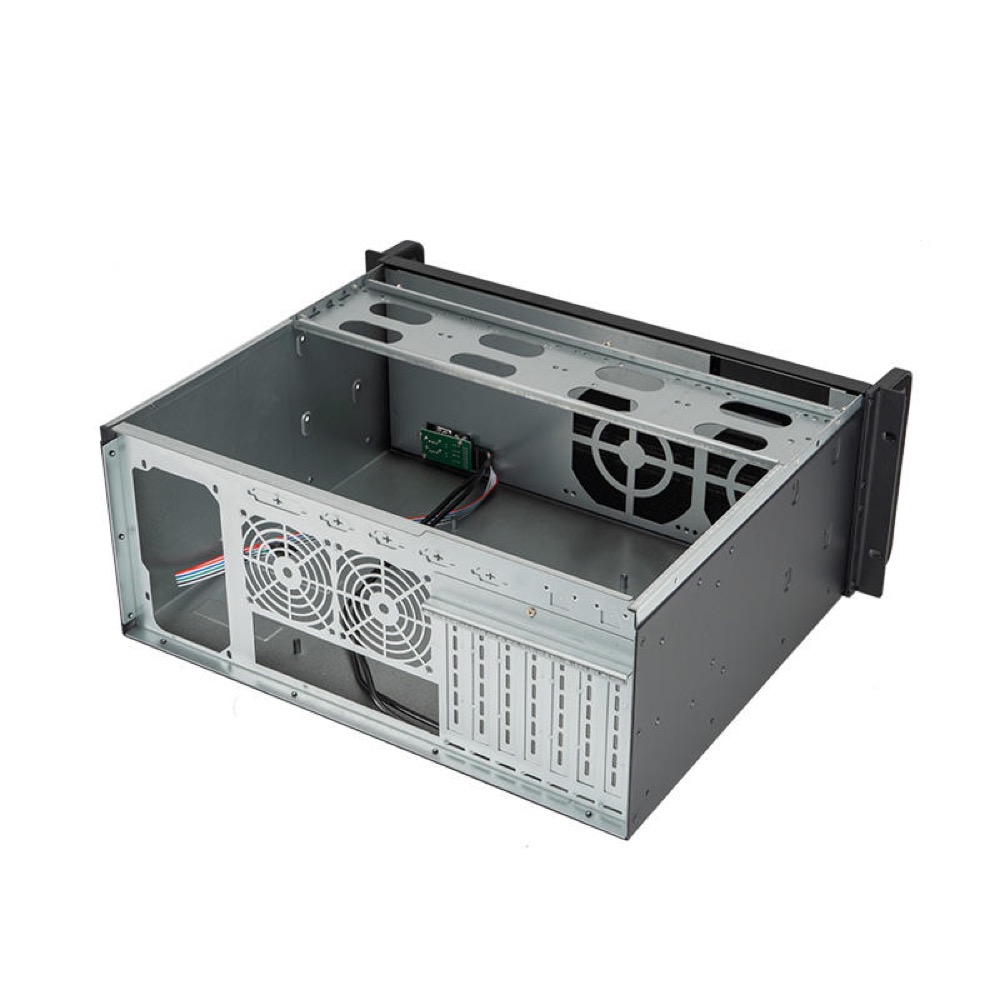

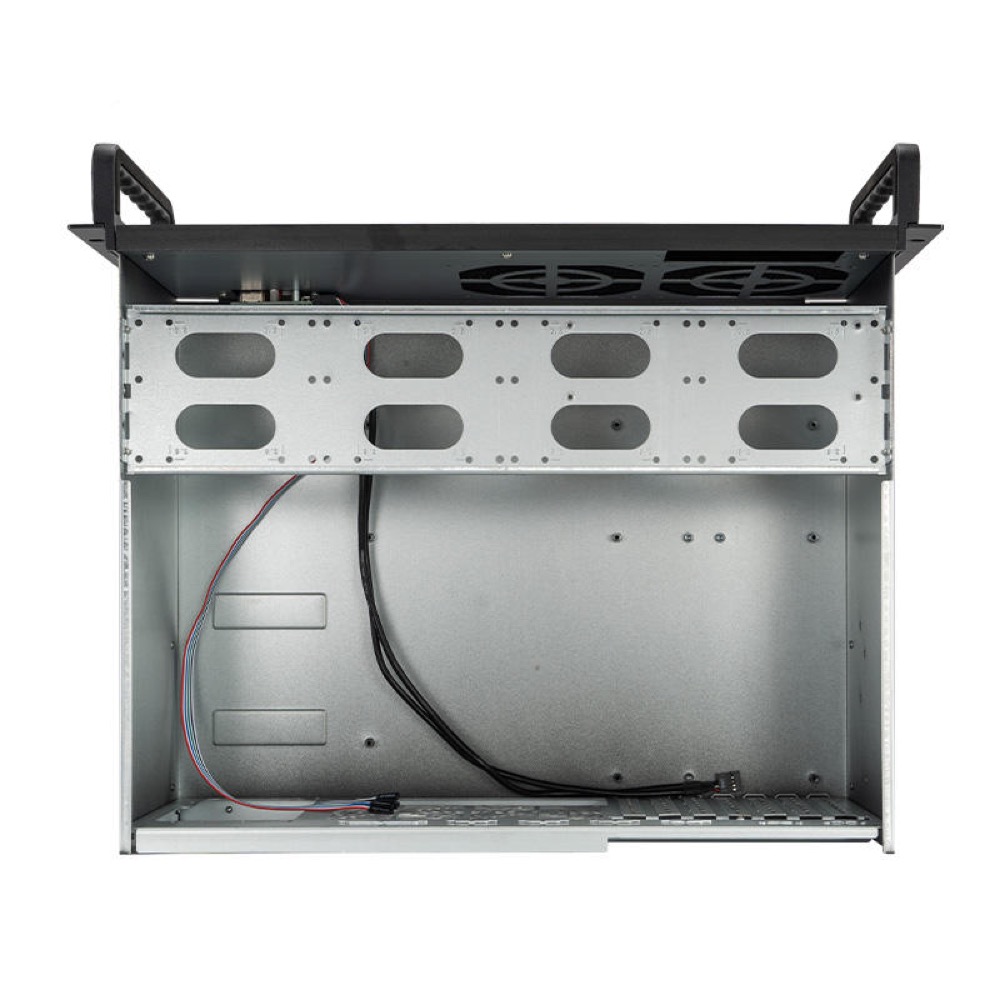

K435L2 4U Rackmount Chassis with Temperature LCD
Product formChassis with PSU
FamilyPanel PC / Display Chassis
Dimension482(W) × 350(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays5 bays
4U 19-inch industrial rackmount chassis with a 4 mm aluminum front panel, temperature LCD, included ATX power supply, seven PCIe slots, five 3.5-inch/2.5-inch drive positions, two included 8025 fans, and support for CPU coolers up to 150 mm. The enclosure measures 482 × 350 × 178 mm and supports ATX motherboards. The supplier page title references an ATX 350W power specification, while the detailed listing states an included ATX 400W PSU; both values are retained in the private source notes.
Specifications
Identity
| Model Number | CHS-SRV-K435L2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | 4U rackmount chassis with 4 mm aluminum front panel, temperature LCD, included ATX power supply, two included 8025 fans, and front USB 3.0 ports. Motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Industrial PC, Server, Workstation |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | 4 mm aluminum front panel; enclosure material not fully specified |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 350 mm |
| Weight | 7.9 kg gross / 6.45 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX; exact board dimensions not specified |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 5 bays |
| Drive Types | 5 × 3.5-inch HDD positions with 2.5-inch adapter support |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 included; detailed specification also lists 12025 and 8025 fan options |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Not specified |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Temperature LCD |
| Custom I/O Details | 4 mm aluminum front panel with two USB 3.0 ports and a temperature LCD. Seven PCIe slots are listed by the supplier. |
