In stock
Server Chassis
CHS-SRV-K448L5

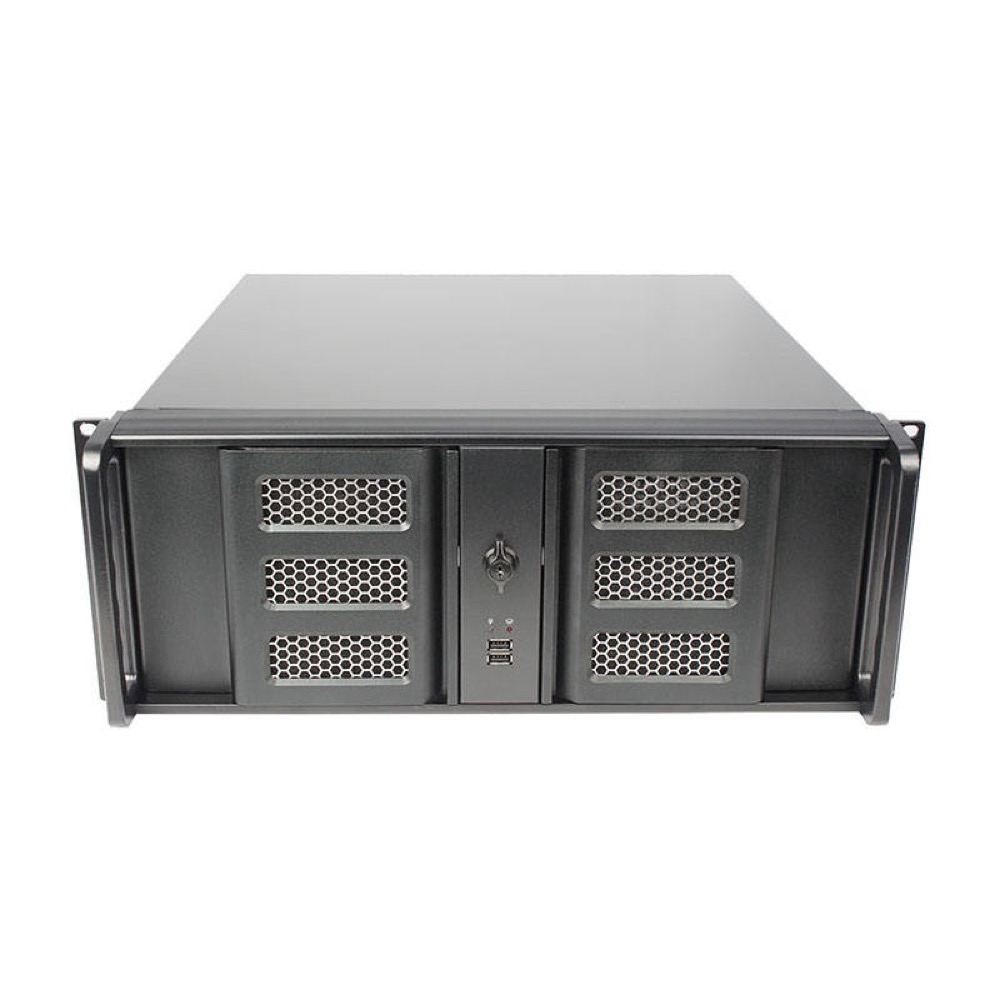

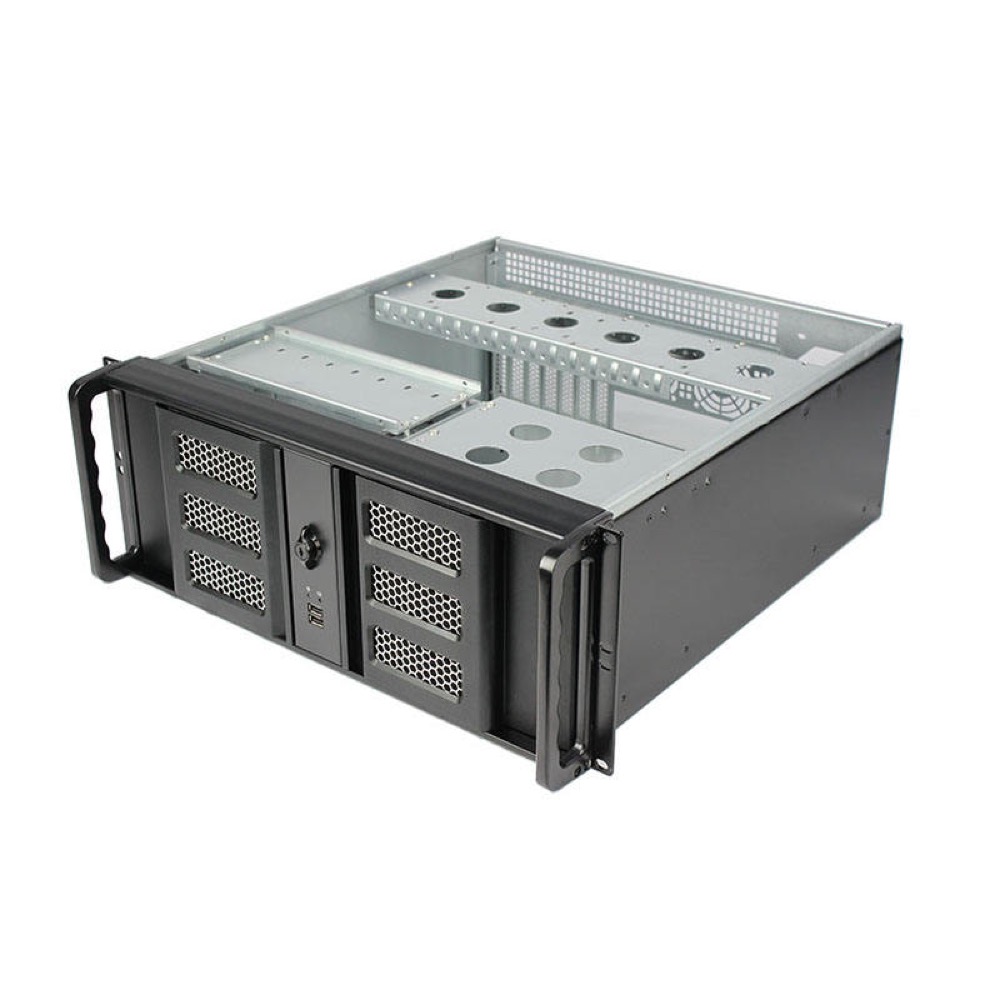

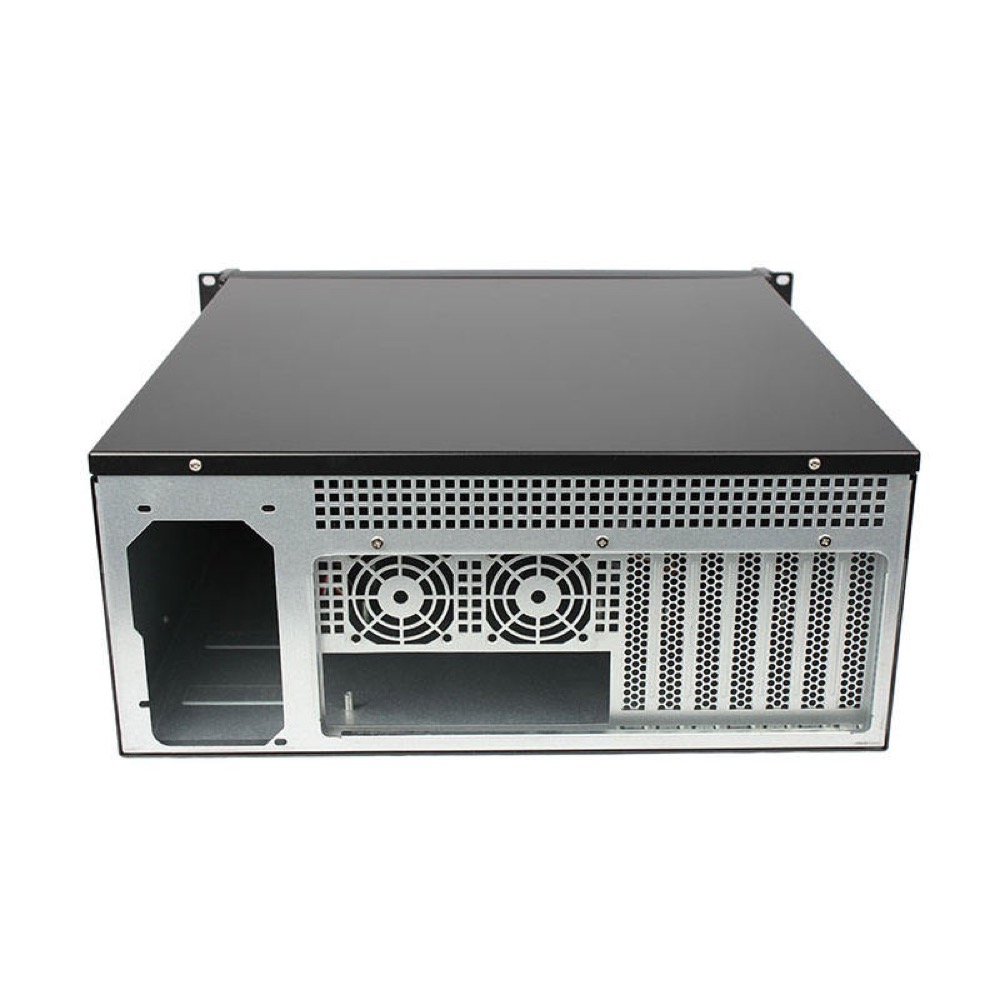

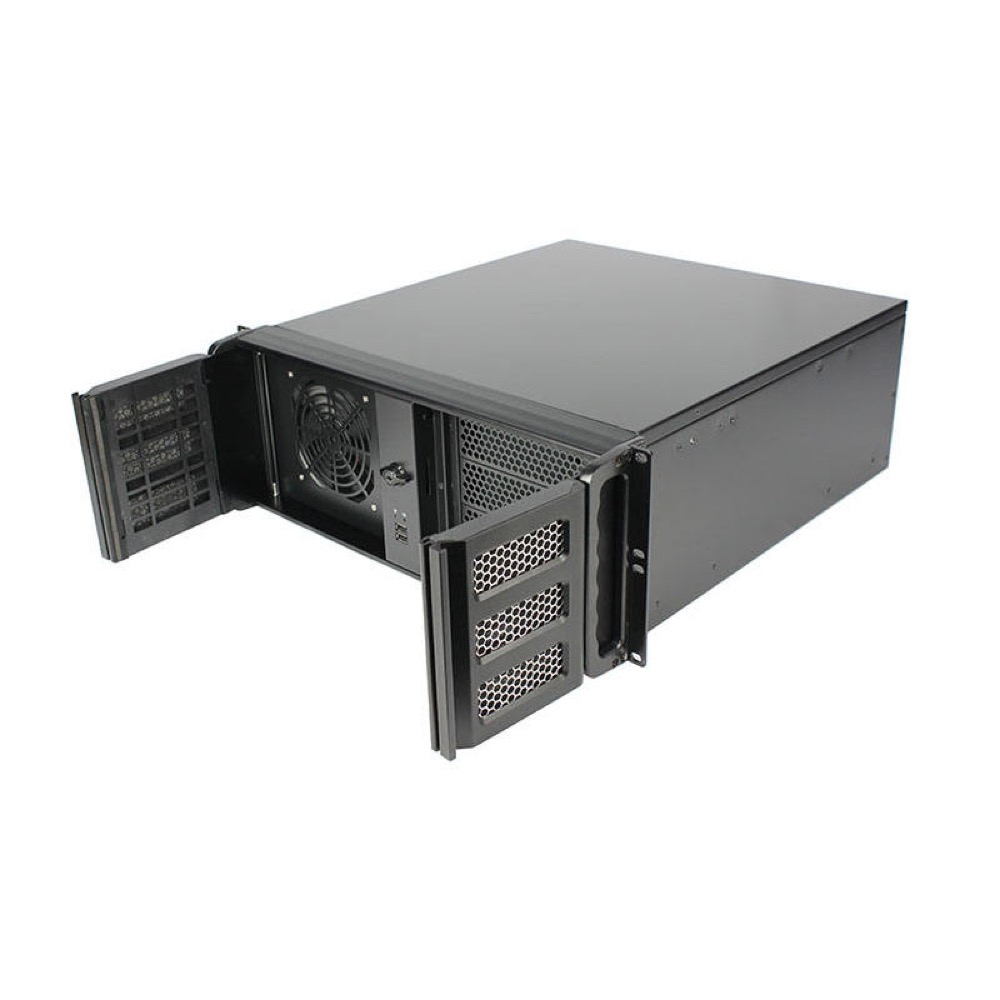

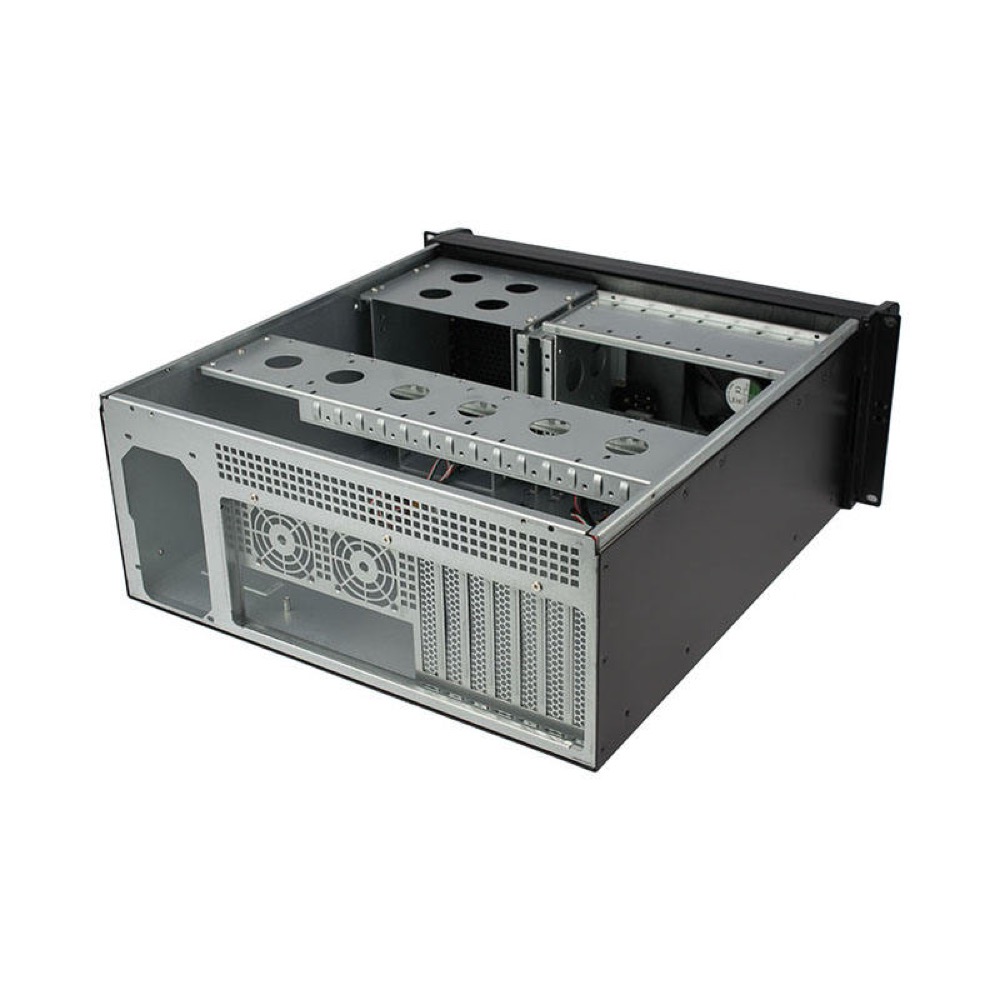

K448L5 4U 8-Bay Hot-Swap Rackmount Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
4U 19-inch industrial storage rackmount chassis for ATX systems. The supplier lists eight hot-plug 3.5-inch drive bays, two 5.25-inch CD-ROM bays, seven full-height straight expansion slots, 482 × 450 × 178 mm dimensions, 305 × 245 mm motherboard support, two 8025 fans plus one 12025 fan, and an SGCC 1.2 mm steel construction. The listing also references an ATX PSU; whether the PSU is included is not explicitly confirmed in the detailed attributes, so it is recorded as PSU support rather than an included component.
Specifications
Identity
| Model Number | CHS-SRV-K448L5 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with eight hot-swap drive positions, two 5.25-inch bays, seven full-height expansion slots, and three listed cooling fans. ATX PSU support is provided; PSU inclusion is not confirmed. Motherboard, CPU, memory, and drives are not included. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, 1.2 mm; aluminum alloy and steel construction |
| Finish / Color | Powder coating |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 14.23 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch hot-plug HDD bays |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 8 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height, Straight expansion slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 and 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Supplier lists front USB, a side-panel window, seven full-height straight expansion slots, eight hot-plug 3.5-inch bays, and two 5.25-inch CD-ROM bays. |
