In stock
Server Chassis
CHS-SRV-K465F

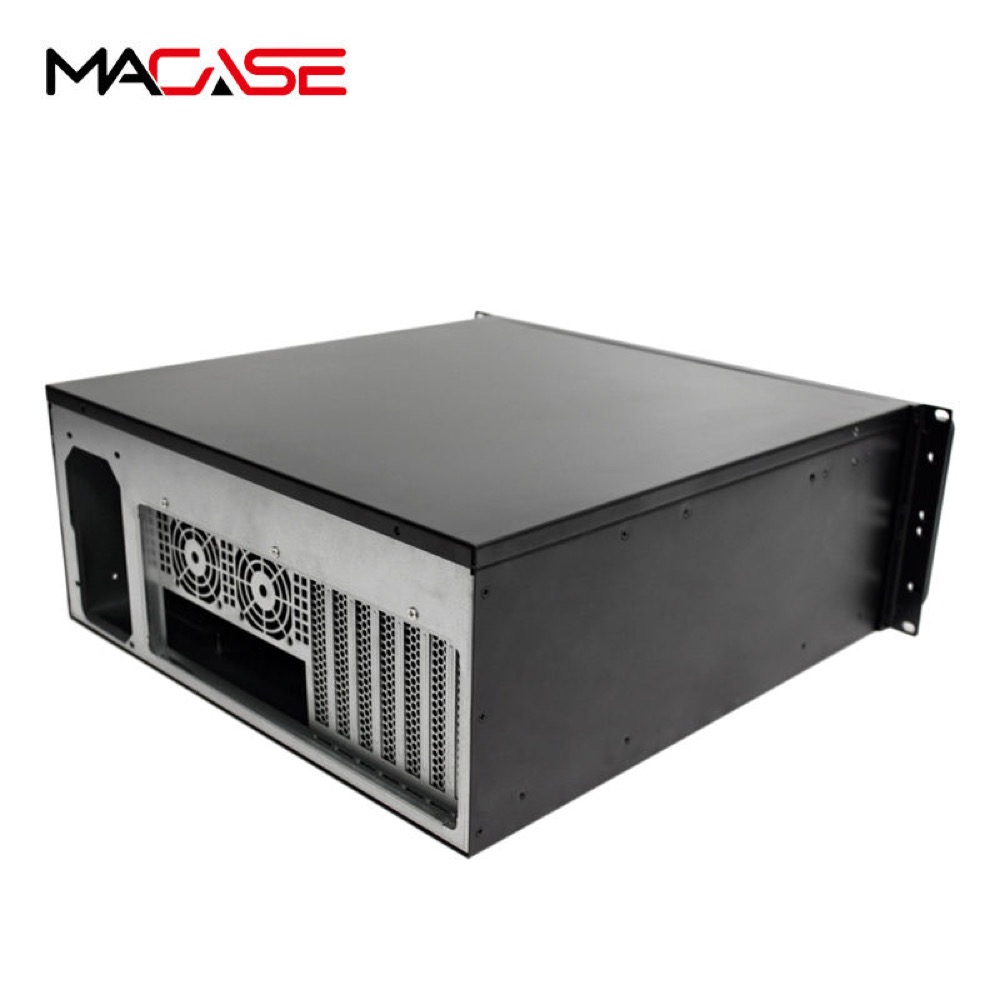

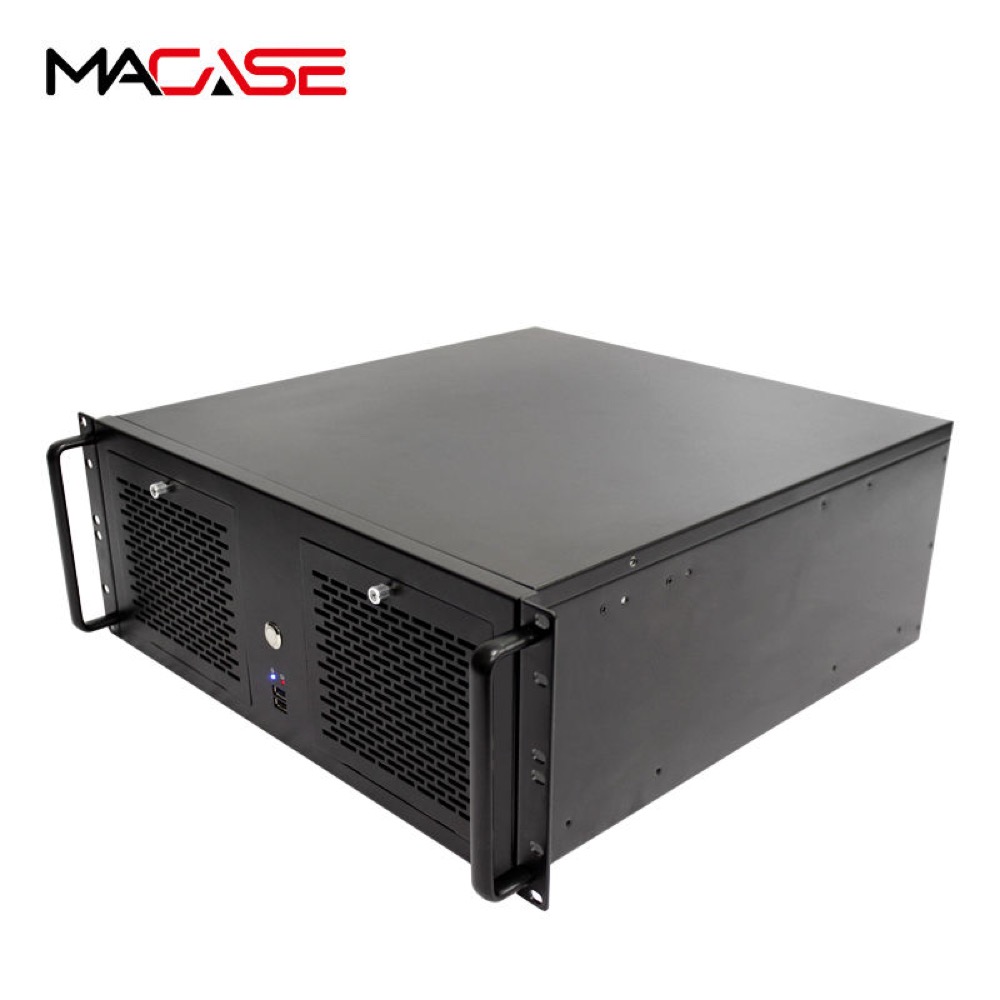

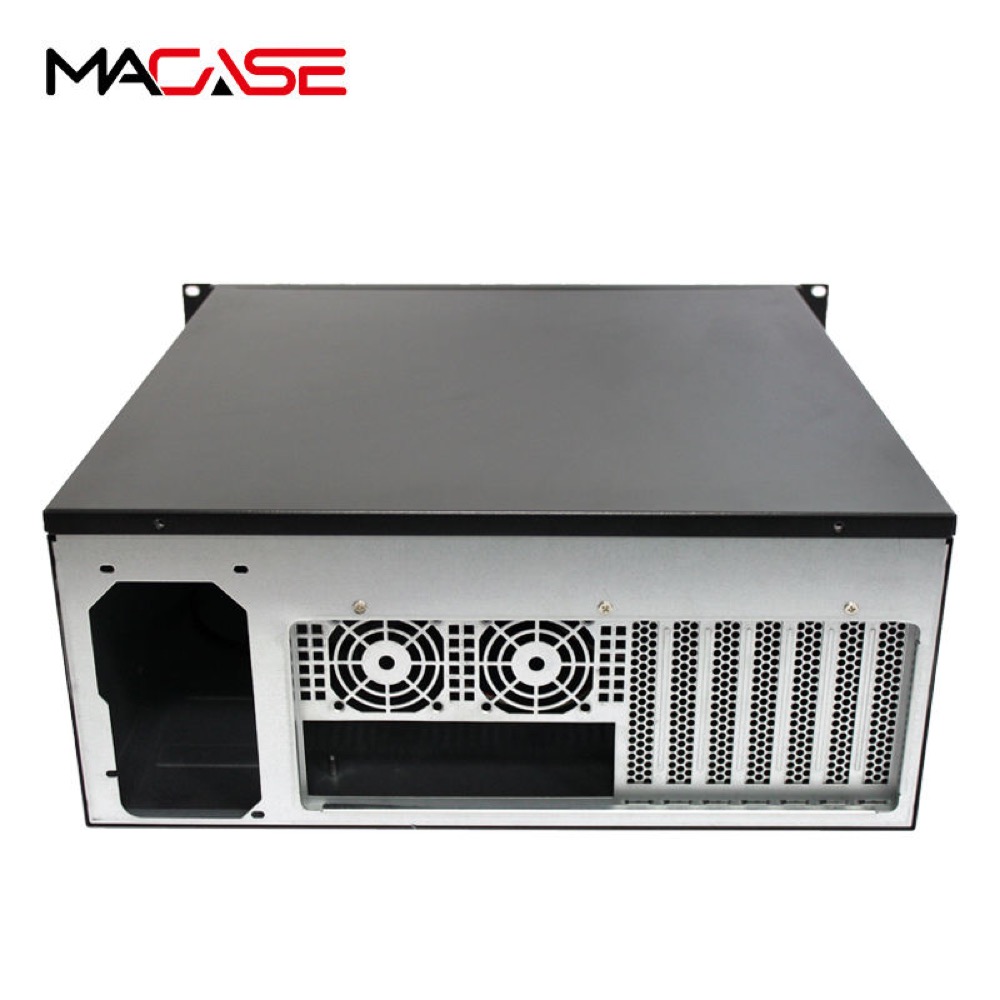

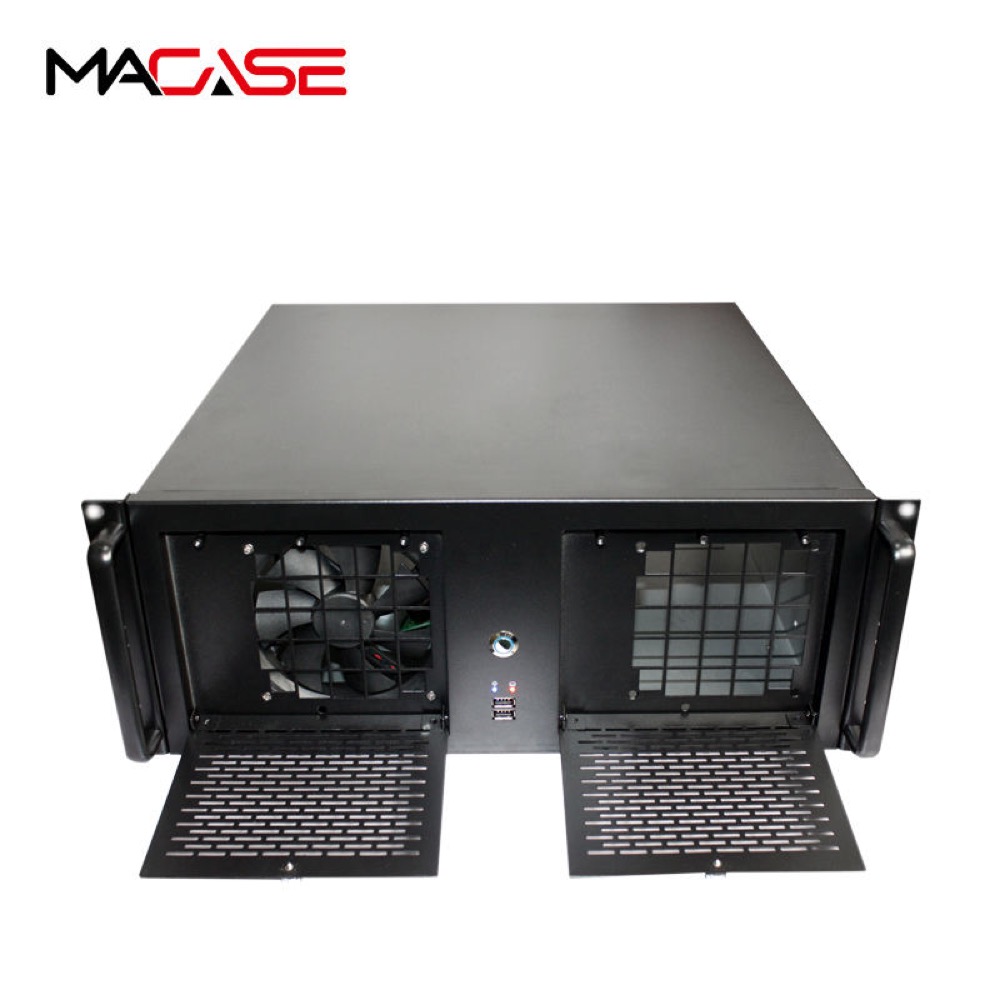

Macase High Quality 4u Rackmount Server case with 2*12025fan 13*3.5inch HDD
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 650(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
4U 19-inch rackmount industrial chassis for server and storage applications. Supplier-listed configuration: steel 1.2 mm construction, ATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX PSU support, two 3.5-inch and six 2.5-inch hard-drive positions, one included 12025 cooling fan with one additional 12025 and two 6025 fans optional, seven full-height PCI straight slots, and no CD-ROM bay. Dimensions: 482(W) × 650(D) × 178(H) mm. Front USB connectivity is listed by the supplier; port count is not specified.
Specifications
Identity
| Model Number | CHS-SRV-K465F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; one 12025 cooling fan; ATX PSU support. One additional 12025 and two 6025 fans are optional; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Steel, 1.2 mm |
| Finish / Color | Finish/color not specified |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 650 mm |
| Weight | Contact Engineering |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 6 bays |
| Drive Types | 3.5" HDD, 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, PCI straight slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) included; one additional 12025 and two 6025 fans optional |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Supplier lists no CD-ROM bay and seven full-height PCI straight slots; USB port count and front power/reset indicators are not specified. |
