In stock
Server Chassis
CHS-SRV-R466-8

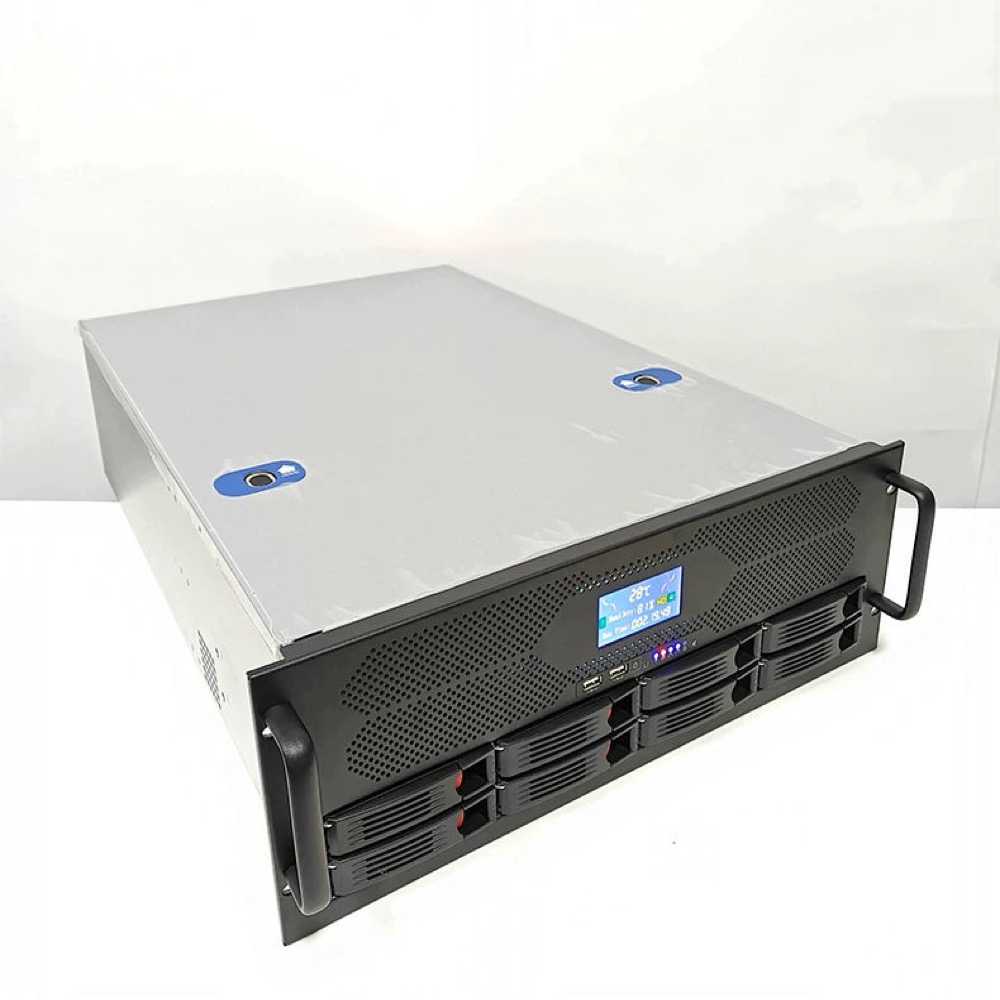

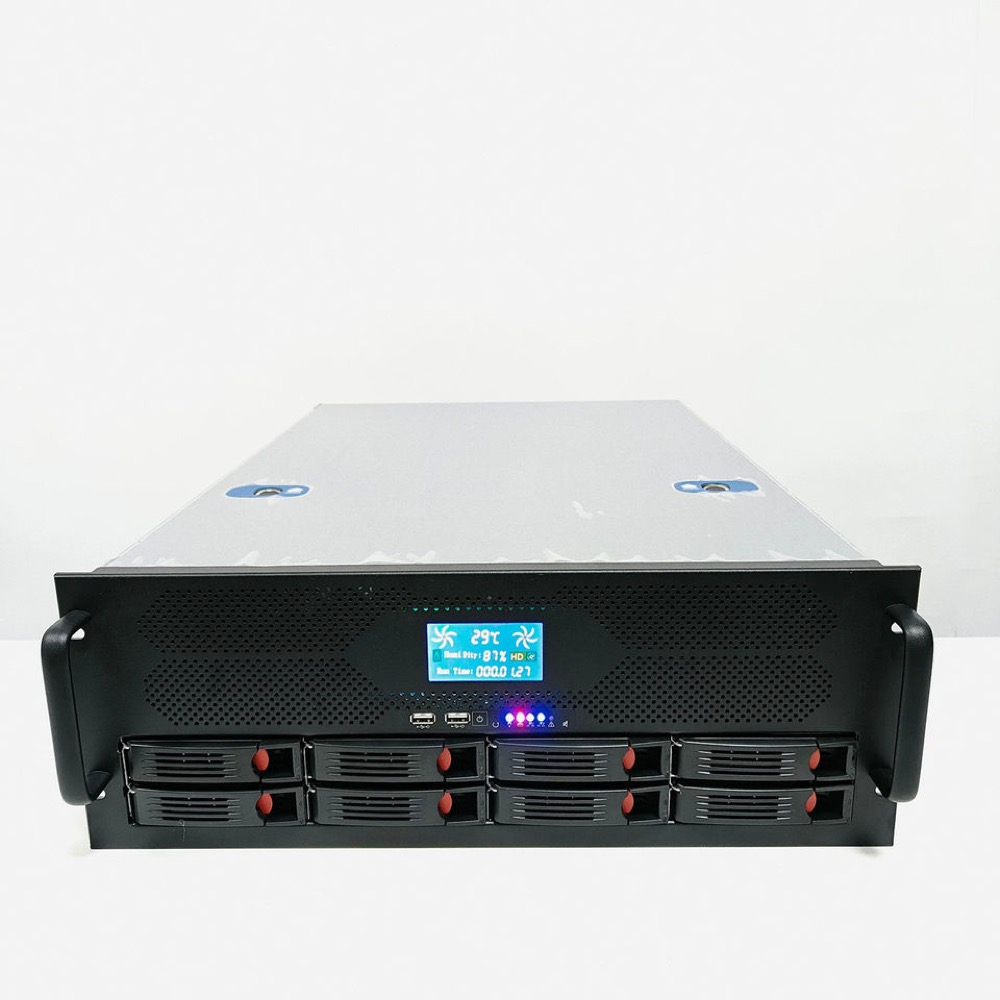

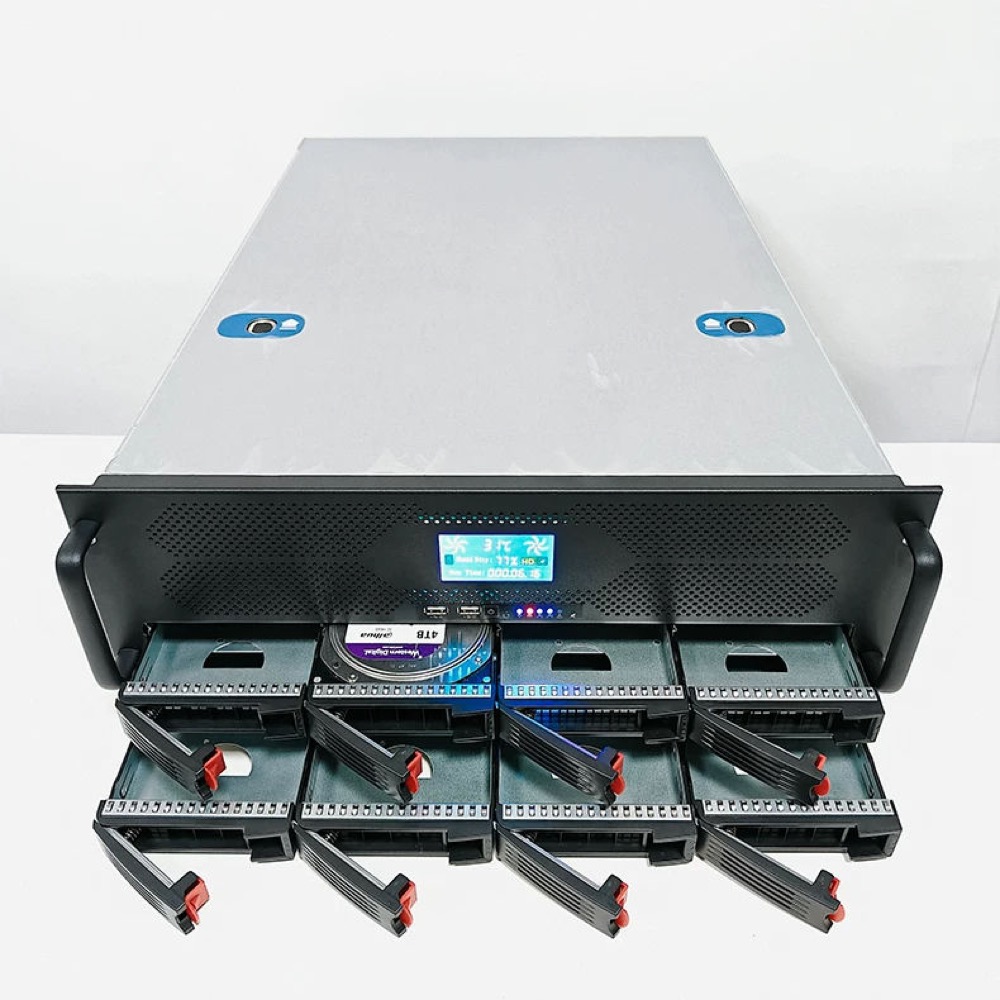

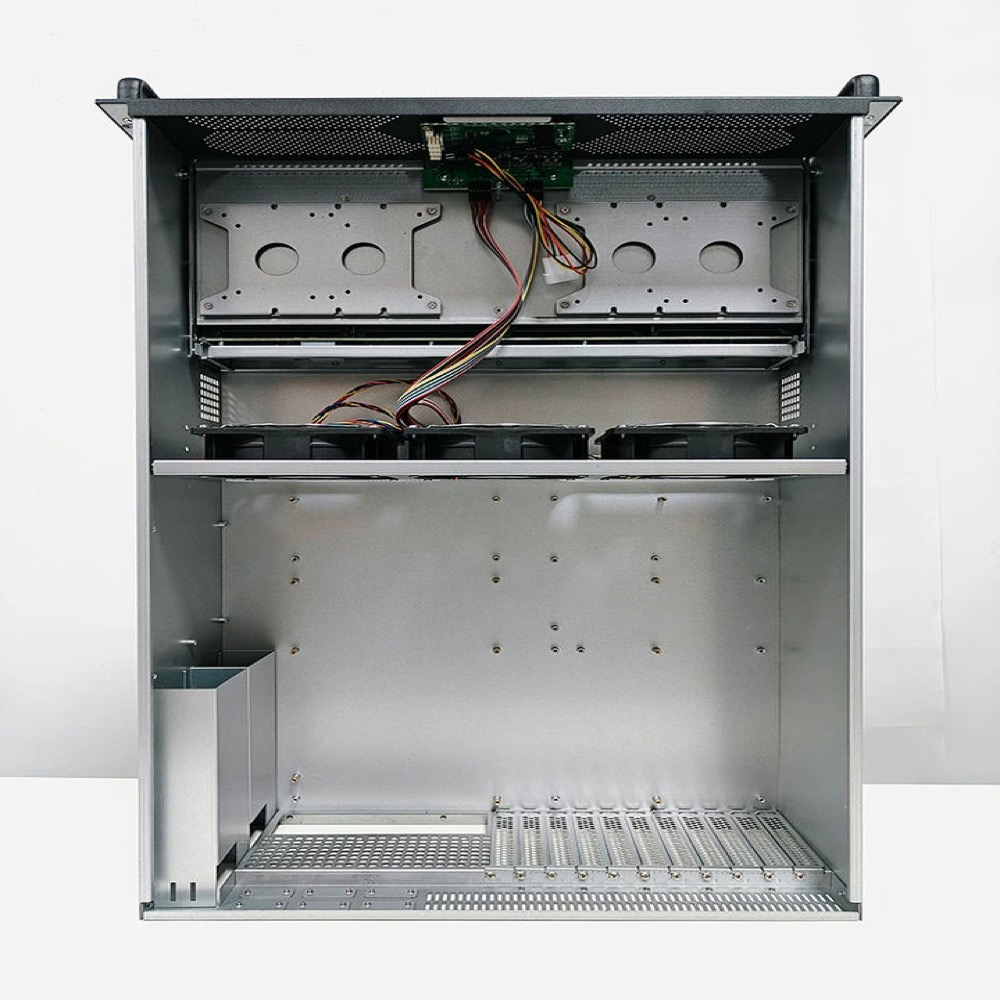

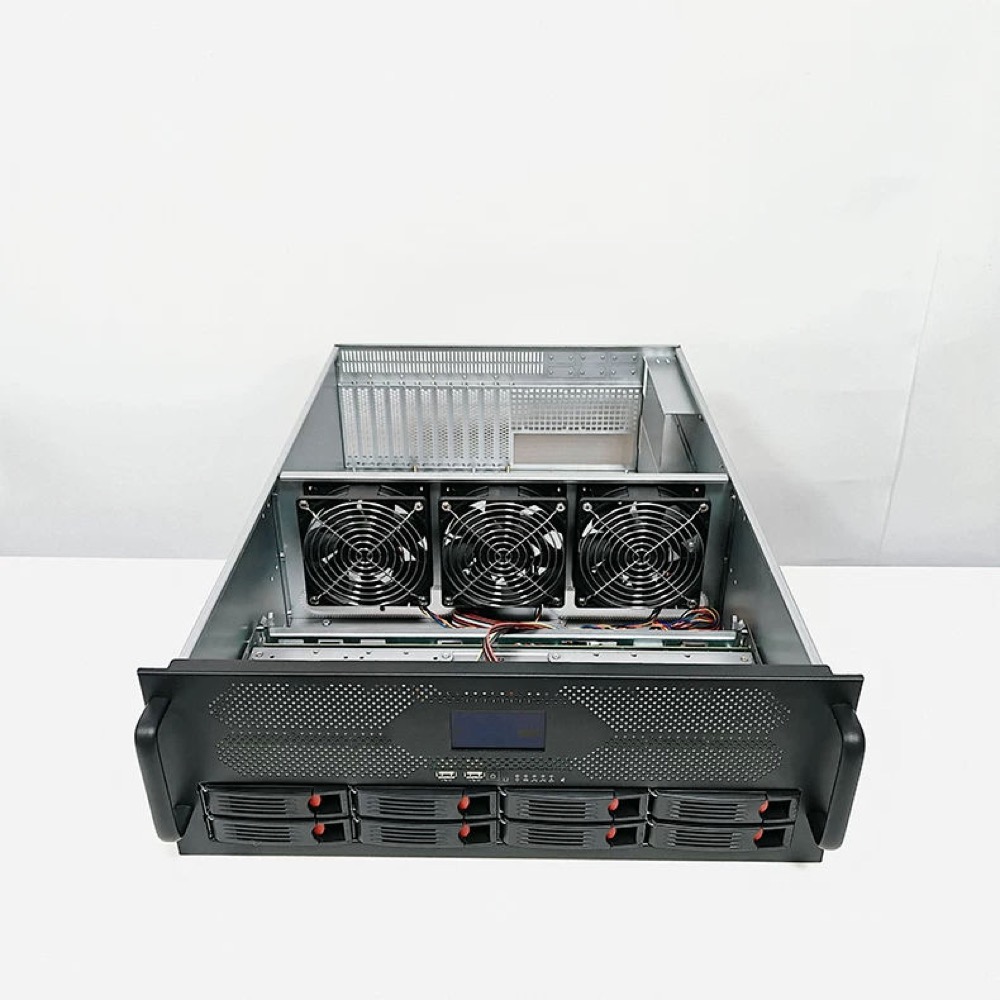

4U Full-Height ATX Steel Server Rack Chassis with 12 Hot-Swappable Disk Bays and USB Front Ports
Product formChassis with PSU
FamilyStorage / NAS Chassis
Dimension482(W) × 660(D) × 178(H) mm
MountingRackmount
MotherboardEATX, ATX, MicroATX, Mini-ITX
Drive Bays12 bays
4U 19-inch full-height rackmount storage and enterprise-firewall chassis for high-capacity server systems. Supplier-listed configuration: steel construction, EATX motherboard support with ATX, MicroATX, and Mini-ITX adapters, included 1300 W redundant PSU, support for up to 340 mm GPUs and 155 mm CPU coolers, eight 3.5-inch HDD trays plus additional 3.5-inch or 2.5-inch drive support, eleven PCIe slots, three 12038 cooling fans, and front panel I/O with one temperature LCD, power, reset, HDD indicator, and two USB 2.0 ports. Dimensions: 482(W) × 660(D) × 178(H) mm. Supplier lists black color, stock availability, and 18.15 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-R466-8 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Rackmount chassis; included 1300 W redundant PSU; three 12038 cooling fans; front temperature LCD; HDD trays. Supplier lists the PSU as included. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 660 mm |
| Weight | 18.15 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | EATX; ATX, MicroATX, and Mini-ITX with adapter support |
Power Supply
| PSU Support | Redundant PSU |
| PSU Included | Yes |
| PSU Wattage | 1300 W |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 10 bays |
| 2.5-inch Drive Bays | 4 bays |
| Drive Types | 8 × 3.5" HDD trays + 2 × 3.5" HDD, 8 × 3.5" HDD trays + 4 × 2.5" HDD |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 8 bays |
PCIe and GPU Support
| PCIe Slots | 11 slots |
| PCIe Slot Types | Full-height, PCIe |
| Maximum GPU Length | 340 mm |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 120 × 120 × 38 mm (12038) |
| Maximum CPU Cooler Height | 155 mm |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 1 × temperature LCD, Power on/off, Reset, HDD indicator, 2 × USB 2.0 |
| Custom I/O Details | Supplier lists one temperature LCD, power on/off, reset, HDD indicator, and two USB 2.0 front ports. Supplier does not specify display size, resolution, touchscreen support, display interface, or additional rear I/O. |
Similar products
Alternatives in this class
CHS-SRV-4K-118
OEM & ODM Custom Rack Atx Hot Swap 4U Computer Pc Chassis Storage Rack System• Height: 178 mm
CHS-SRV-K465F
Macase High Quality 4u Rackmount Server case with 2*12025fan 13*3.5inch HDD• Height: 178 mm
CHS-SRV-K452C

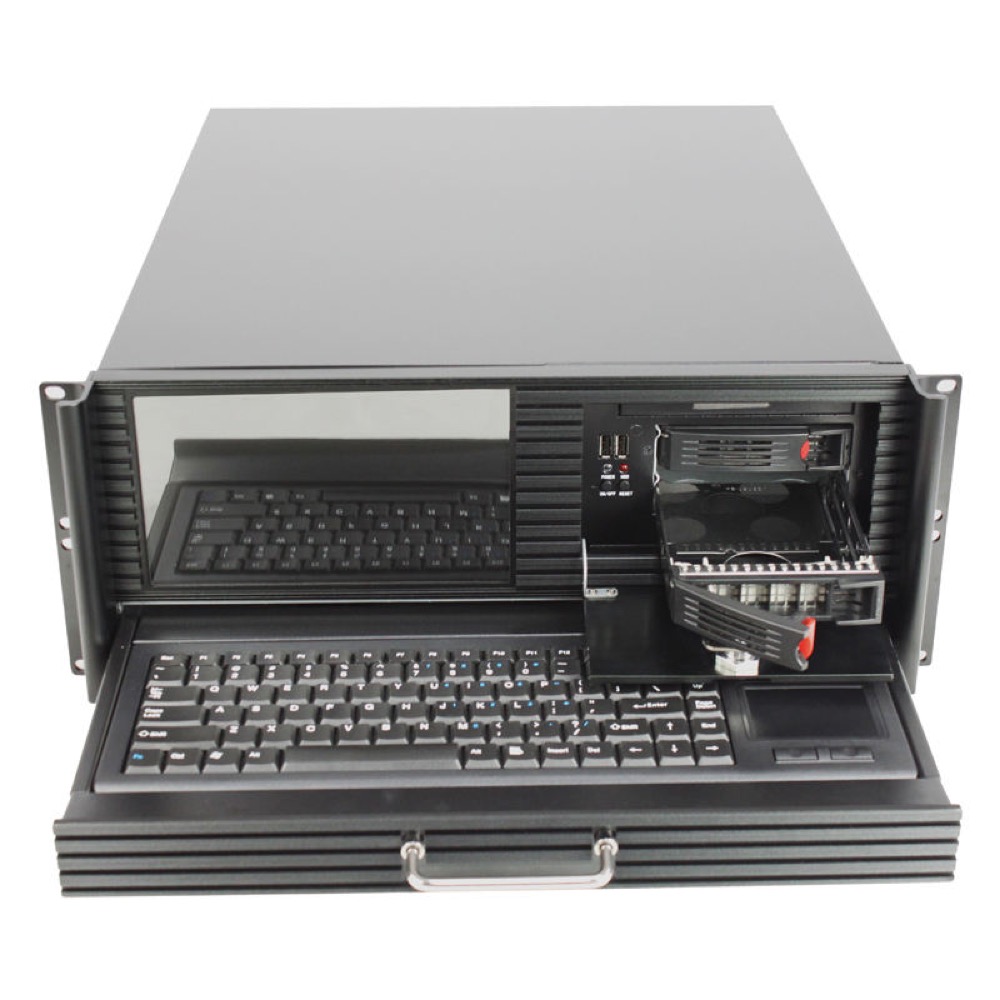

19 Inch Industrial Server Cases 4U Rack Mount Chassis with LCD and Keyboard Computer Accessories• Height: 178 mm
