Server Chassis
CHS-SRV-K452C

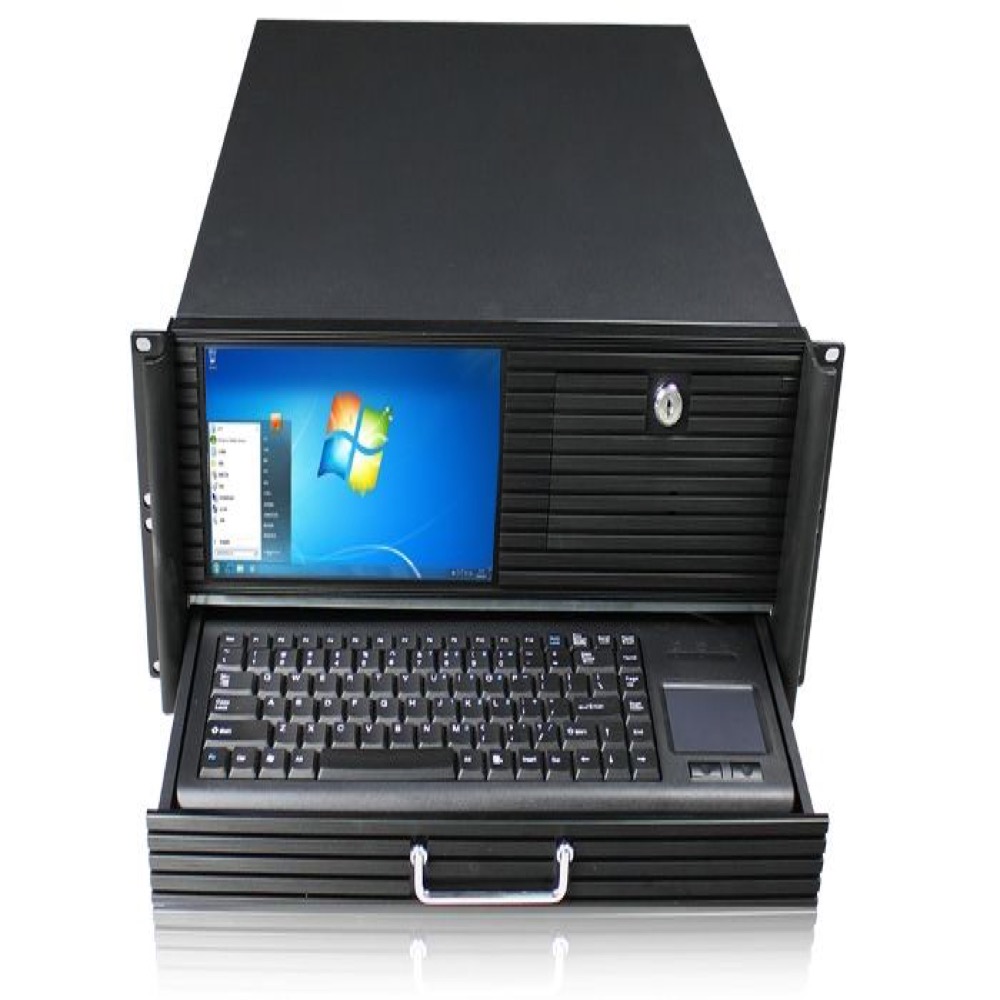

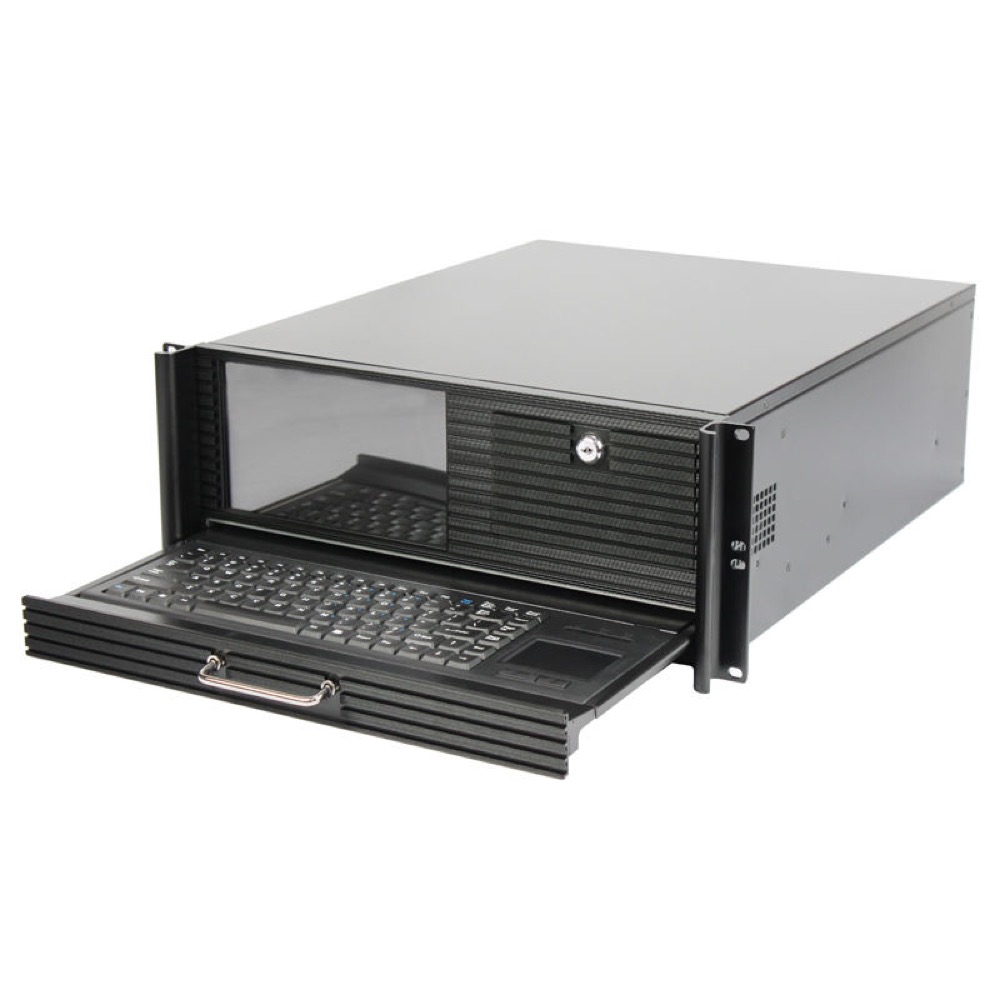

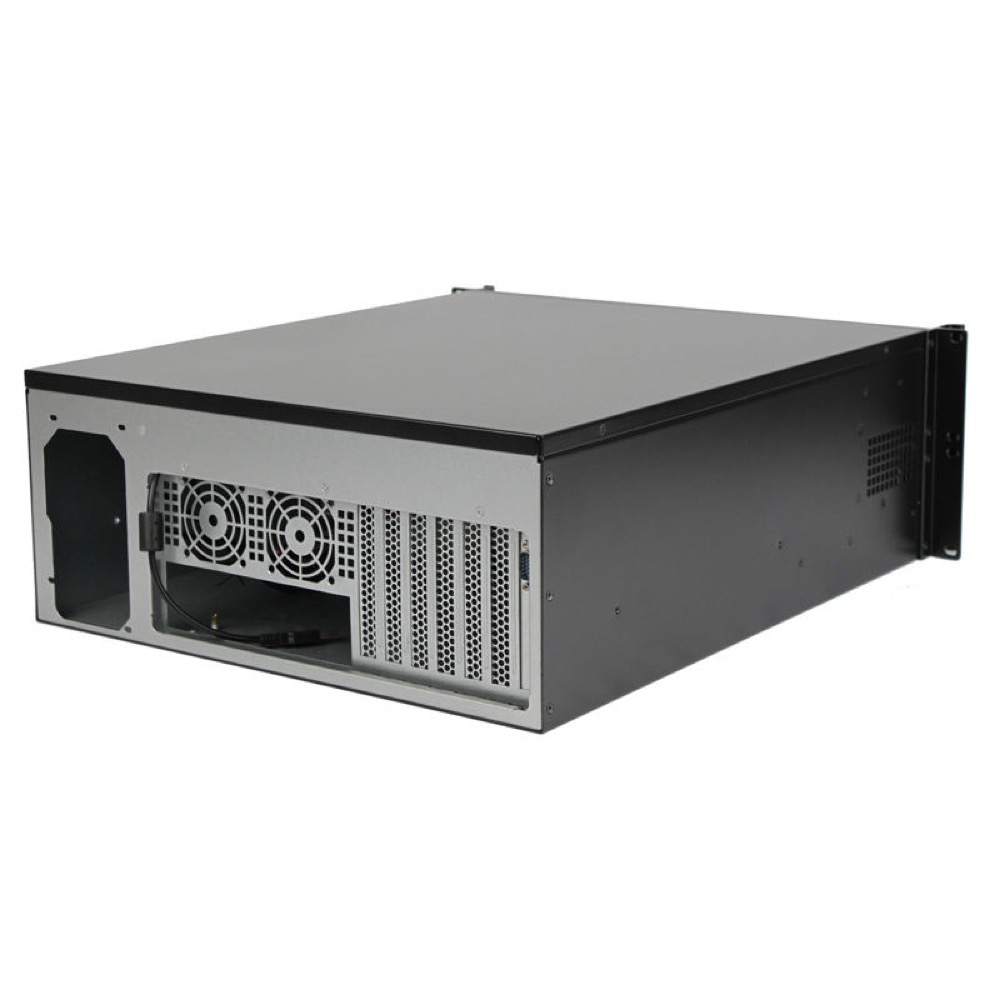

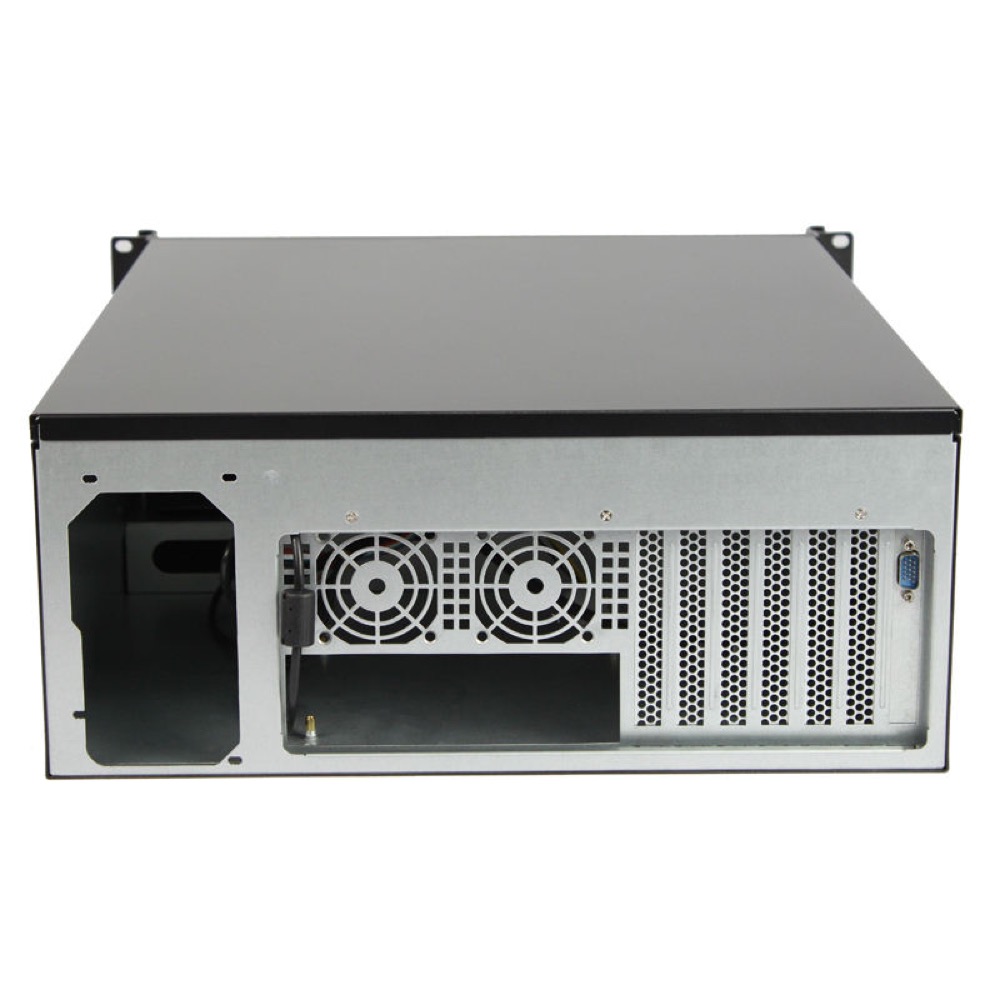

19 Inch Industrial Server Cases 4U Rack Mount Chassis with LCD and Keyboard Computer Accessories
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 520(D) × 178(H) mm
MountingRackmount
MotherboardEATX
Drive Bays6 bays

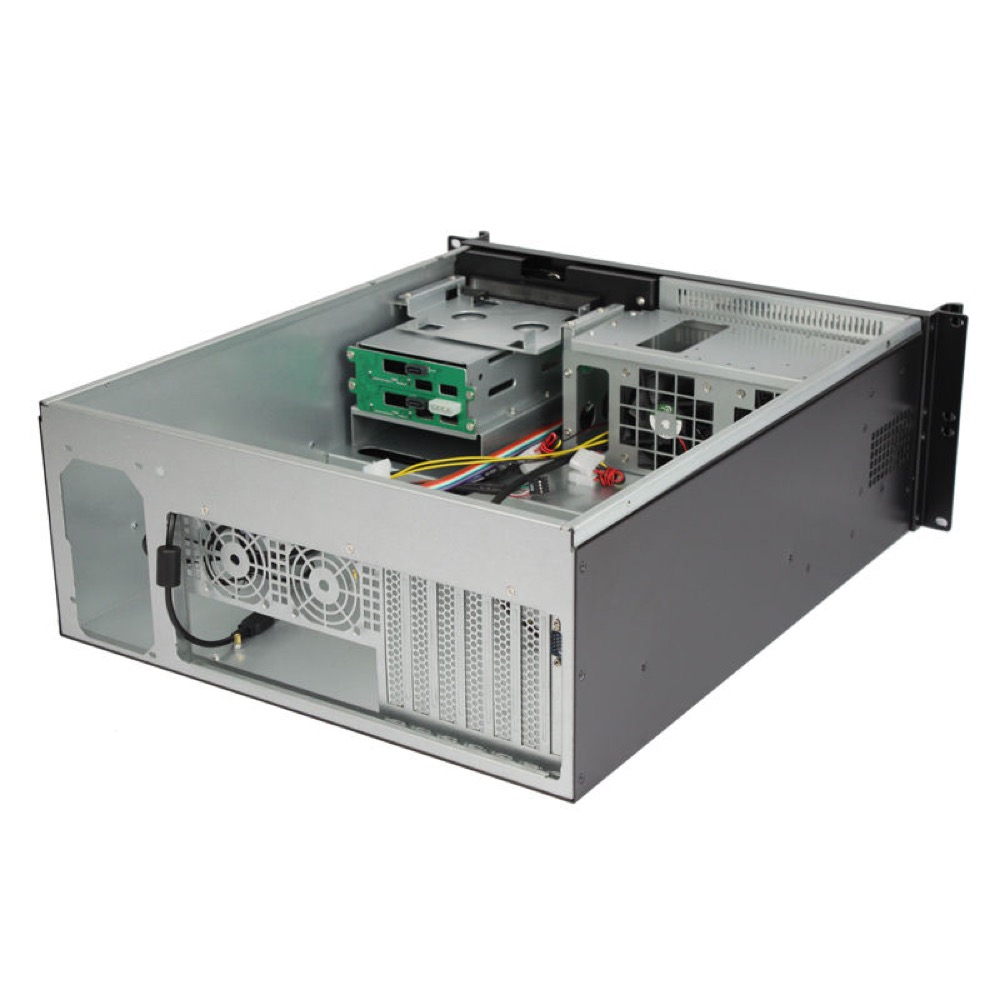

4U 19-inch industrial rackmount chassis with an integrated front LCD and keyboard. Supplier-listed configuration: SGCC steel with flower-free zinc plating and 1.2 mm material thickness, support for a 12 × 13-inch motherboard (305 × 340 mm), ATX PSU support, four 3.5-inch hard-drive positions, two 2.5-inch hard-drive positions, one notebook CD-ROM bay, two 8028 cooling fans, seven full-height straight expansion slots, and an 8.9-inch front LCD with 1025 × 768 resolution and keyboard. Dimensions: 482(W) × 520(D) × 178(H) mm. Supplier lists CE/RoHS certification and 15.963 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K452C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; integrated 8.9-inch LCD; keyboard; two 8028 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 520 mm |
| Weight | 15.963 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm (12 × 13 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 4 × 3.5" HDD, 2 × 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 28 mm (8028) |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 8.9 in |
| LCD Resolution | 1025 × 768 |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 8.9-inch LCD, Keyboard |
| Custom I/O Details | Supplier lists one 8.9-inch 1025 × 768 LCD and one keyboard on the front panel. Supplier does not specify USB, display interface, touchscreen support, or additional rear I/O. A supplier-page customer review mentions a different monitor resolution; verify before final procurement. |
