In stock
Server Chassis
CHS-SRV-K265F

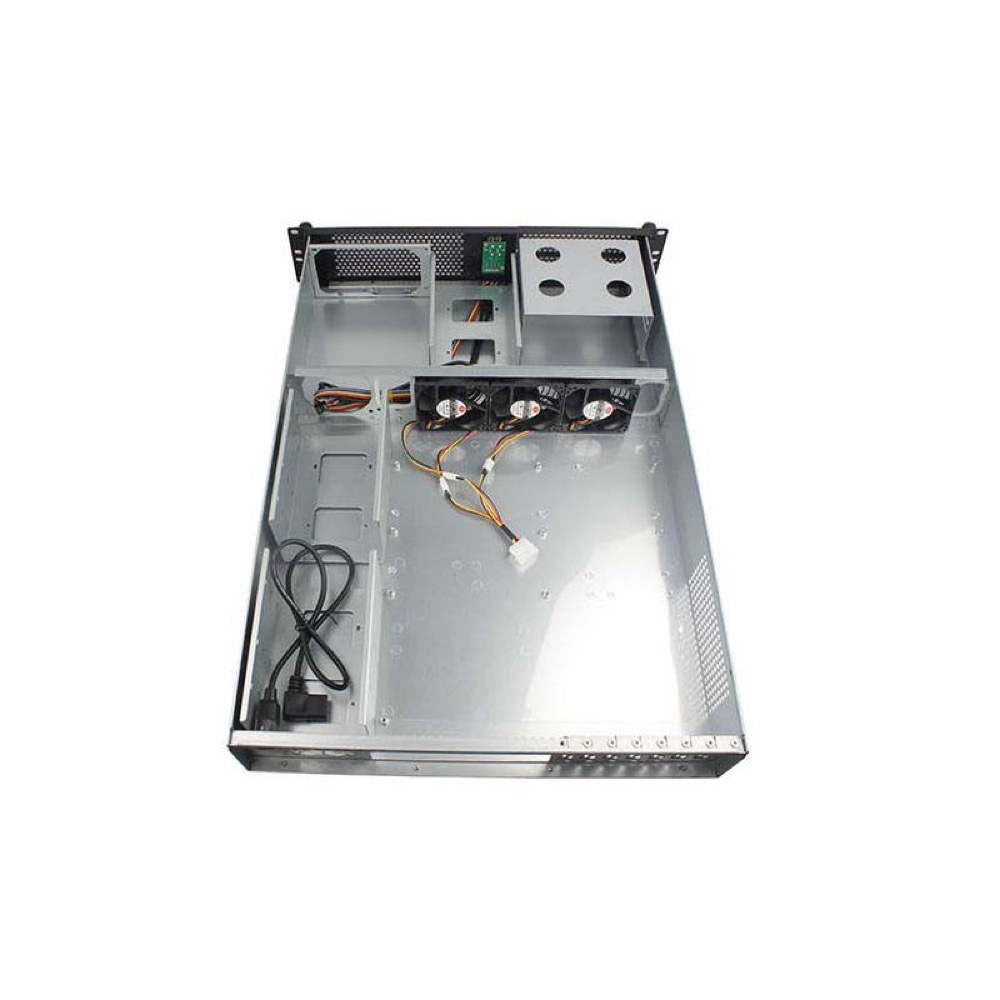

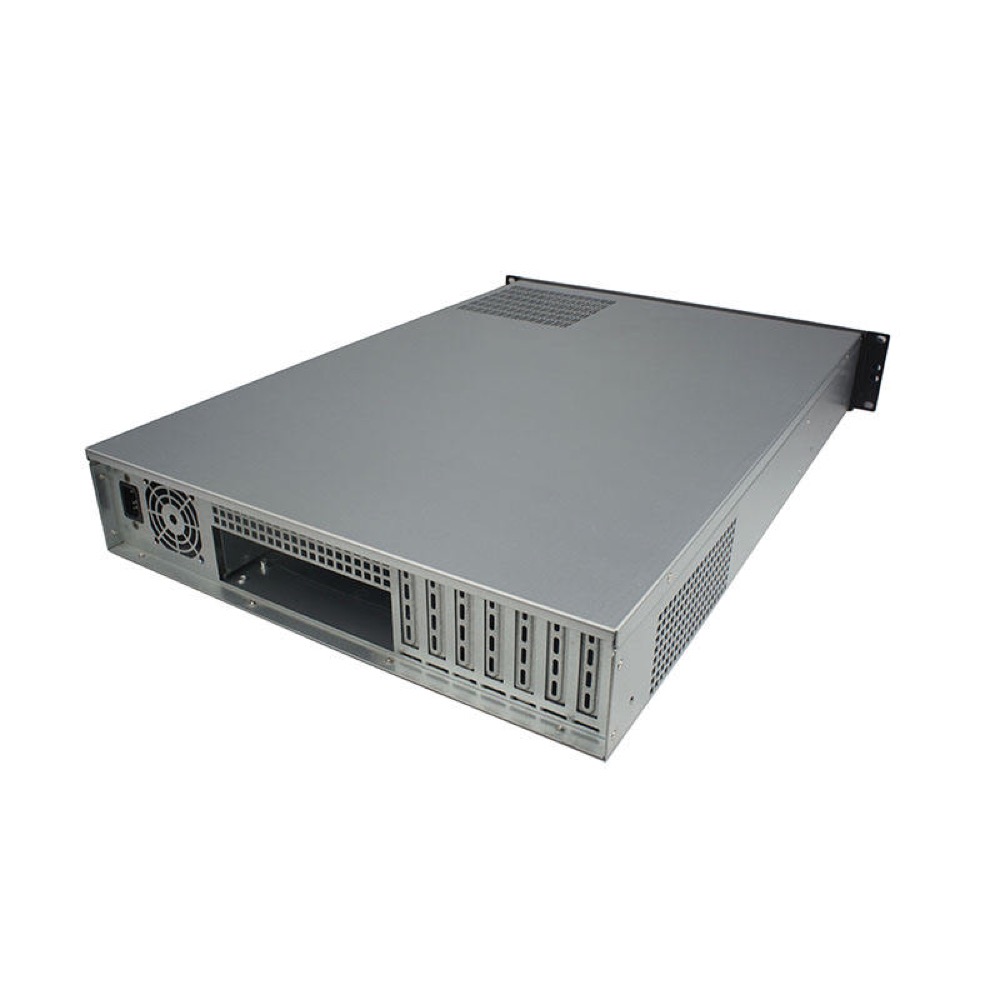

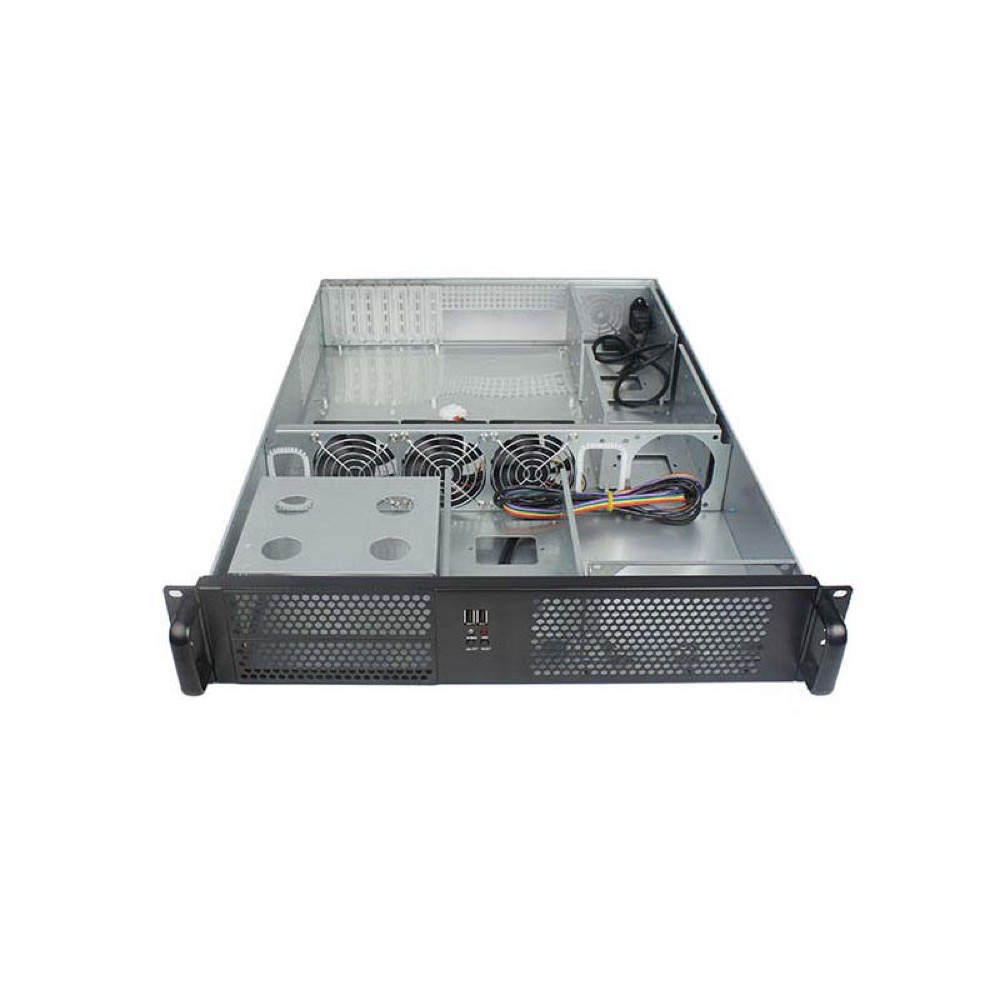

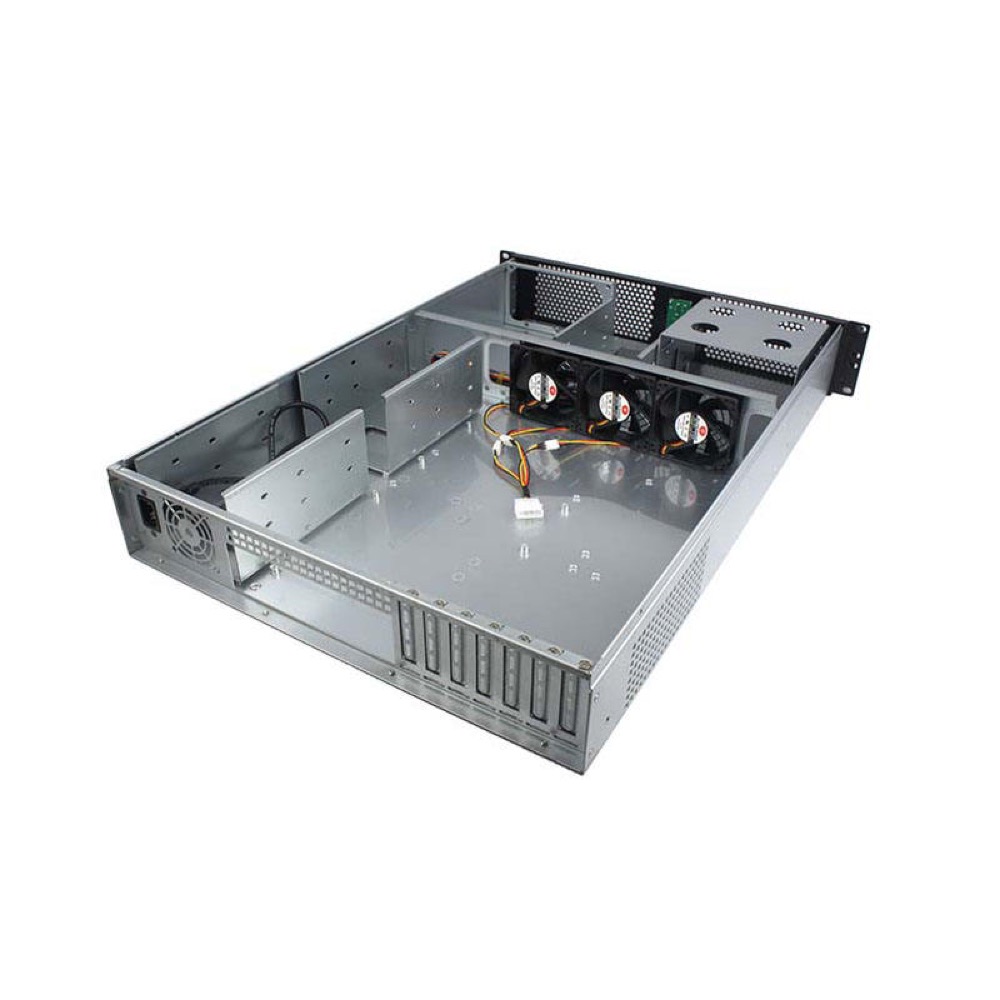

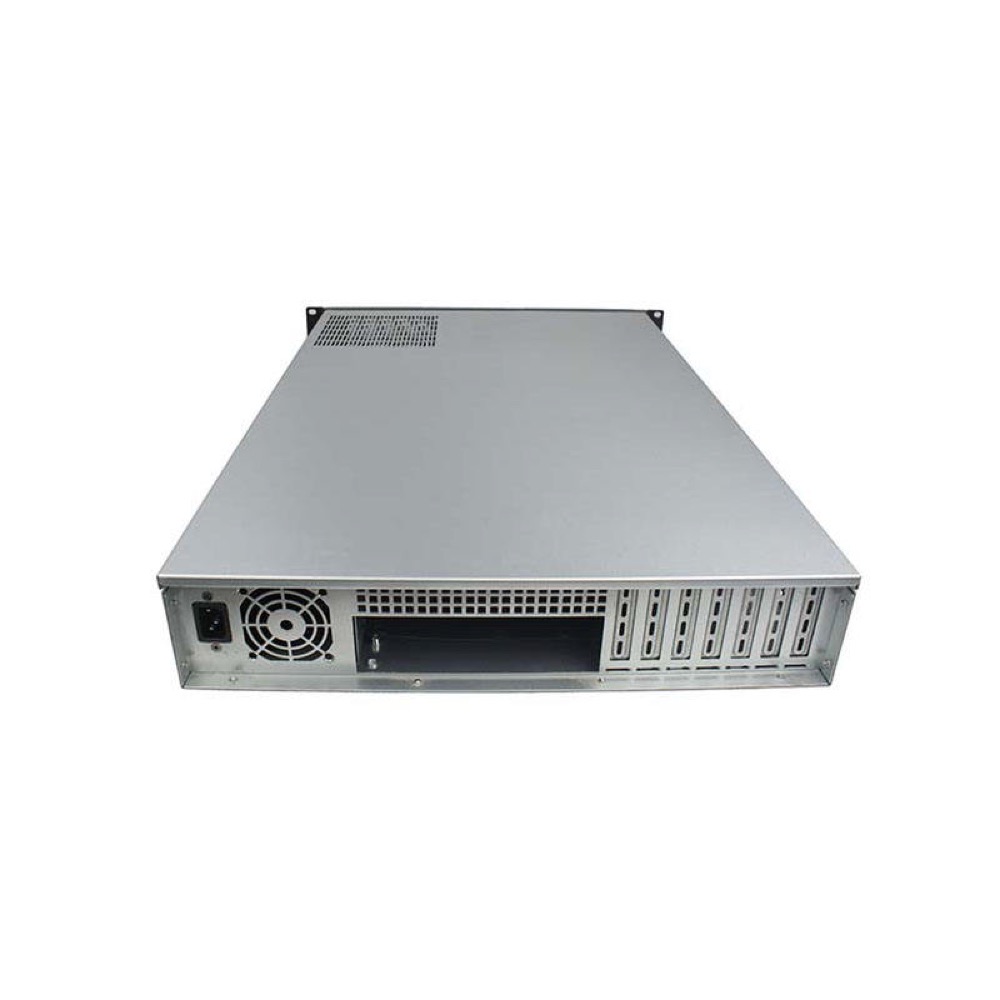

K265F 2U EATX Storage Rackmount Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 650(D) × 89(H) mm
MountingRackmount
MotherboardEATX, ATX
Drive Bays8 bays
Full-depth 2U 19-inch rackmount chassis for storage servers, industrial PCs, and dual-system server configurations. The supplier lists support for EATX/ATX boards up to 305 × 340 mm, eight 3.5-inch hard disks, two 5.25-inch optical drives, an ordinary desktop-style ATX/PS2 power supply, seven half-height straight expansion slots, four 8025 fans, and front USB 2.0, power, reset, and status indicators. The enclosure uses 1.2 mm SGCC steel and measures 482(W) × 650(D) × 89(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K265F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty steel 2U rackmount chassis with four 8025 cooling fans and seven half-height straight expansion slots. ATX/PS2 PSU support is provided; PSU, motherboard, CPU, memory, storage drives, and optical drives are not included. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm; zinc-plated finish |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 650 mm |
| Weight | 11 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm (12 × 13 in) |
Power Supply
| PSU Support | ATX/PS2 desktop-style PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch hard disks |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 4 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power switch, restart switch, power indicator, and hard-disk indicator. Supplier lists CE/RoHS certification and seven half-height straight expansion slots. |
