In stock
Server Chassis
CHS-SRV-K255L

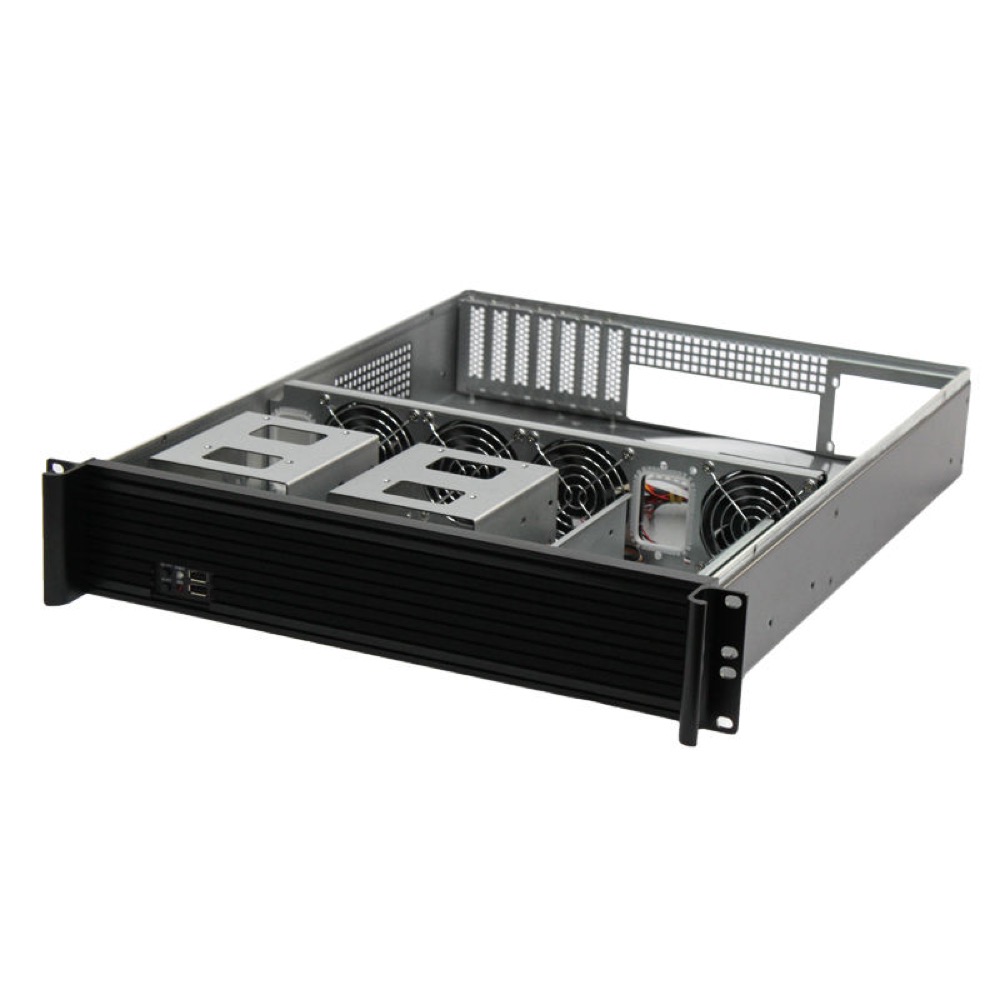

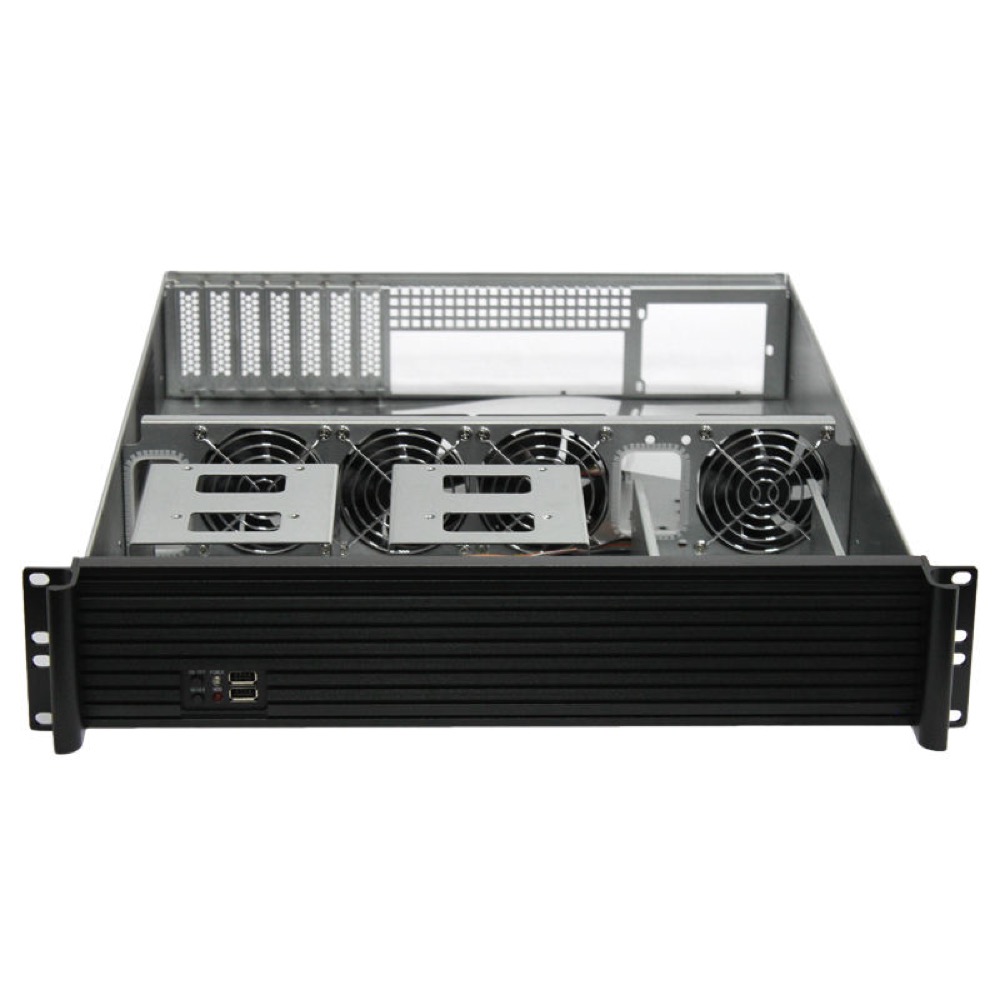

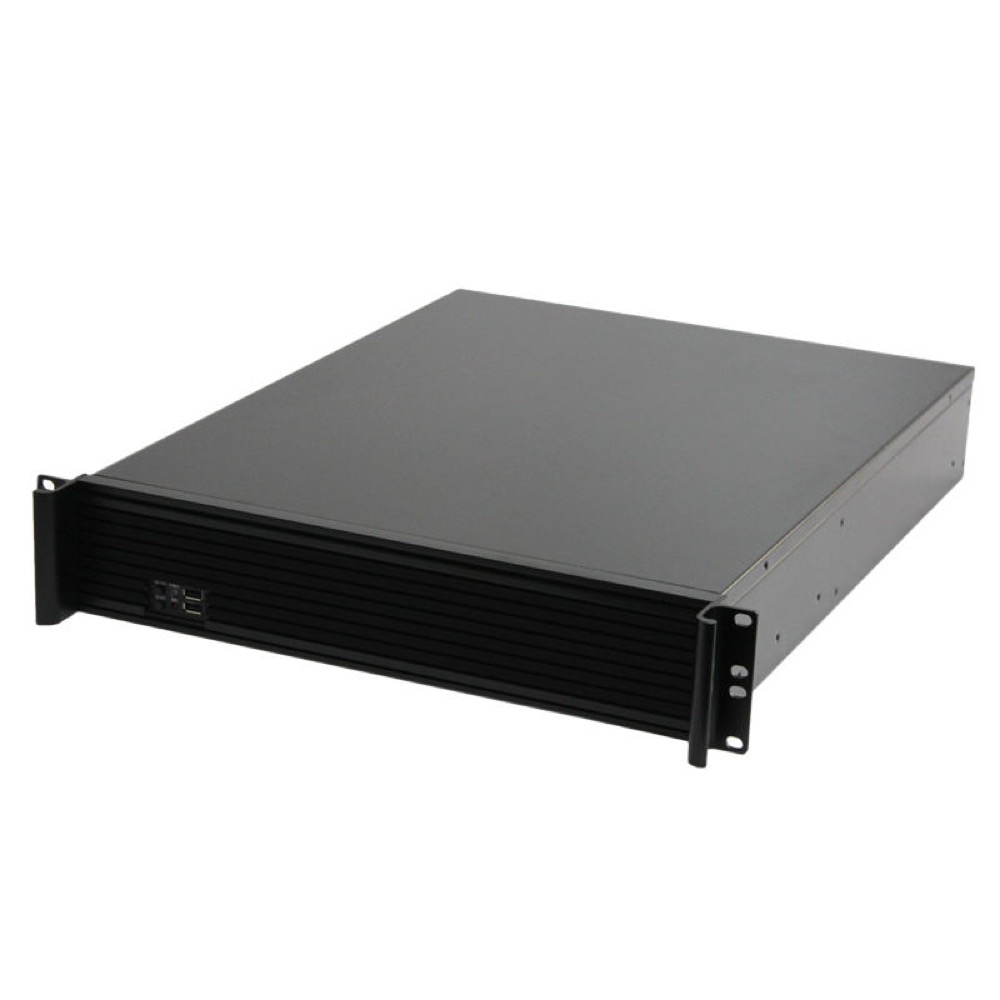

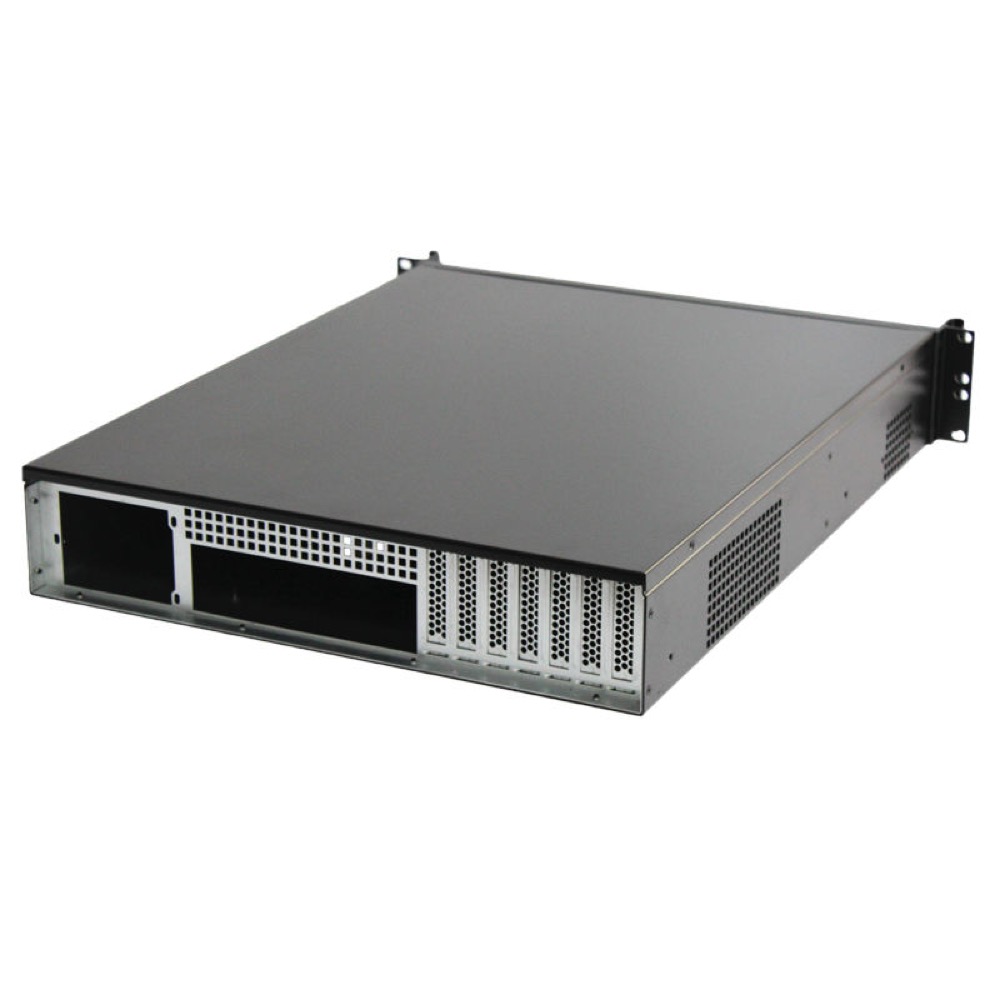

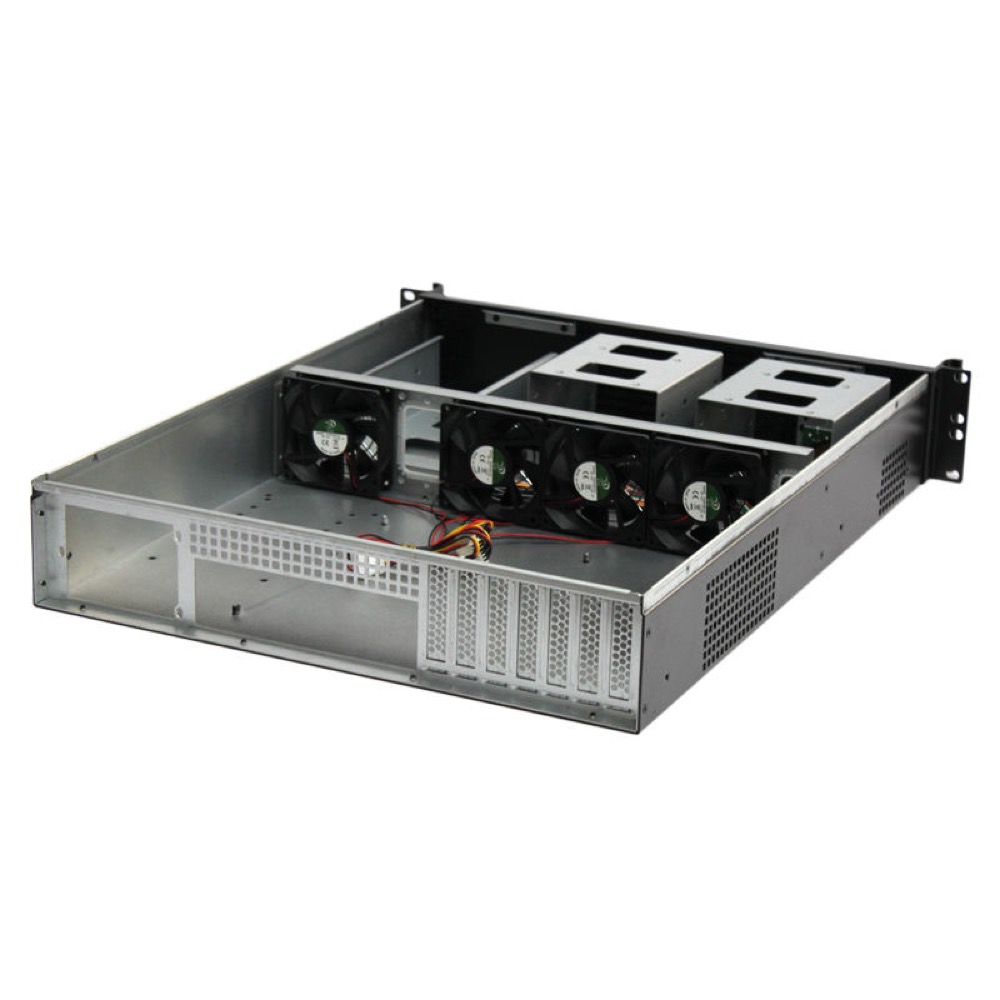

K255L 2U 8-Bay ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
K255L 2U rackmount chassis for compact server and industrial PC applications. The supplier lists a 482 × 550 × 89 mm enclosure supporting an ATX motherboard, a 2U PSU, eight 3.5-inch hard drives, seven half-height PCIe slots, and four included 8025 fans. The chassis has two USB 2.0 ports plus power and reset controls. It is listed as an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-K255L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with four included 8025 fans, eight 3.5-inch drive positions, seven half-height PCIe slots, and front USB/power/reset controls. 2U PSU compatibility is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | Aluminum front panel with SGCC steel body |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 10.2 kg gross / 8.5 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX (supplier does not specify an exact maximum in mm) |
Power Supply
| PSU Support | 2U PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch HDD positions |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height PCIe slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 4 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power on/off, Reset |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power on/off, and reset controls. Supplier describes the rear panel as seven half-height PCIe slots and the cooling as four included 8025 fans. |
