Server Chassis
CHS-SRV-R255-8-10BAY

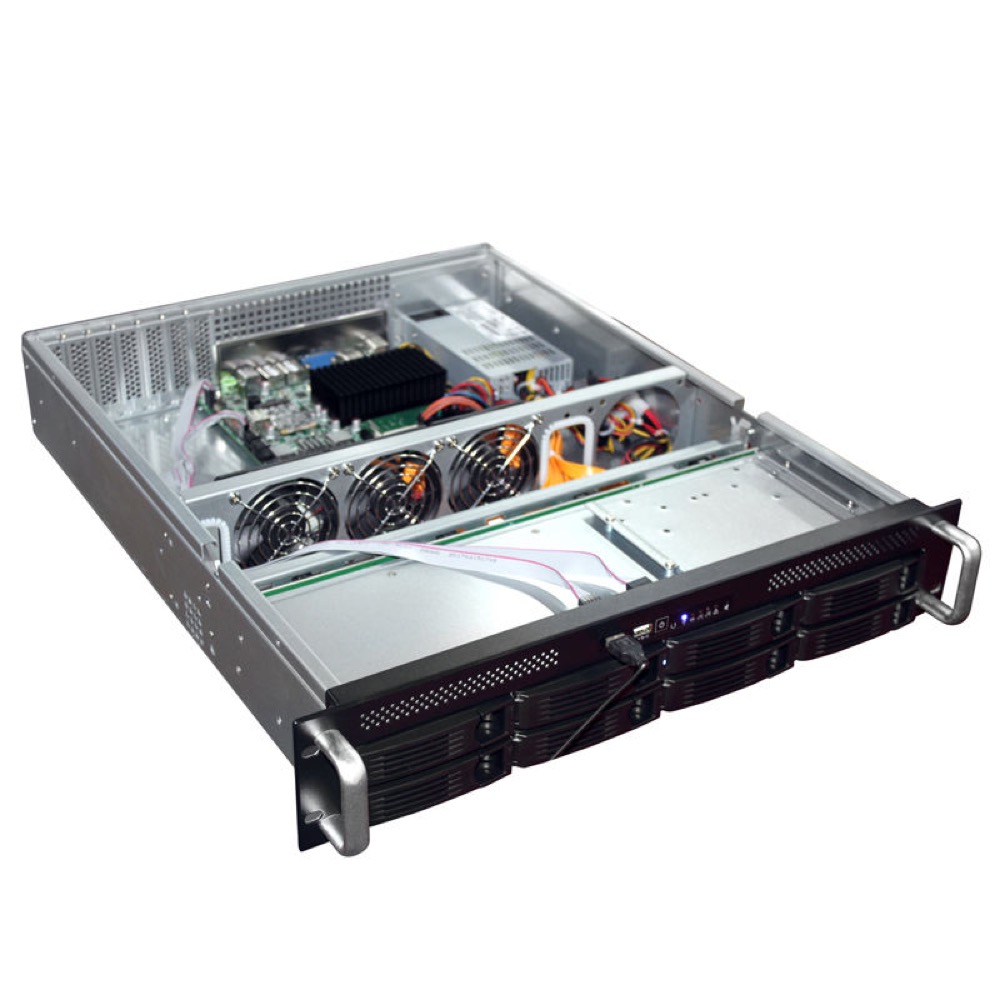

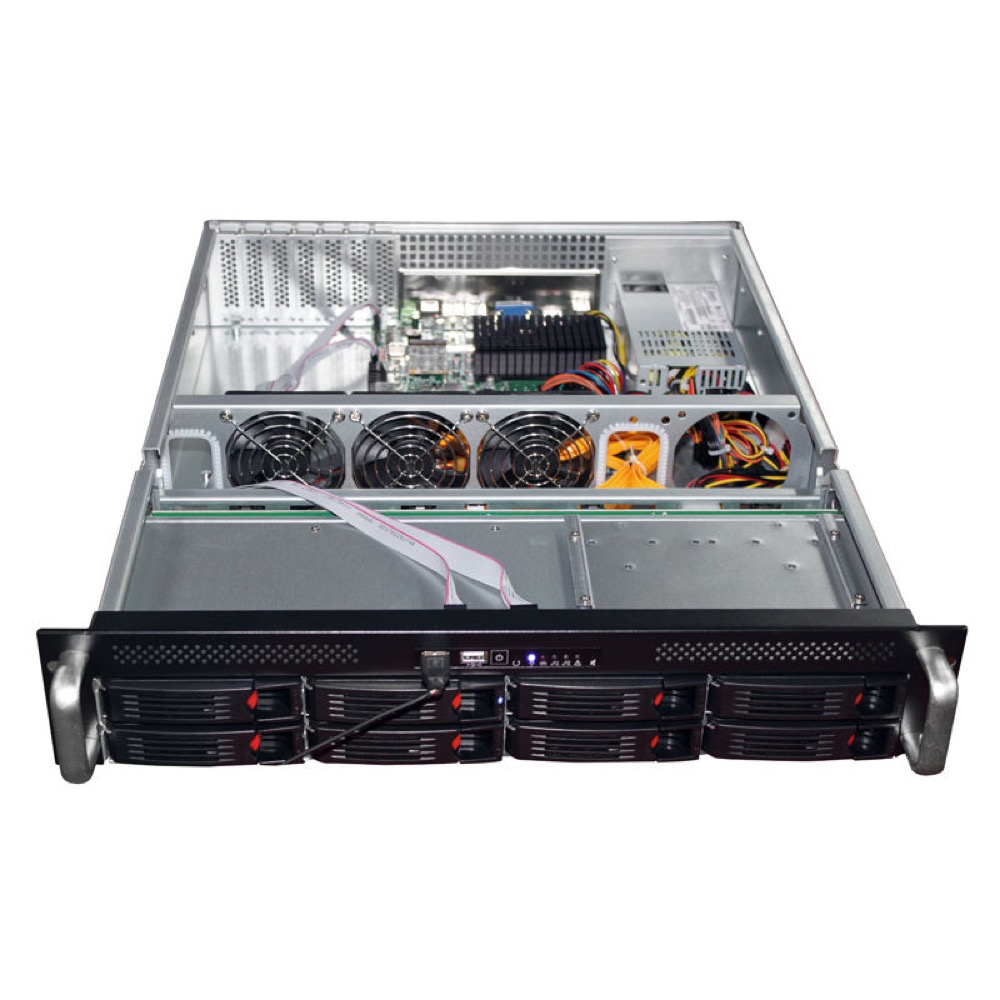

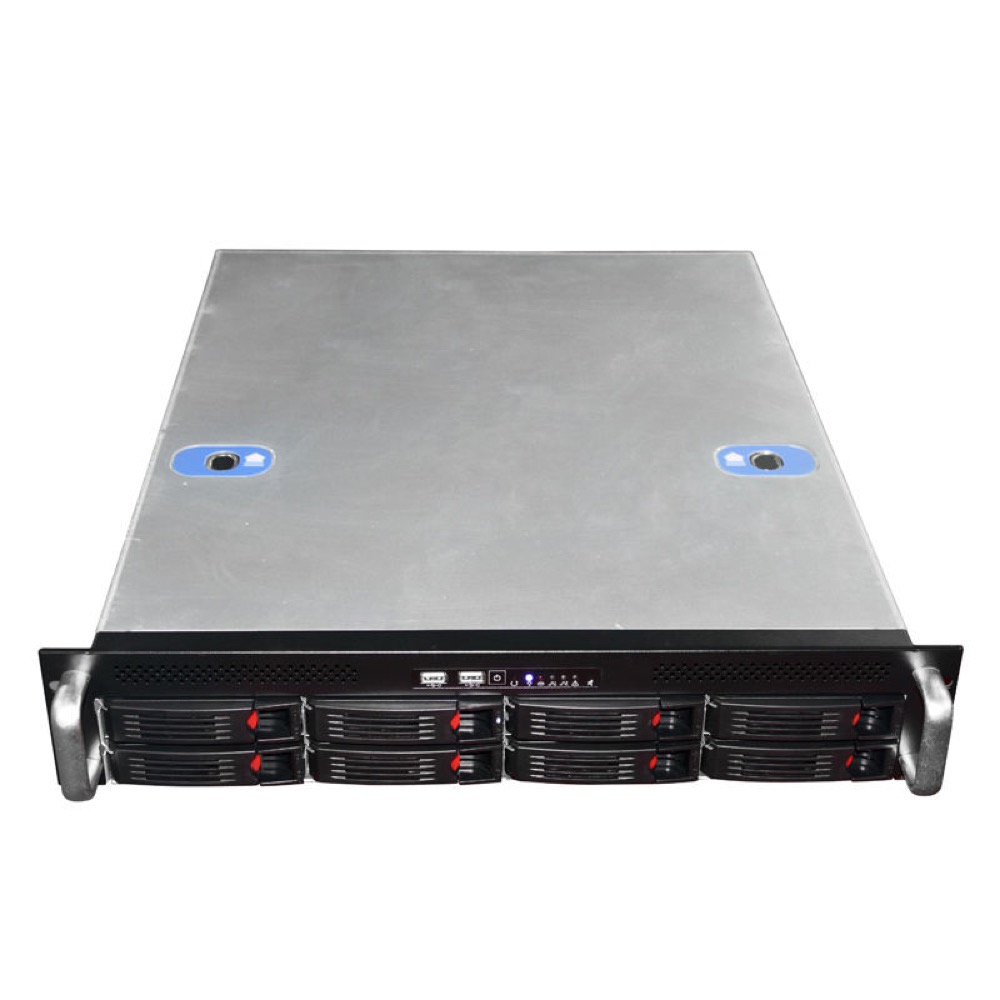

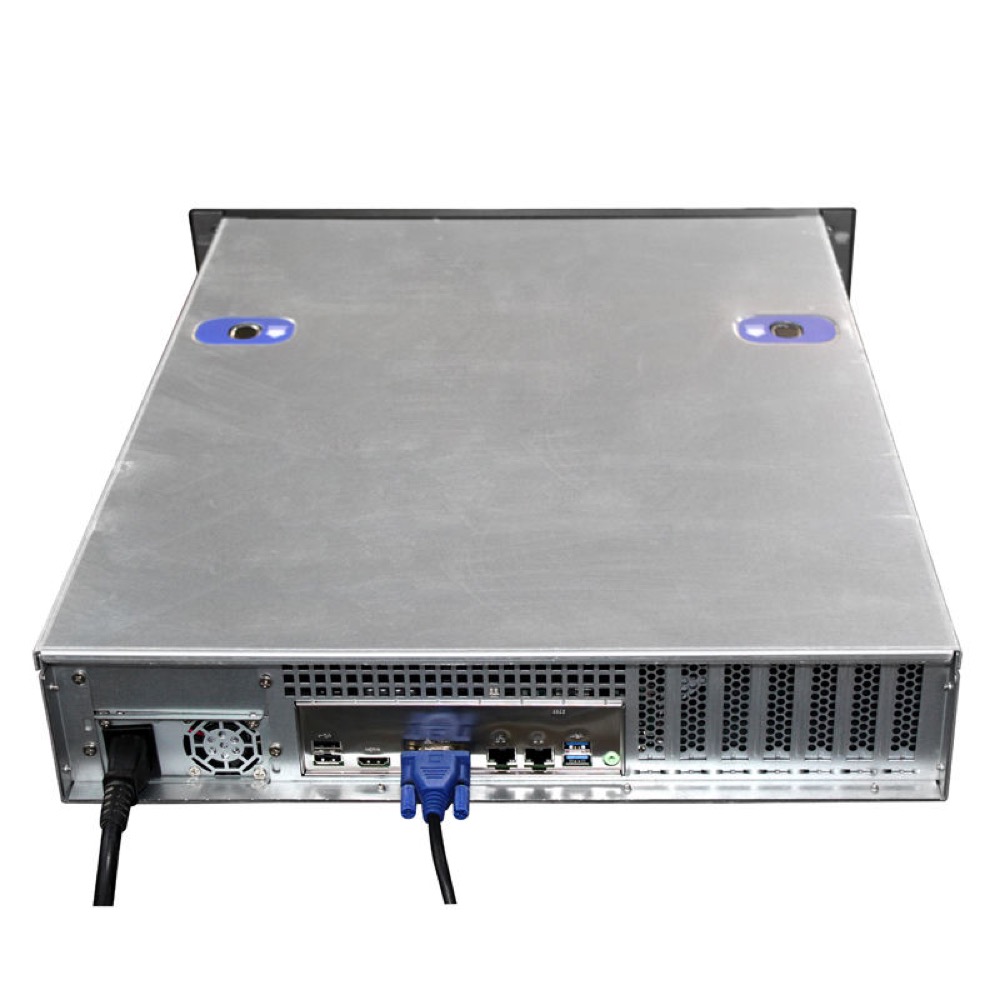

R255-8 2U Hot-Swap Storage Chassis with 10-Bay Option
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays10 bays
2U 19-inch industrial storage rackmount chassis with hot-swap drive support, a choice of nine 3.5-inch bays or eight 3.5-inch plus two 2.5-inch bays, support for 1U or 2U server power supplies, seven half-height expansion slots, four included 8025 fans, and front USB, power, reset, status, and network indicators. The enclosure measures 482 × 550 × 89 mm and uses 1.2 mm galvanized steel.
Specifications
Identity
| Model Number | CHS-SRV-R255-8-10BAY |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with four included 8025 fans and hot-swap drive bays. 1U/2U server PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Storage Server, NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | 1.2 mm advanced flowerless galvanized steel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 12.93 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | 1U dedicated server PSU, 2U dedicated server PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 9 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 9 × 3.5-inch hot-swap HDD alternative, 8 × 3.5-inch + 2 × 2.5-inch hot-swap alternative configuration |
| Hot-swap Bay Count | 9 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height and straight slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 4 included |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator, 2 × network connection indicators |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, blue power and red hard-drive indicators, and two yellow network-connection indicators. |
