Server Chassis
CHS-SRV-R255-12-ALT
R255-12 2U 12-Bay Hot-Swap Storage Chassis with 1U/2U PSU
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays12 bays

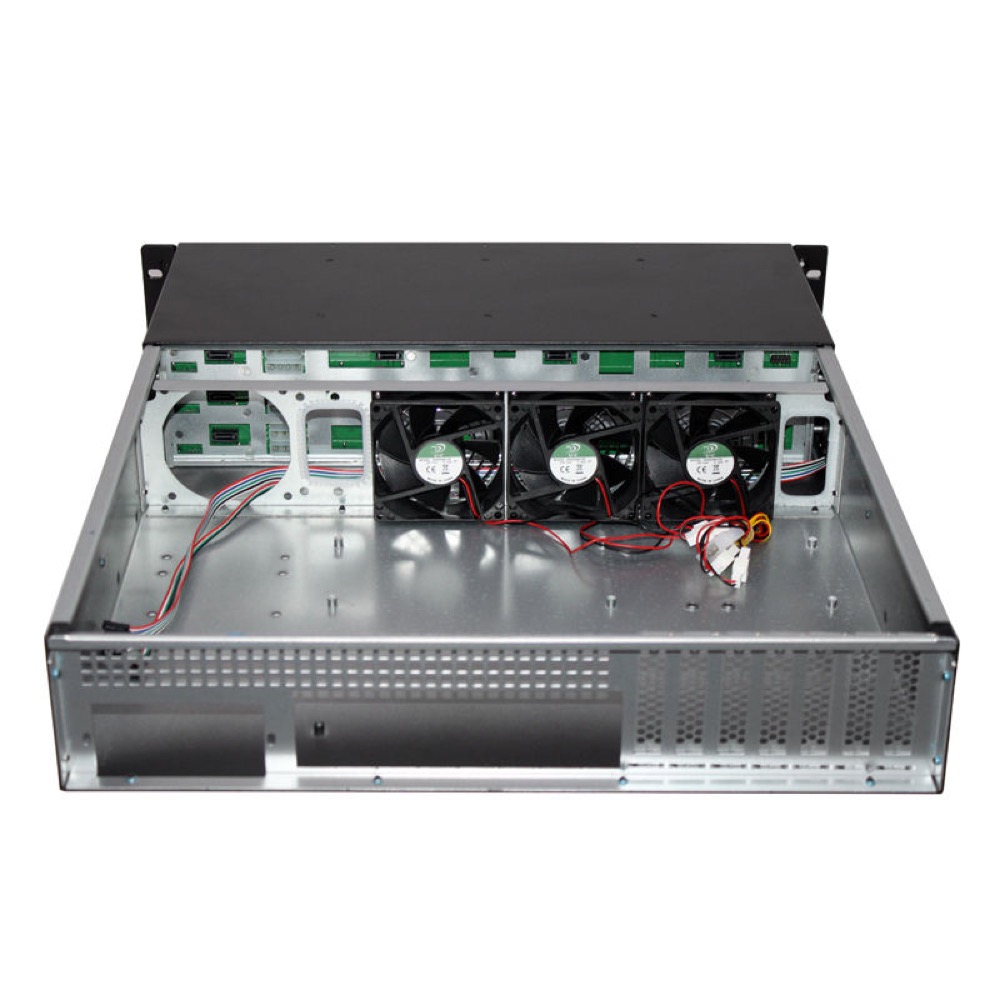

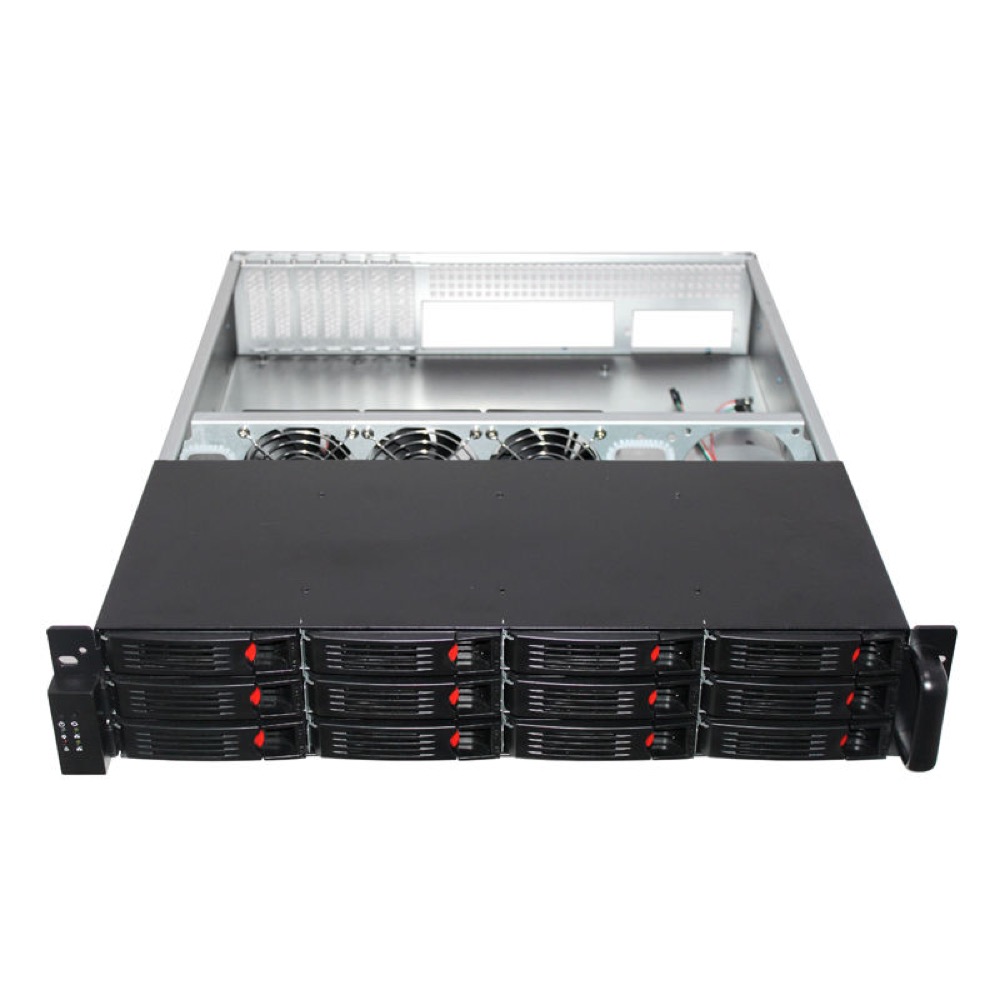

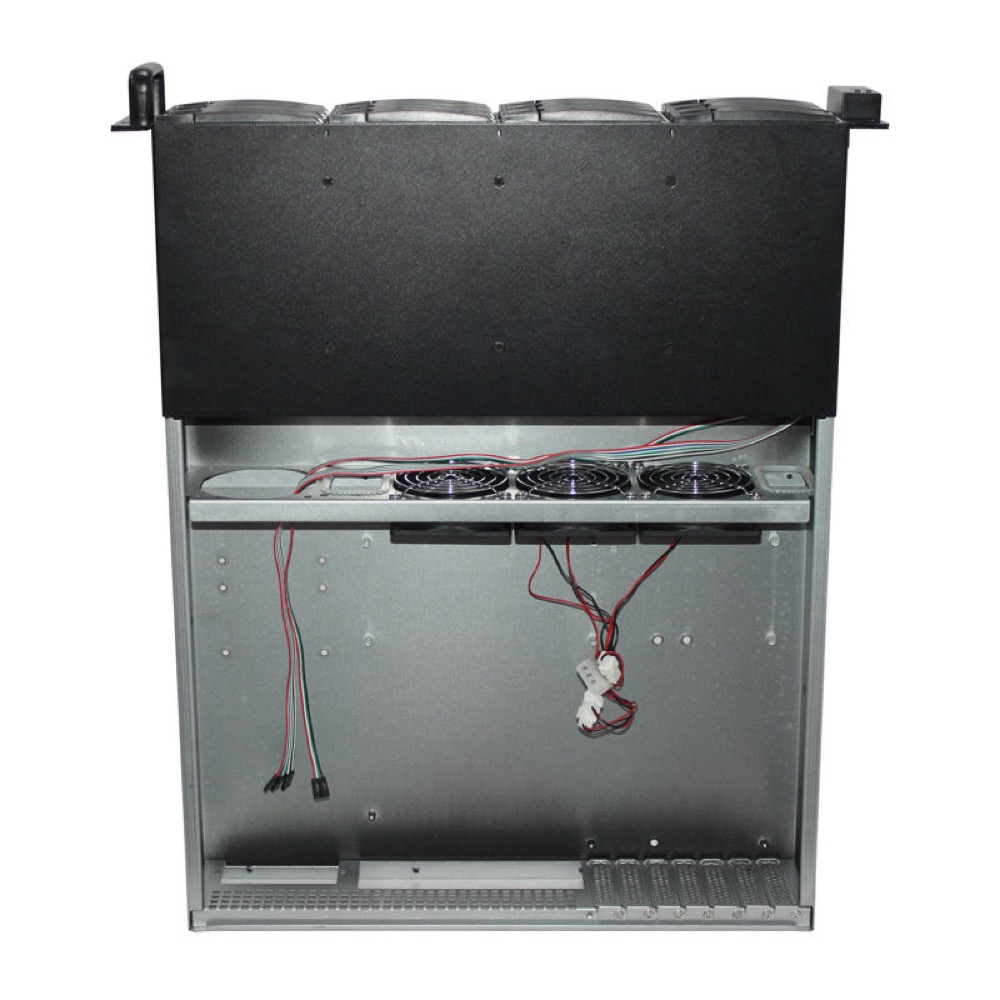

R255-12 2U 19-inch industrial storage rackmount chassis with twelve hot-plug 3.5-inch drive bays, support for 1U or 2U server power supplies, seven half-height PCIe slots, three included 8038 cooling fans, and front power, reset, status, and network indicators. The enclosure measures 482 × 550 × 89 mm, supports ATX motherboards up to 305 × 245 mm, and uses 1.2 mm SGCC steel.
Specifications
Identity
| Model Number | CHS-SRV-R255-12-ALT |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with twelve hot-swap 3.5-inch drive bays and three included cooling fans. 1U/2U server PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Storage Server, NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | 1.2 mm SGCC steel with zinc plating |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 13.0 kg gross / 10.0 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | 1U server PSU, 2U server PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 12 bays |
| 2.5-inch Drive Bays | 0 bays |

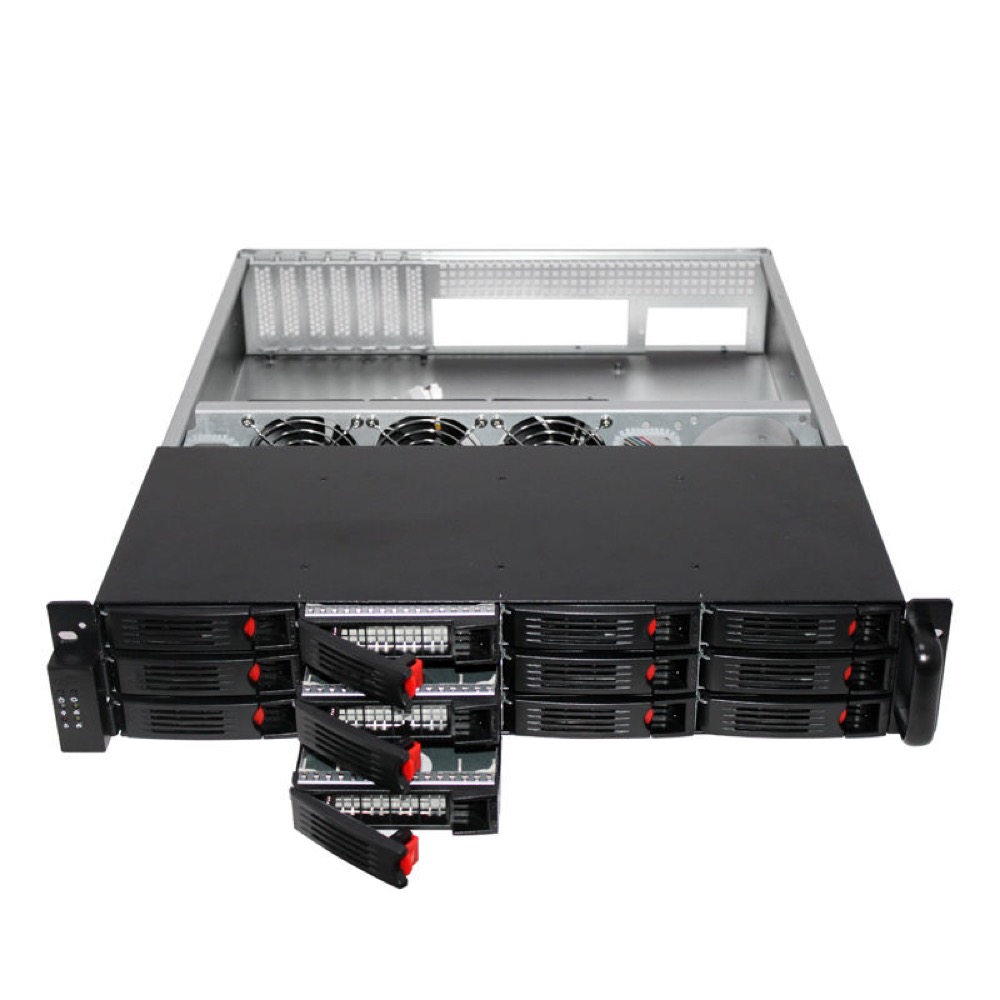

| Drive Types | 12 × hot-plug 3.5-inch HDD bays |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 12 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height and straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 3 fans |

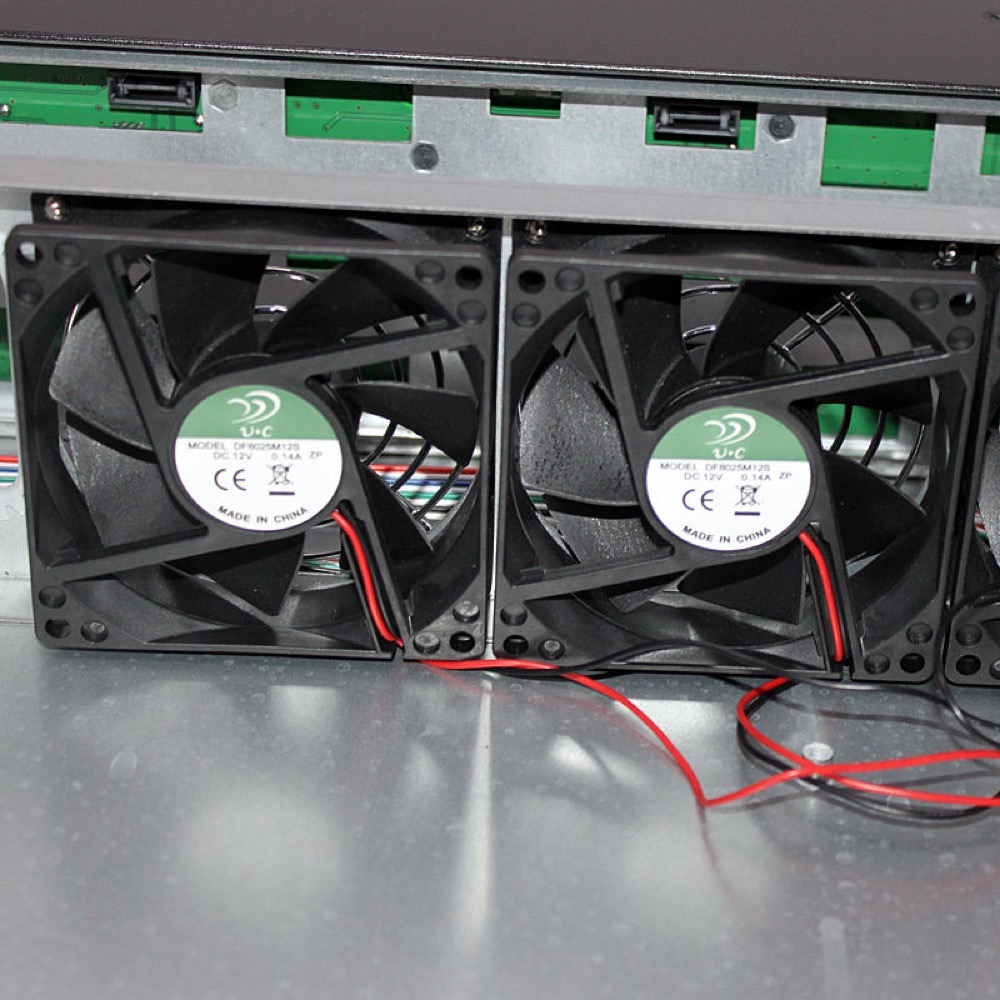

| Fan Size | 80 × 80 × 38 mm (8038) × 3 |
I/O and Connectivity
| Front I/O | Power switch, Restart switch, Power indicator, Hard-drive indicator, 2 × network connection indicators |
| Custom I/O Details | Front panel includes an HDD tray interface, power and restart switches, power and hard-drive indicators, and two network connection indicators. |
