In stock
Server Chassis
CHS-SRV-K255F-1-5BAY
K255F-1 2U Rackmount ATX Chassis with 5-Bay Storage
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays5 bays

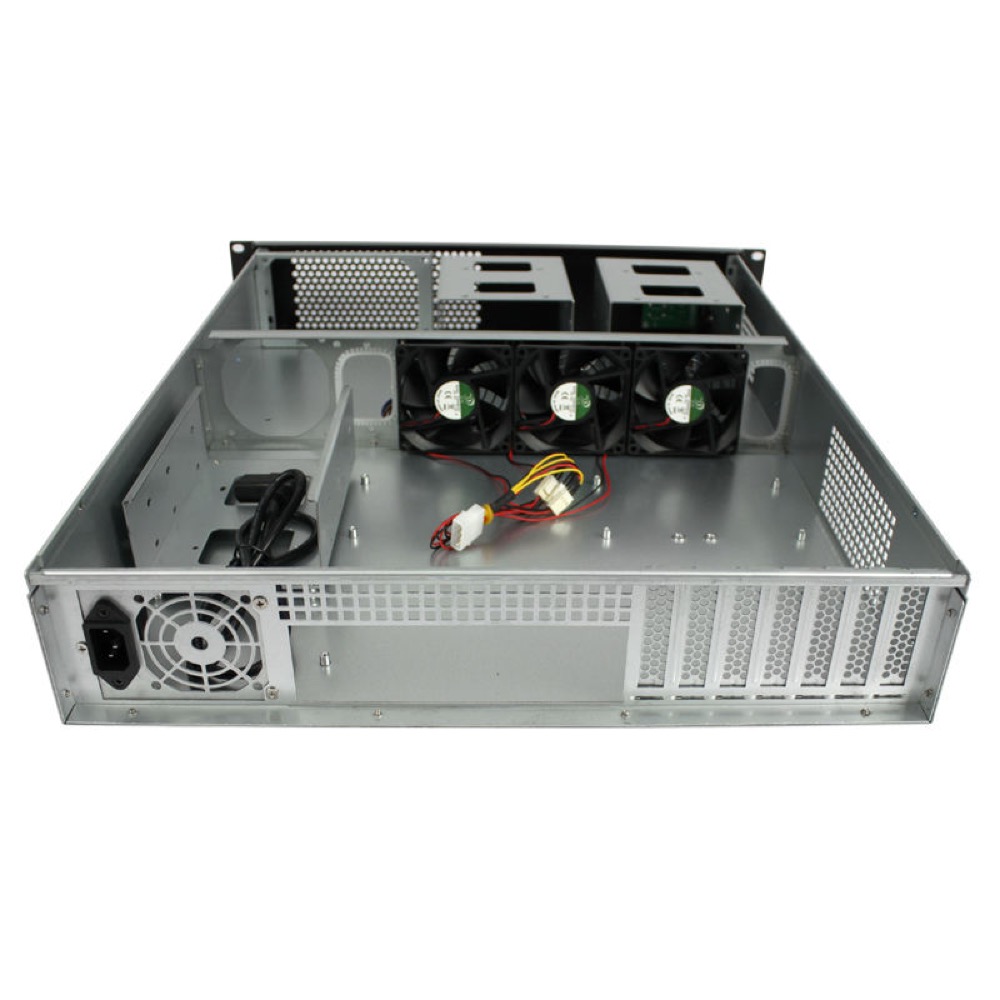

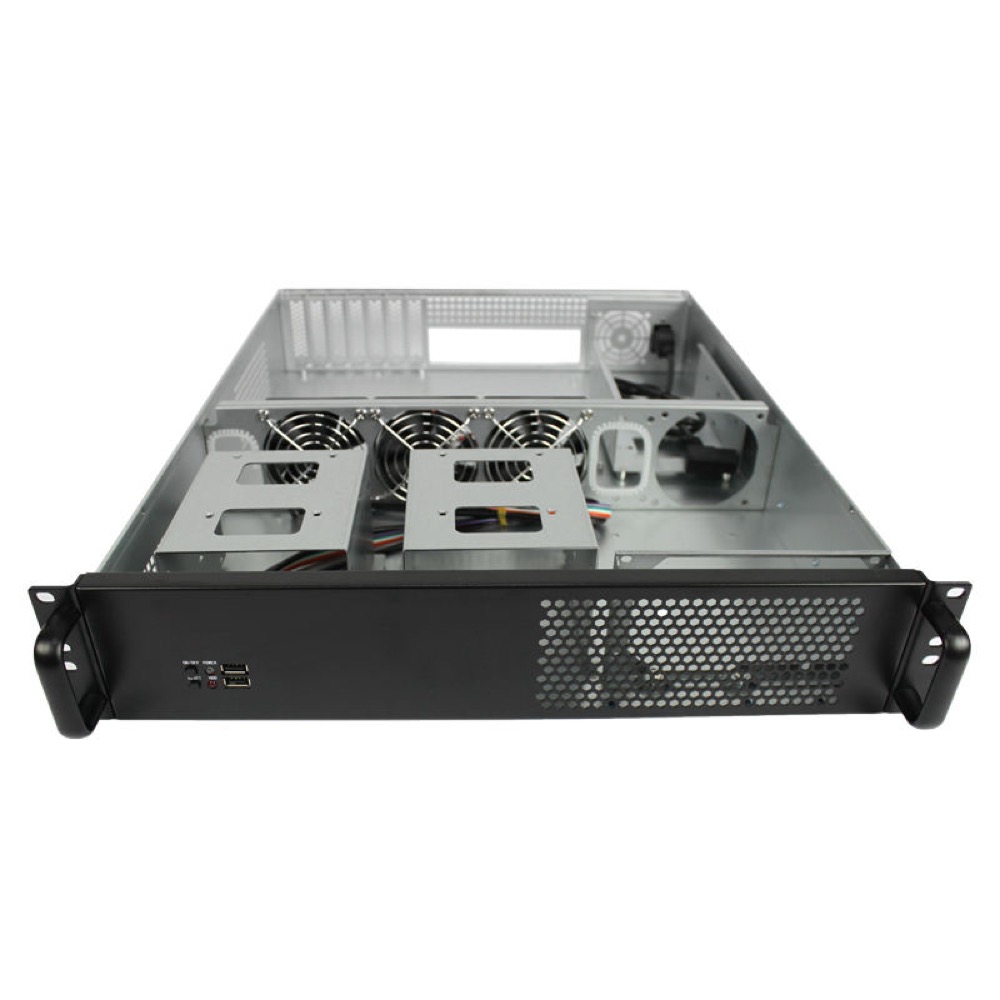

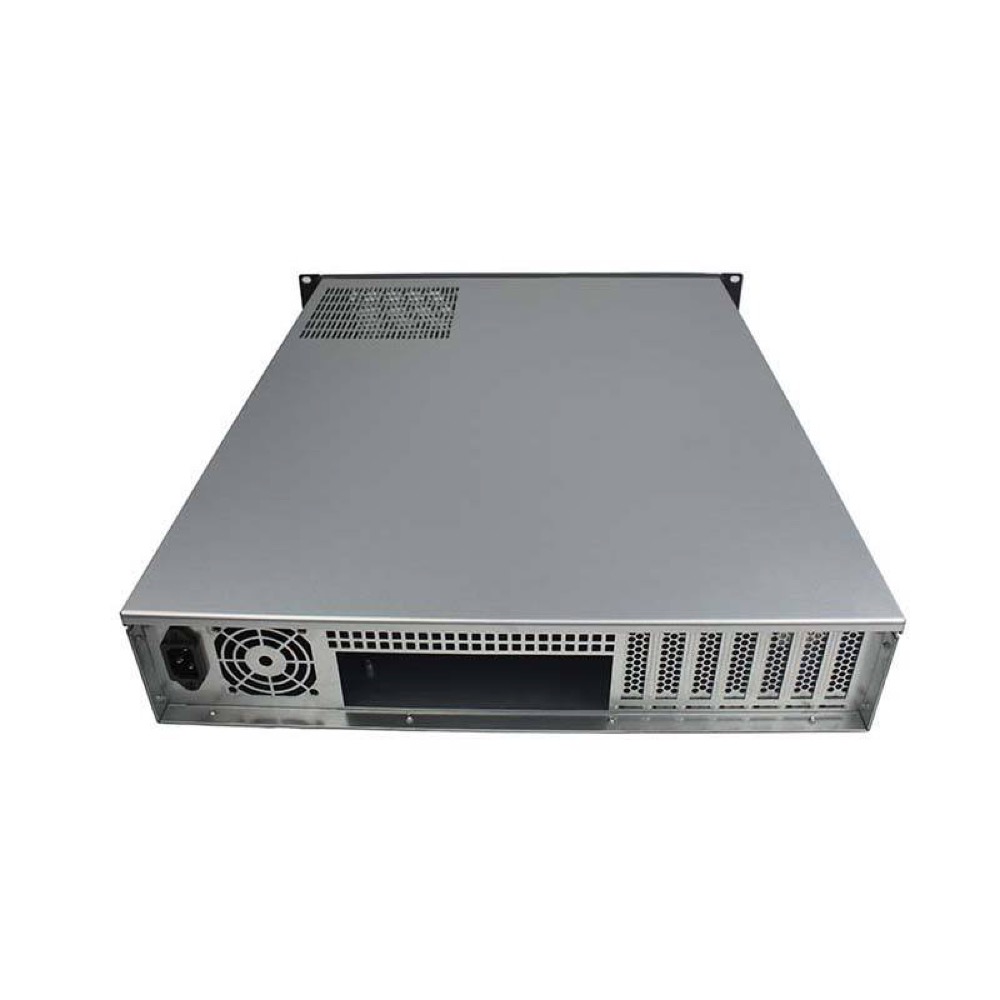

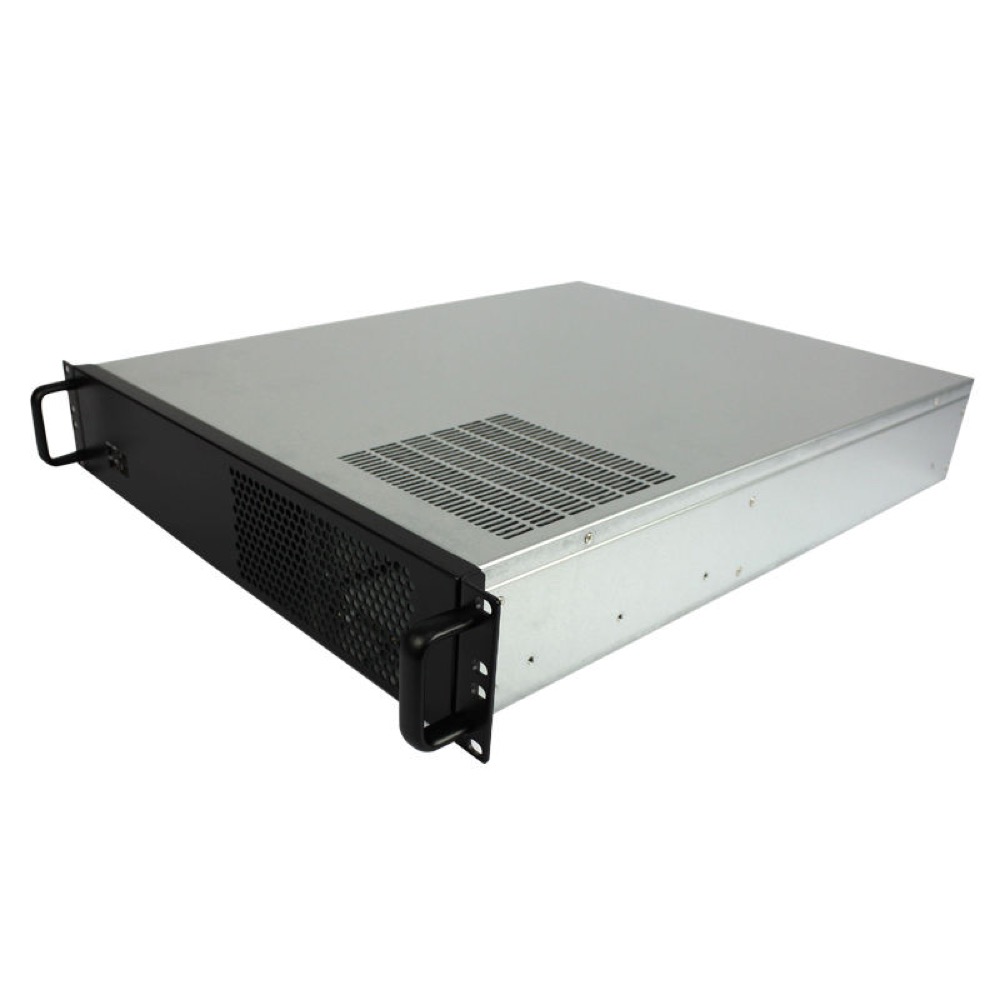

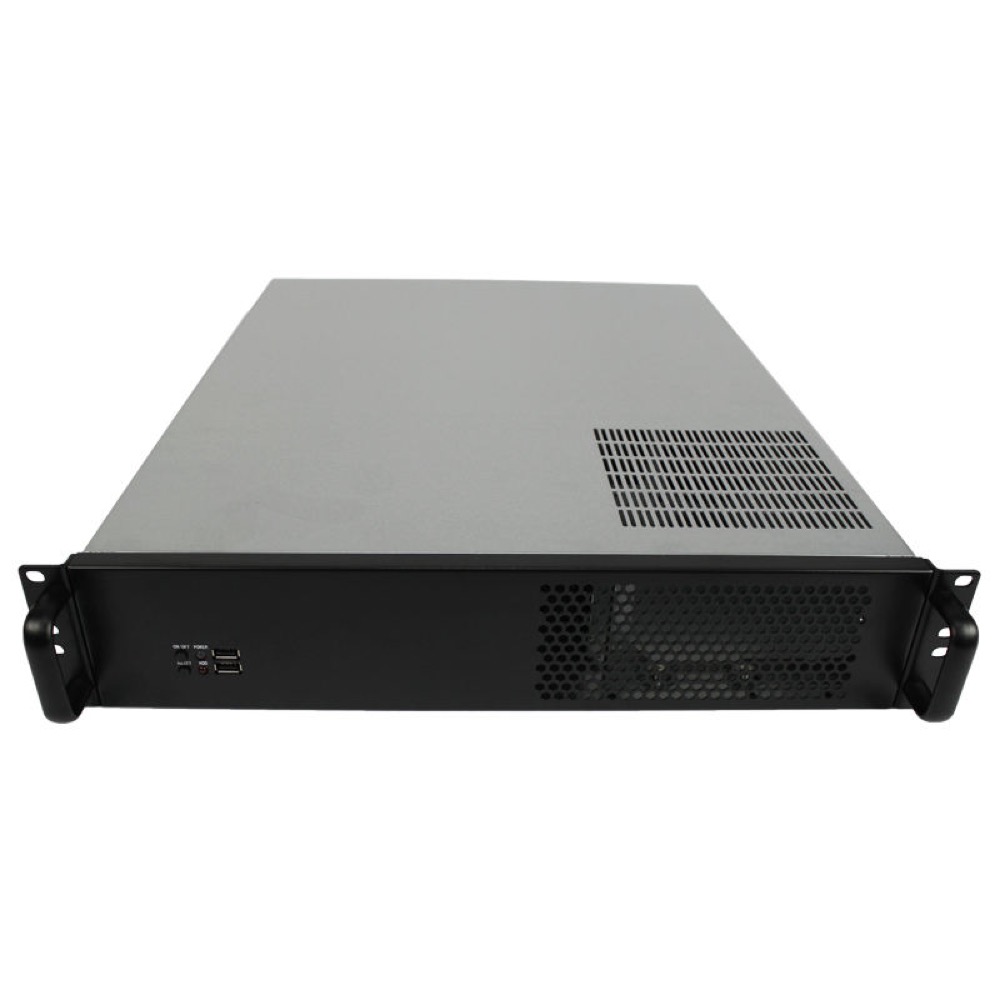

K255F-1 2U 19-inch industrial rackmount chassis for ATX systems. It supports five 3.5-inch drive positions, two 5.25-inch optical-drive bays, a standard ATX/PS2 desktop power supply, seven half-height expansion slots, and front USB, power, reset, and status indicators. The enclosure measures 482 × 550 × 89 mm and uses 1.2 mm SGCC steel. Supplier specifications contain conflicting bay and fan counts across the key-attribute and detailed sections; the structured values use the selected listing summary while the discrepancy is retained in the private supplier notes.
Specifications
Identity
| Model Number | CHS-SRV-K255F-1-5BAY |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with included 8025 fans and seven half-height expansion slots. ATX/PS2 power supply, motherboard, CPU, memory, storage drives, and optical drives are not included. |
| Use Case / Application | Server, Industrial PC, Storage Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | 1.2 mm SGCC steel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 9.24 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | Standard desktop ATX/PS2 PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 5 × 3.5-inch HDD positions |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height and straight slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) fans |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, power and hard-drive indicators, and a side-panel window. |
