In stock
Server Chassis
CHS-SRV-K245L2

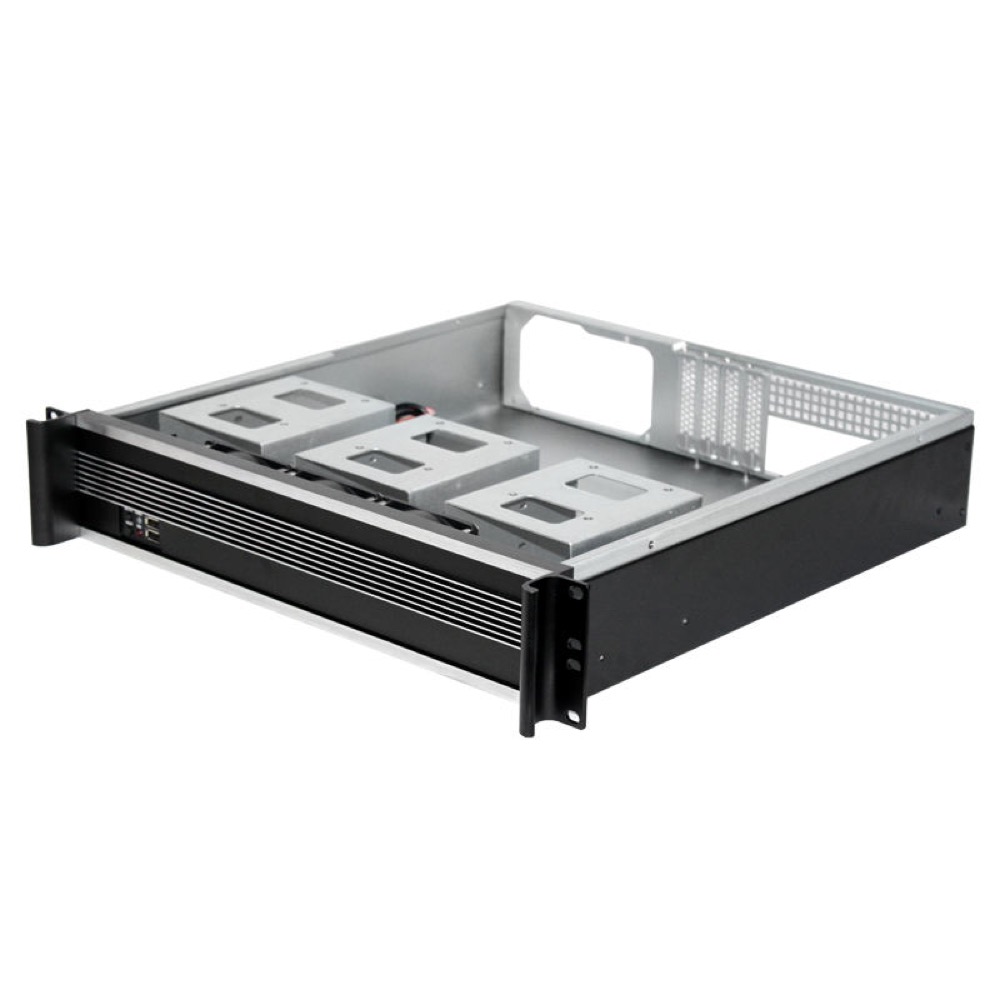

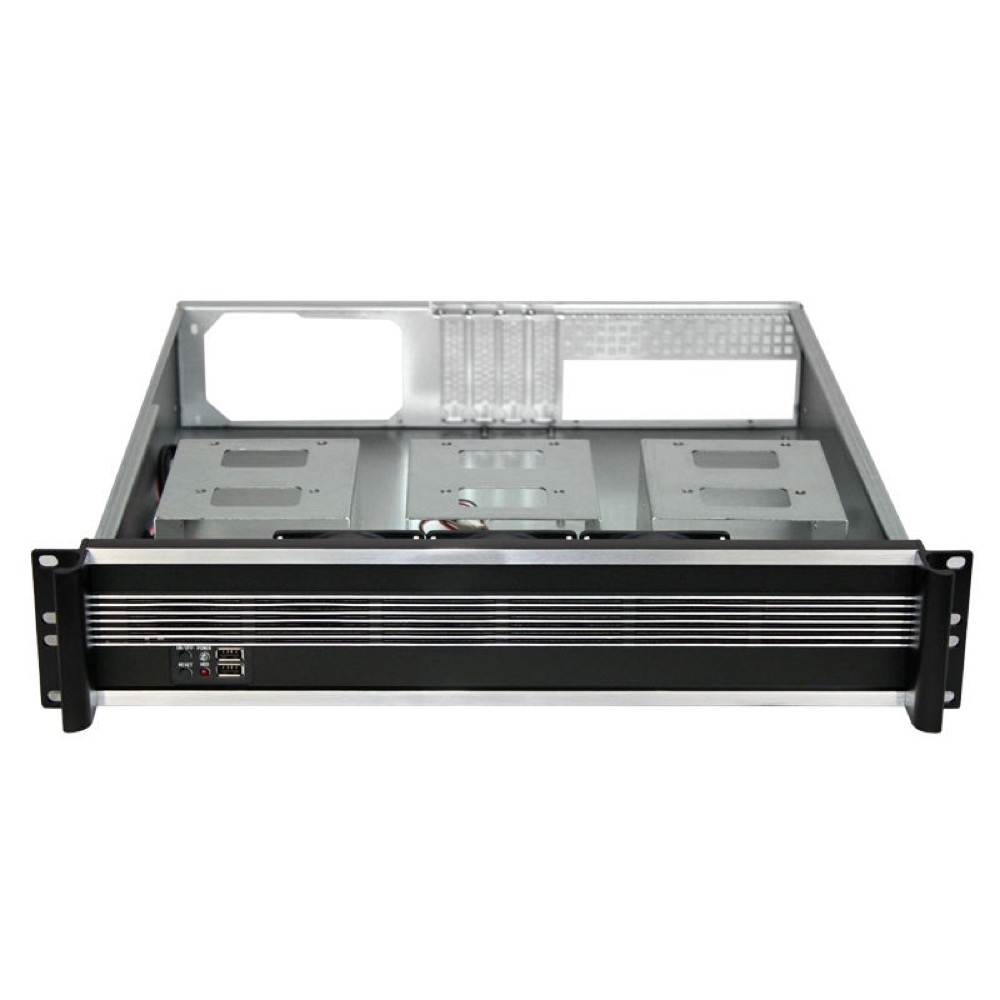

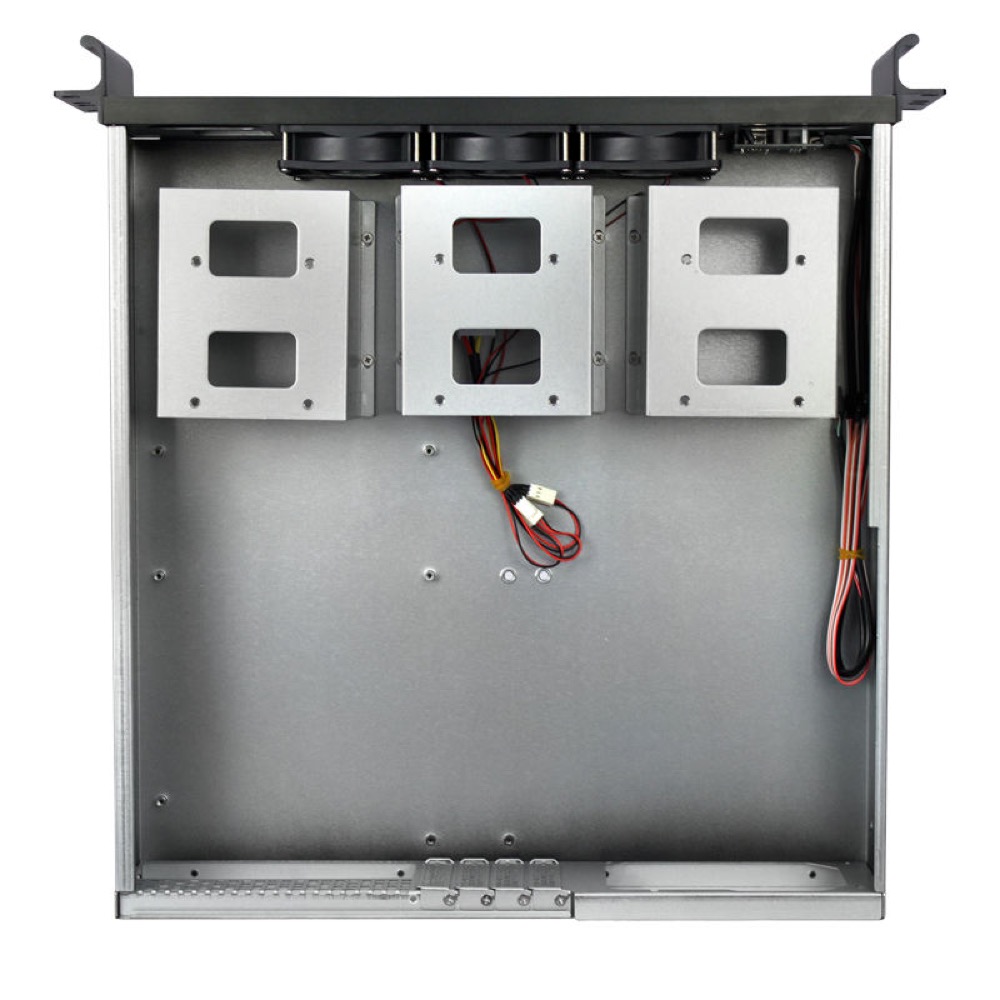

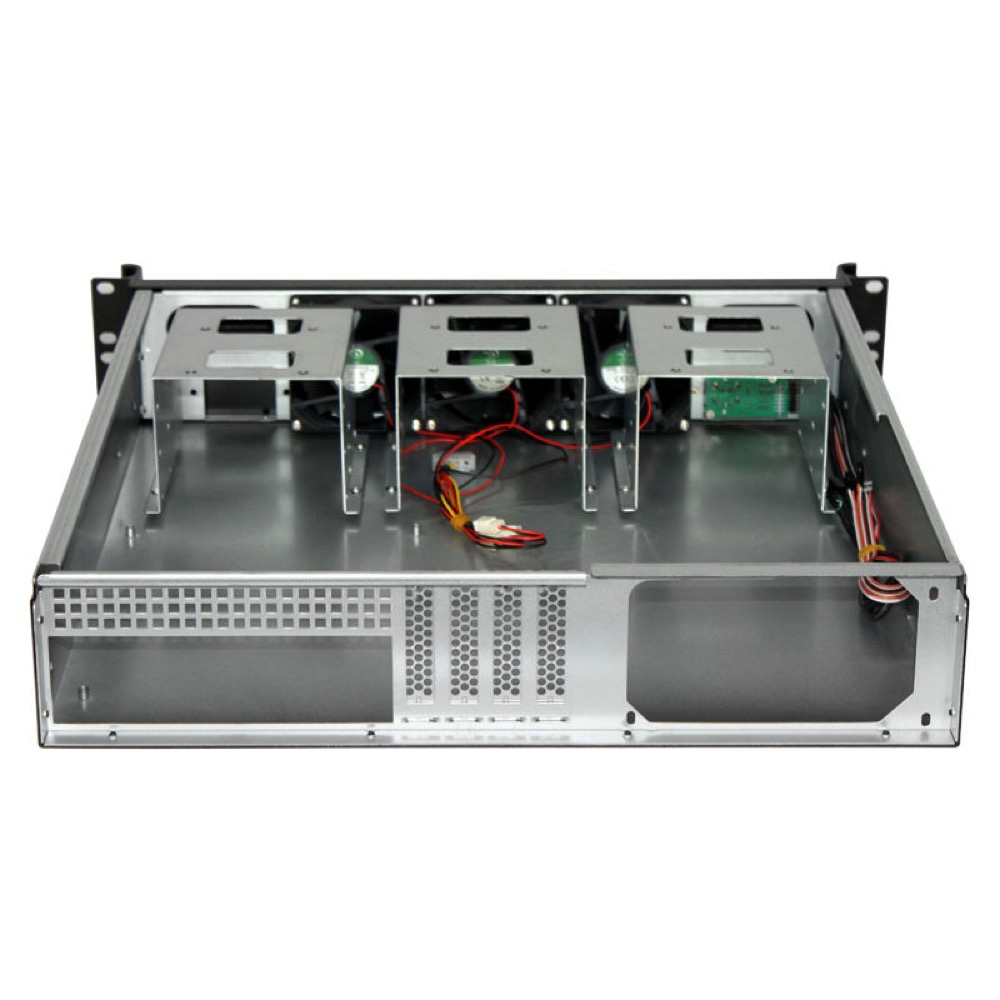

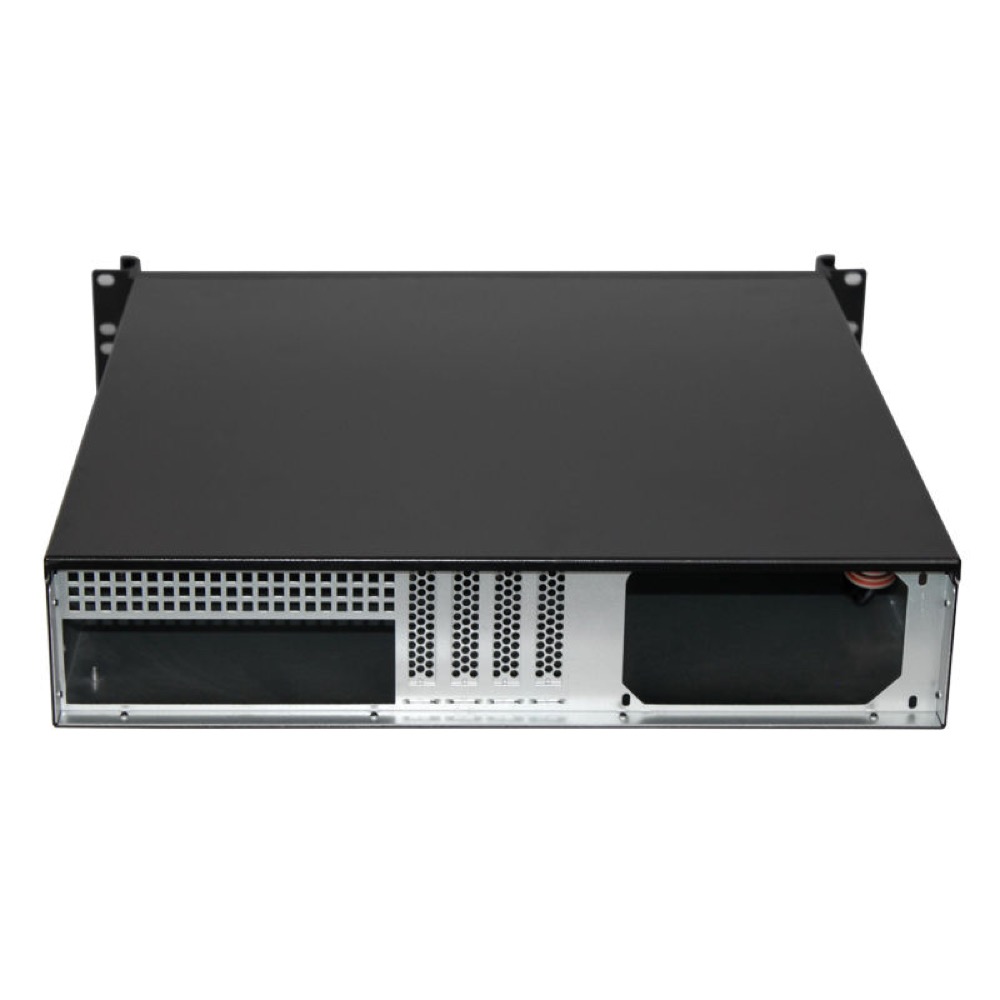

2U ATX Rackmount Chassis with 9 Drive Bays
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays9 bays
2U 19-inch horizontal rackmount chassis for server and industrial computer applications. Supplier-listed configuration: ATX motherboard support up to 12 × 9.6 inches, nine 3.5-inch hard-disk positions, ATX PSU support, three 8025 fans, four half-height straight expansion slots, and SGCC steel with 1.2 mm material thickness. Dimensions: 482(W) × 450(D) × 89(H) mm. Supplier marks the product status as Used and lists USB front-port connectivity.
Specifications
Identity
| Model Number | CHS-SRV-K245L2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis; three 8025 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 450 mm |
| Weight | 9.5 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 244 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 9 bays |
| Drive Types | 3.5" |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | Custom I/O |
| Custom I/O Details | Supplier lists USB front-port connectivity; exact USB count/version is not specified. ATX PSU dimensions are listed as 151 × 86 mm. |
