In stock
Server Chassis
CHS-SRV-R255-8

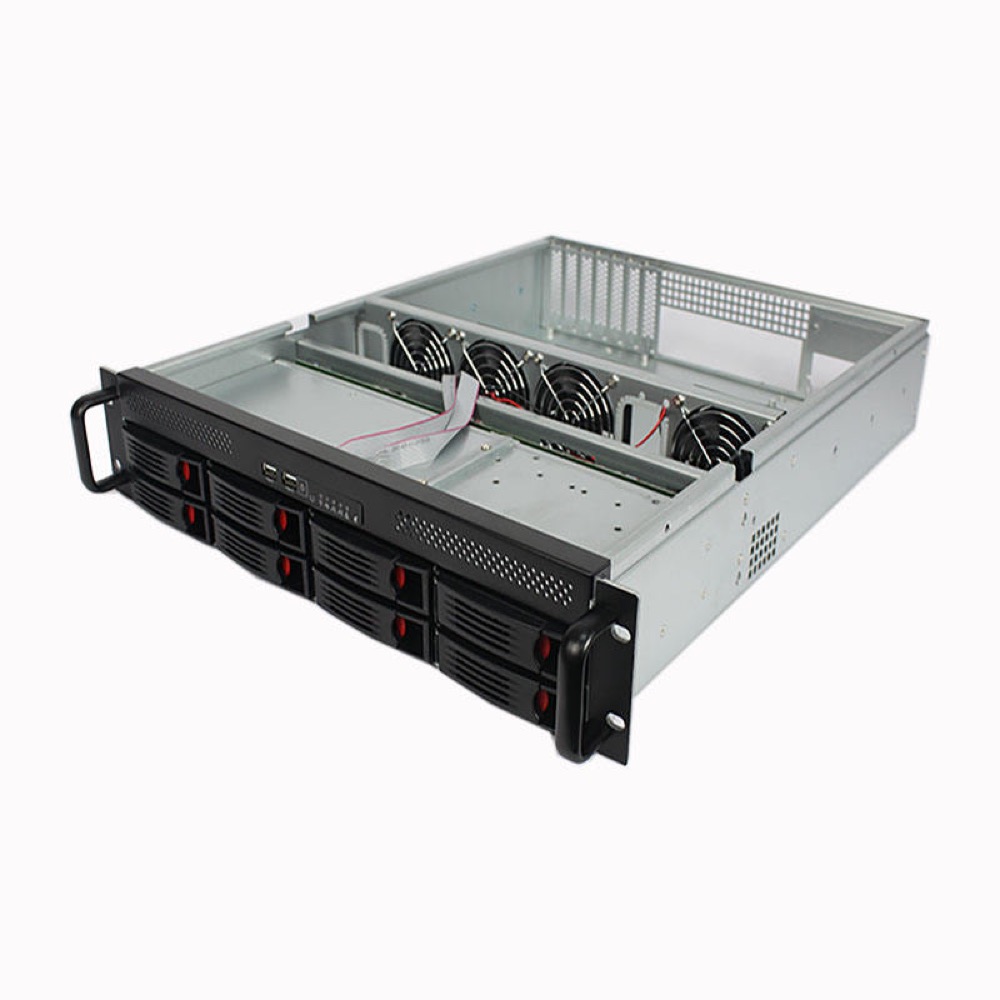

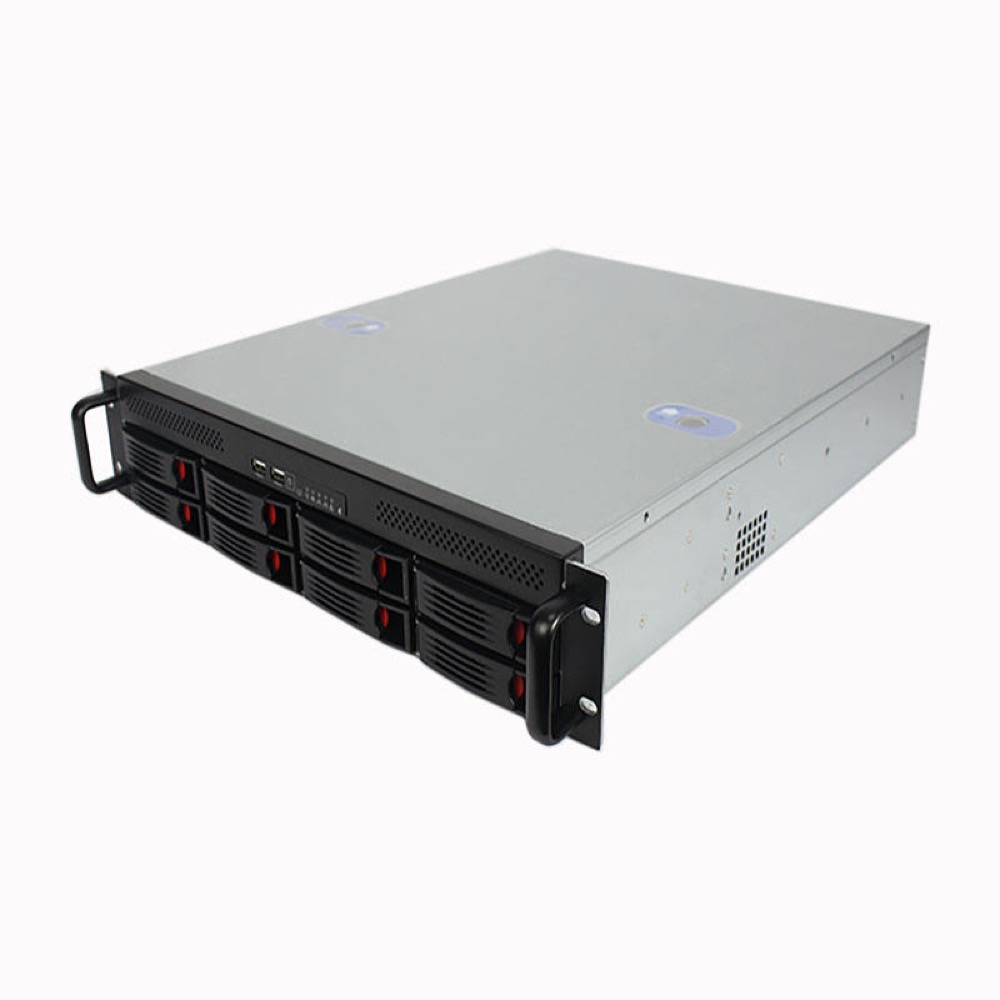

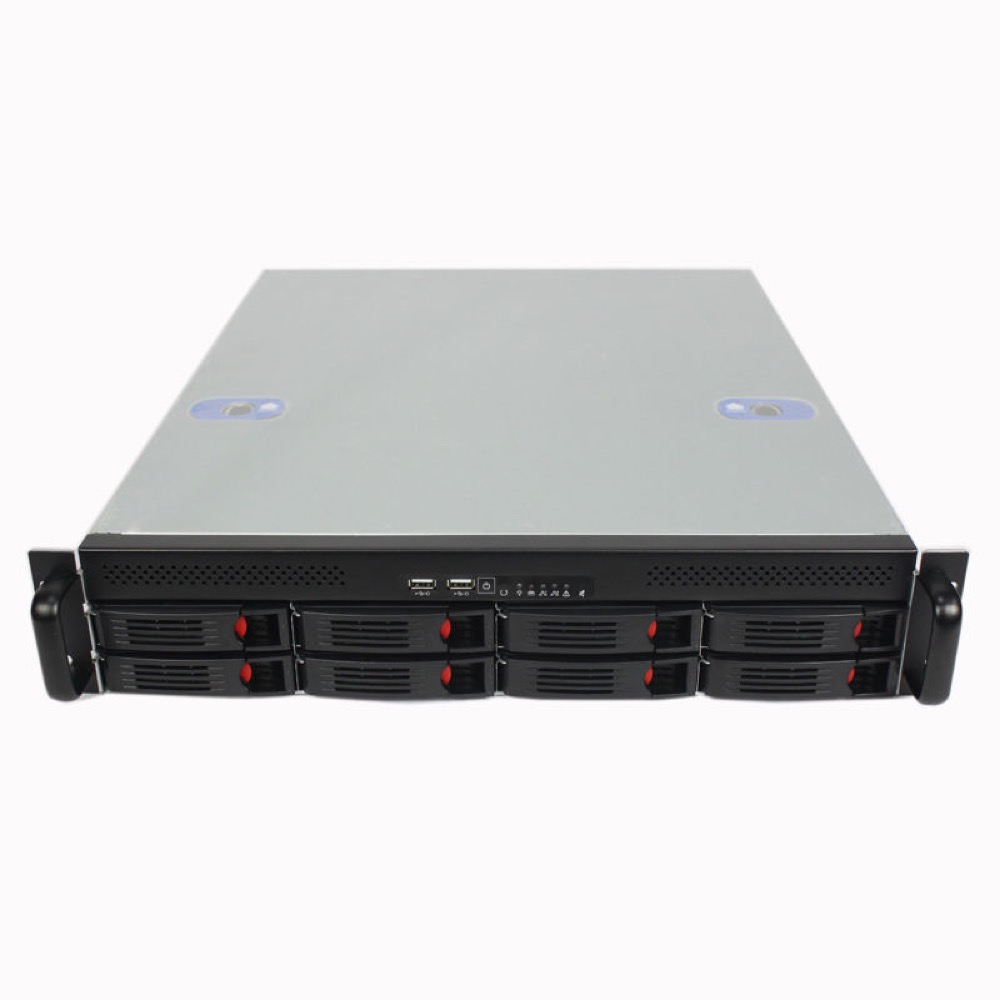

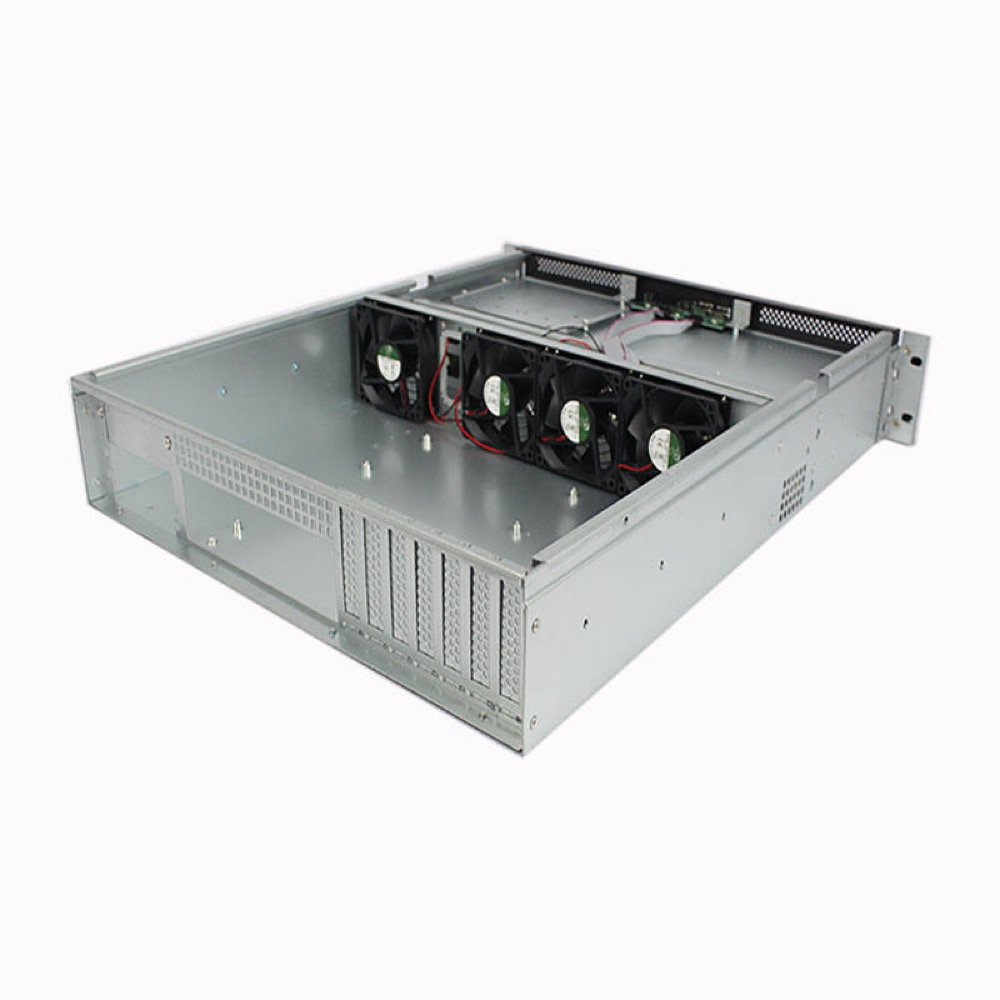

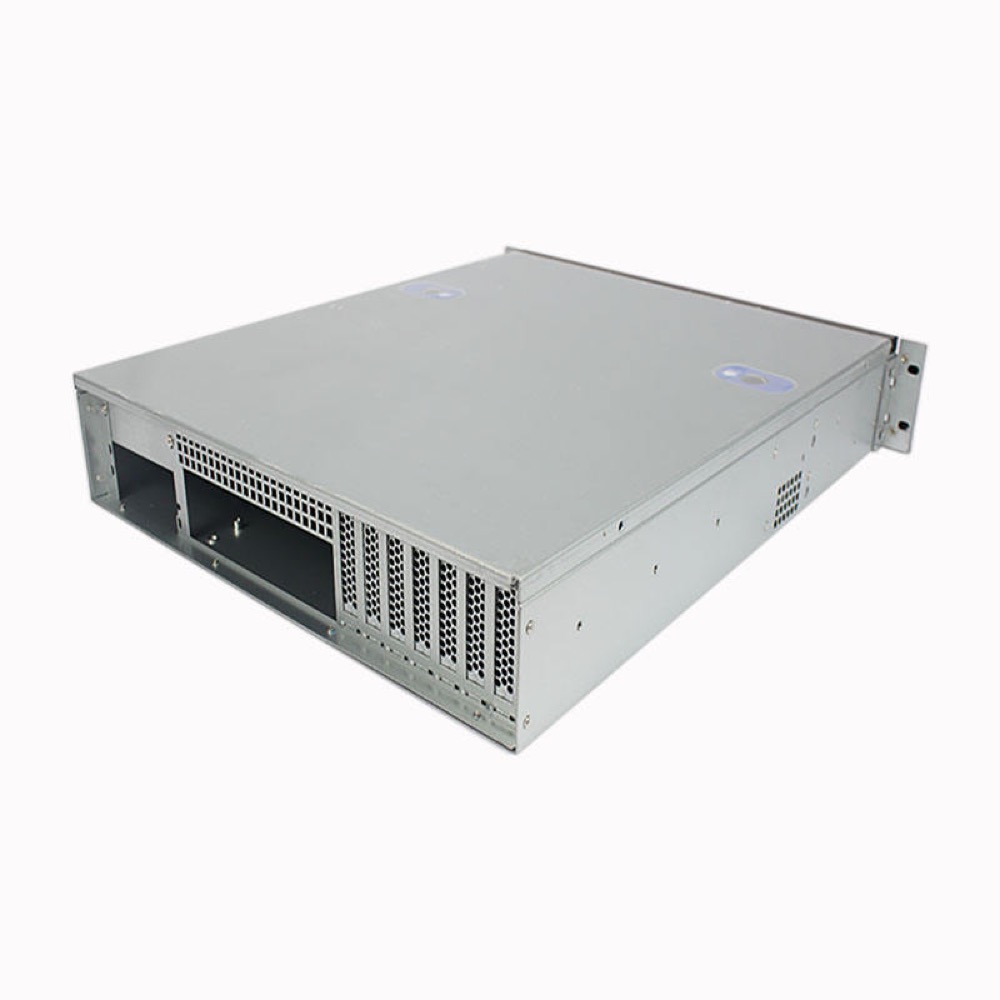

R255-8 2U Hot-Swap Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays9 bays
2U 19-inch storage rackmount chassis for ATX systems and high-density storage. The supplier lists support for nine 3.5-inch hard disks, eight hot-swap bays, ATX motherboard support up to 305 × 245 mm, 1U/2U server PSU support, seven half-height straight expansion slots, four 8025 fans, and a 1.2 mm SGCC steel enclosure. The supplier positions the model for storage-server and IPFS applications. Supplier-listed dimensions are 482(W) × 550(D) × 89(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-R255-8 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount storage chassis with four 8025 cooling fans and eight hot-swap drive bays. 1U/2U server PSU support is provided; PSU, motherboard, and drives are not included. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 13 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | 1U server PSU, 2U server PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 9 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3.5-inch HDD |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 8 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Half-height, Straight slot |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 4 |
