Server Chassis
CHS-SRV-K245F-SD

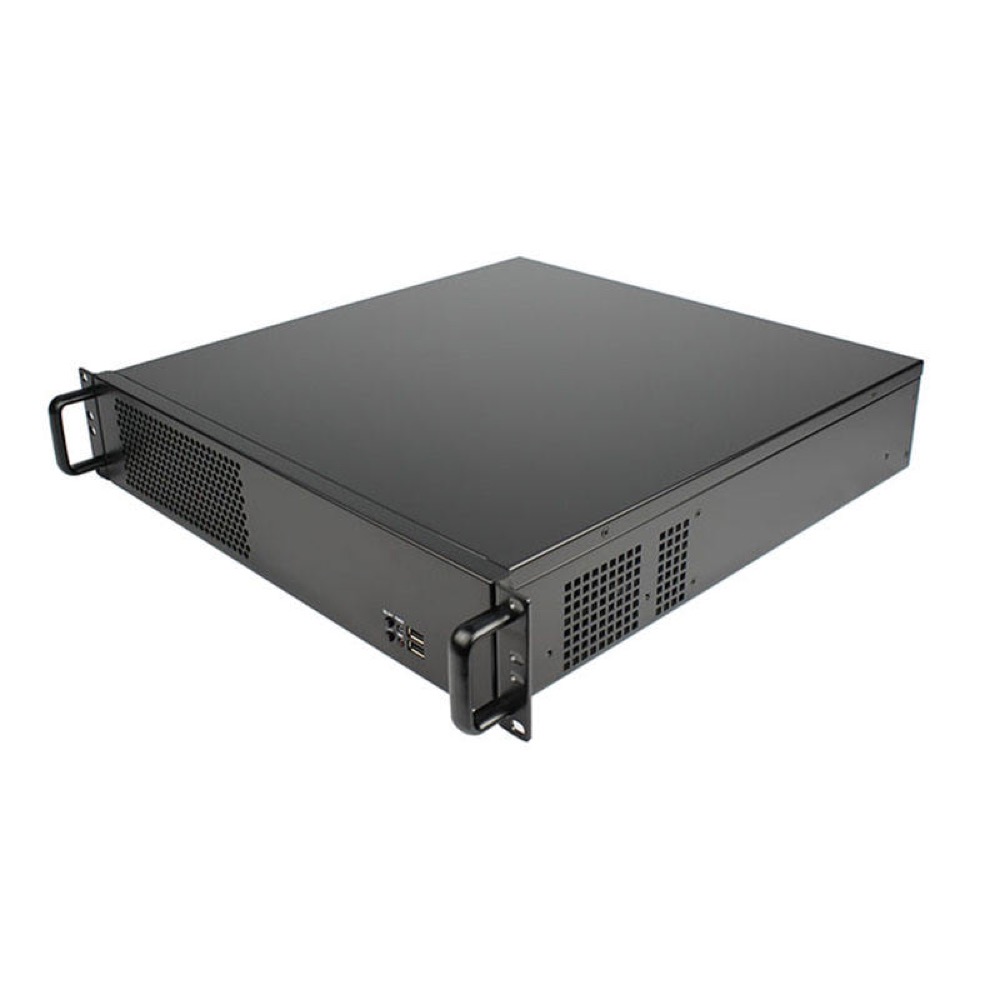

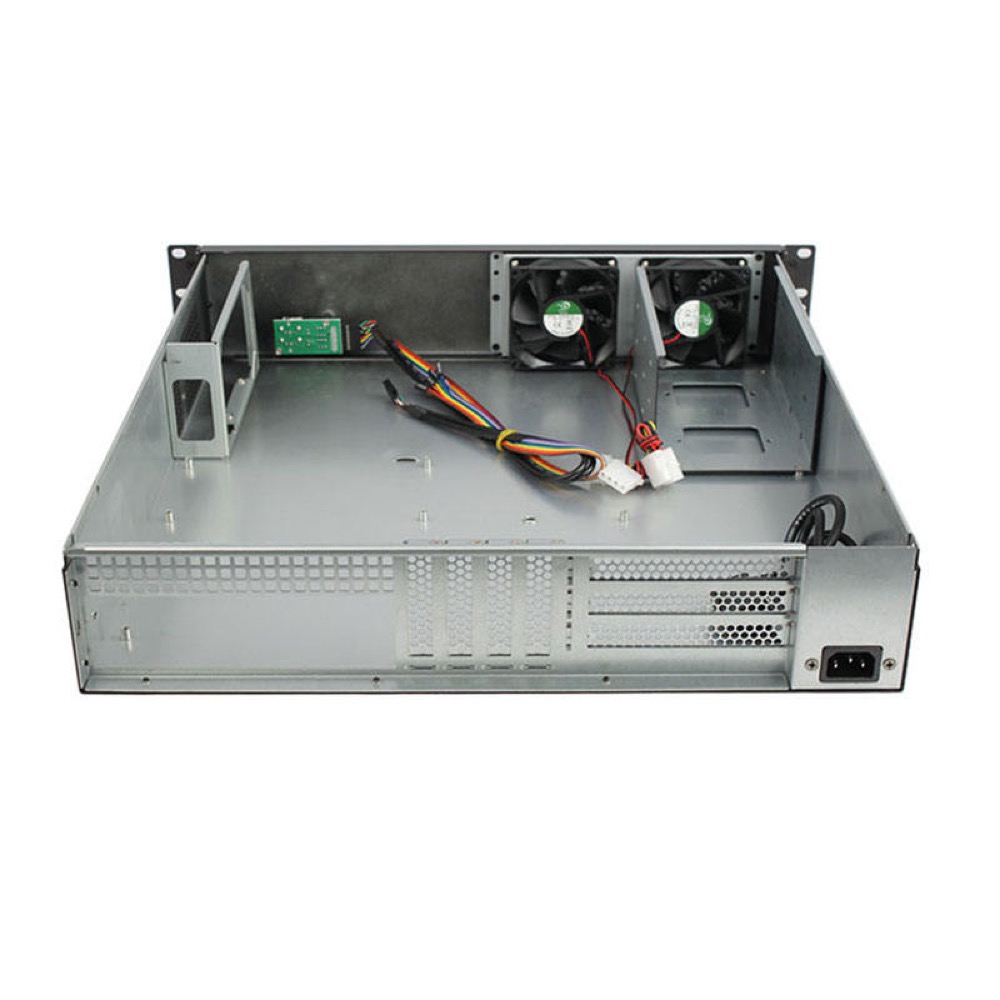

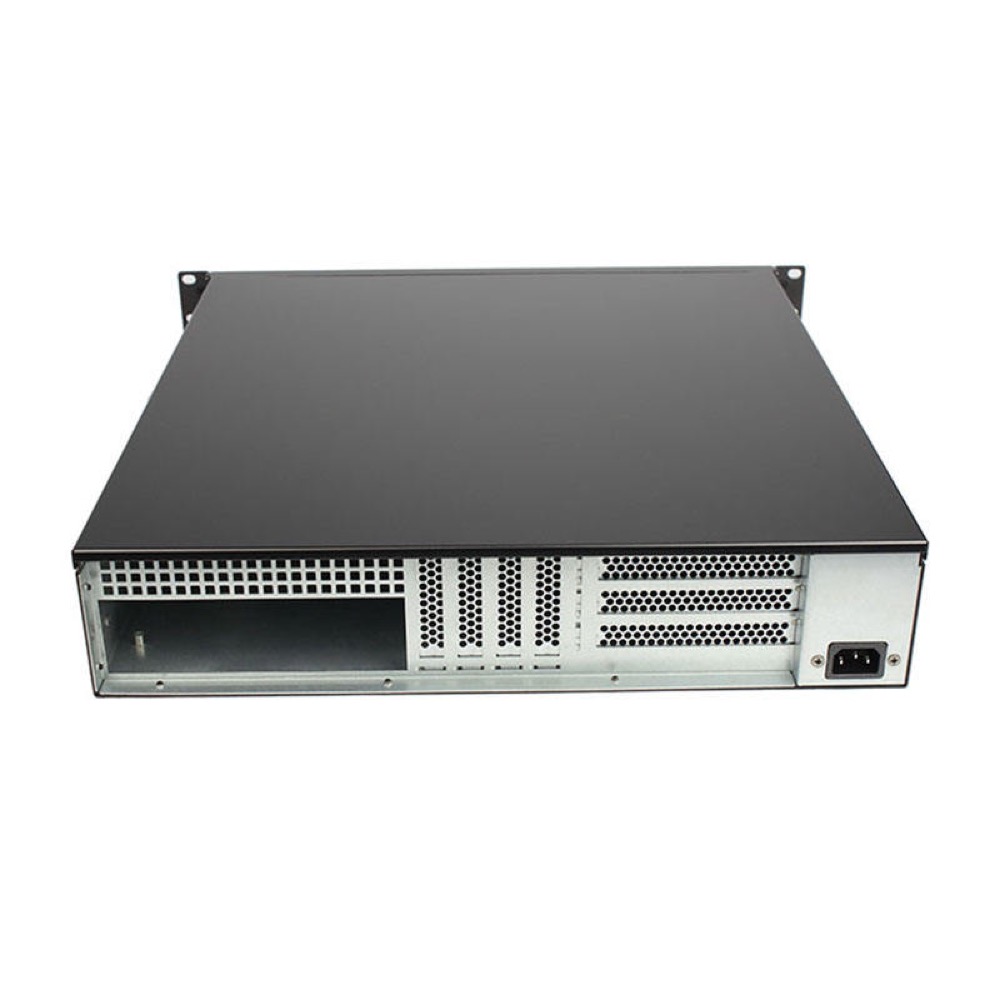

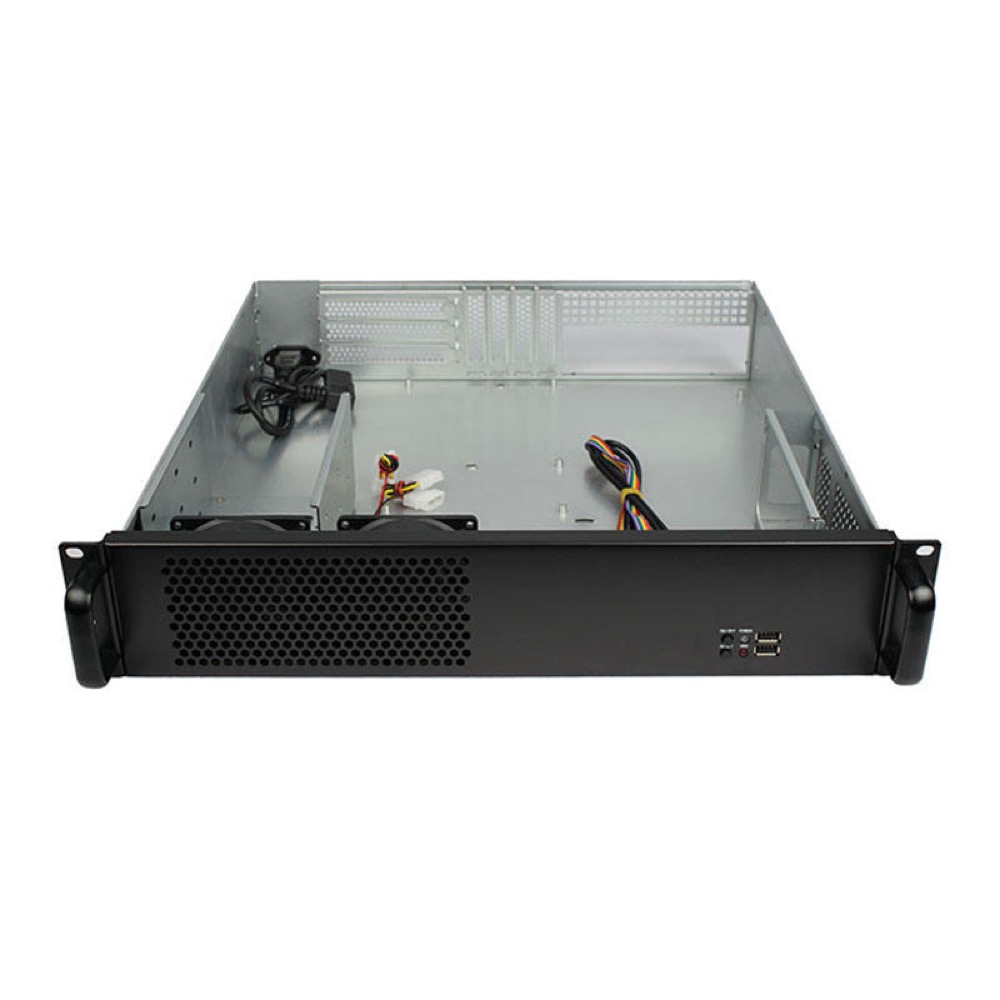

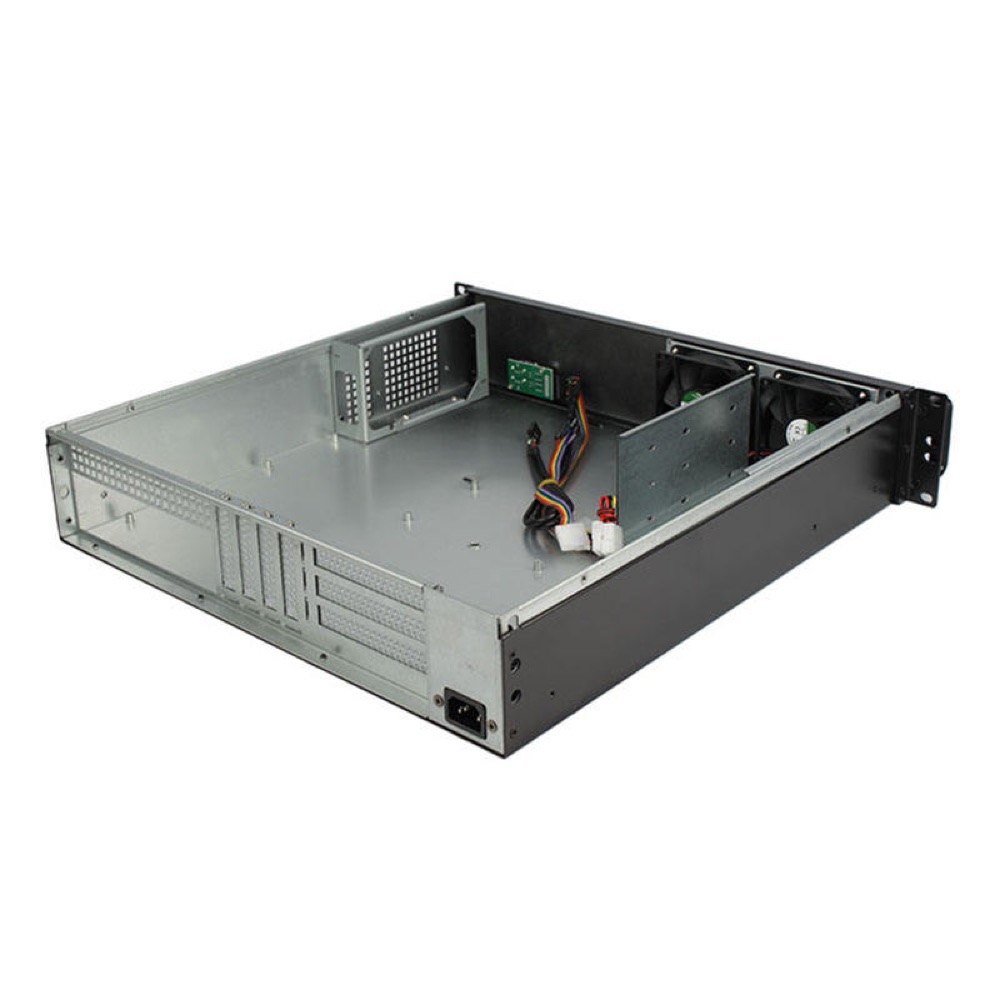

K245F 2U Short-Depth Rackmount Chassis (450 mm)
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays3 bays
K245F 2U 19-inch short-depth industrial rackmount chassis for ATX systems. The supplier's detailed technical table lists dimensions of 482(W) × 450(D) × 89(H) mm, ATX motherboard support up to 305 × 245 mm, ATX PSU compatibility, three 3.5-inch HDD positions or two 3.5-inch plus one 2.5-inch position, four half-height and three full-height PCIe slots, dual 8025 fans, and front USB 2.0, power, reset, and indicator controls. No optical-drive bay is provided.
Specifications
Identity
| Model Number | CHS-SRV-K245F-SD |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with two 80 mm cooling fans. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, zinc-plated, 1.2 mm |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 450 mm |
| Weight | 8.5 kg gross / 6.2 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3 × 3.5-inch HDD, Alternate layout: 2 × 3.5-inch HDD + 1 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 4 × half-height straight slots, 3 × full-height straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD activity indicator |
| Custom I/O Details | Short 450 mm-depth chassis with no optical-drive bay. Supplier lists four half-height and three full-height straight PCIe slots, dual 8025 fans, ATX PSU, three 3.5-inch HDD positions or an alternate two 3.5-inch plus one 2.5-inch layout, and front USB 2.0/power/reset/indicator controls. |
