In stock
Server Chassis
CHS-SRV-R248-8

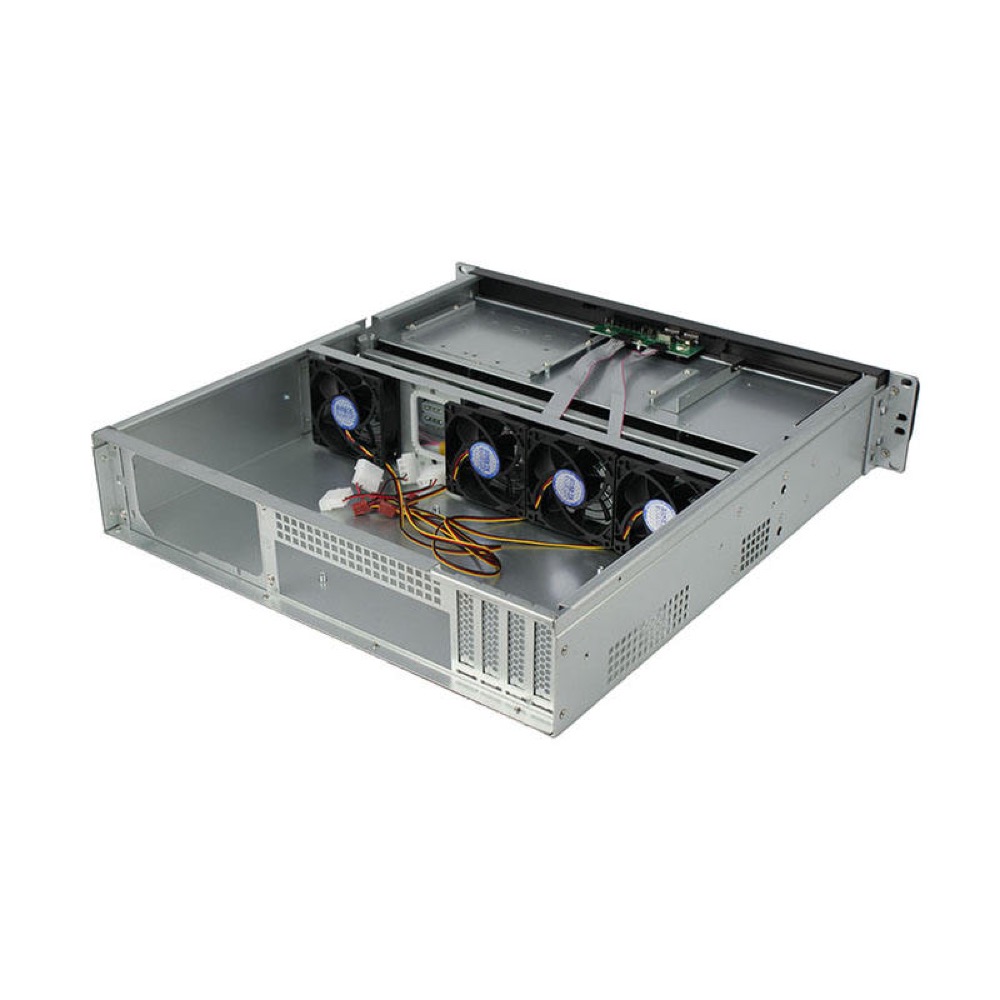

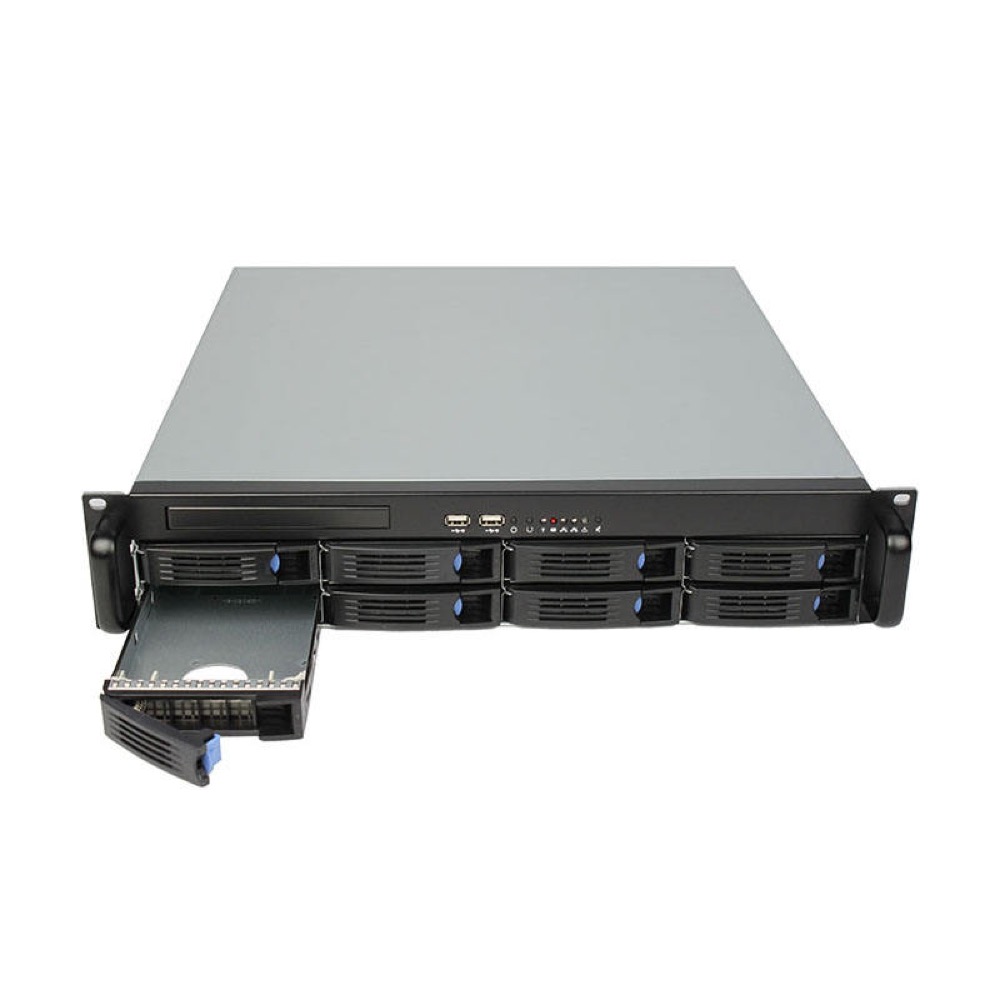

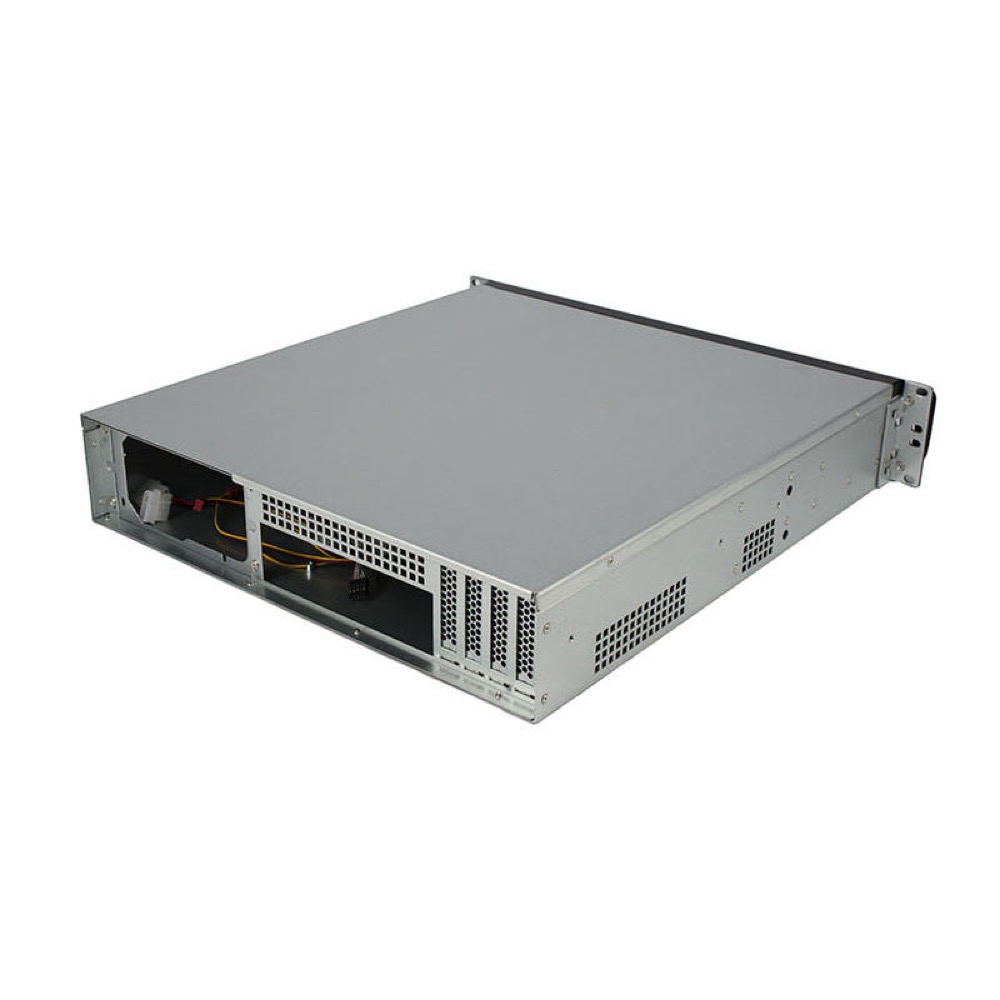

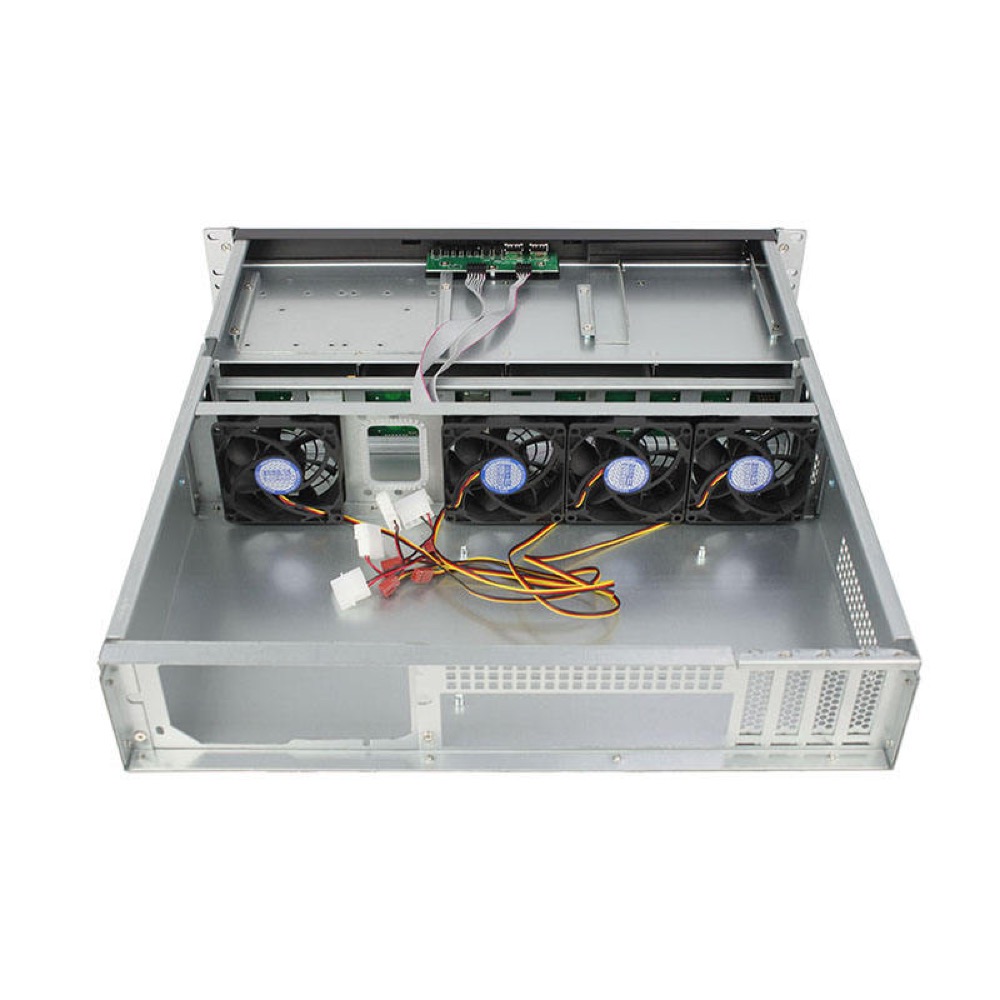

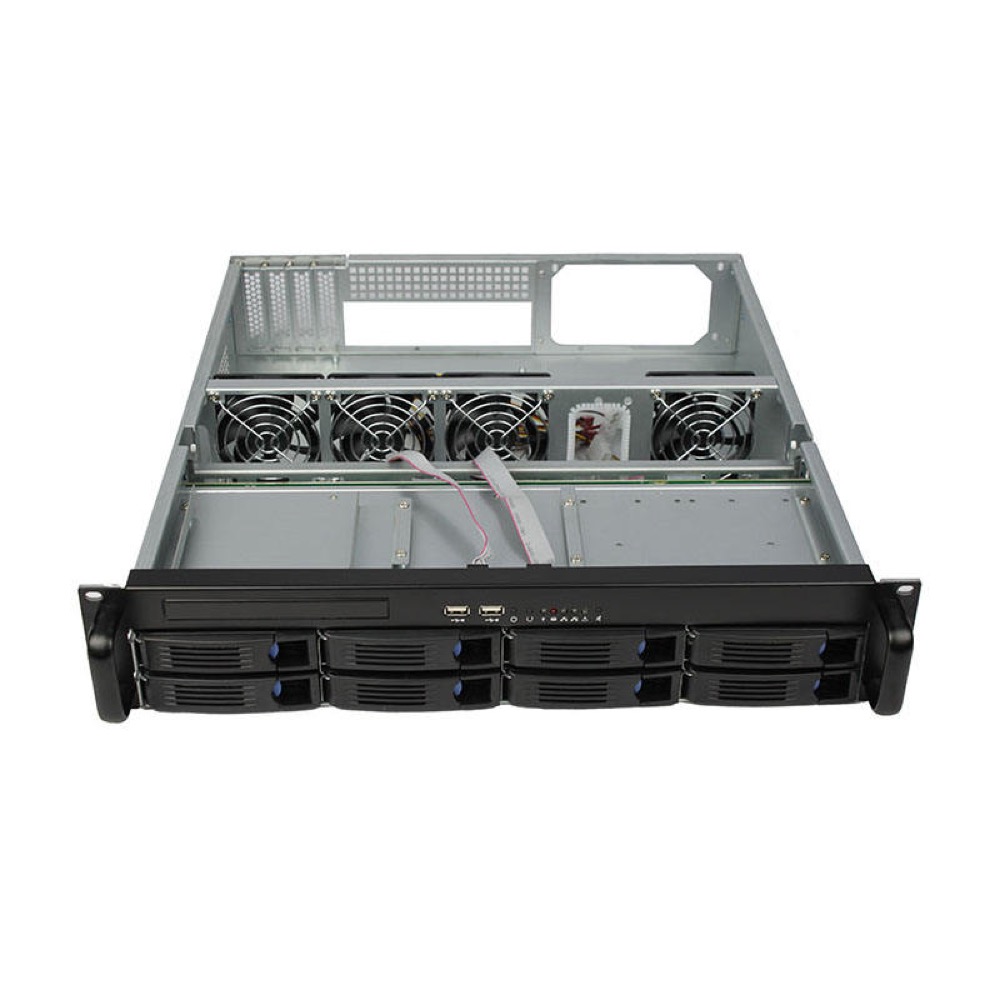

R248-8 2U Hot-Swap Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 480(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
2U 19-inch storage rackmount chassis for ATX systems. The supplier lists eight hot-swap 3.5-inch bays, ATX motherboard support up to 305 × 245 mm, ATX PSU support, four PCIe slots, three 8025 cooling fans, USB front connectivity, and a steel enclosure. Supplier-listed dimensions are 482(W) × 480(D) × 89(H) mm, with 11 kg gross and 8 kg net weight.
Specifications
Identity
| Model Number | CHS-SRV-R248-8 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount storage chassis with three 8025 cooling fans and eight hot-swap drive bays. ATX PSU support is provided; PSU, motherboard, and drives are not included. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | Steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 480 mm |
| Weight | 11 kg gross / 8 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3.5-inch hot-swap HDD |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 8 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 3 |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | USB front connectivity, eight hot-swap 3.5-inch drive bays, four PCIe slots, and three 8025 cooling fans. Supplier also lists a video-room position; exact optical-drive specification is not stated. |
