Server Chassis
CHS-SRV-K255F-1

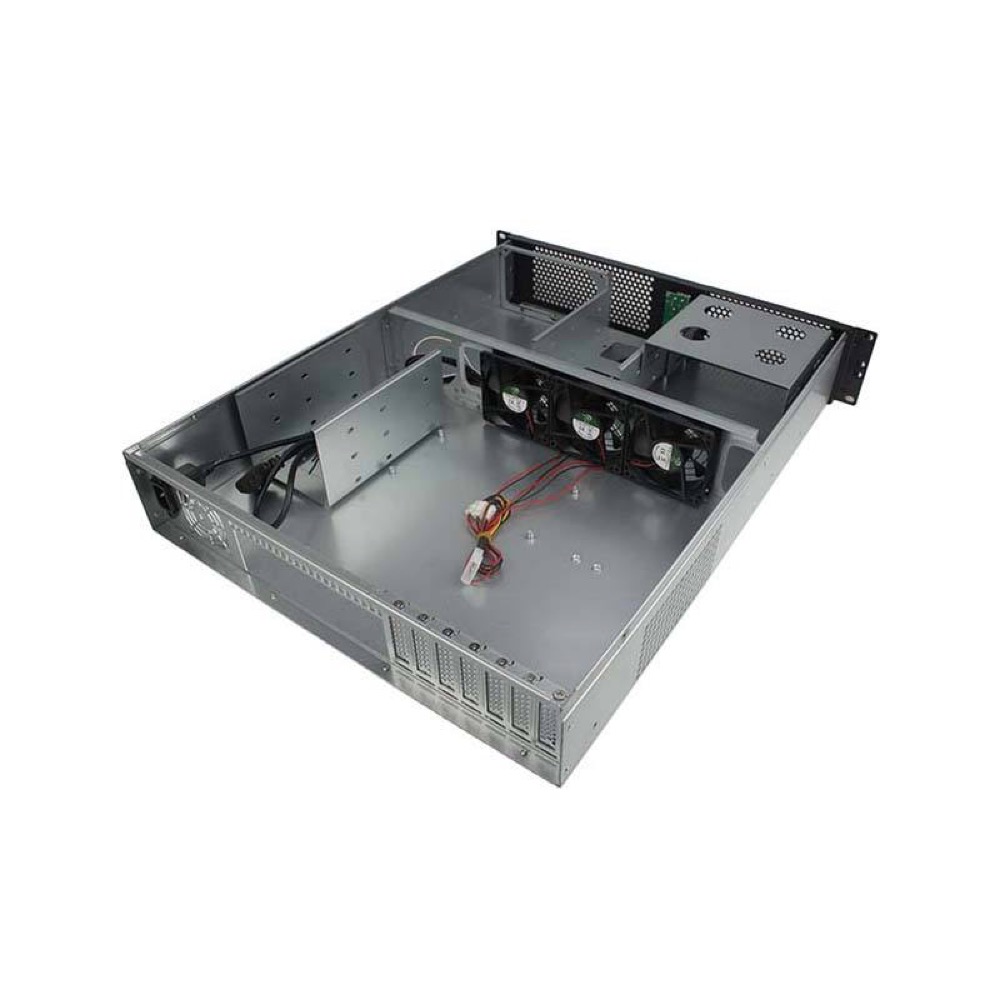

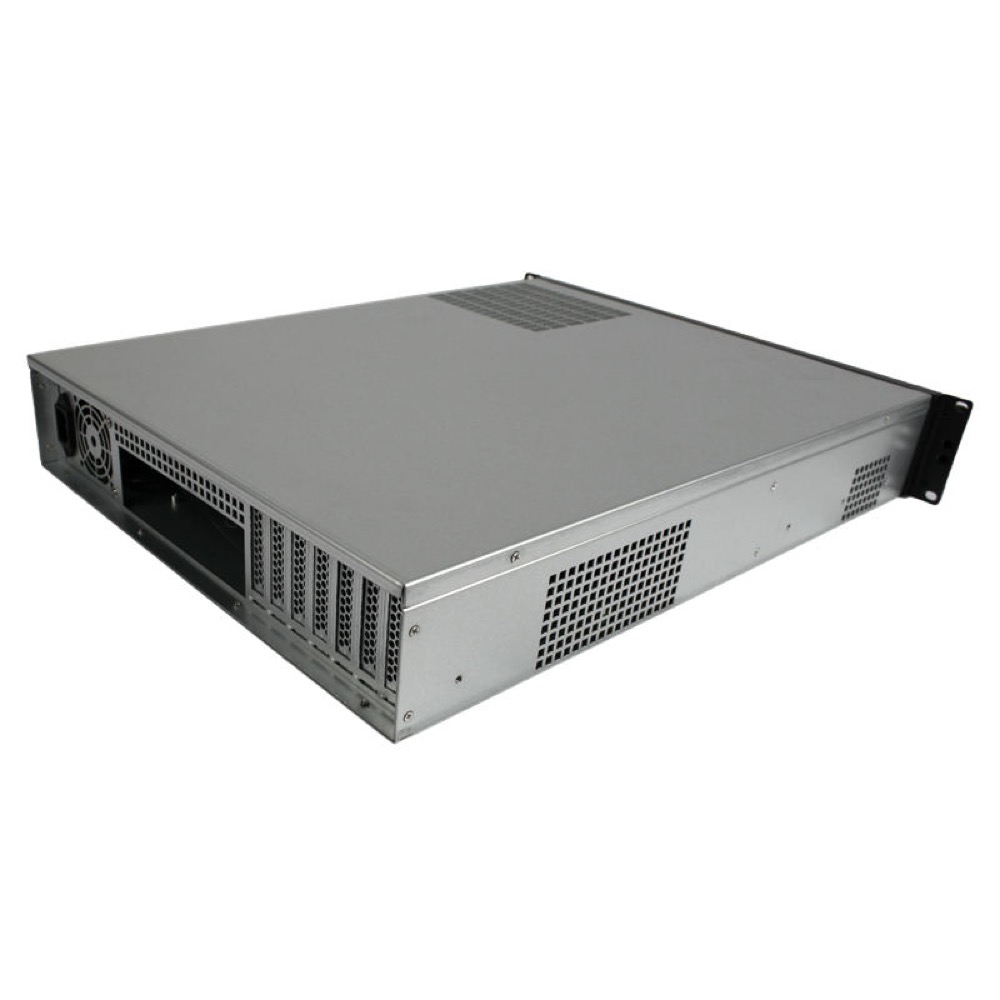

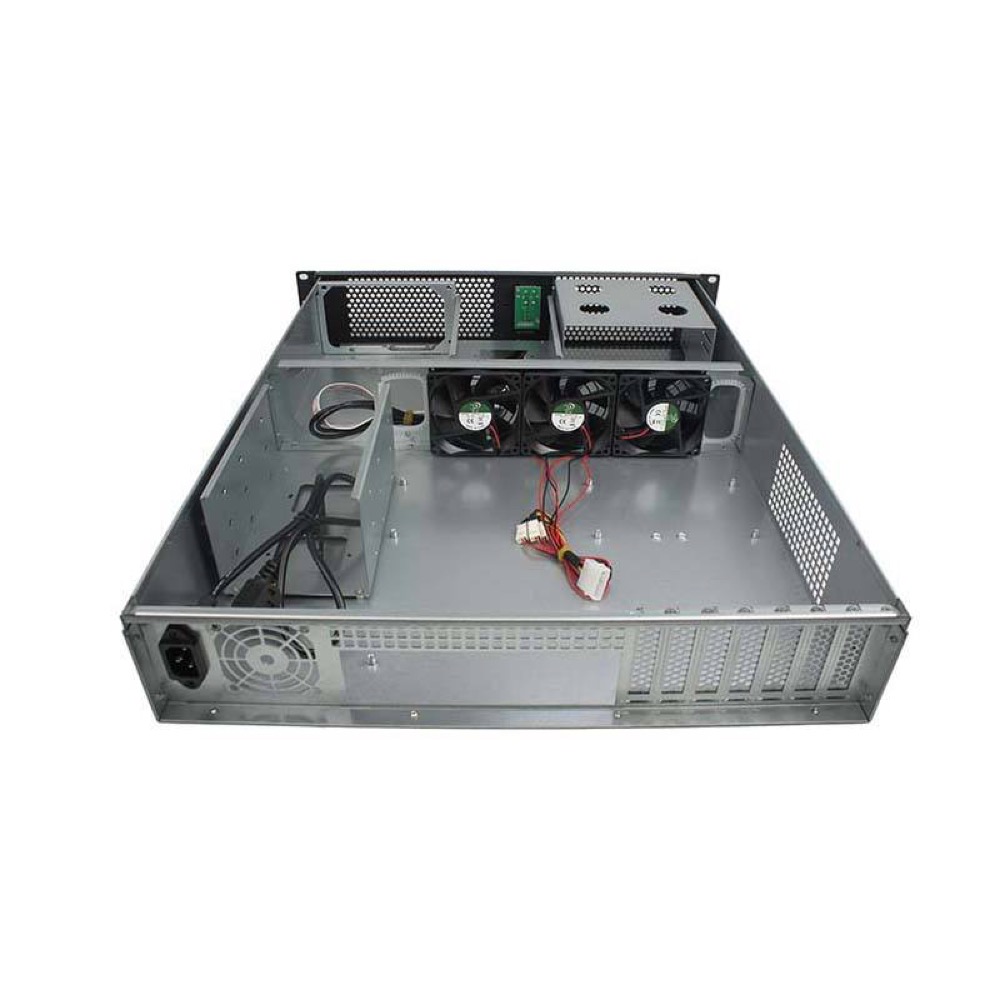

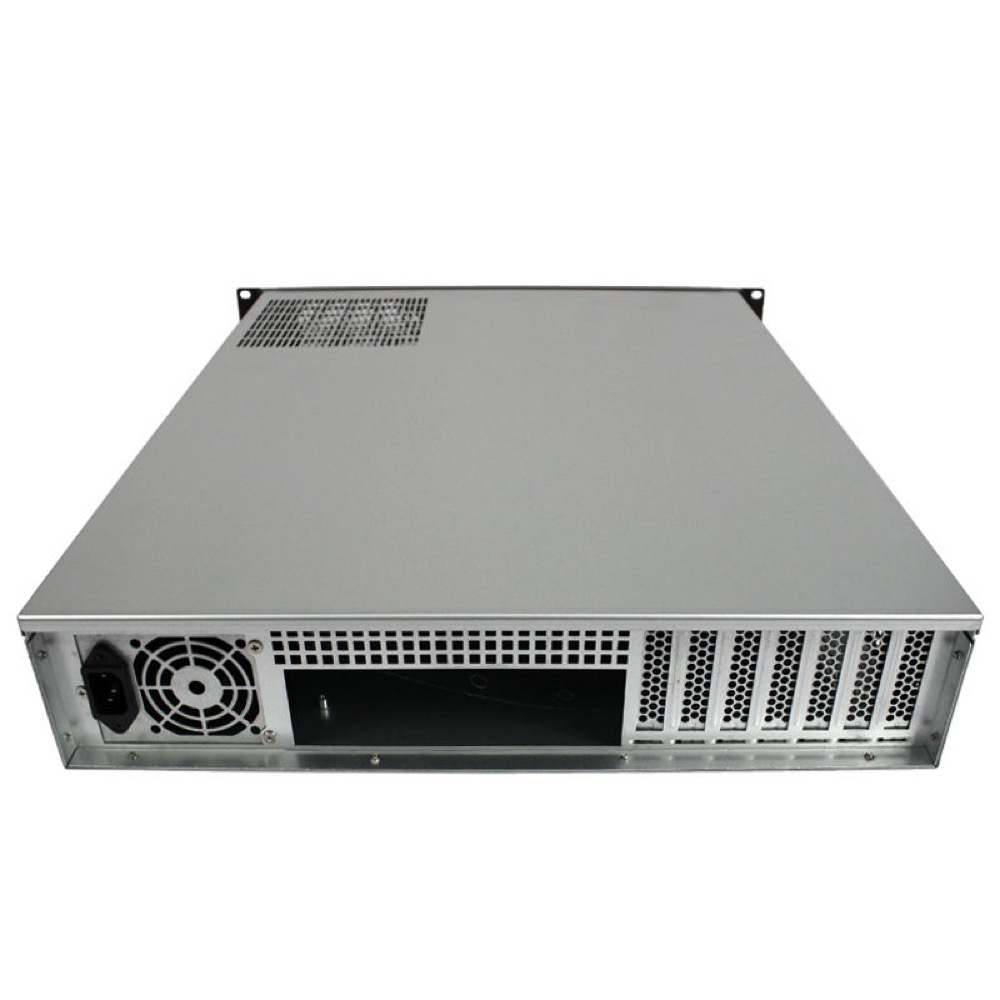

K255F-1 2U Rackmount ATX Chassis with 8-Bay Storage
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
2U 19-inch industrial rackmount chassis for ATX systems, with eight 3.5-inch hard-drive positions, three included 8025 fans, seven half-height and straight expansion slots, standard ATX desktop power-supply support, and front USB, power, reset, and status indicators. The enclosure measures 482 × 550 × 89 mm and uses a 1.2 mm SGCC steel construction.
Specifications
Identity
| Model Number | CHS-SRV-K255F-1 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with three included 8025 fans. ATX power supply, motherboard, CPU, memory, storage drives, and expansion cards are not included. |
| Use Case / Application | Industrial PC, Server, Storage Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | 1.2 mm SGCC steel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 9.24 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | Standard ATX desktop PSU (PS2) |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch HDD positions |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × half-height and straight slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 3 included |
I/O and Connectivity

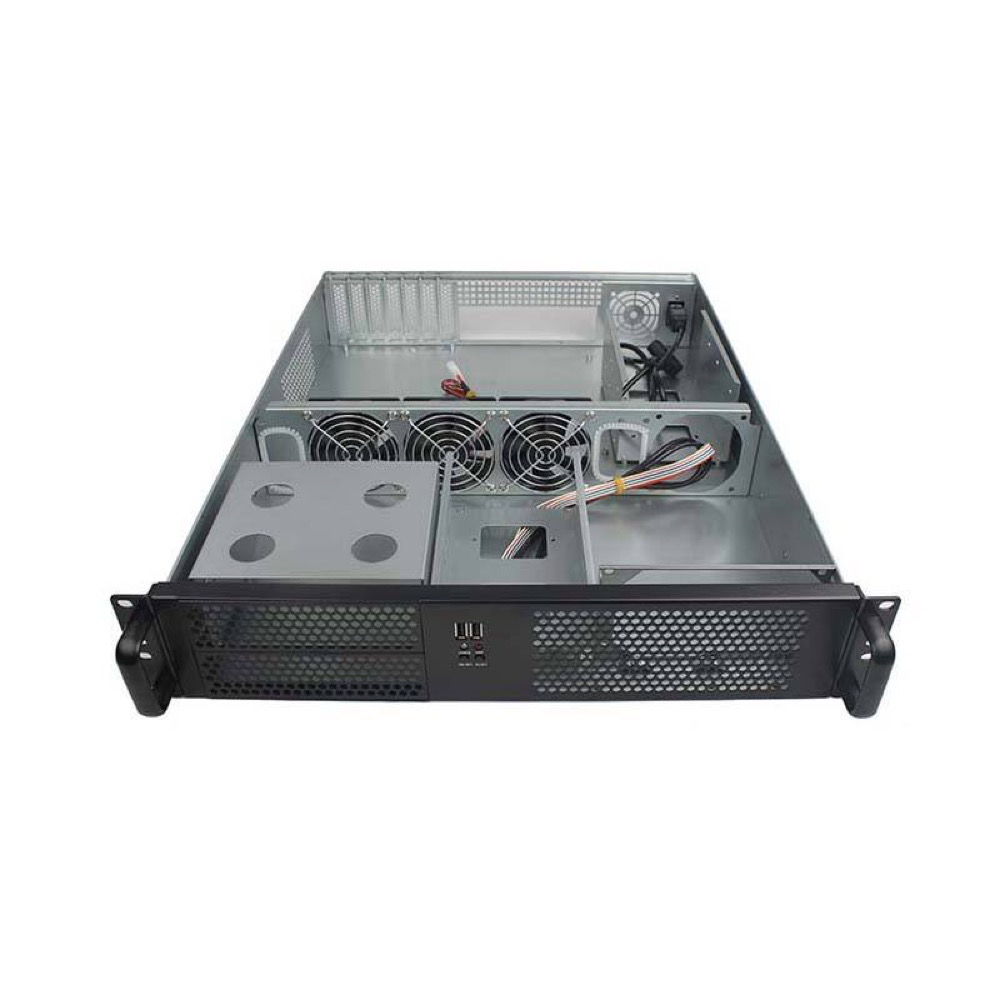

| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, a power indicator, and a hard-drive indicator. |
