In stock
Server Chassis
CHS-SRV-K245F

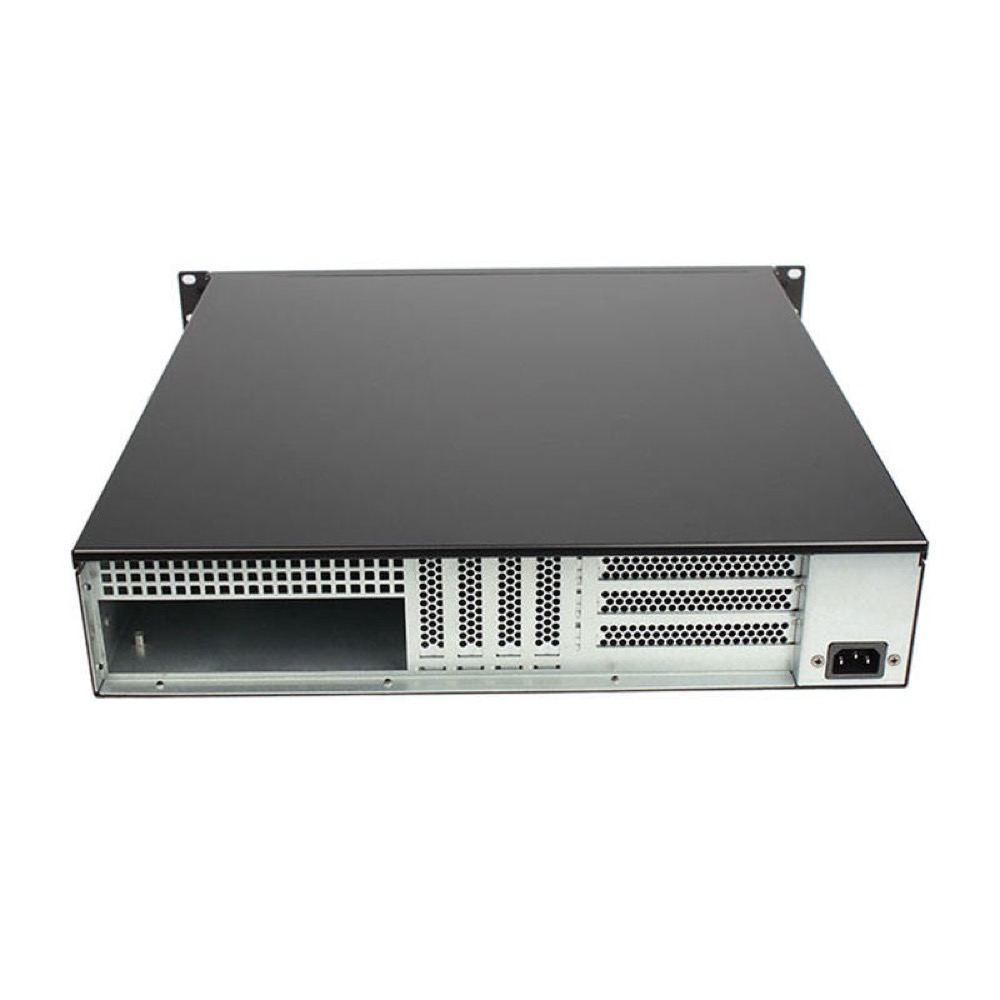

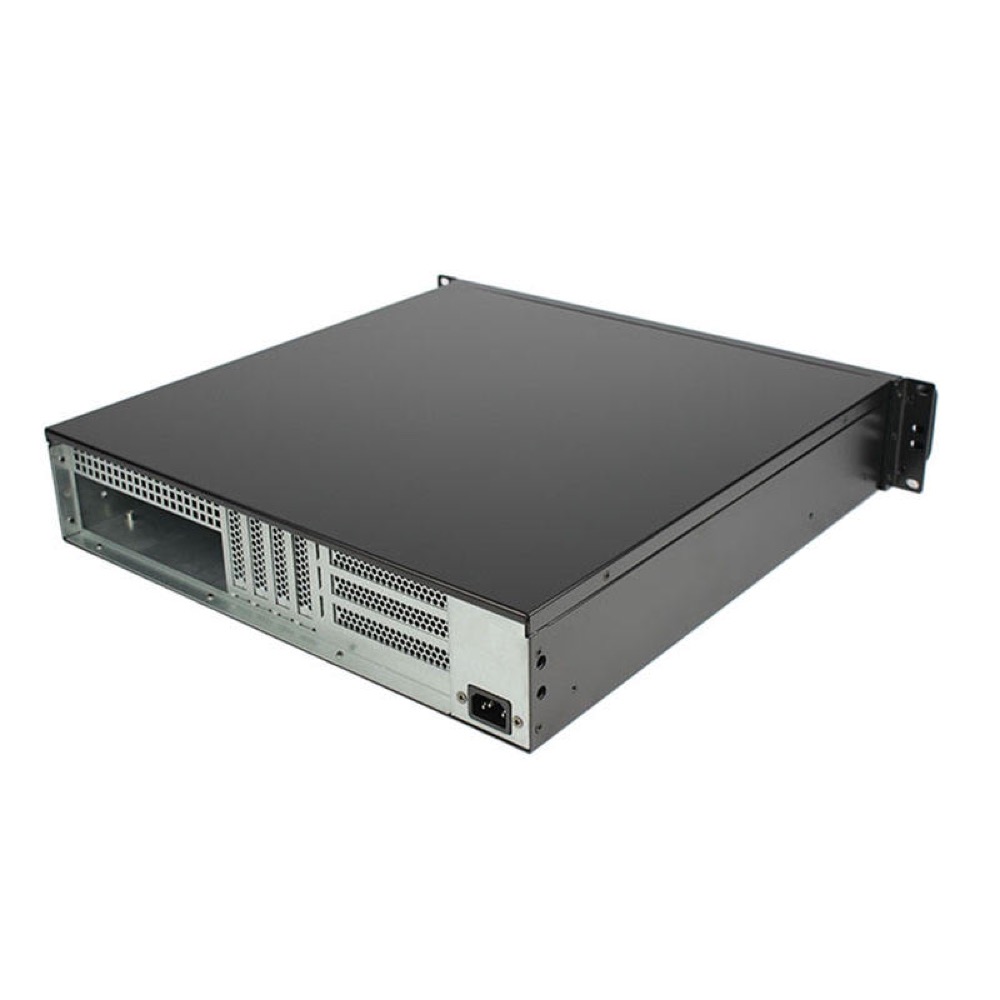

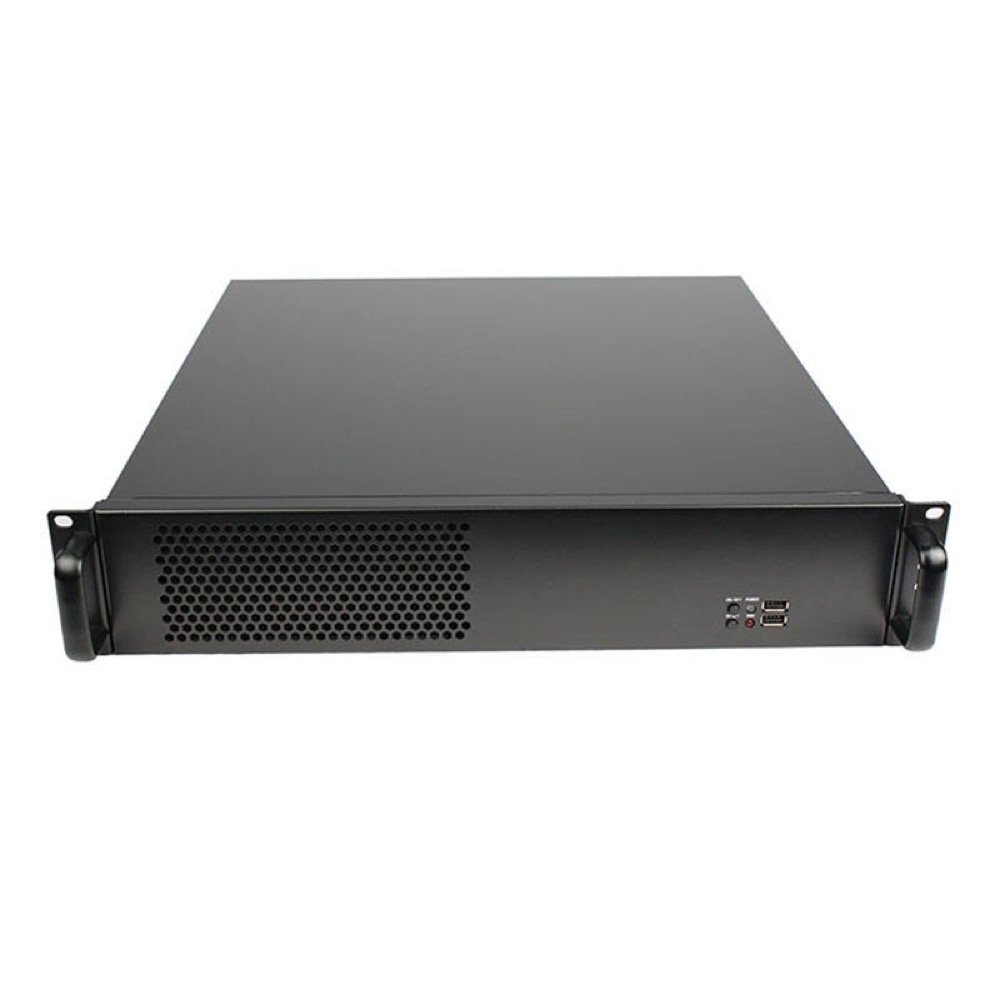

Rackmount Chassis 2U Server Case/Storage Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 89(H) mm
MountingRackmount
MotherboardATX
2U 19-inch rackmount server and storage chassis for industrial computer applications. Supplier-listed configuration: black SGCC 1.2 mm steel construction, ATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX PSU support, three 3.5-inch hard-drive positions or two 3.5-inch plus one 2.5-inch position, two included 8025 cooling fans, four half-height and straight expansion slots, and front USB connectivity. Dimensions: 482(W) × 450(D) × 89(H) mm. Supplier lists no CD-ROM bay, CE/RoHS certification, and 8.86 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K245F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Storage / NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 450 mm |
| Weight | 8.86 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| Drive Types | 3 × 3.5" HDD or 2 × 3.5" + 1 × 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Supplier lists no CD-ROM bay and CE/RoHS certification; USB port count and front power/reset indicators are not specified. |
