In stock
Server Chassis
CHS-SRV-K439L-RPS

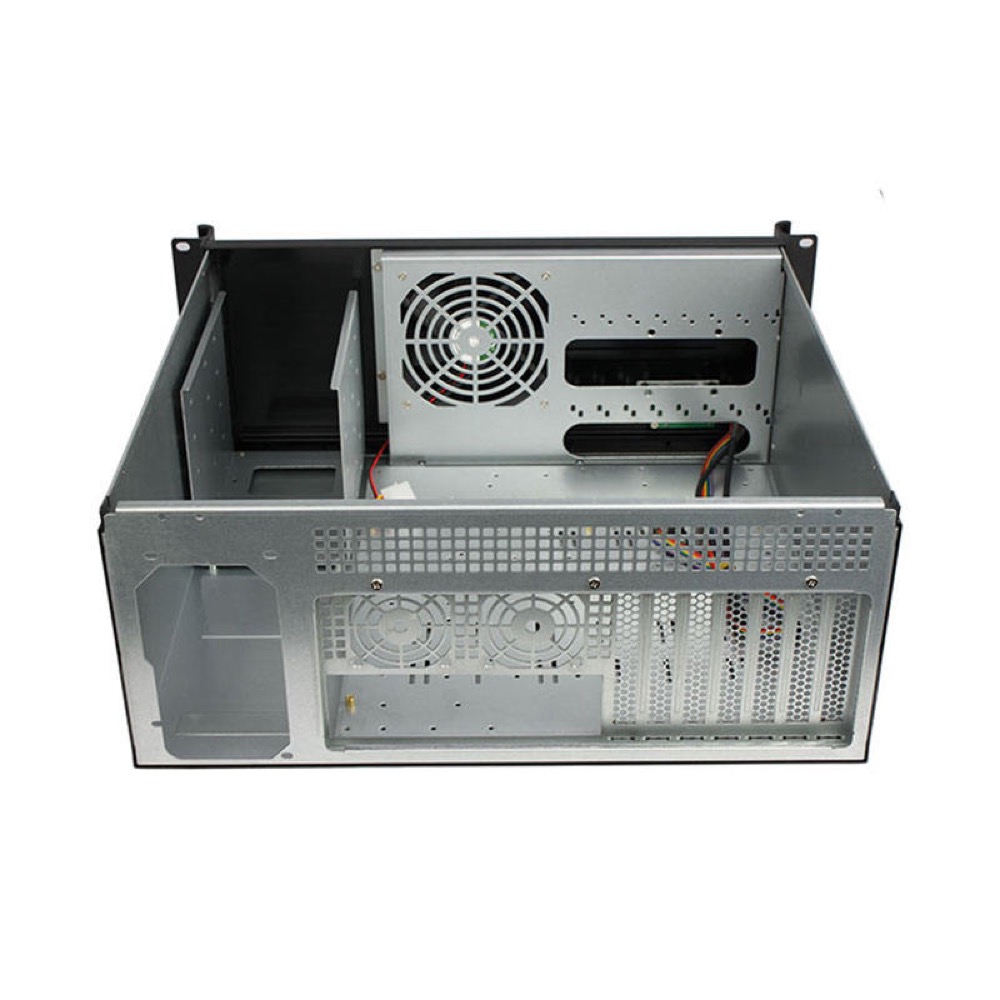

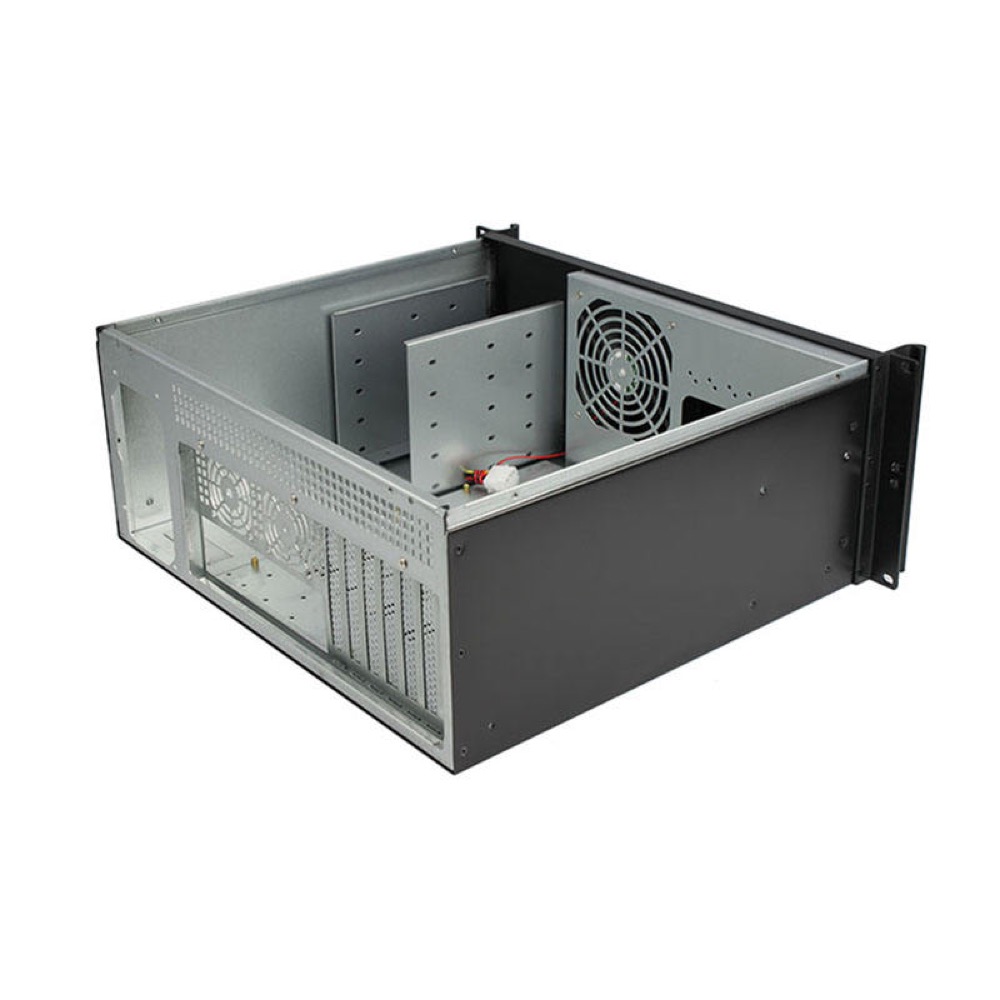

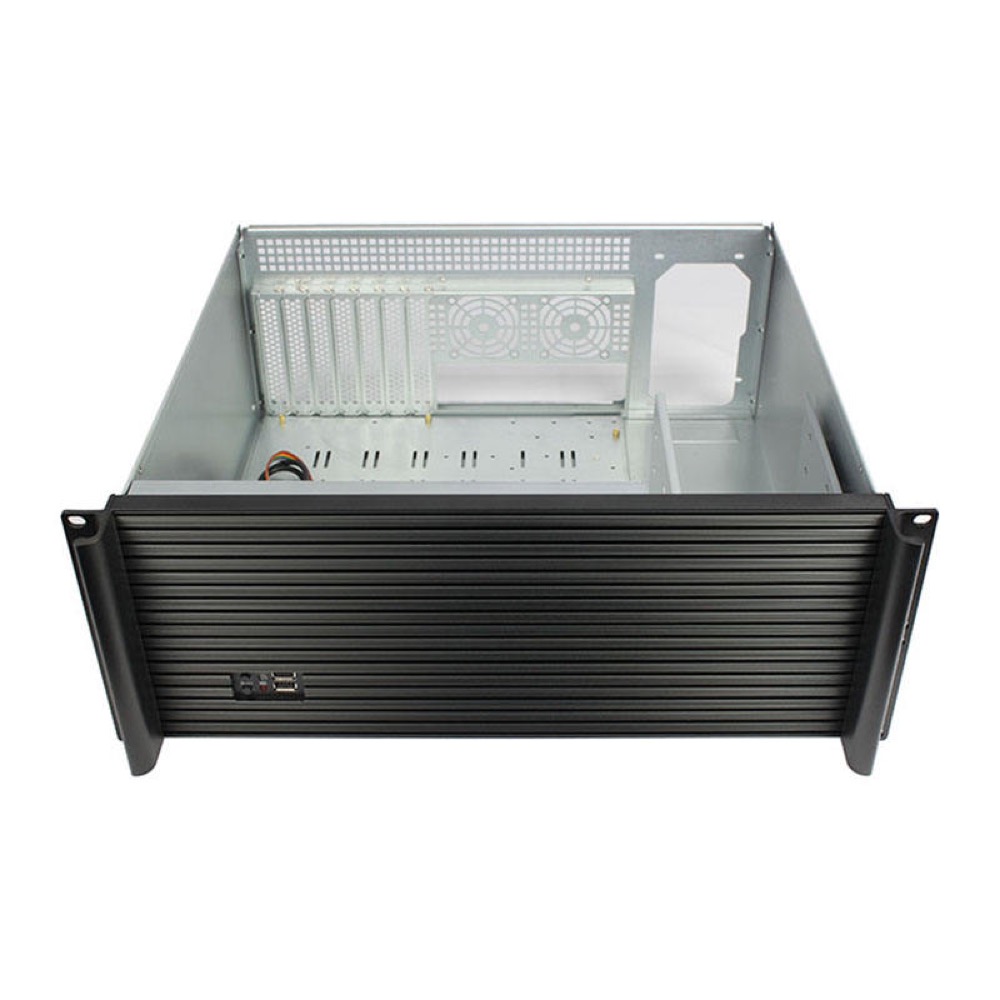

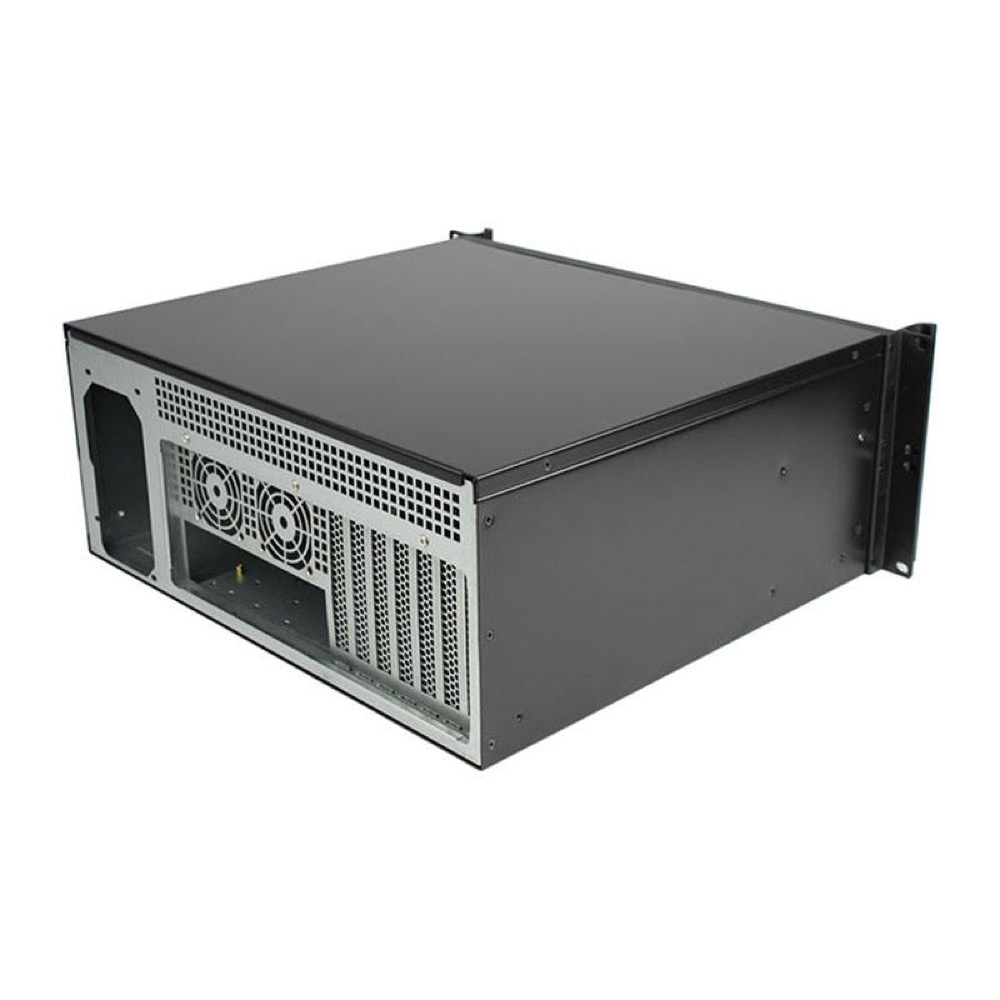

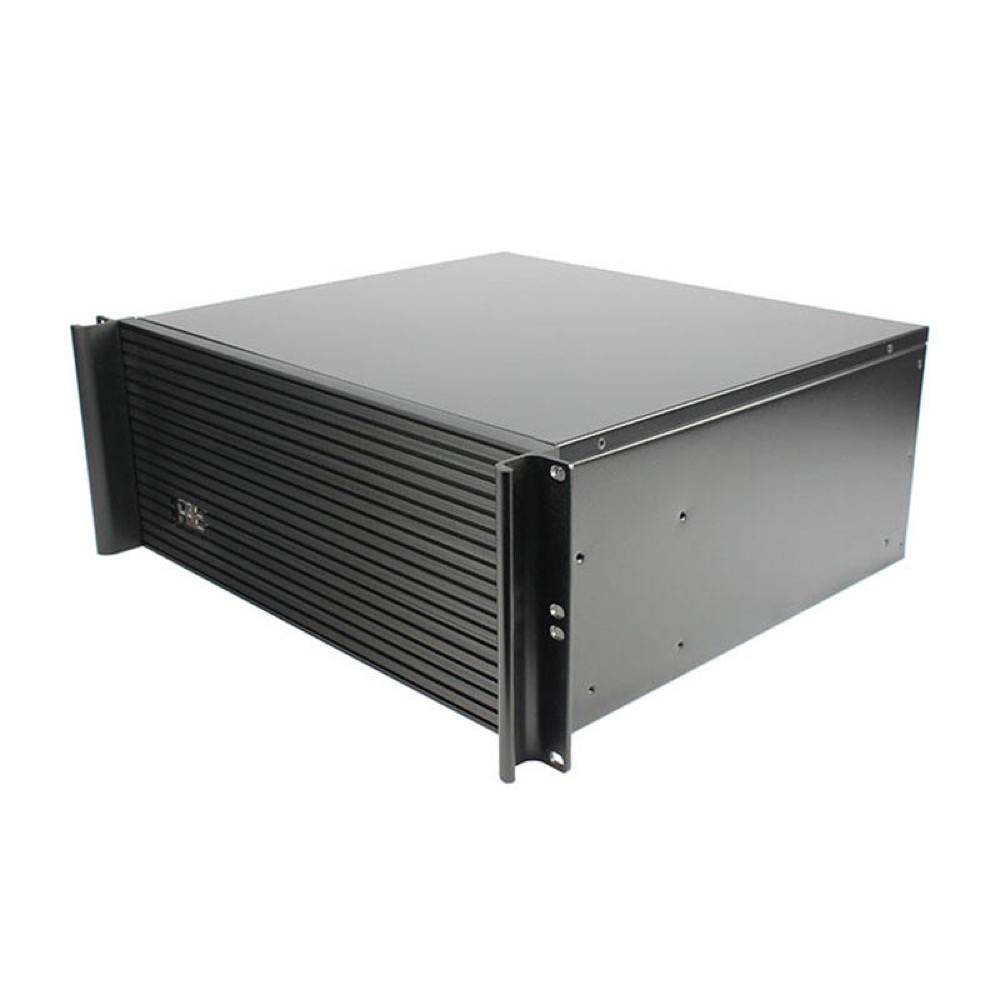

K439L 4U Rackmount Chassis with Redundant PSU Support
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 390(D) × 178(H) mm
MountingRackmount
MotherboardE-ATX
Drive Bays5 bays
K439L 4U 19-inch rackmount server chassis variant advertised with redundant hot-swap power-supply support. The supplier's technical attributes list an aluminum-alloy and steel enclosure measuring 482(W) × 390(D) × 178(H) mm, E-ATX motherboard support up to 305 × 340 mm, ATX PSU support, five 3.5-inch hard-drive bays, seven full-height PCIe slots, two USB 2.0 ports, and one 12025 fan. The listing does not confirm that a PSU is included, so the public product remains an empty chassis with redundant PSU support.
Specifications
Identity
| Model Number | CHS-SRV-K439L-RPS |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with one 120 mm cooling fan. ATX PSU compatibility and advertised redundant hot-swap PSU support are provided; PSU, motherboard, CPU, memory, and storage are not confirmed as included. |
| Use Case / Application | Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Aluminum alloy and SGCC steel, 1.2 mm steel |
| Finish / Color | Black with side-panel window |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 390 mm |
| Weight | 10.5 kg gross / 8.5 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm |
Power Supply
| PSU Support | ATX PSU, Redundant hot-swap PSU support |
| PSU Included | No |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 5 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier title advertises redundant hot-swap power-supply support, but the technical attributes only specify ATX PSU support and do not confirm an included PSU or PSU hot-swap module. Front panel includes two USB 2.0 ports, power/reset controls, and indicators. Seven full-height straight PCIe slots and five 3.5-inch HDD positions are listed. |
