Server Chassis
CHS-SRV-K446C

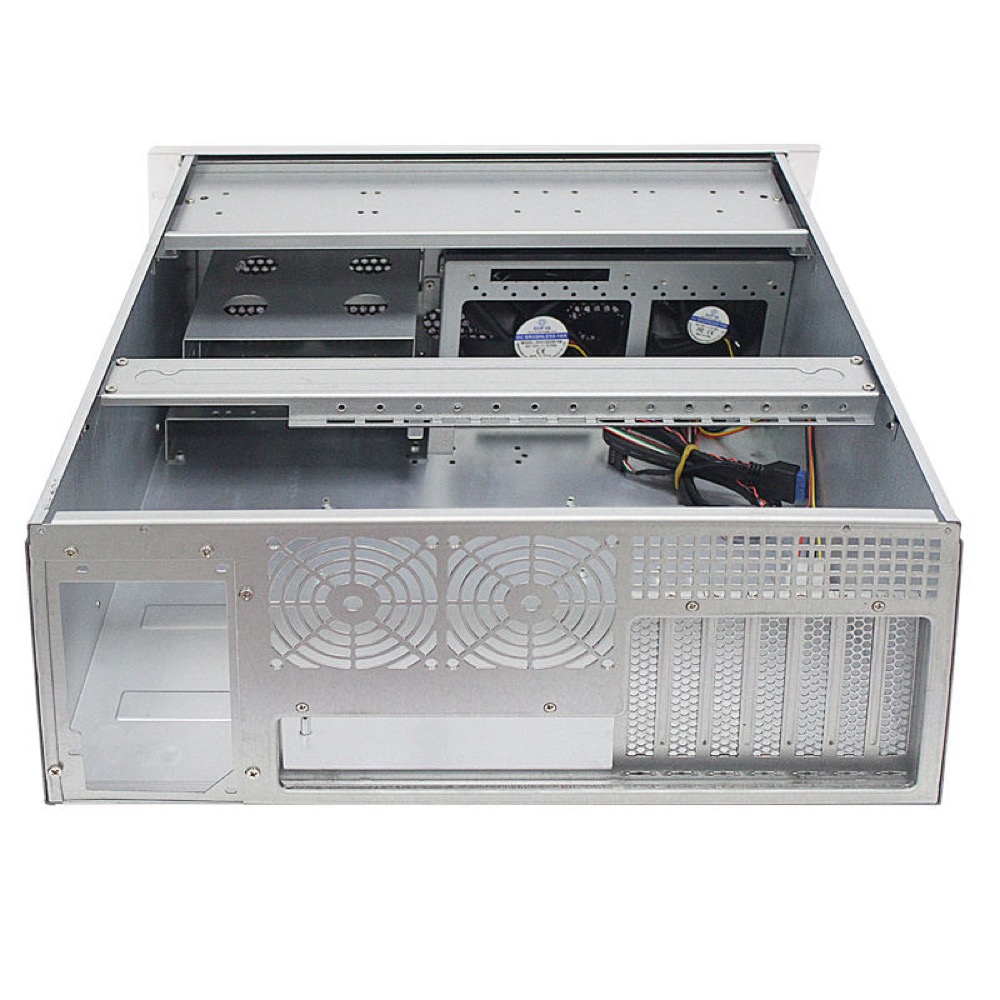

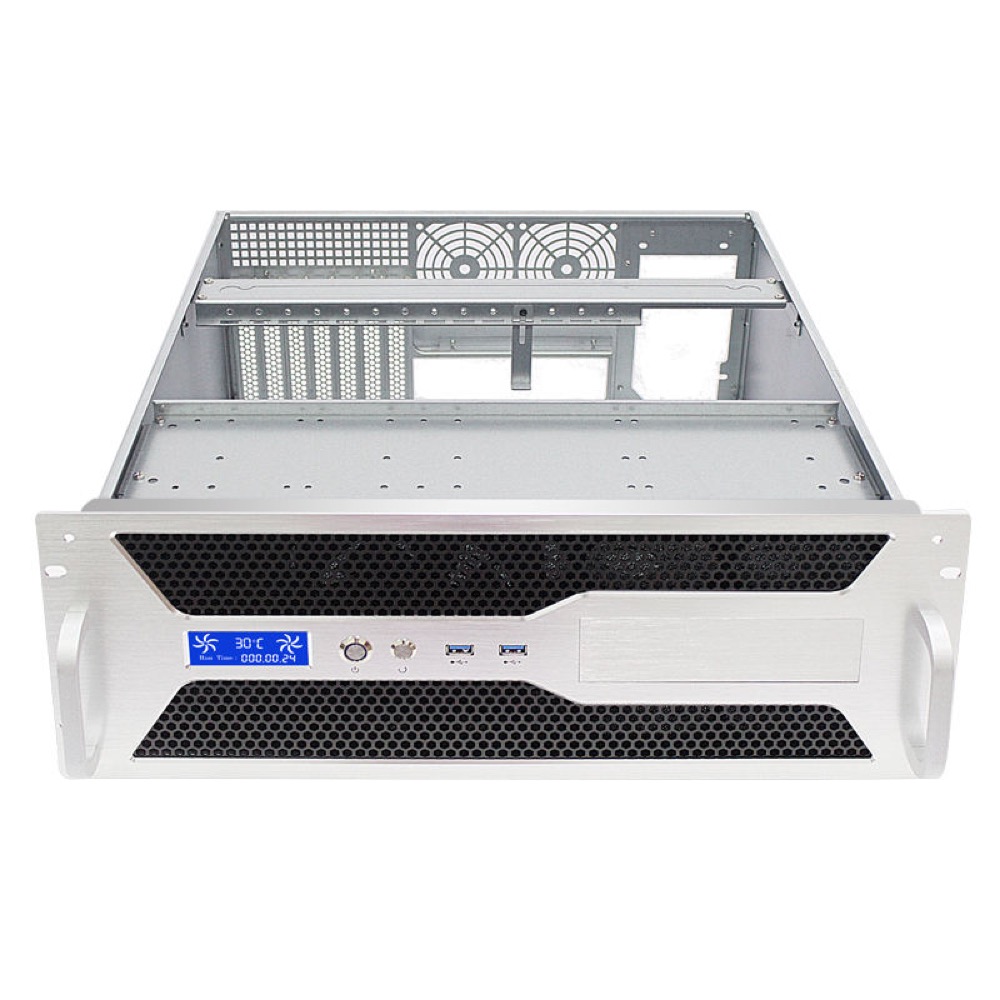

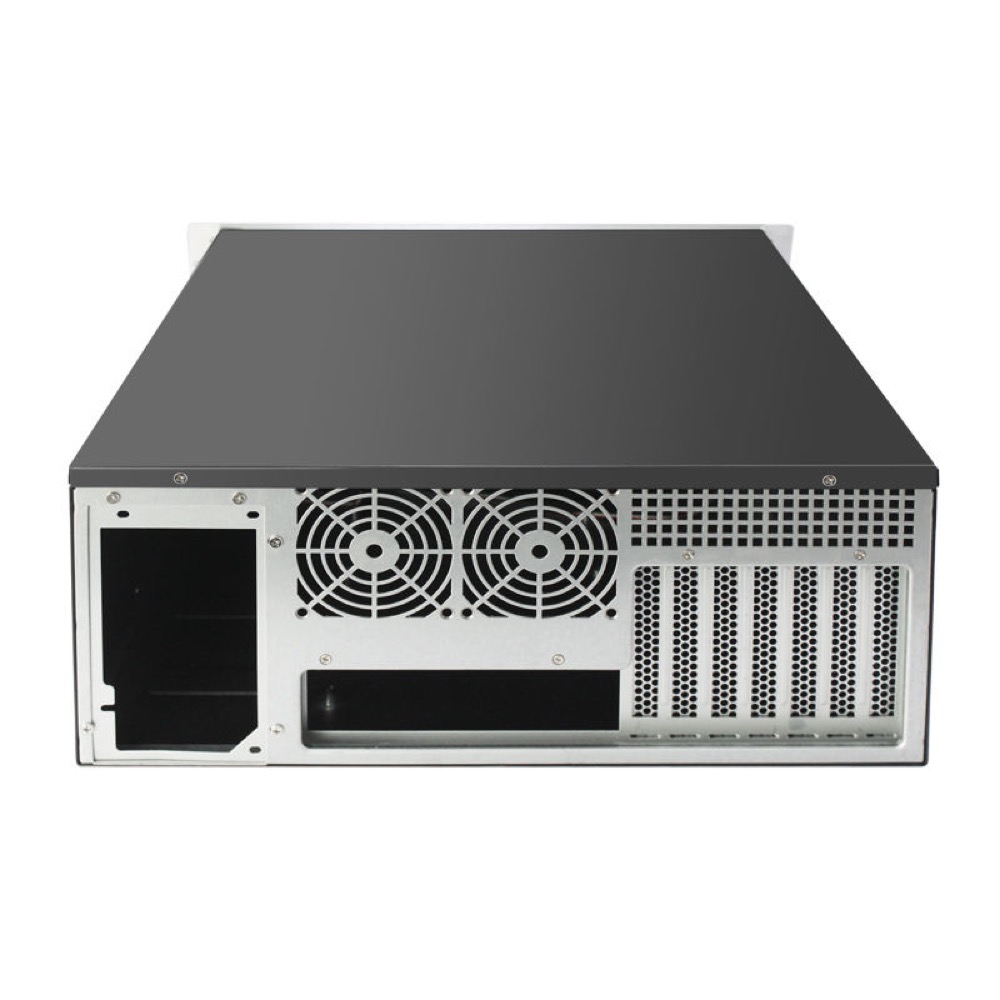

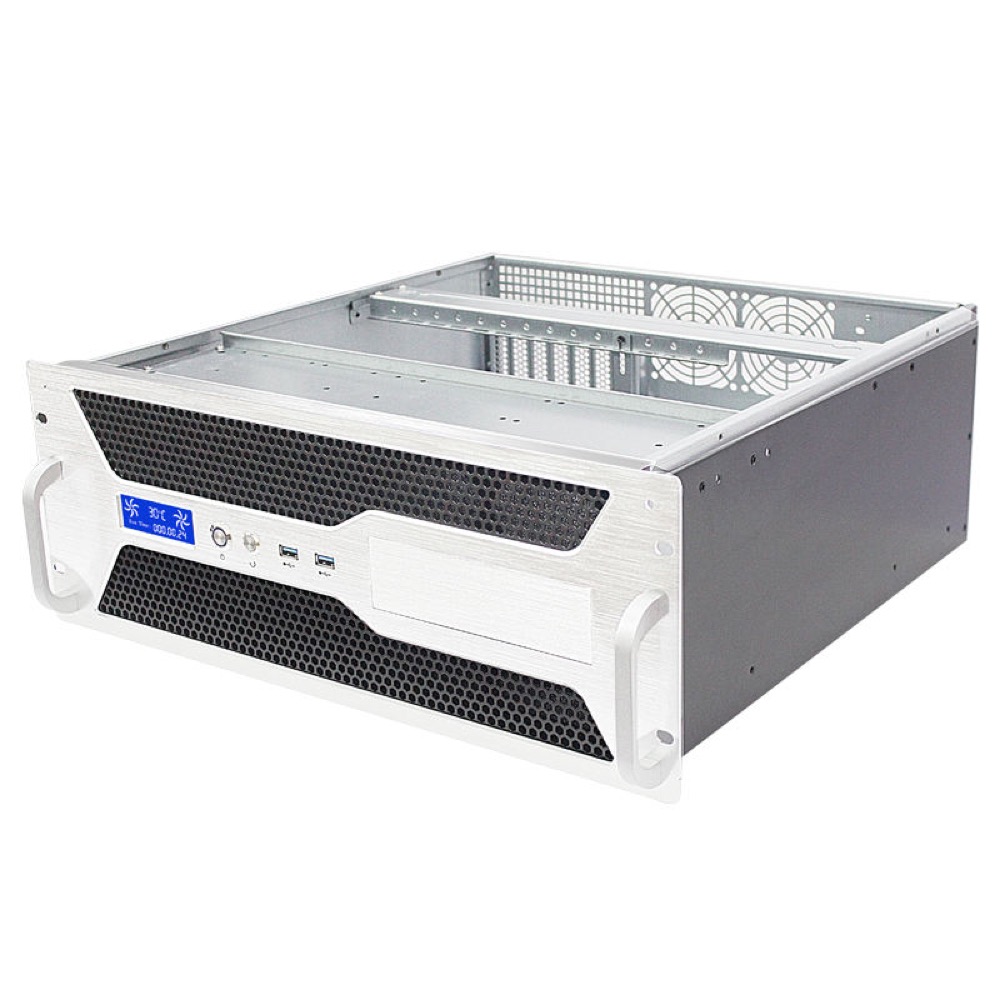

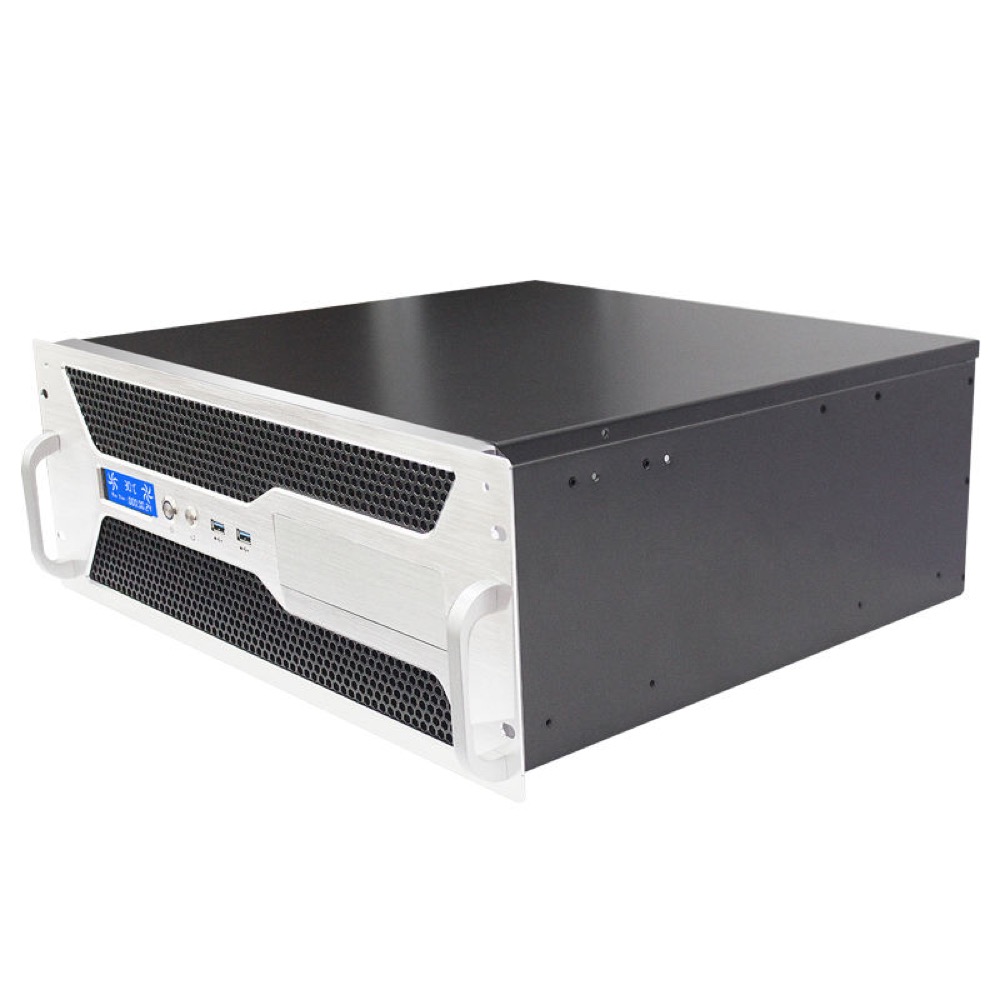

4U Industrial Computer Rackmount Case with LCD IPC Server Compatible for Server Room or Industrial Applications
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 178(H) mm
MountingRackmount
MotherboardMicro-ATX
Drive Bays3 bays
4U 19-inch industrial rackmount chassis for server-room and industrial applications. Supplier-listed configuration: SGCC steel with aluminum front panel and 1.2 mm material thickness, support for a 12 × 9.6-inch motherboard (305 × 245 mm), ATX and redundant PSU support, either three 3.5-inch drives or two 3.5-inch plus one 2.5-inch drive, one 5.25-inch CD-ROM position, one 12025 and one 8025 cooling fan, seven full-height straight expansion slots, and a front temperature screen with power/reset controls. Dimensions: 482(W) × 450(D) × 178(H) mm. Supplier lists stock availability and a 11.5 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K446C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; front temperature LCD/screen; one 12025 fan; one 8025 fan. PSU inclusion is not specified; the chassis supports ATX and redundant PSU configurations. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | SGCC steel |
| Finish / Color | Aluminum front panel; supplier page does not specify chassis color |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 450 mm |
| Weight | 11.5 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX, Custom |
| PSU Included | No |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5", Mixed 2.5" / 3.5" |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025); 80 × 80 × 25 mm (8025) |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Temperature screen; resolution not specified |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | USB 3.x, Custom I/O |
| Custom I/O Details | Front panel: two USB 3.0 ports, power switch, reset switch, and temperature screen. Drive layout is either 3 × 3.5-inch HDD or 2 × 3.5-inch HDD plus 1 × 2.5-inch HDD. Supplier also lists one 5.25-inch CD-ROM position and seven full-height straight expansion slots. |
Similar products
Alternatives in this class
CHS-SRV-K430FB
Good Price 4U K430FB 19 Inch Industrial Rackmount Chassis 7 Full Height Slots 3x3.5" HDD Support Application Servers Security• Height: 178 mm
CHS-SRV-K448C

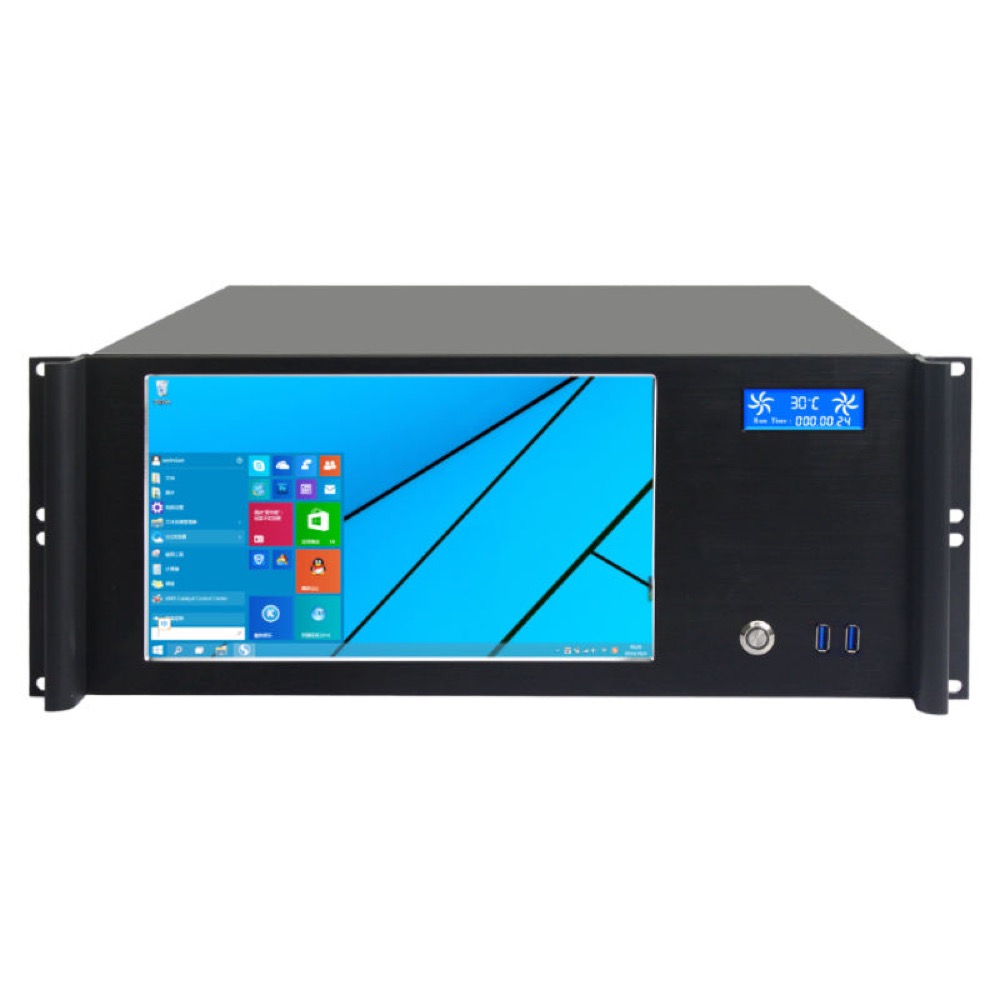

New Design Aluminum 4U Industrial ATX Computer Server Chassis 11.6" LCD Touch Screen 1366×768 Resolution with Fan Rack Style• Height: 178 mm
