In stock
Server Chassis
CHS-SRV-K235L-2

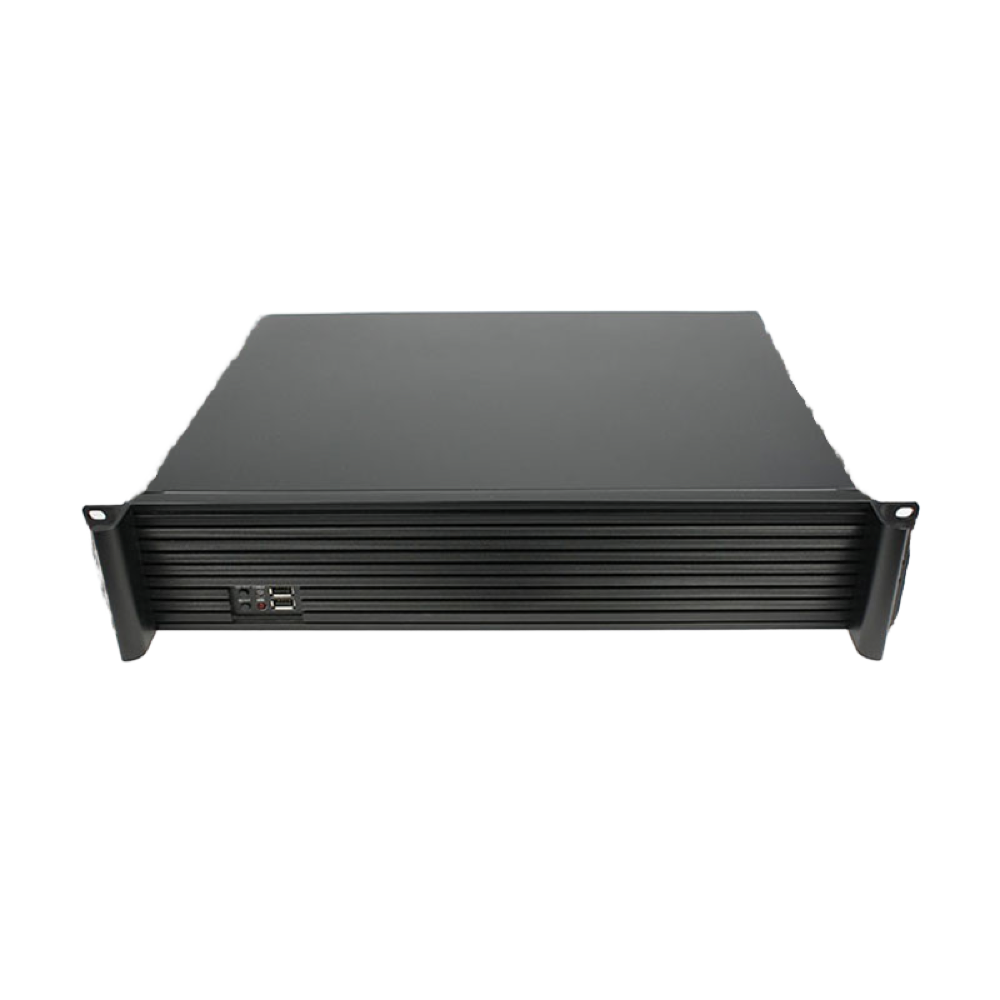

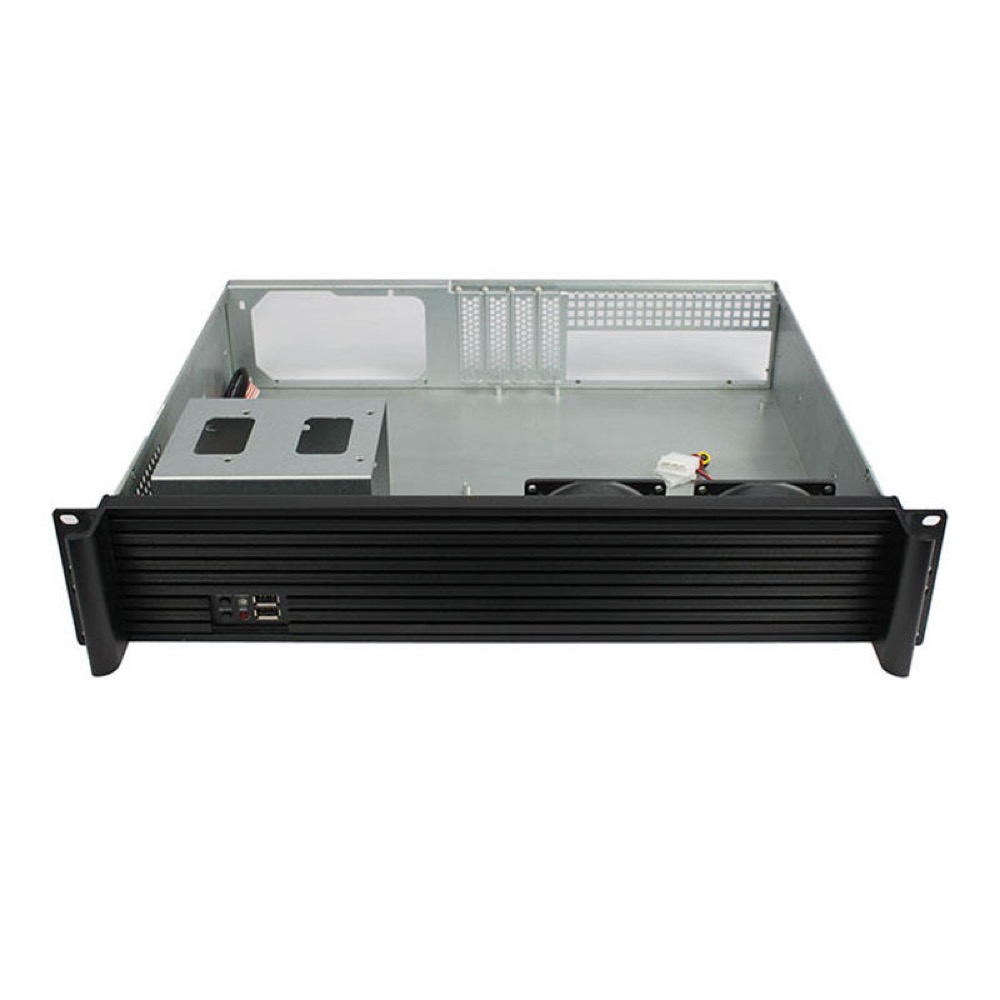

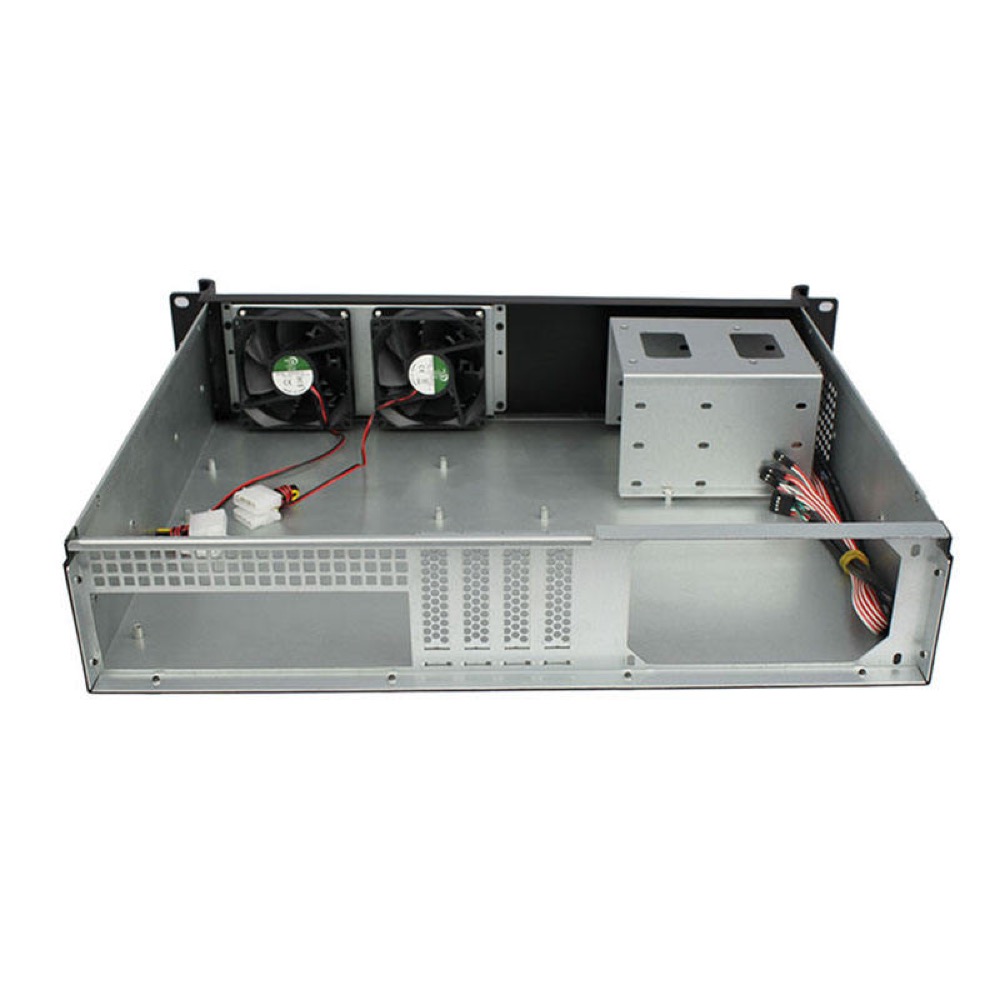

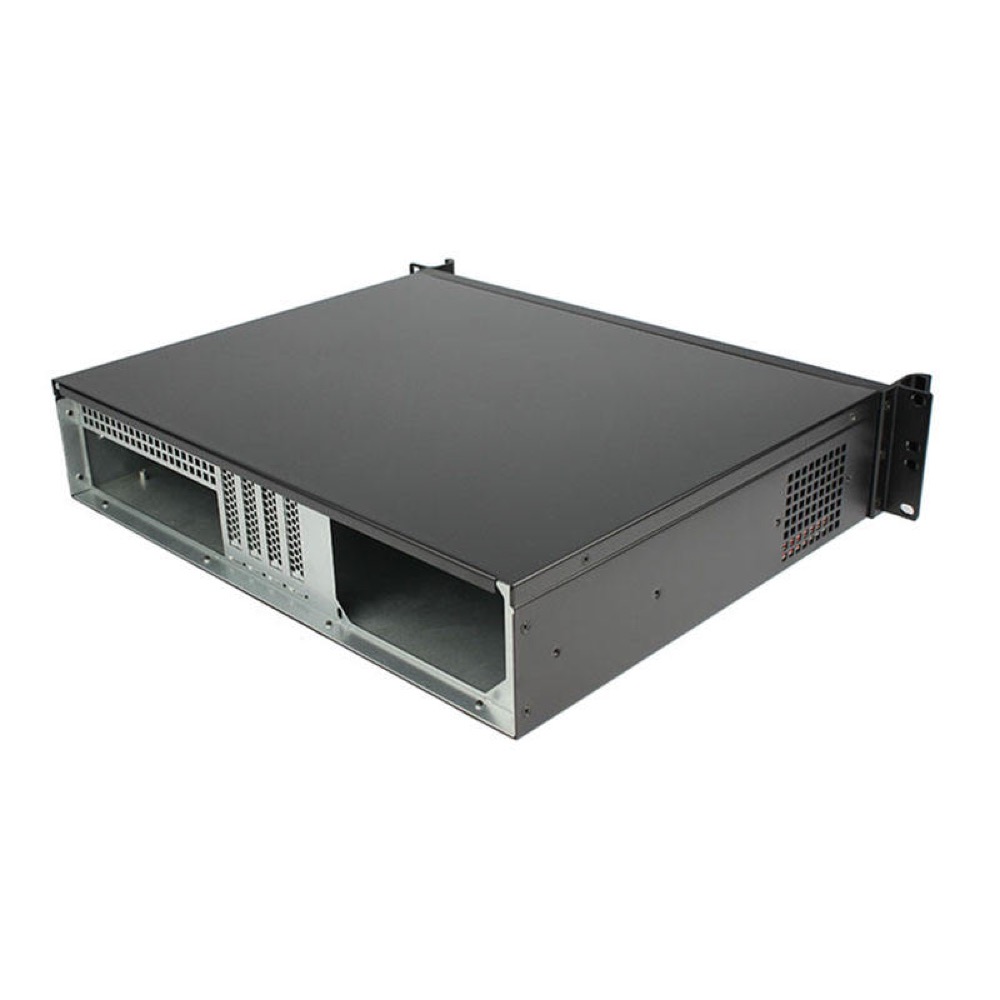

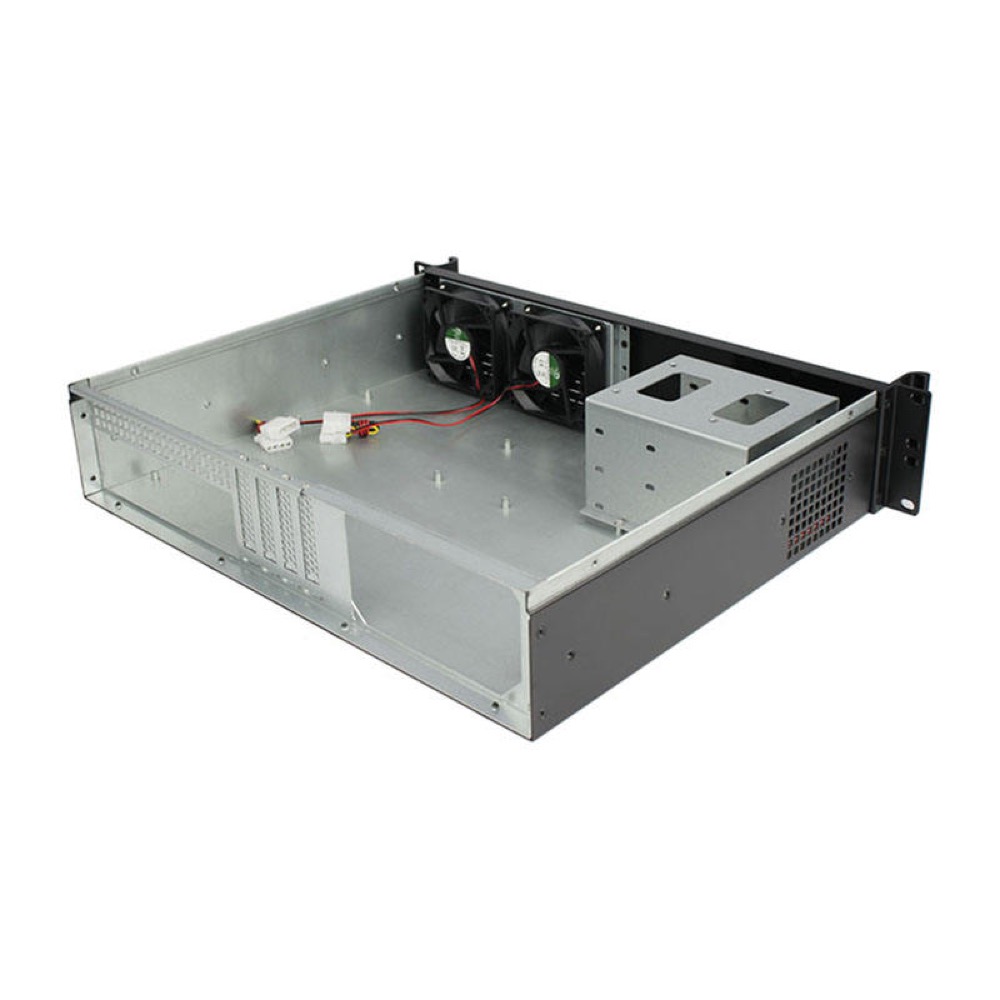

K235L-2 2U Micro-ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 89(H) mm
MountingRackmount
MotherboardMicro-ATX
Drive Bays3 bays
Short-depth 2U 19-inch rackmount chassis for Micro-ATX systems. The supplier lists a 245 × 245 mm Micro-ATX motherboard footprint, ATX PSU support, three 3.5-inch drives or one 3.5-inch plus two 2.5-inch drives, seven full-height straight expansion slots, two 8025 fans, USB front connectivity, and a side-panel window. Supplier-listed dimensions are 482(W) × 350(D) × 89(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K235L-2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with two 8025 cooling fans. ATX PSU support is provided; PSU and motherboard are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | Steel; supplier title also references aluminum alloy |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 350 mm |
| Weight | 5.79 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 3 × 3.5-inch HDD, or 1 × 3.5-inch HDD + 2 × 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Full-height, Straight slot |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Front USB connectivity, side-panel window, seven full-height straight expansion slots, and two 8025 cooling fans. |
