In stock
Server Chassis
CHS-SRV-K240E

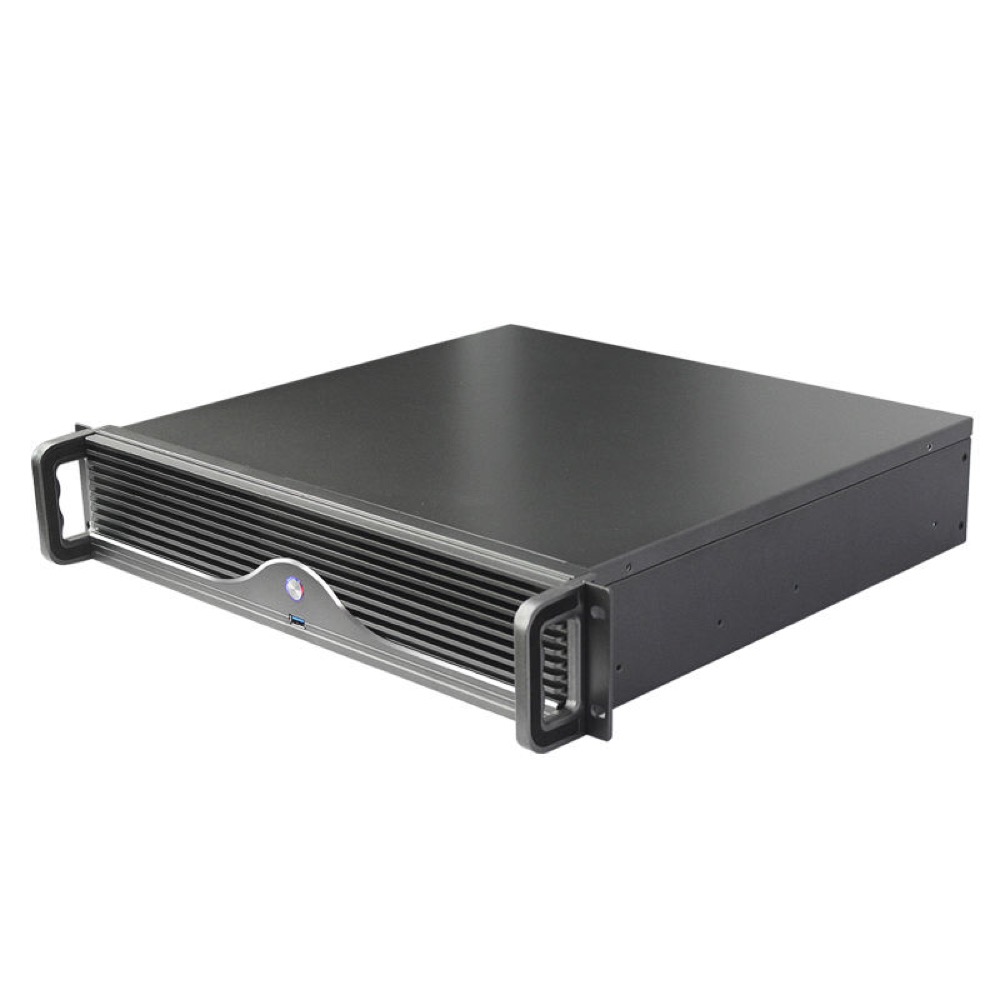

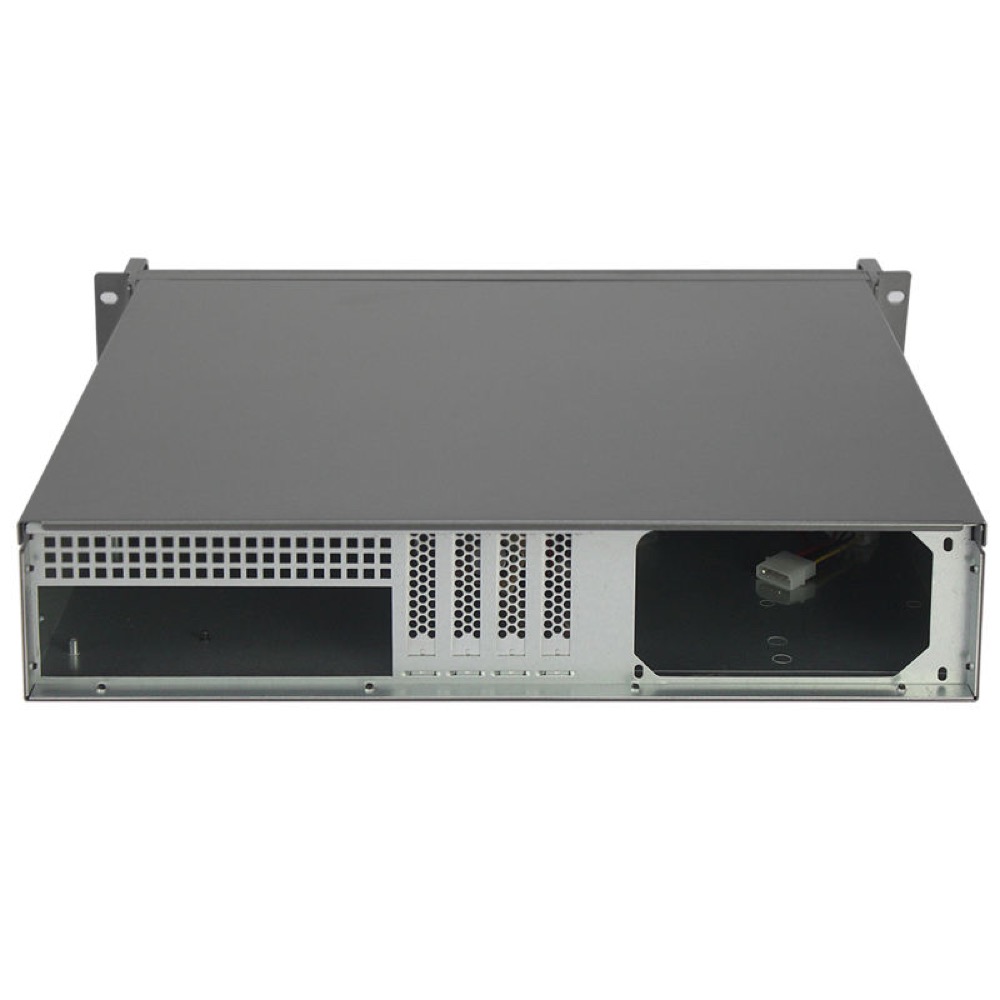

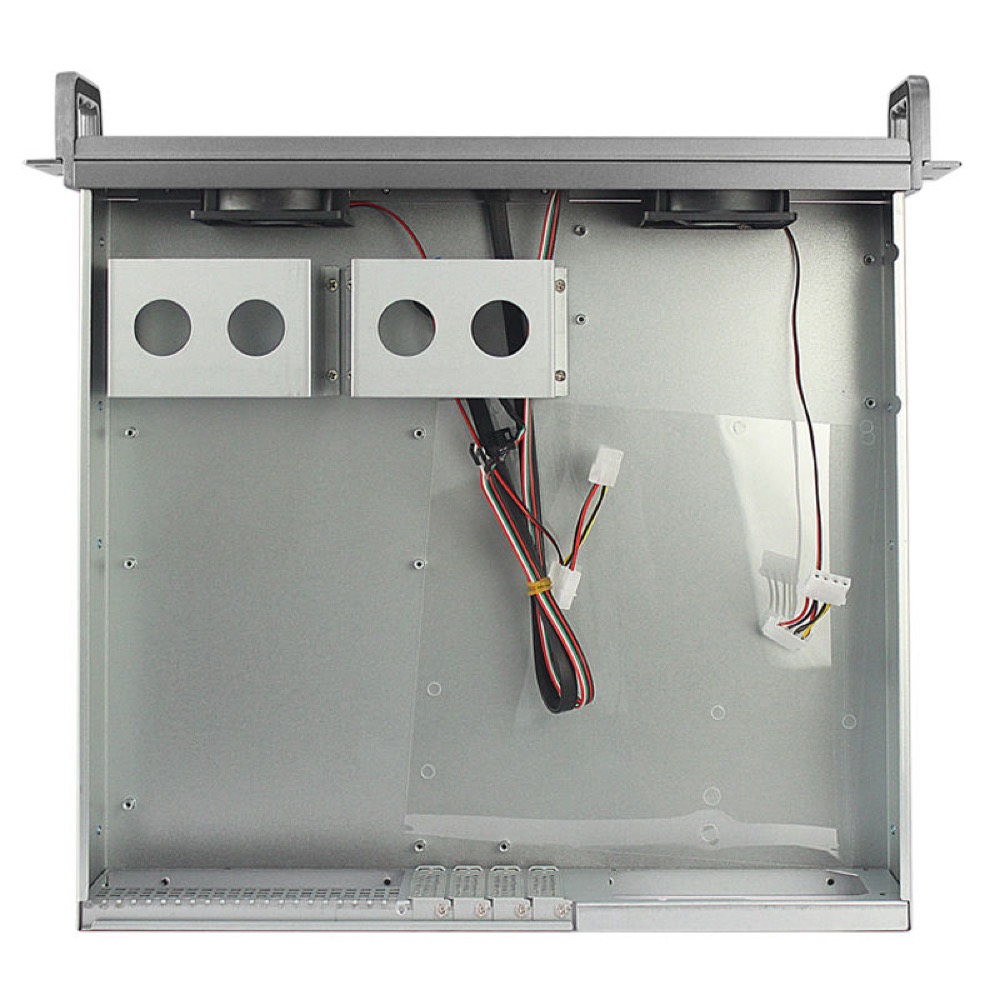

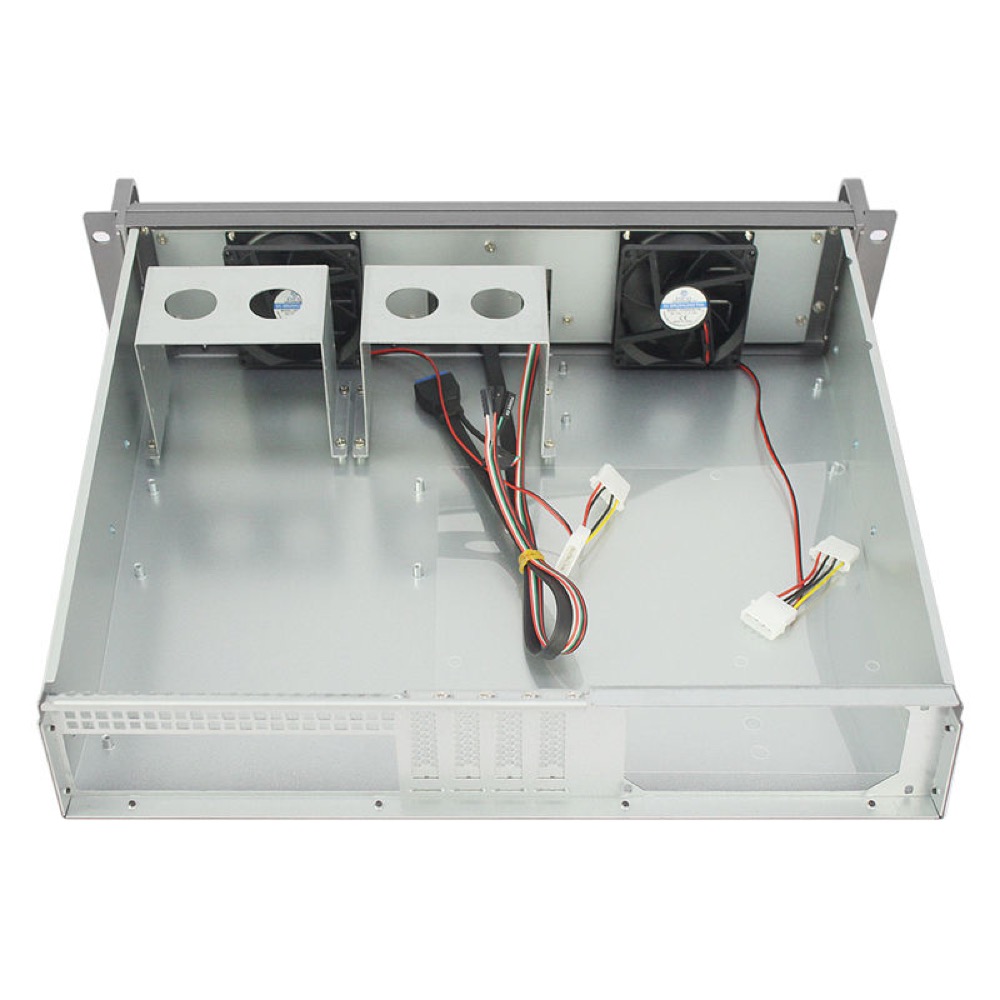

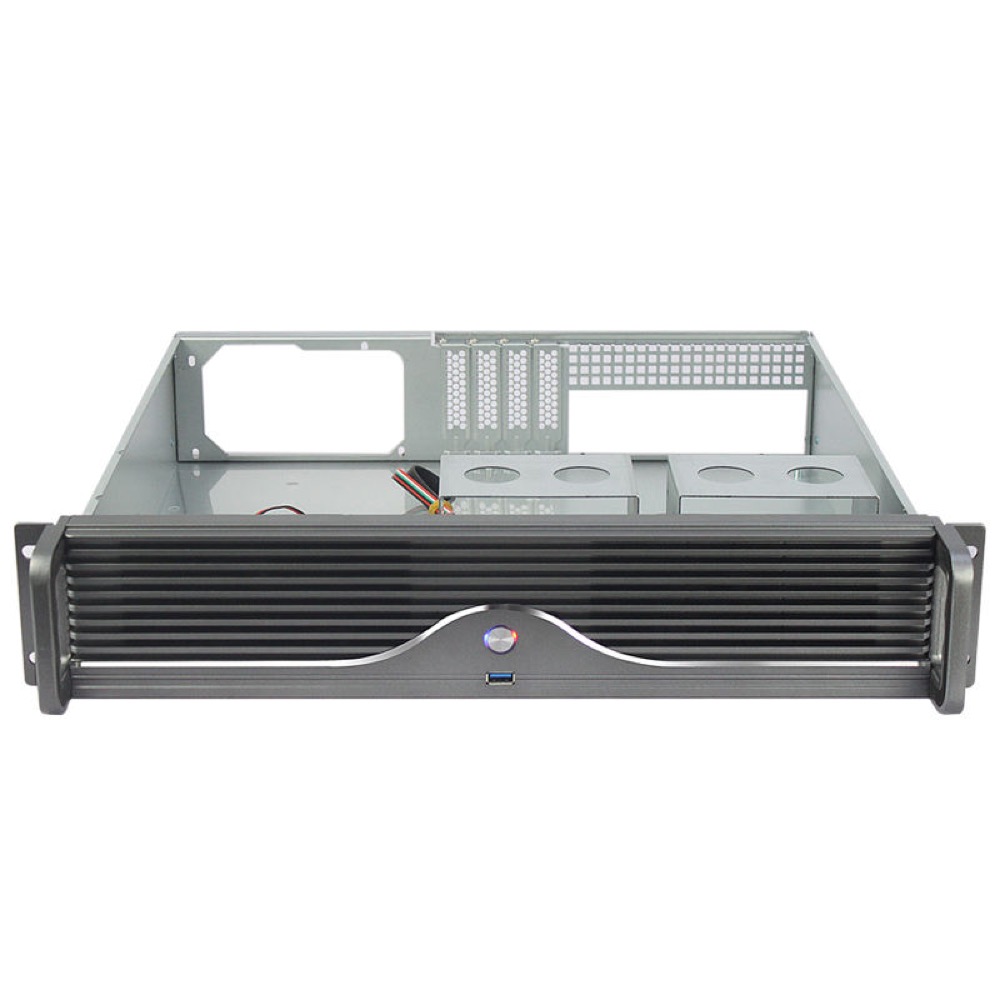

Industrial 2U 19 Inch Rackmount Chassis Model K240E for Micro ATX Motherboard with 4x3.5" HDD and ATX PSU in Stock
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 400(D) × 89(H) mm
MountingRackmount
MotherboardMicro-ATX
Drive Bays4 bays
2U 19-inch industrial rackmount chassis for server and industrial PC applications. Supplier-listed configuration: SGCC chassis, Micro-ATX motherboard support up to 245 × 245 mm (9.6 × 9.6 inches), ATX power supply support, four 3.5-inch hard-drive positions, two 8025 cooling fans, and a front power switch with indicator. Dimensions: 482(W) × 400(D) × 89(H) mm. The supplier lists 75 mm CPU cooler clearance and 200 mm CPU/GPU size, plus 5.6 kg net weight and 6.9 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K240E |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel |
| Finish / Color | SGCC steel; finish/color not specified |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 400 mm |
| Weight | 5.6 kg net; 6.9 kg gross single package |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6" × 9.6") |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| Drive Types | 3.5" HDD |
PCIe and GPU Support
| Maximum GPU Length | 200 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
| Maximum CPU Cooler Height | 75 mm |
I/O and Connectivity
| Front I/O | Power switch with indicator |
| Custom I/O Details | Supplier lists a front power switch with indicator; USB, reset, and other I/O are not specified. |
