In stock
Server Chassis
CHS-SRV-K235L

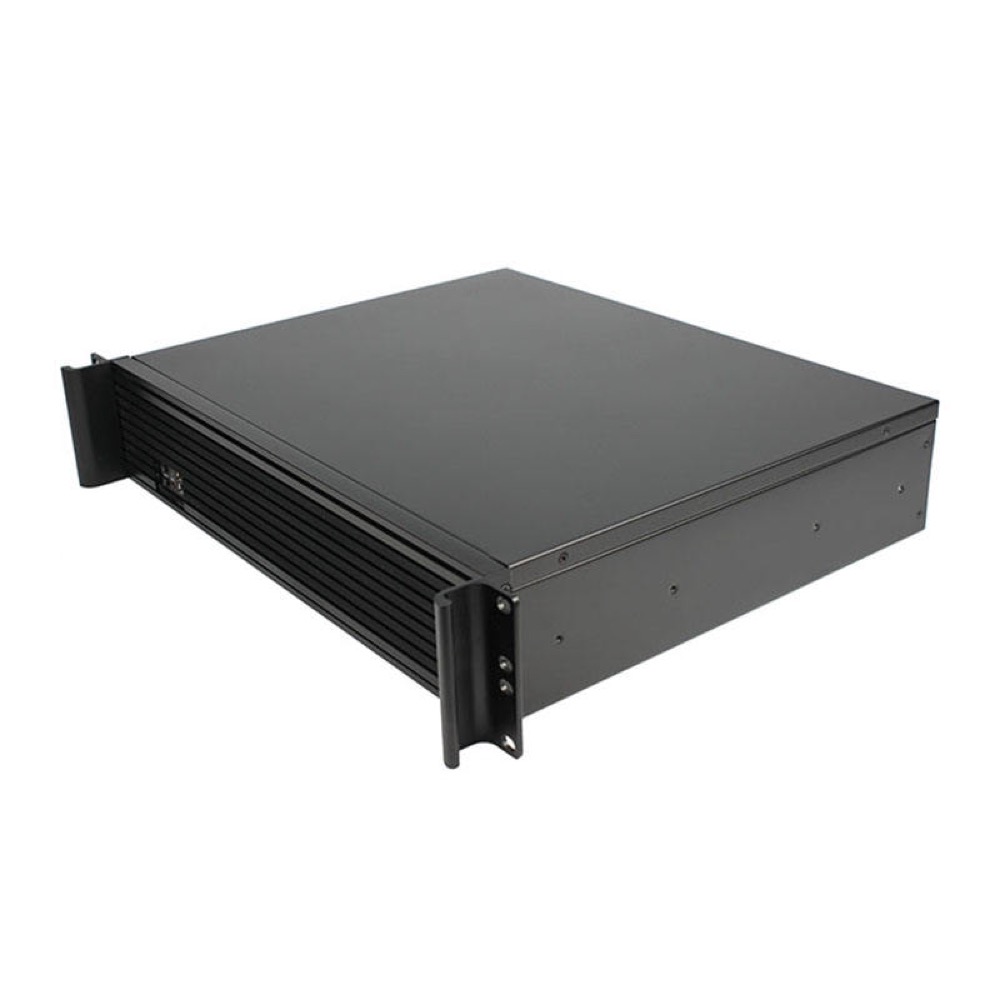

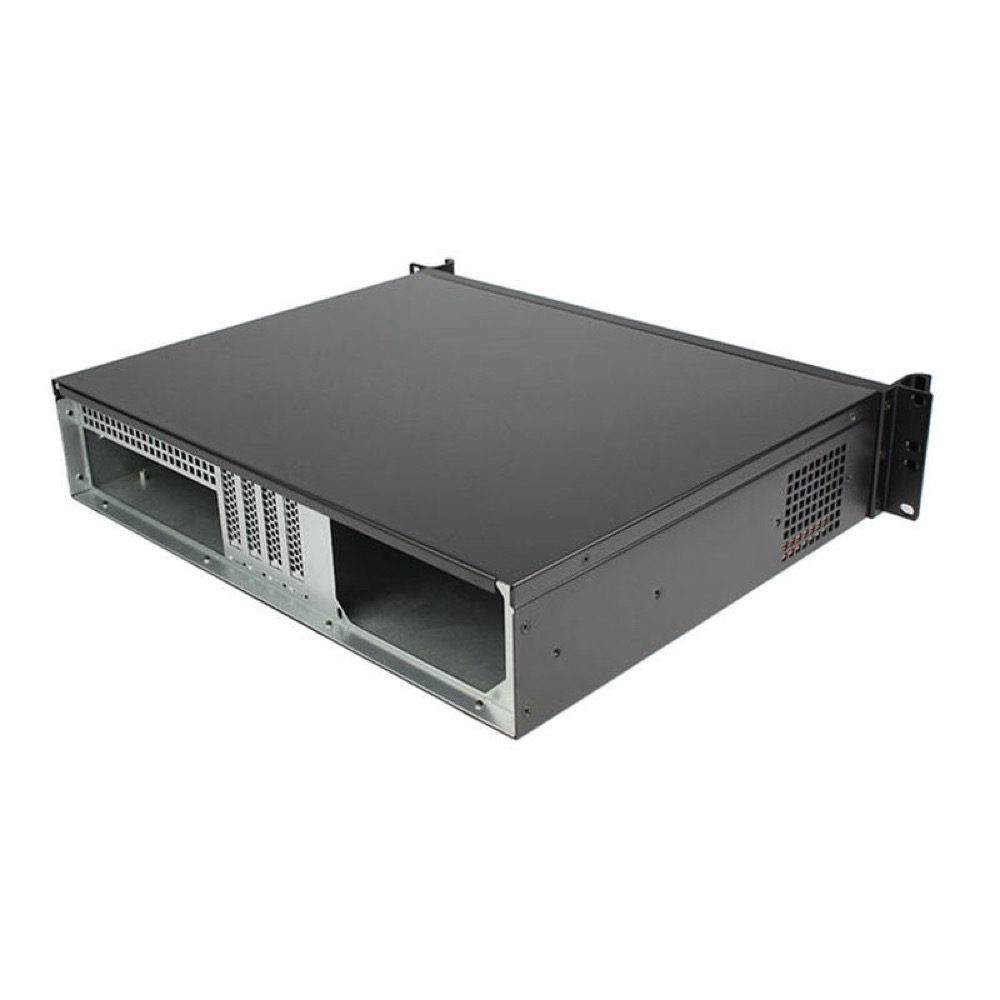

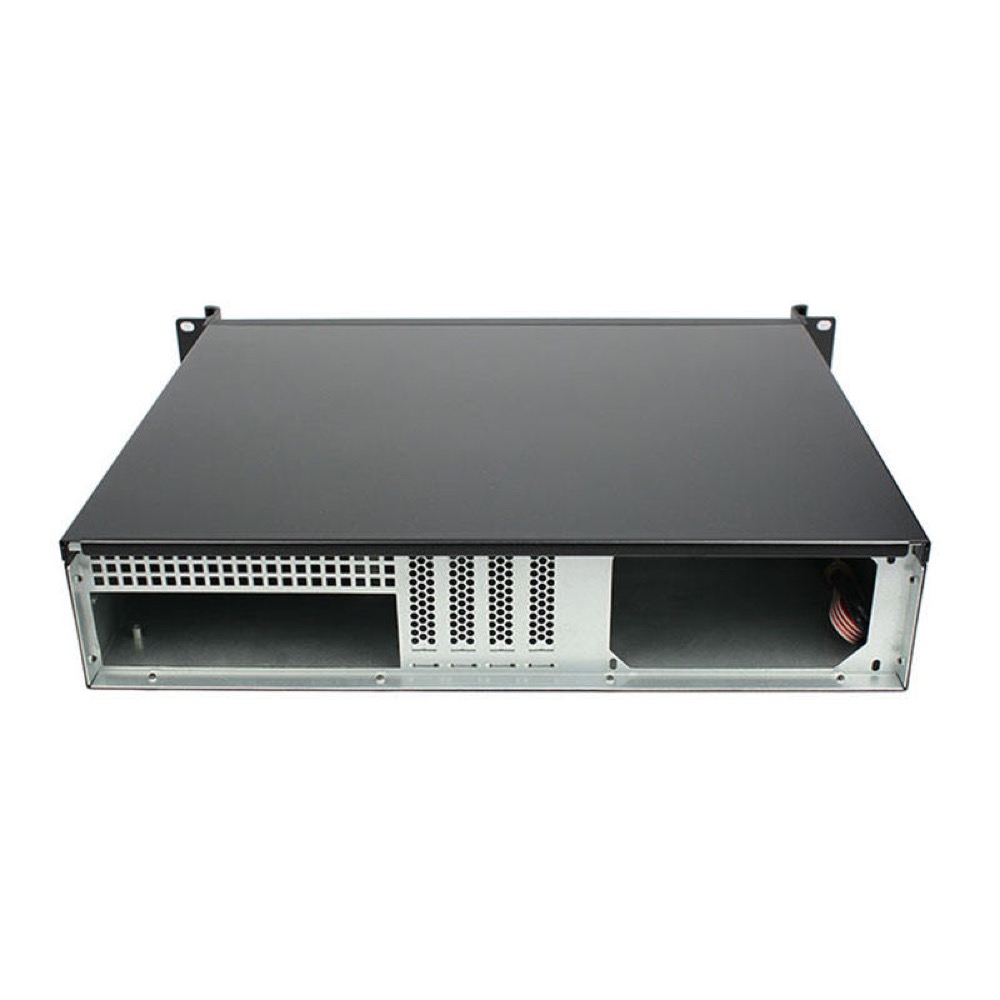

2U Server Case 19 Inch Rackmount with Fan Support OEM
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 89(H) mm
MountingRackmount
MotherboardMicro-ATX
Drive Bays3 bays
2U 19-inch rackmount industrial chassis for server, storage, network and industrial-control applications. Supplier-listed configuration: SGCC flower-free zinc-plated steel with 1.2 mm material thickness, support for a 9.6 × 9.6-inch motherboard (245 × 245 mm), ATX PSU support, either three 3.5-inch drives or two 2.5-inch plus one 3.5-inch drive, no CD-ROM position, two 8025 cooling fans, four half-height straight expansion slots, and front USB 2.0, power/reset switches, power indicator, and hard-disk indicator. Dimensions: 482(W) × 350(D) × 89(H) mm. Supplier lists stock status and 5.797 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K235L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans. ATX PSU support is provided; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC, Network / Telecom |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 350 mm |
| Weight | 5.797 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 3.5", Mixed 2.5" / 3.5" |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, reset switch, power indicator, and hard-disk indicator. Drive layout is either three 3.5-inch HDDs or two 2.5-inch HDDs plus one 3.5-inch HDD. Supplier lists no CD-ROM position and four half-height straight expansion slots. |
