In stock
Server Chassis
CHS-SRV-S34W

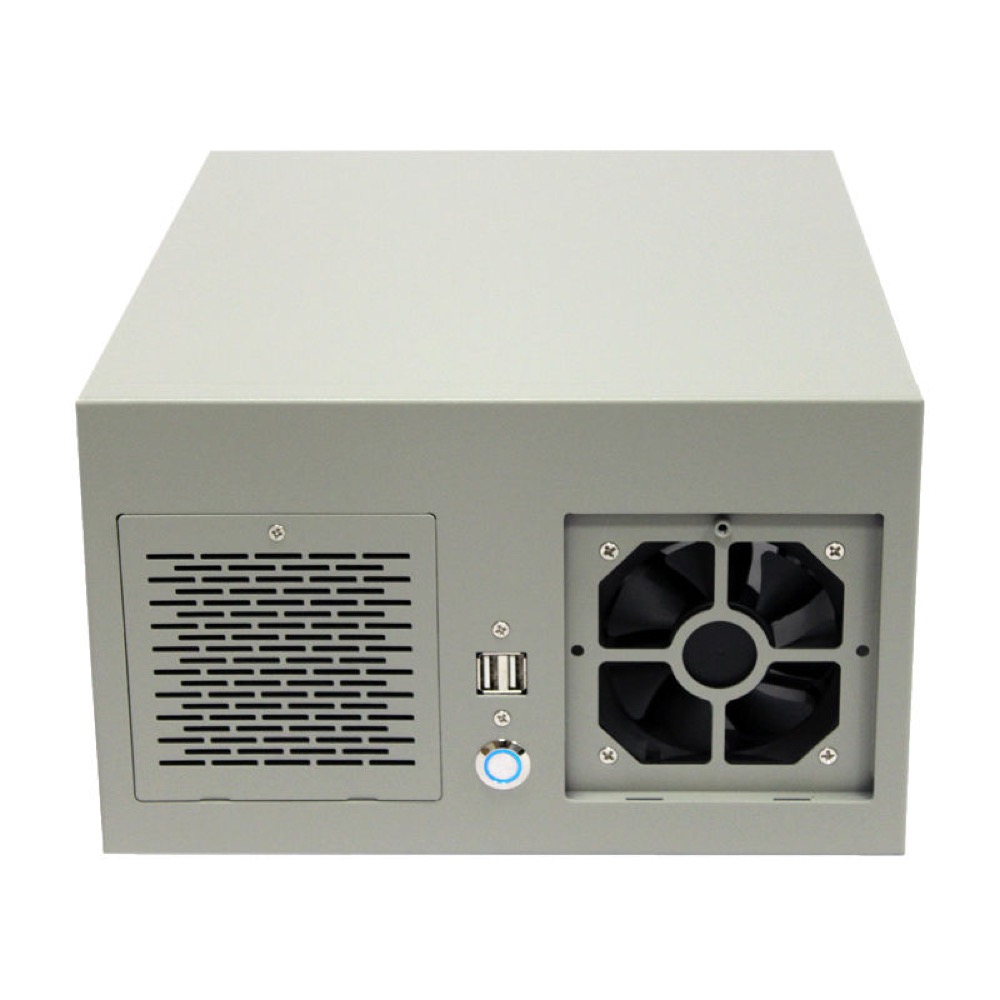

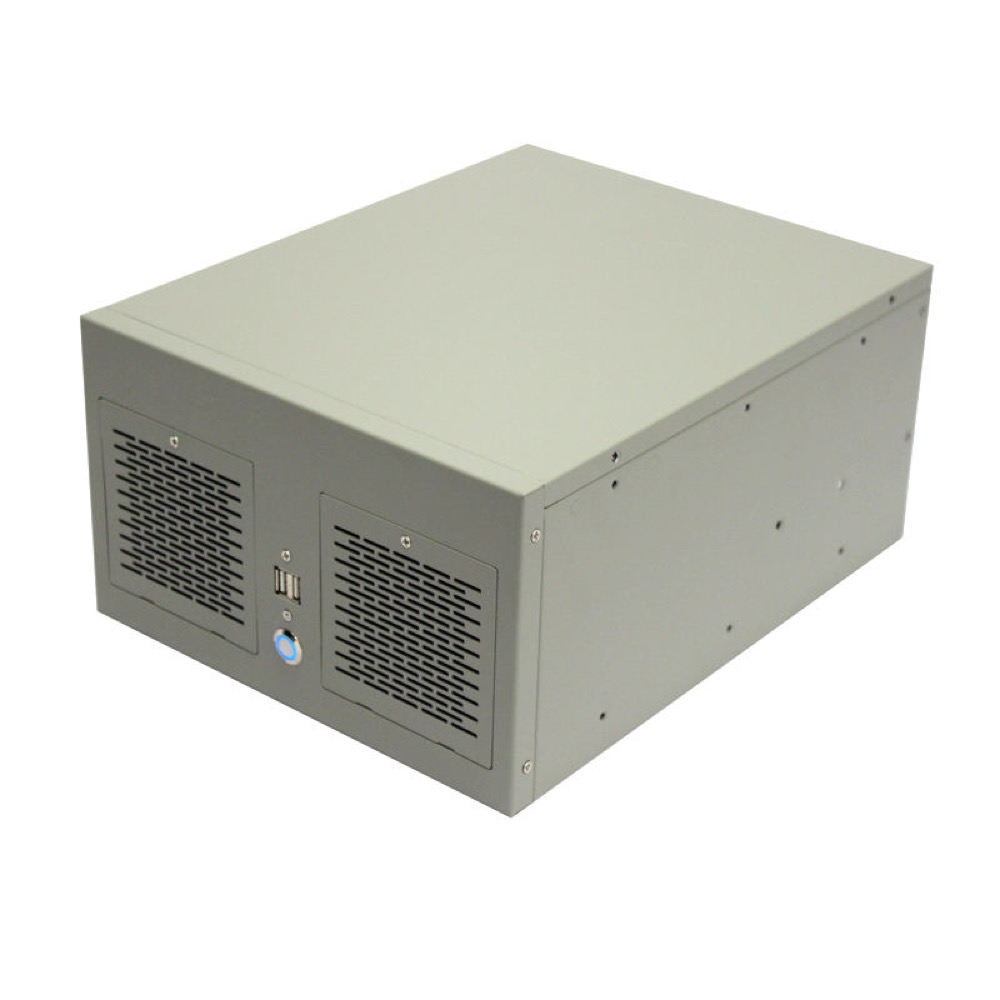

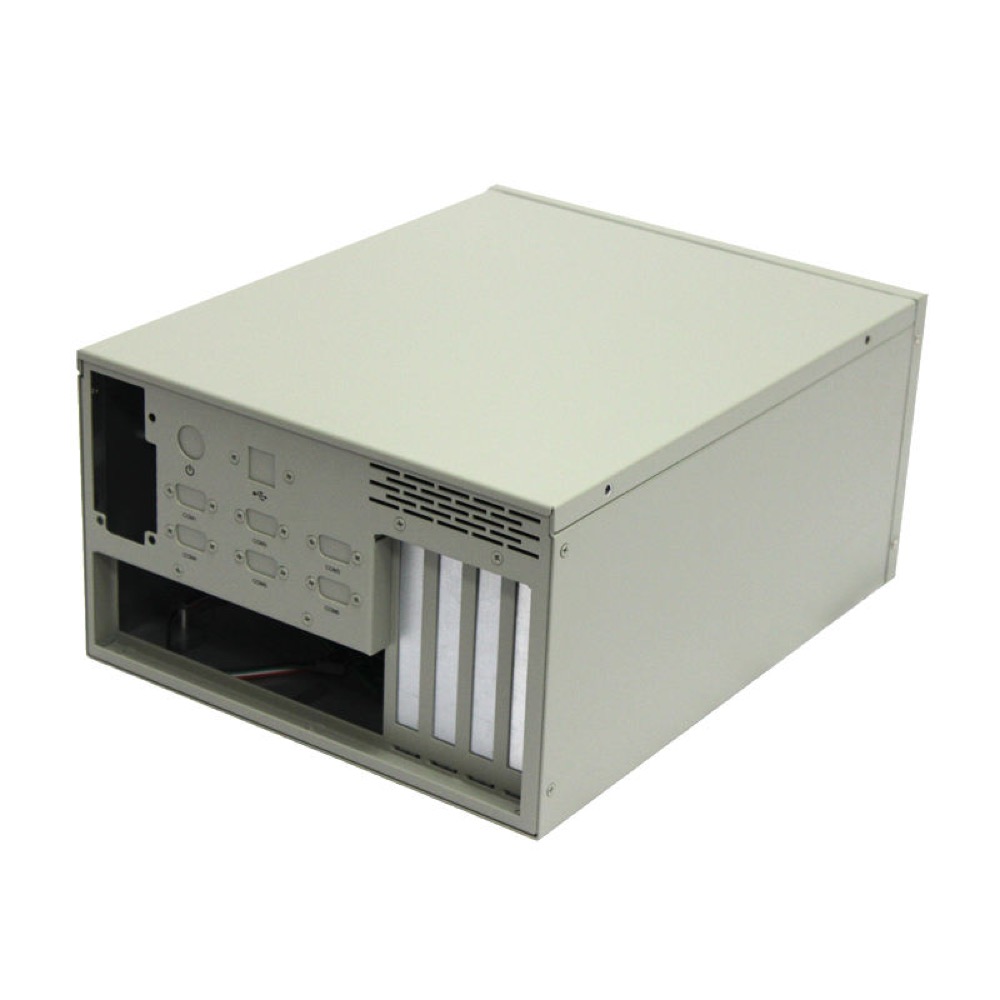

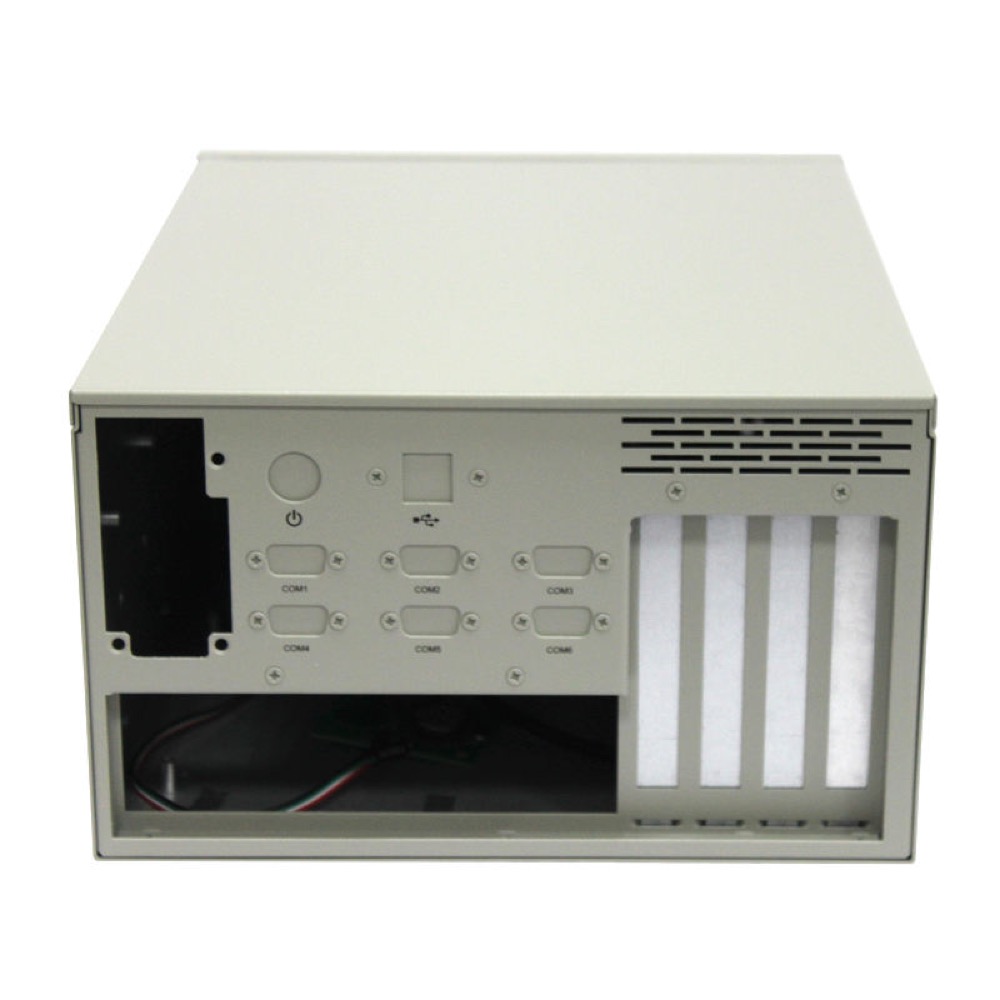

S34W 3.5U Micro-ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension260(W) × 330(D) × 155(H) mm
MountingRackmount
MotherboardMicro-ATX
Drive Bays1 bays
Industrial rackmount chassis for Micro-ATX systems. The supplier lists a 245 × 245 mm Micro-ATX motherboard footprint, 1U FLEX PSU support, one 3.5-inch or one 2.5-inch drive, four full-height straight expansion slots, two 8025 fans, and CE/RoHS certification. The enclosure is made from 1.2 mm SGCC steel and uses front/rear cooling. Supplier-listed dimensions are 260(W) × 330(D) × 155(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-S34W |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty rackmount chassis with two 8025 cooling fans. FLEX PSU support is provided; PSU and motherboard are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3.5U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | White |
| Width | 260 mm |
| Height | 155 mm |
| Depth | 330 mm |
| Weight | 5.5 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | One 3.5-inch HDD or one 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Full-height, Straight slot |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Front/rear cooling layout with USB front connectivity, four full-height straight expansion slots, and side-panel window. Supplier lists CE and RoHS certification. |
