Server Chassis
CHS-SRV-K348L
K348L 3U Storage Rackmount Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 380(D) × 133.5(H) mm
MountingRackmount
MotherboardATX, Micro-ATX, Mini-ITX
Drive Bays10 bays

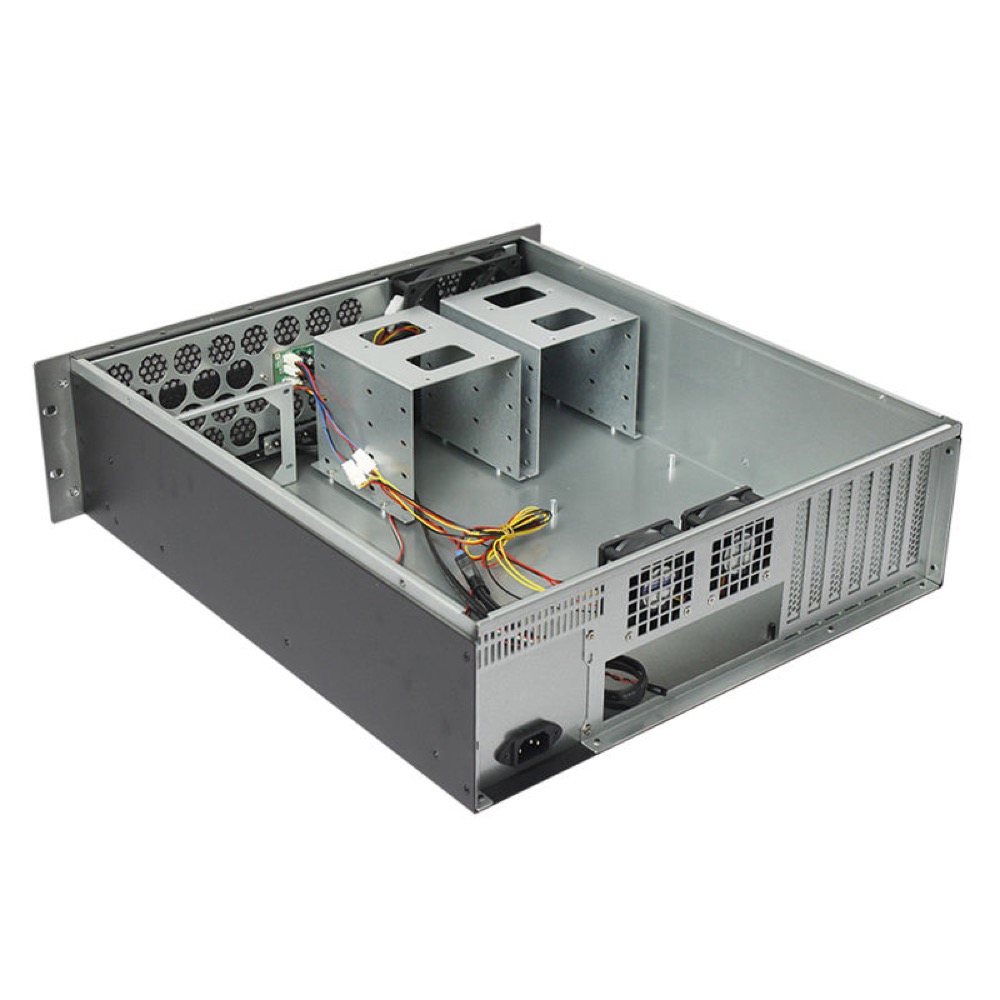

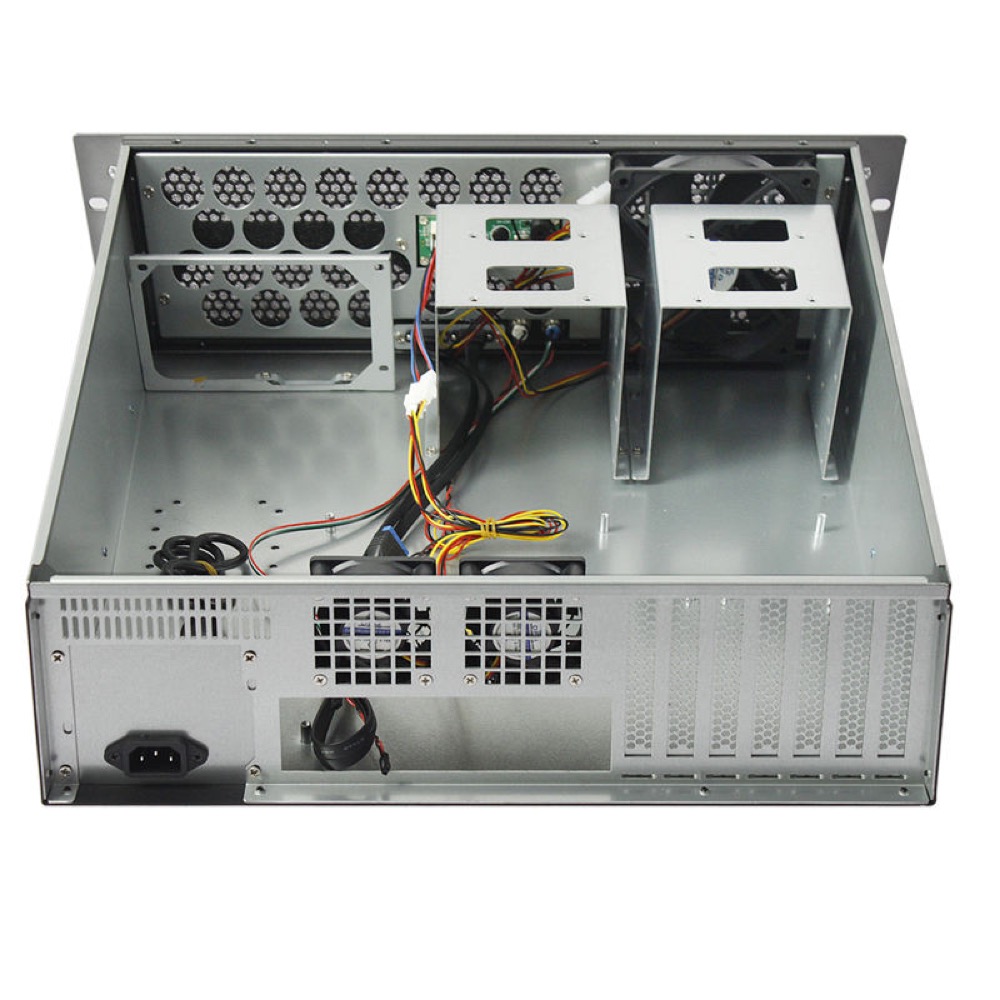

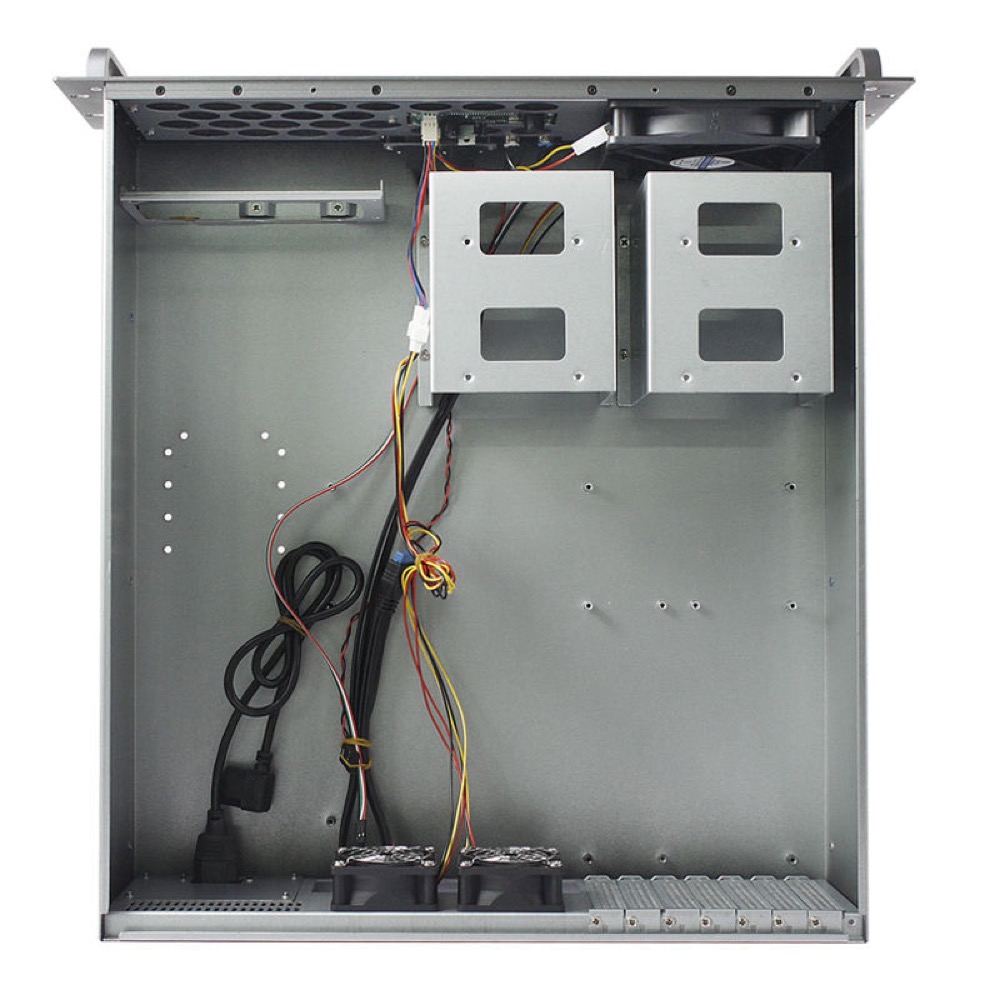

3U 19-inch industrial storage/server chassis for ATX-class systems. The supplier lists support for up to eight 3.5-inch drives, or six 3.5-inch plus two 2.5-inch drives, ATX/2U/redundant PSU support, seven PCI expansion slots, two 6025 fans plus one 12025 fan, and a front temperature LCD with two USB 3.0 ports, power, and reset. ATX motherboards are supported with Micro-ATX and Mini-ITX adapter configurations. Supplier-listed dimensions are 482(W) × 380(D) × 133.5(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K348L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount chassis with two 6025 fans, one 12025 fan, and front temperature LCD. ATX, 2U, and redundant PSU support are provided; PSU and motherboard are not included. |
| Use Case / Application | Server, Storage / NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | Aluminum alloy and steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133.5 mm |
| Depth | 380 mm |
| Weight | 9.6 kg gross / 6.5 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to ATX 305 × 245 mm; Micro-ATX and Mini-ITX supported with adapter configuration |
Power Supply
| PSU Support | ATX, 2U PSU, Redundant PSU |
| PSU Included | No |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | Up to 8 × 3.5-inch HDD, or 6 × 3.5-inch HDD + 2 × 2.5-inch HDD/SSD |
PCIe and GPU Support

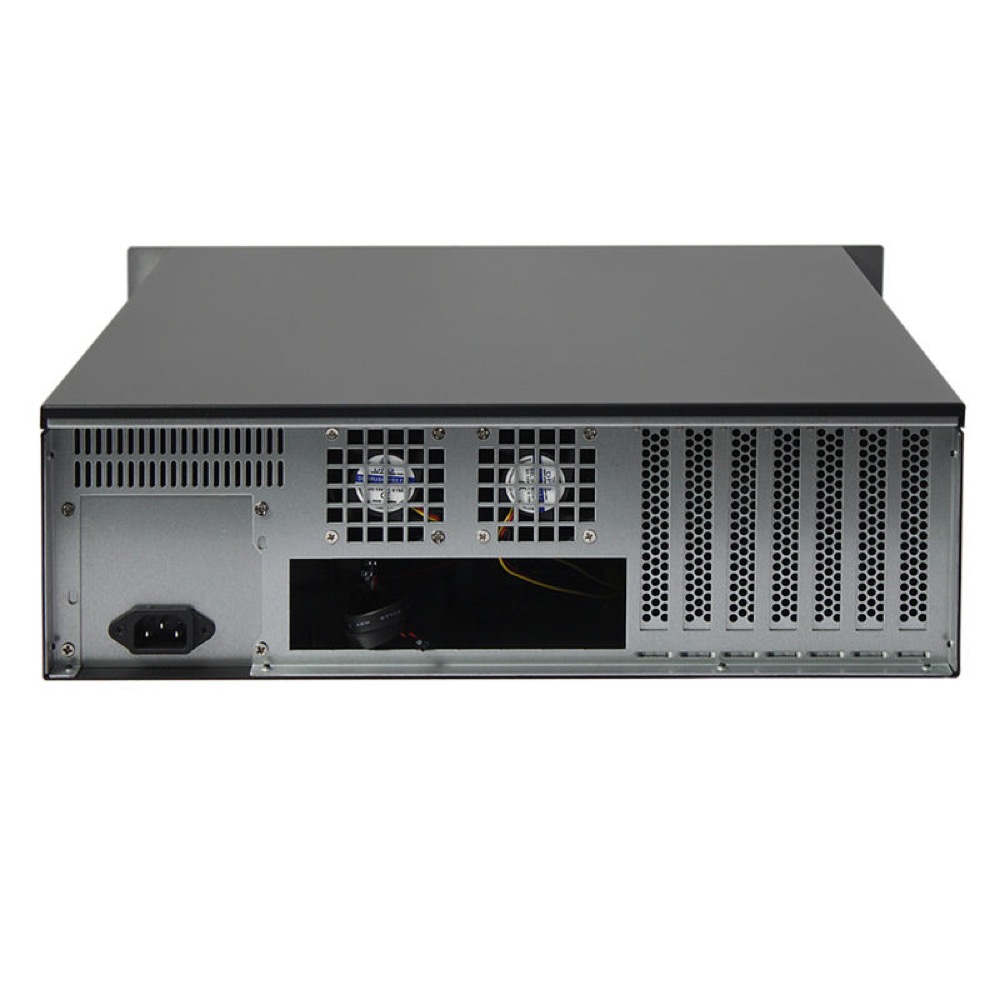

| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 60 × 60 × 25 mm (6025) × 2 + 120 × 120 × 25 mm (12025) × 1 |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity

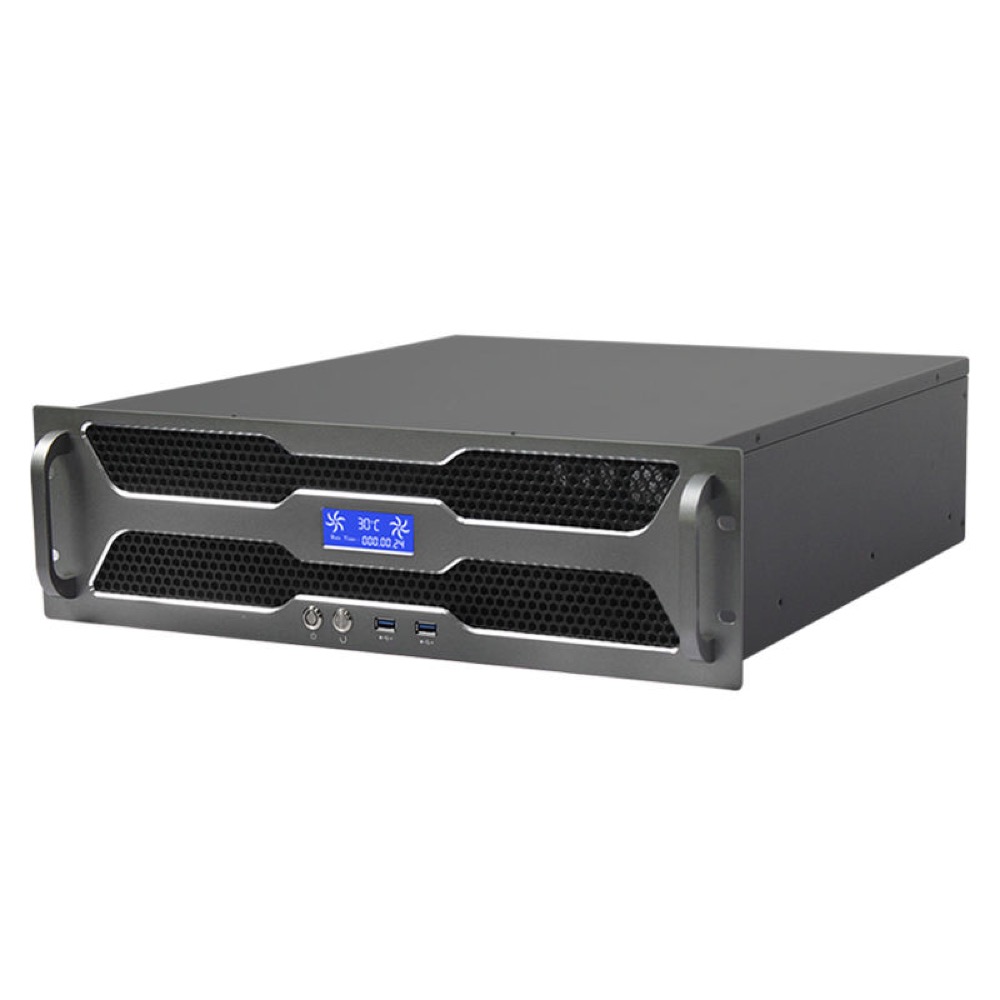

| Front I/O | Temperature LCD, USB 3.0, Power, Reset |
| Custom I/O Details | Front panel: temperature LCD, two USB 3.0 ports, power on/off, and reset. Seven PCI expansion slots are provided. Supplier lists ATX, 2U, and redundant PSU support. |
