In stock
Server Chassis
CHS-SRV-G348C-4
G348C-4 3U ATX Storage Rackmount Chassis with Temperature Display
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 480(D) × 133(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays

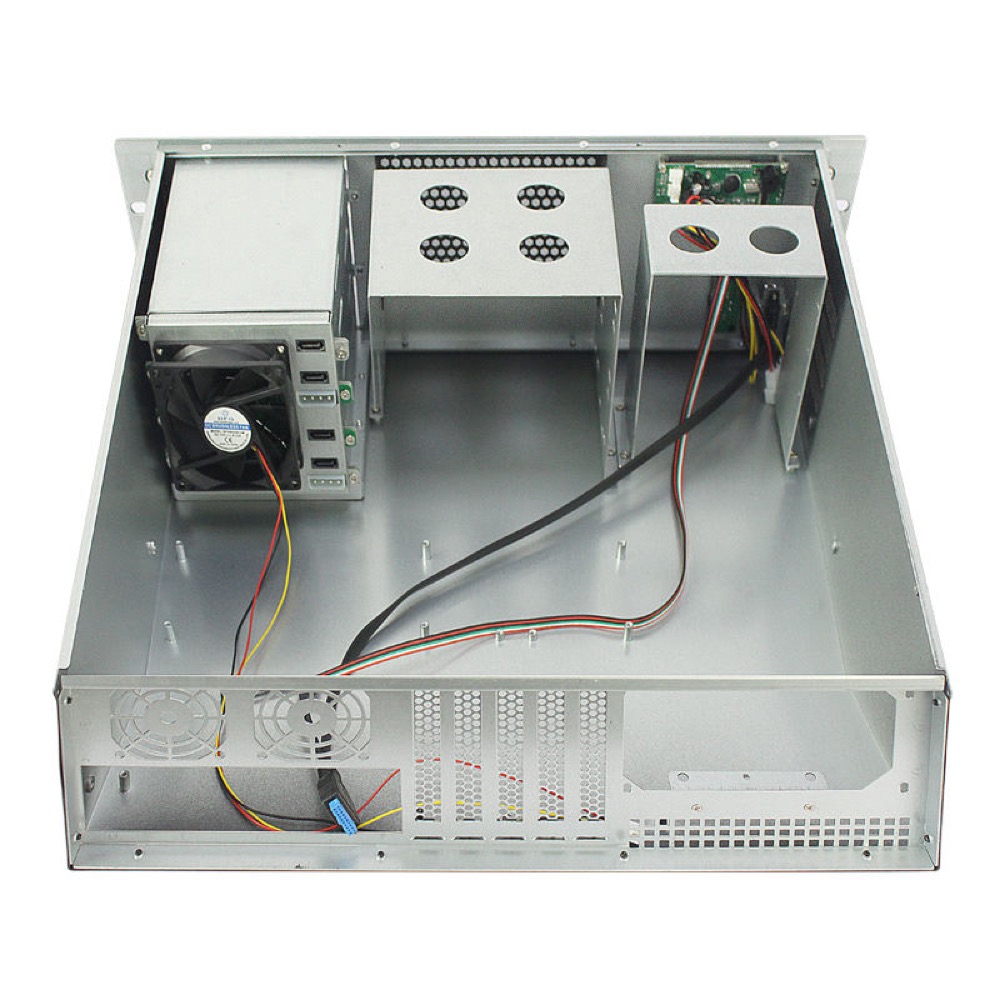

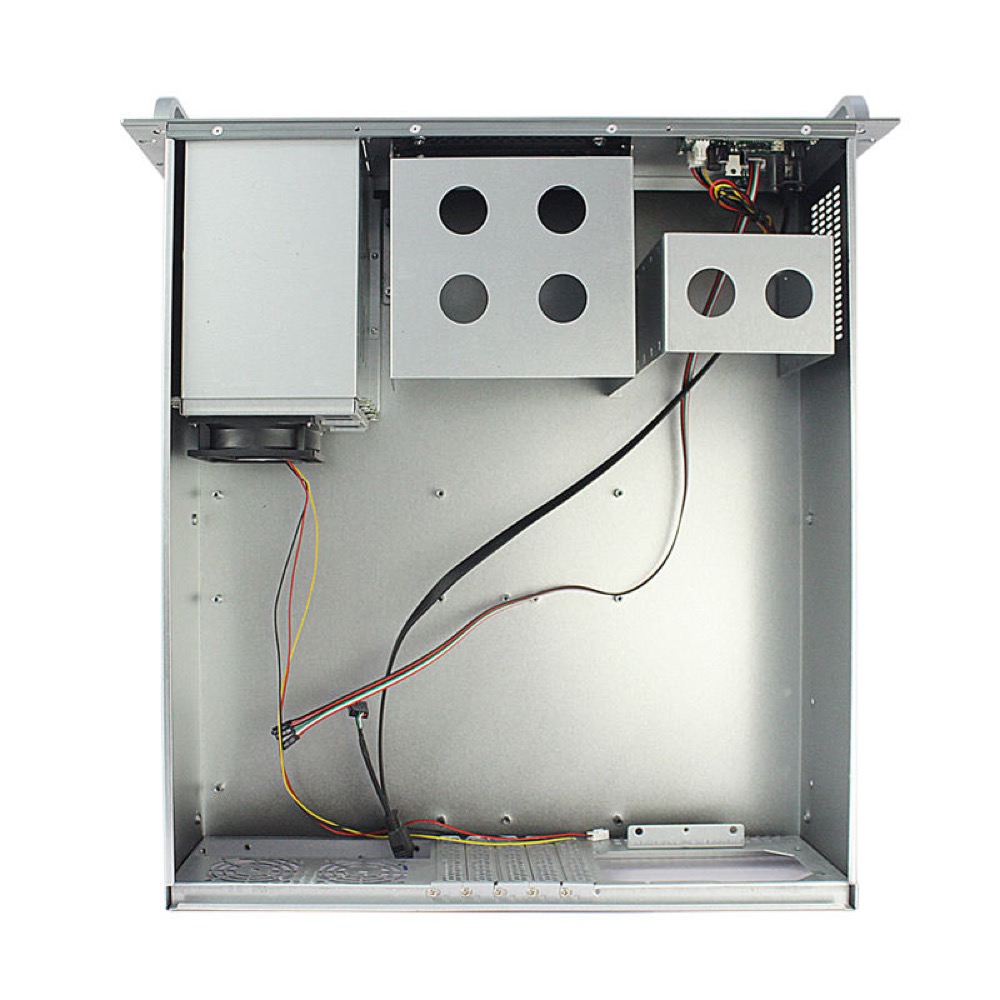

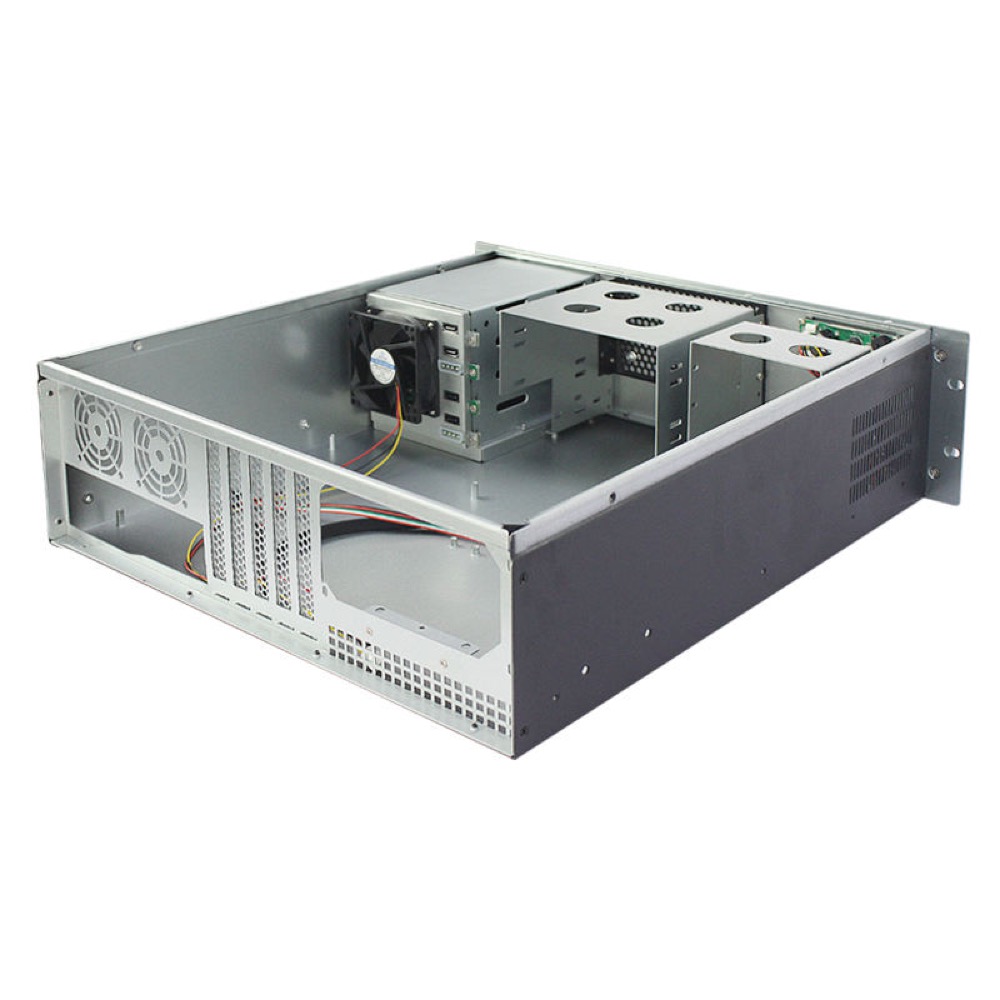

3U 19-inch storage and industrial rackmount chassis with a front temperature display for machine-status monitoring. The supplier lists an ATX-sized 305 × 245 mm board footprint, four 3.5-inch hot-swap trays in the key attributes and eight 3.5-inch total capacity in the detailed feature/specification, two 5.25-inch optical bays, ATX PSU support, five half/full-height straight PCIe slots, one 8025 fan, and front USB 3.0 and power controls. The SGCC enclosure measures 482(W) × 480(D) × 133(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-G348C-4 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U SGCC rackmount chassis with one 8025 cooling fan, front temperature display, and hot-swap drive-tray support. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | SGCC steel, 1.0 mm |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 480 mm |
| Weight | 10 kg gross / 8 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 4 × 3.5-inch hot-swap trays in key attributes; detailed listing states 8 × 3.5-inch total capacity |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 4 bays |
PCIe and GPU Support
| PCIe Slots | 5 slots |
| PCIe Slot Types | Five half/full-height, Straight PCIe slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 1 |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Temperature display; size and resolution not specified |
| Display Position | Front panel temperature display |
I/O and Connectivity

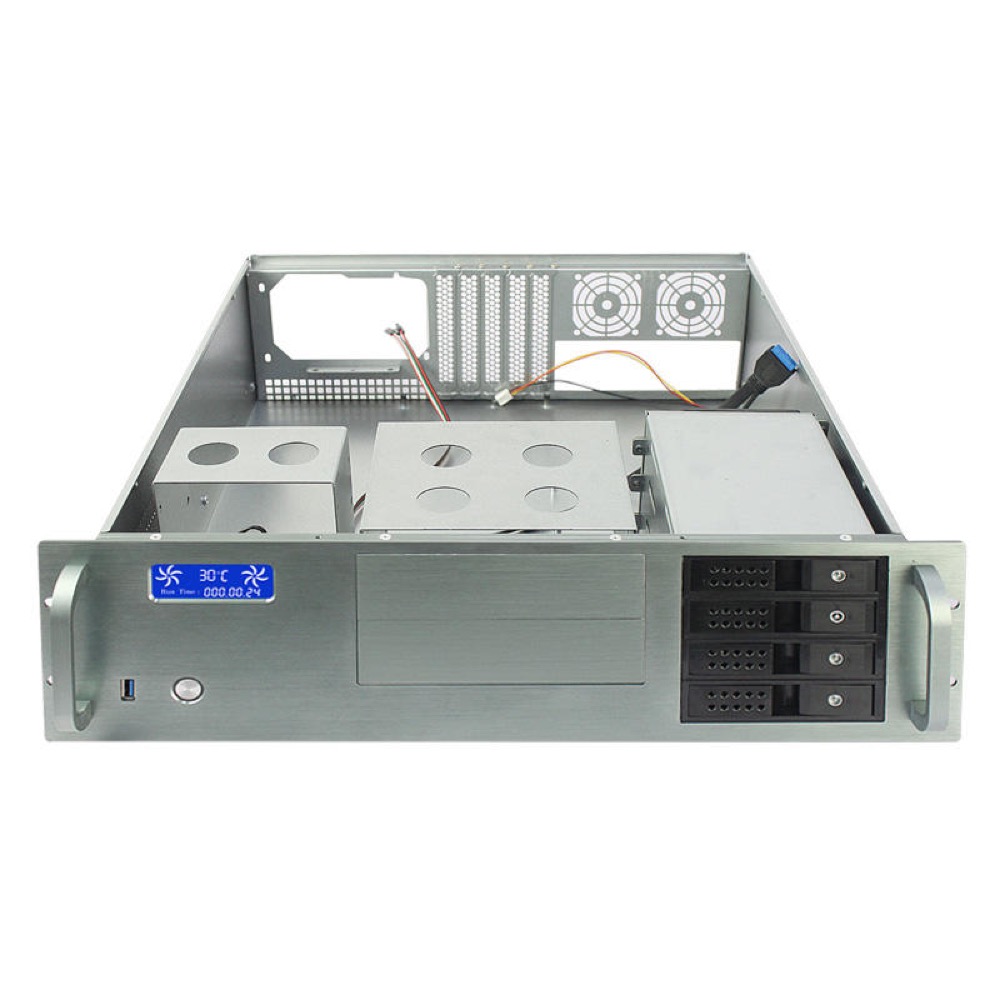

| Front I/O | USB 3.0, Power switch with indicator, Temperature display |
| Custom I/O Details | Front panel includes one USB 3.0 port, power switch with indicator, and a temperature screen for machine-working control. Supplier lists five half/full-height straight PCIe slots and ATX PSU support. |
